Product Description

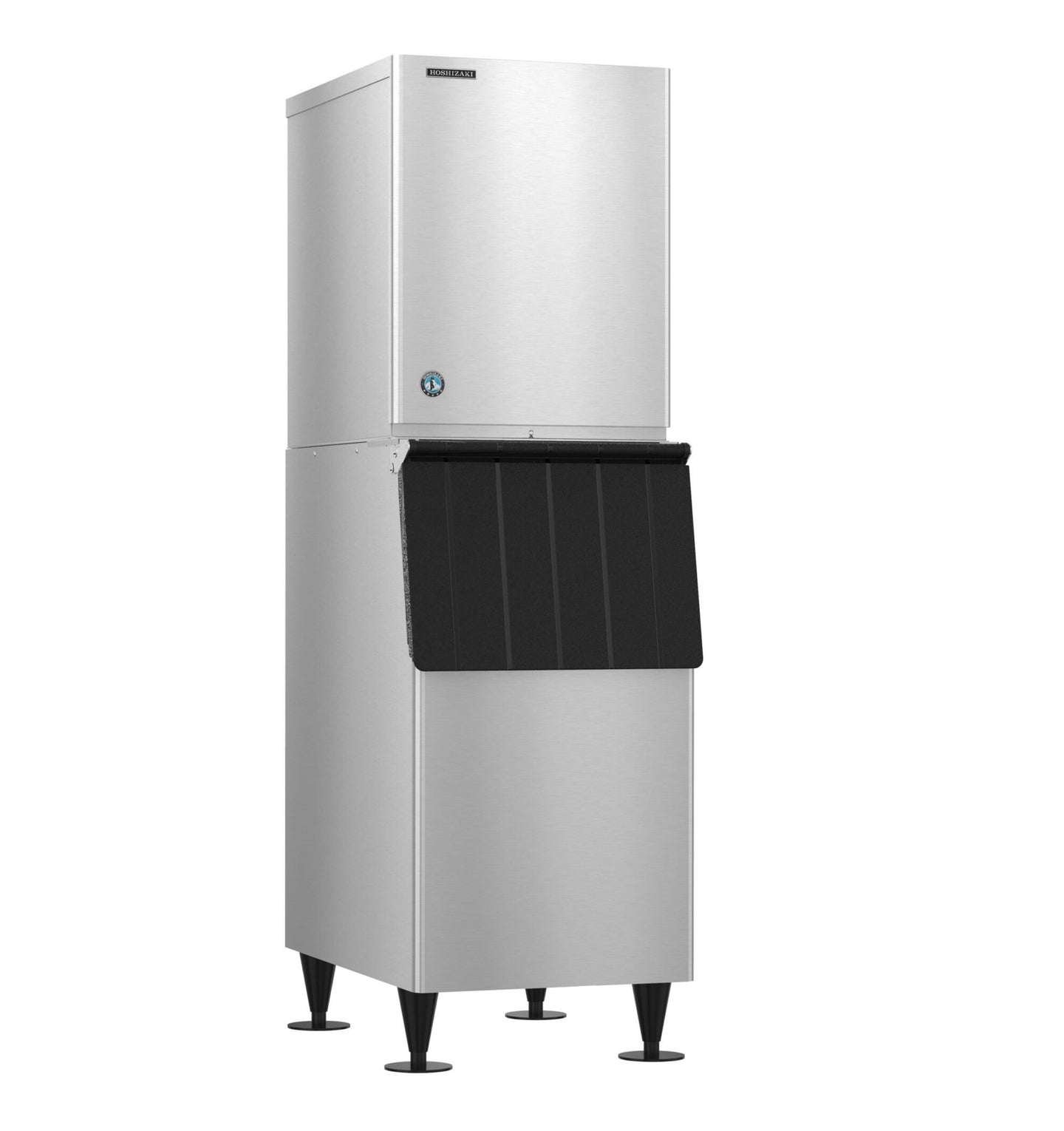

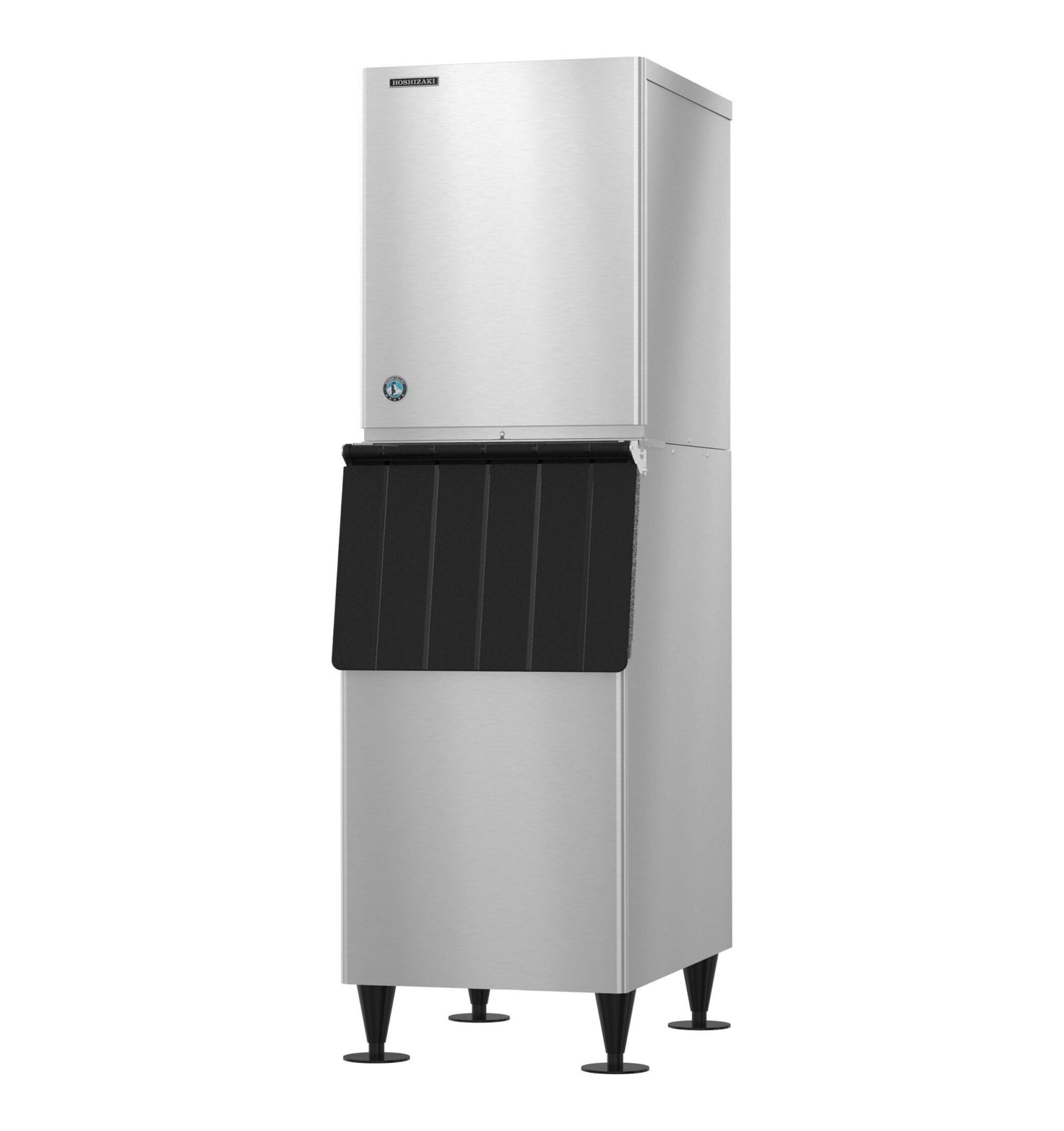

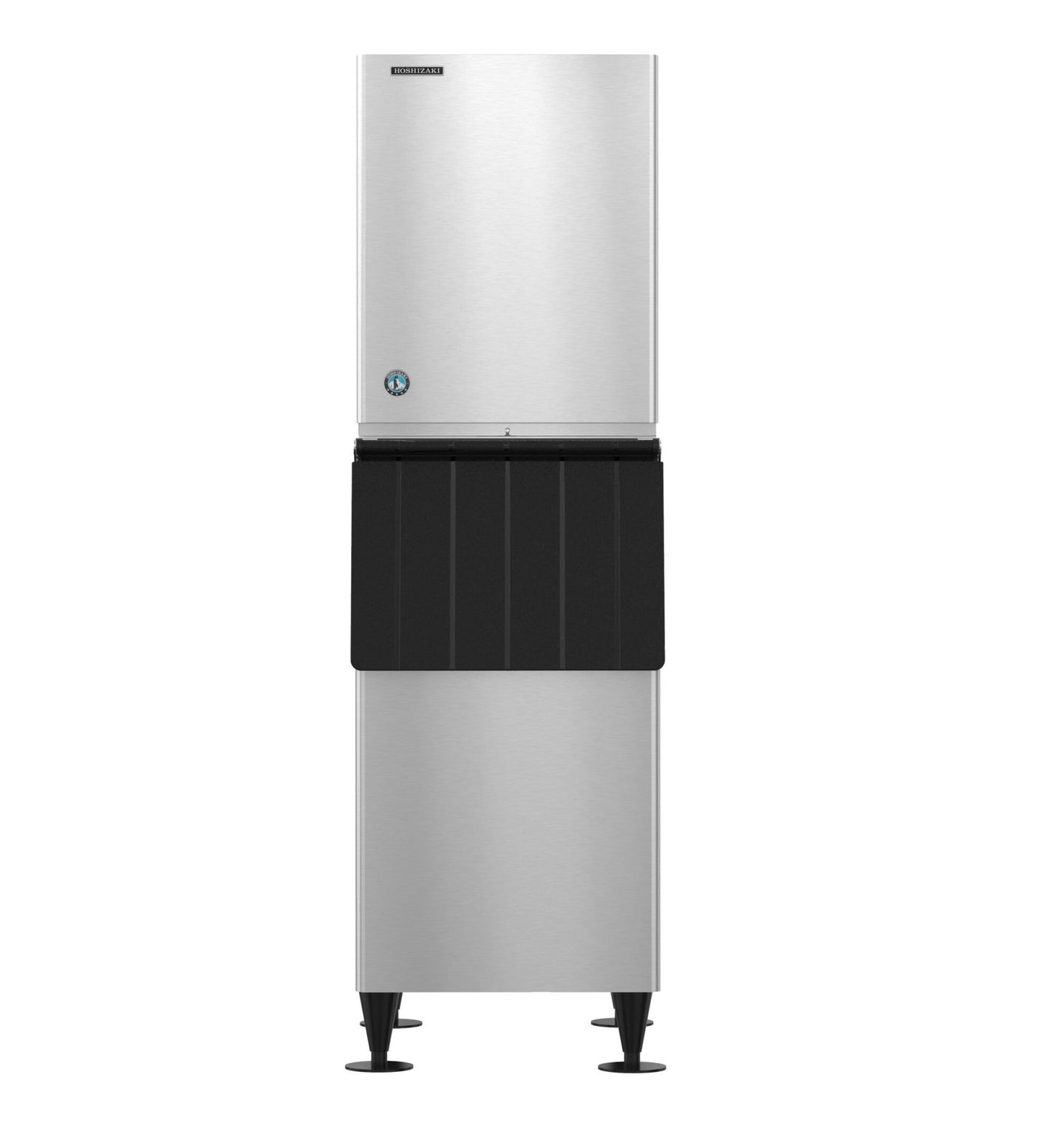

The Hoshizaki KM-660MRJZ is a 22-inch remote-cooled modular Crescent Cuber head making 642 pounds of ice per 24 hours. It is the highest-output remote machine in Hoshizaki's slim-line range and the answer when a high-production head has to sit in a space that cannot take the heat or the noise.

High output without the heat load

A 640-pound air-cooled head rejects a meaningful amount of heat into its room and runs a condenser fan continuously. Move the condensing unit to a roof or exterior pad and the head becomes a quiet stainless cabinet — practical for bar backs, guest-floor pantries, dining-room service stations and any interior room with no mechanical ventilation. The line set and its installation are the trade-off.

115V power at 642 pounds a day

The head runs from a 115V single-phase circuit drawing 16.1 amps on a 20 amp maximum fuse, with three wires including ground, hardwired at the site. Confirm the branch circuit can carry it. Hoshizaki rates the machine at 5.6 kWh and 14.7 gallons of potable water per 100 pounds of ice at 90/70 conditions, and it is ENERGY STAR qualified.

Crescent cube ice

Ice is formed on double-sided stainless steel KM Edge evaporators into the crescent shape, flat on one face and curved on the other. It packs a glass without bridging, drains cleanly and melts slowly, which is why beverage-led operations specify it. Sold as a head only; a separate storage bin or dispenser is required. Refrigerant charge is 2 lb 4.7 oz of R-404A.

Specifications

Model KM-660MRJZ
Ice production 642 lb per 24 hours
Ice shape Crescent cube
Condenser Remote-cooled
Exterior dimensions 22" W x 27-3/8" D x 28" H
Shipping weight 180 lb
Electrical 115V / 60Hz / 1 phase, 3-wire, hardwired
Amperage 16.1 A
Maximum fuse 20 A
Refrigerant R-404A, 2 lb 4.7 oz (1,012 g)
Energy consumption 5.6 kWh per 100 lb at 90/70
Water consumption 14.7 gal potable water per 100 lb at 90/70
Certifications ENERGY STAR qualified, AHRI Standard 810, NSF, UL Listed, Georgia Made Certified

Warranty

Hoshizaki covers the KM-660MRJZ with three years parts and labor on the entire machine and five years parts and labor on the evaporator.
