Product Description

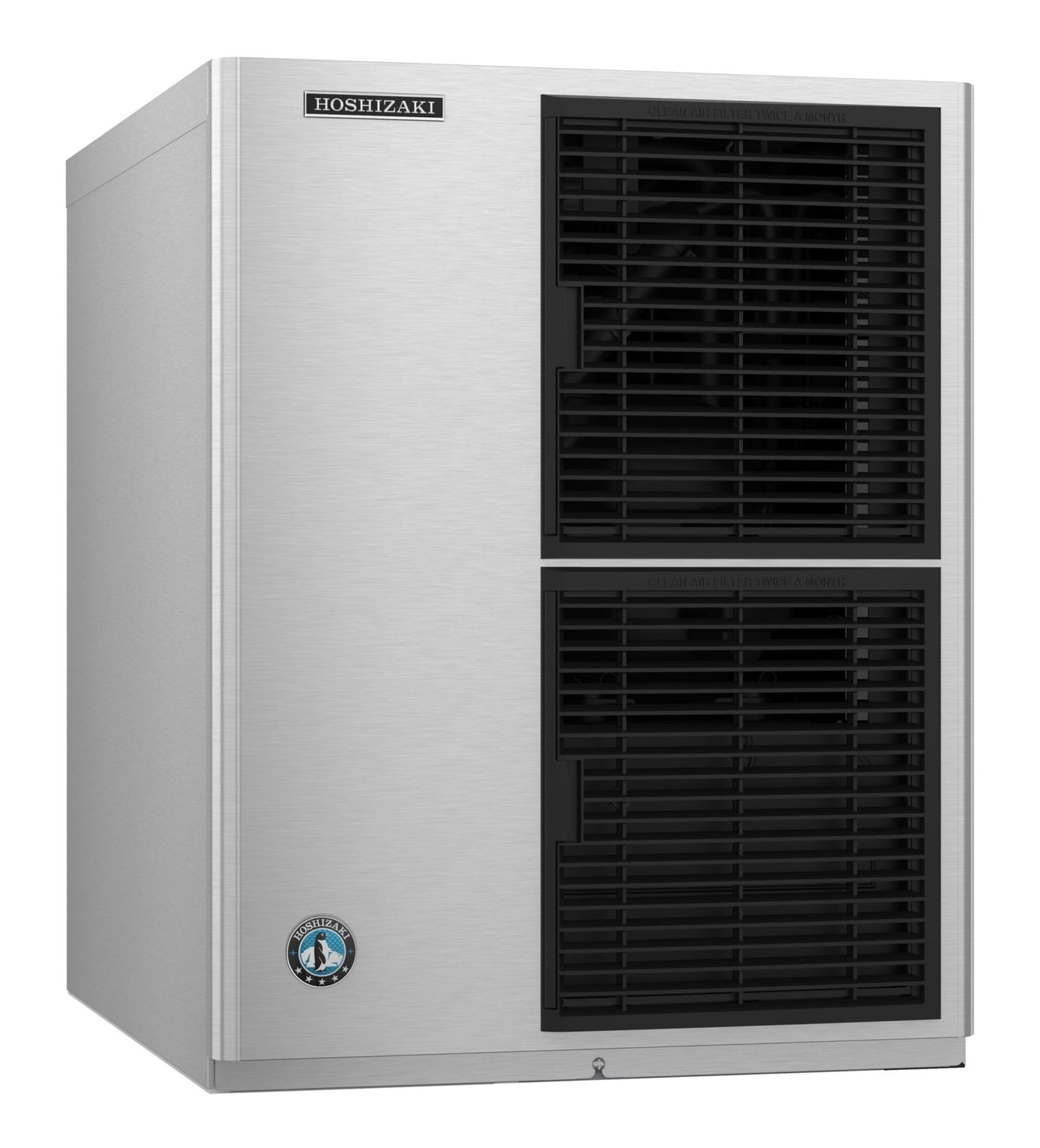

The Hoshizaki KM-660MAJ-E is the 50Hz export build of Hoshizaki's largest 22-inch slim-line Crescent Cuber, rated at 280 kg of ice per 24 hours. It is intended for territories running 220-240V 50Hz supply rather than North American 115V 60Hz service.

A true 50Hz machine

The compressor, fan and controls are specified for 50Hz operation, so this is not a domestic machine adapted at the point of sale. It draws 8.4 amps on a 220-240V single-phase supply against a 15 amp maximum fuse and arrives cord-connected with a Type G plug on a 3,000 mm lead. Dimensions are published in metric: 559 mm wide, 695 mm deep, 711 mm tall.

Highest output in the slim-line format

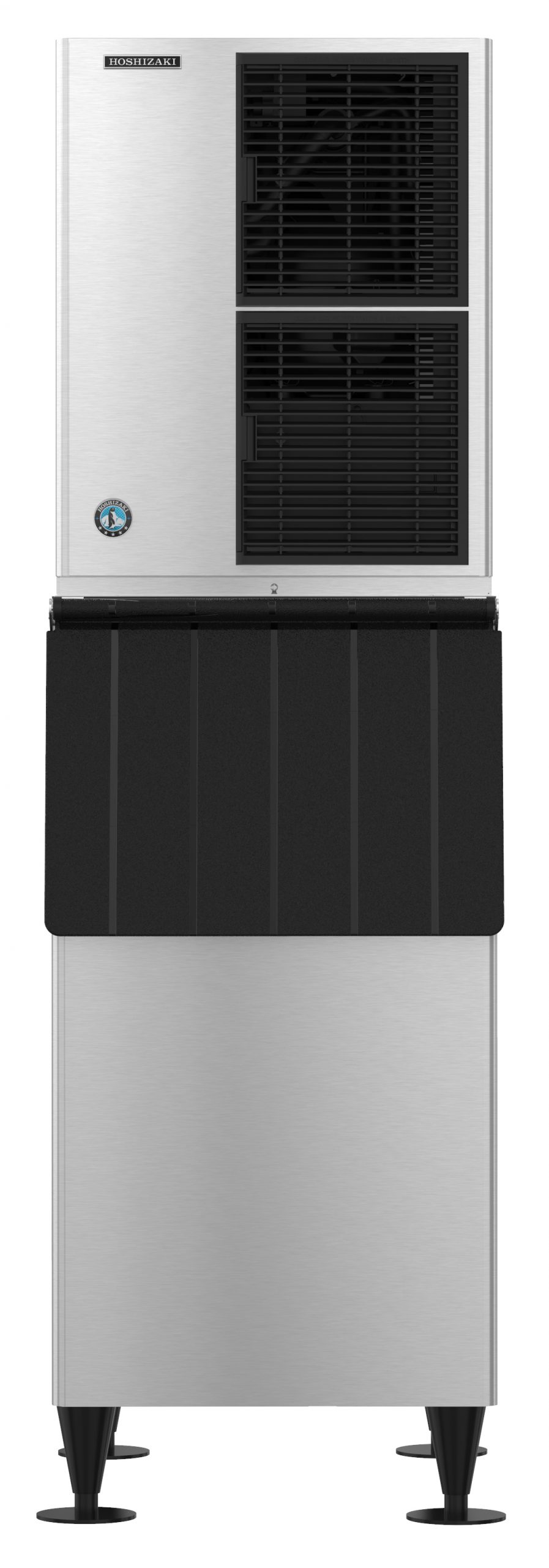

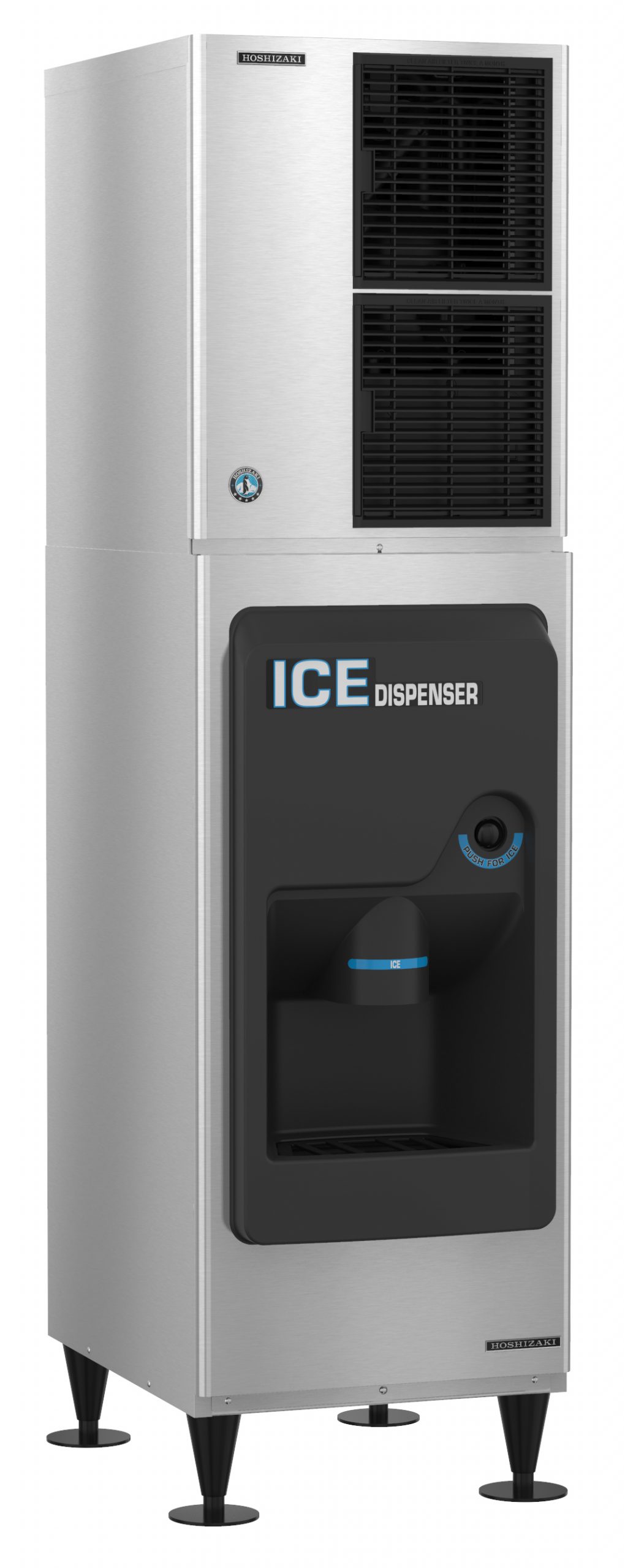

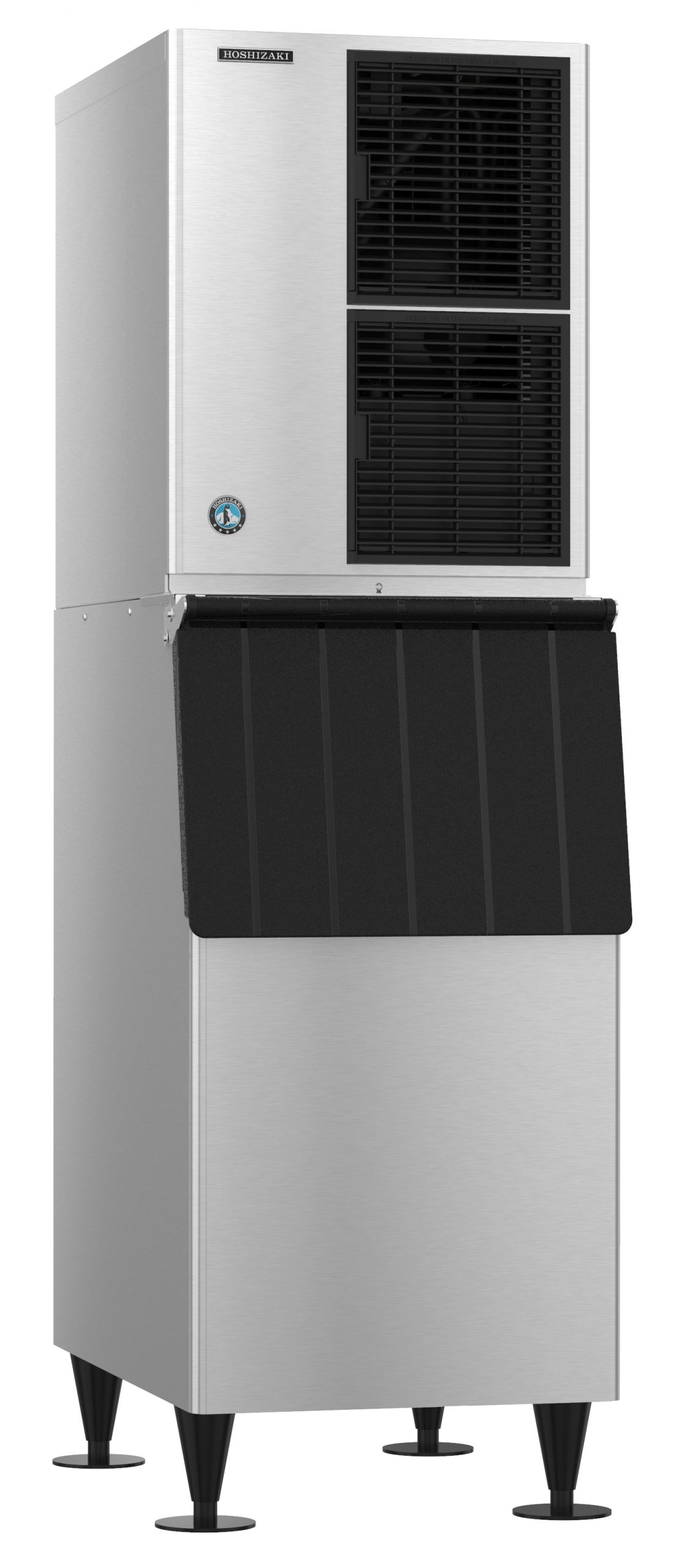

At 280 kg a day this is the top of the 22-inch range, which makes it the choice where daily demand is high but wall space is not available for a 30-inch cabinet. It remains a modular head requiring a separate bin, and mates with Hoshizaki's B-250, B-300, B-500, B-700, B-800, B-900, B-1150 and B-1300 bins and the DB-130H, DB-200H and DM-200B dispensers.

Crescent cube ice

Ice forms on double-sided stainless steel KM Edge evaporators into the crescent shape — flat on one face, curved on the other — which packs a glass evenly without bridging and melts slowly in a drink. The circuit carries 760 g of R-404A, and the unit is NSF certified. Hoshizaki publishes consumption of 4.85 kWh and 52 gallons of potable water per 100 lb of ice at 90/70 conditions.

Specifications

Model KM-660MAJ-E
Ice production 280 kg per 24 hours
Ice shape Crescent cube
Condenser Air-cooled
Exterior dimensions 559 mm W x 695 mm D x 711 mm H (22" x 27-3/8" x 28")
Shipping weight 185 lb
Electrical 220-240V / 50Hz / 1 phase, Type G plug, 3,000 mm cord
Amperage 8.4 A
Maximum fuse 15 A
Refrigerant R-404A, 760 g
Energy consumption 4.85 kWh per 100 lb at 90/70
Water consumption 52 gal potable water per 100 lb at 90/70
Compatible bins B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, DB-130H, DB-200H, DM-200B
Certifications NSF

Warranty

Hoshizaki does not publish standard warranty terms for this export model. Contact the factory for warranty coverage applicable to your territory.
