Product Description

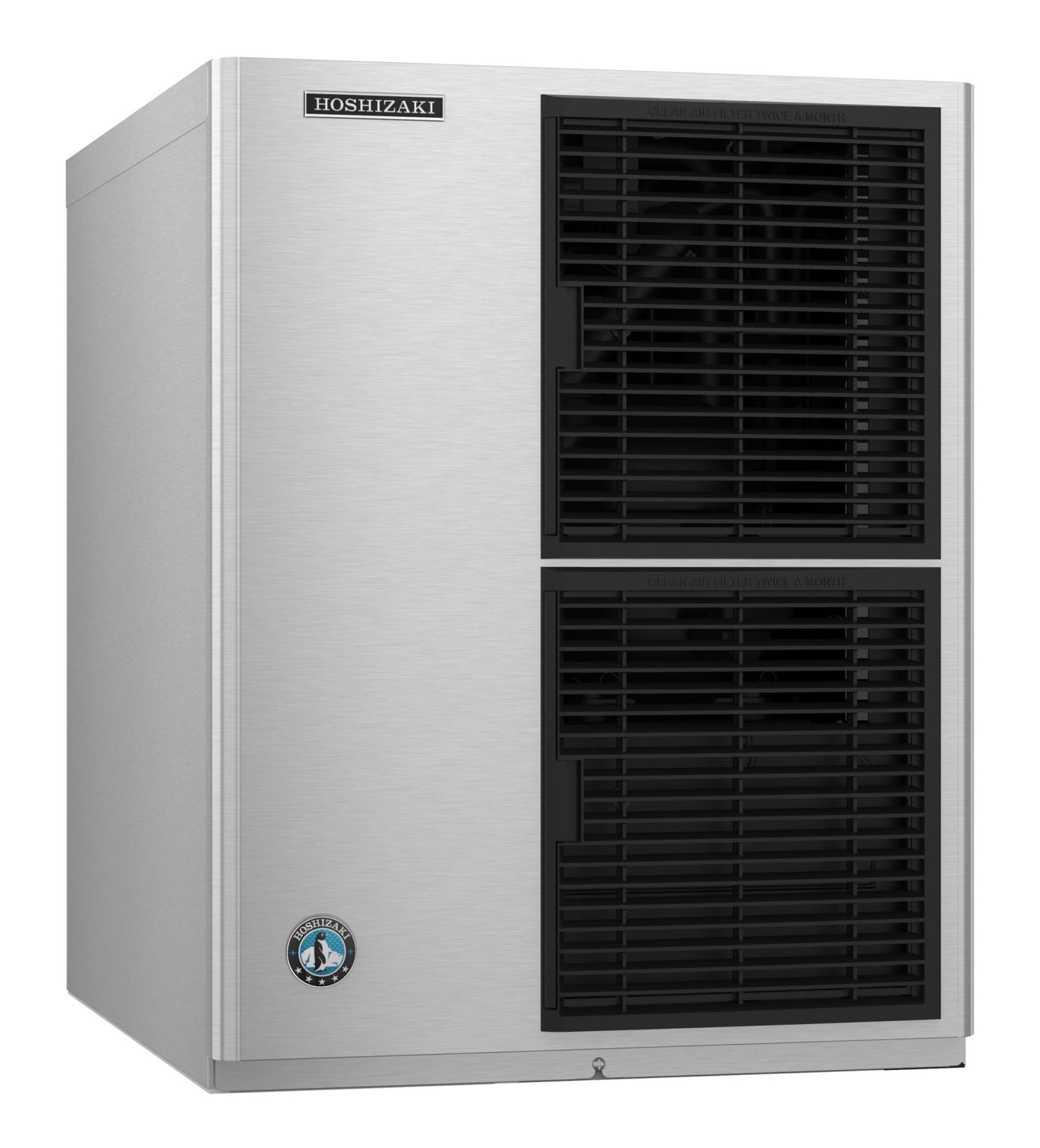

The Hoshizaki KM-660MAJ is a 22-inch air-cooled modular Crescent Cuber head producing 650 pounds of ice per 24 hours. It is the largest machine in Hoshizaki's slim-line MJ range, for operations that need serious production without giving up a 30-inch equipment slot.

Top of the slim-line range

Six hundred and fifty pounds a day covers a full-service restaurant with a busy bar, a mid-size hotel breakfast operation or a hospital cafeteria. Delivering that in a 22-inch cabinet means the machine can go where the layout allows rather than forcing a rethink of the equipment run. It draws 15.2 amps on a 115V single-phase circuit with a 20 amp maximum fuse, hardwired at the site — check the available circuit before ordering, since 15.2 amps is close to the practical limit of a 115V branch.

Air-cooled and water-efficient

With no condenser water line, water use is just 14.8 gallons per 100 pounds of ice at 90/70 conditions, essentially all of it going into the ice. Energy consumption is 5.12 kWh per 100 pounds. As with any air-cooled head, respect the manufacturer's clearances: a machine of this output in a sealed cabinet will recirculate its own heat and lose production.

Crescent cube ice and bin options

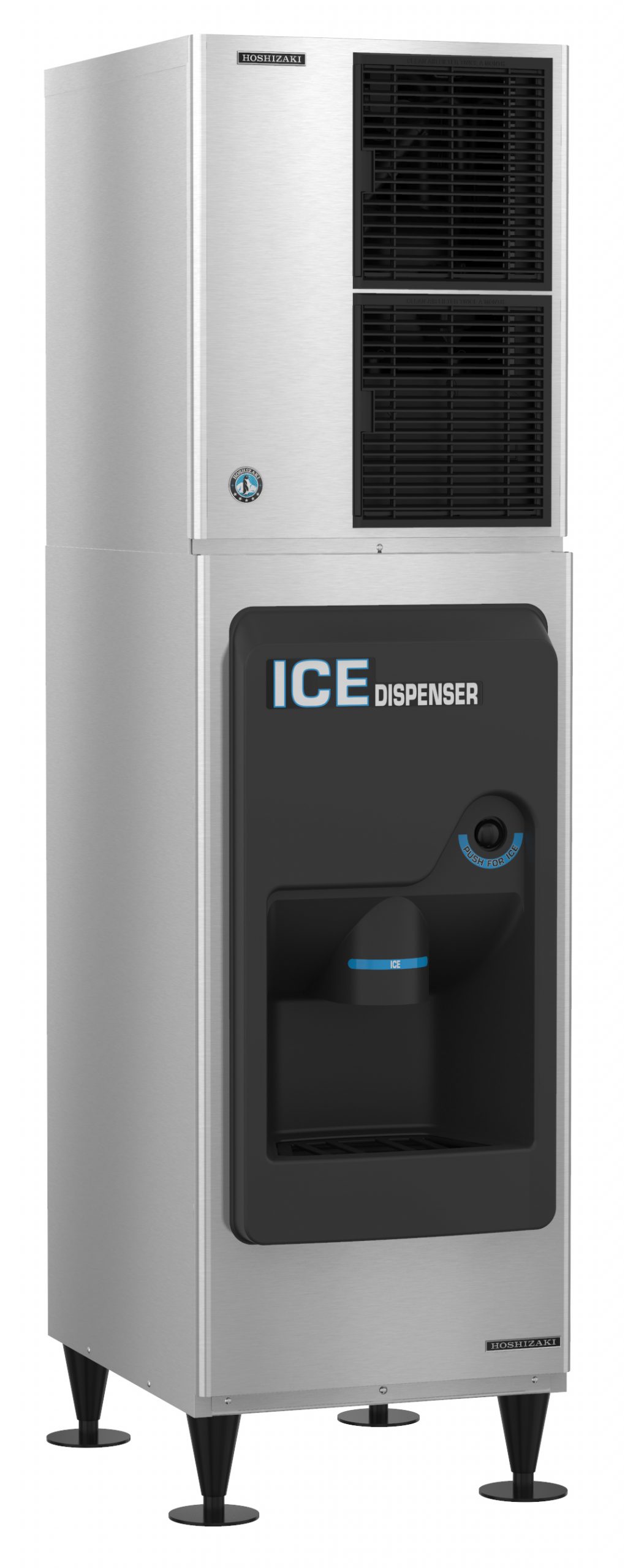

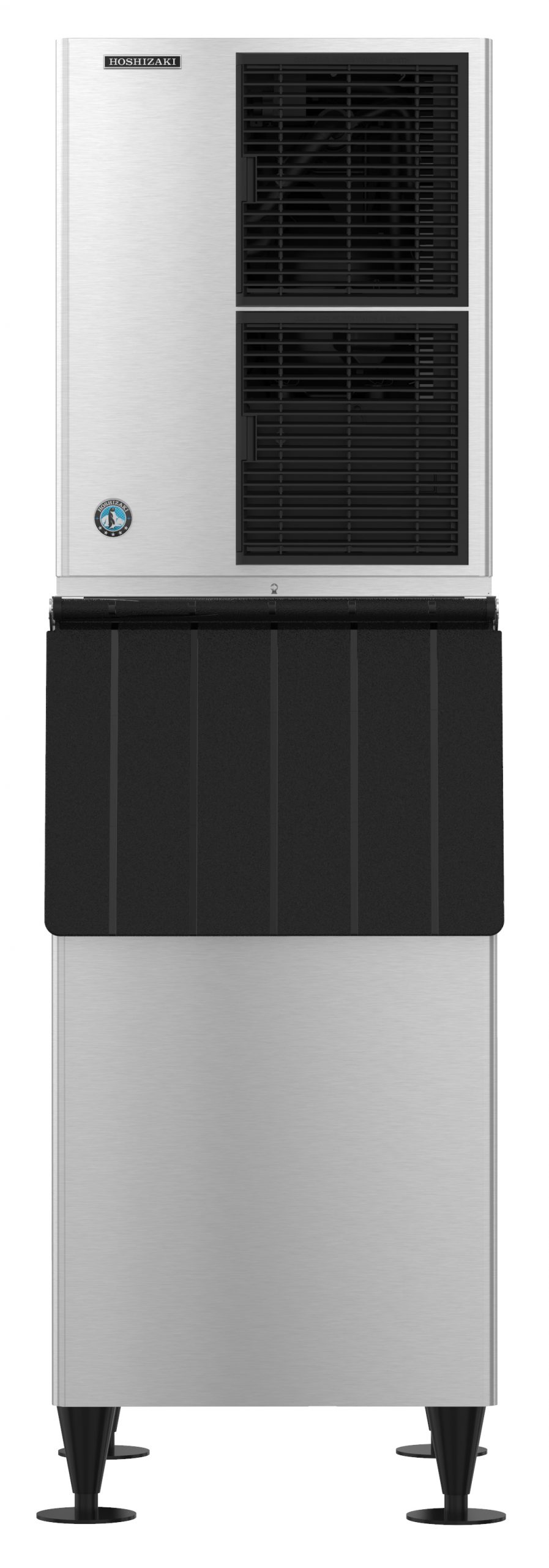

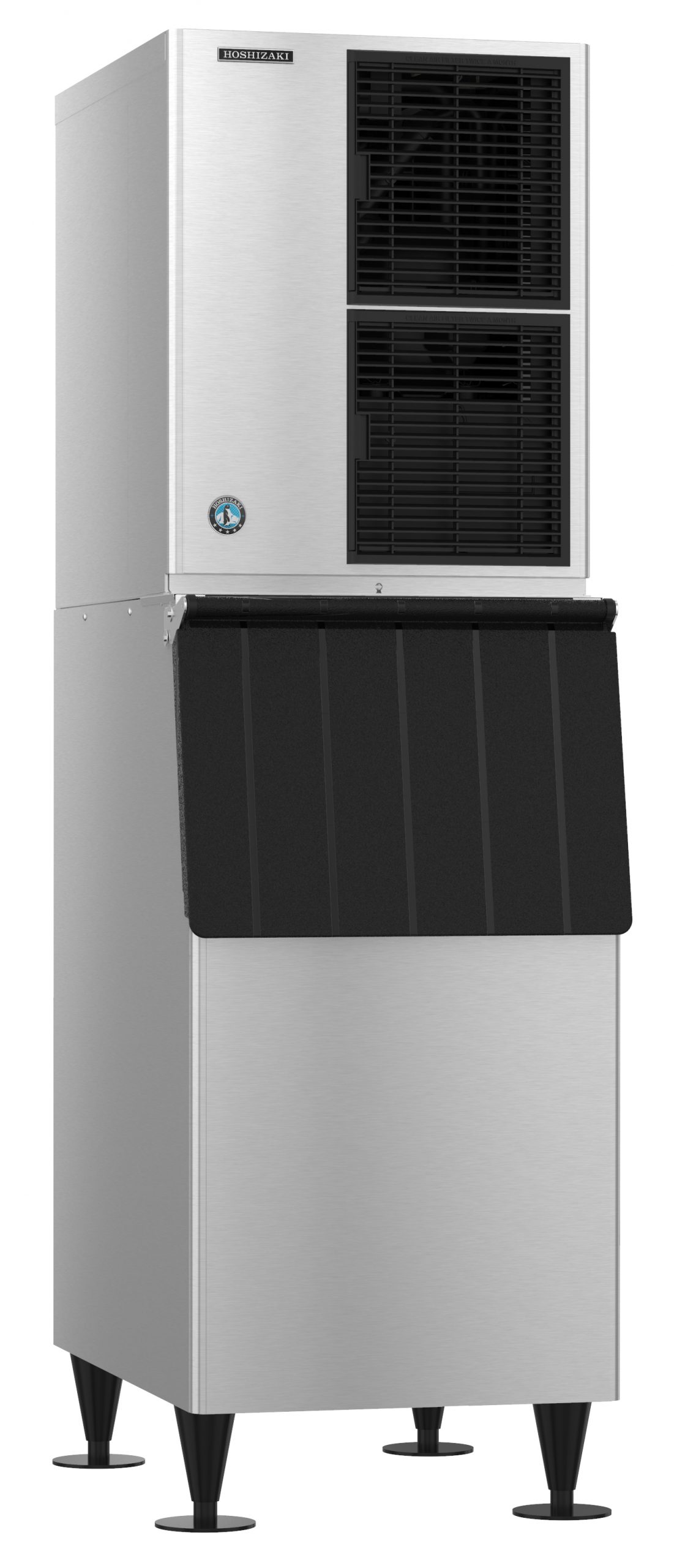

Ice forms on double-sided stainless steel KM Edge evaporators into Hoshizaki's crescent shape, which packs a glass without bridging and melts slowly in a drink. This is a head only; compatible bins are the B-250, B-300, B-500, B-700, B-800, B-900, B-1150 and B-1300, plus the DB-130H, DB-200H and DM-200B dispensers.

Specifications

Model KM-660MAJ
Ice production 650 lb per 24 hours
Ice shape Crescent cube
Condenser Air-cooled
Exterior dimensions 22" W x 27-3/8" D x 28" H
Shipping weight 180 lb
Electrical 115V / 60Hz / 1 phase, 3-wire with ground, hardwired
Amperage 15.2 A
Maximum fuse 20 A
Refrigerant R-404A, 1 lb 9.8 oz (731 g)
Energy consumption 5.12 kWh per 100 lb at 90/70
Water consumption 14.8 gal potable water per 100 lb at 90/70
Compatible bins B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, DB-130H, DB-200H, DM-200B
Certifications AHRI Standard 810, NSF, UL Listed, Georgia Made Certified

Warranty

Hoshizaki covers the KM-660MAJ with three years parts and labor on the entire machine and five years parts on the compressor, air-cooled condenser coil and evaporator.
