Product Description

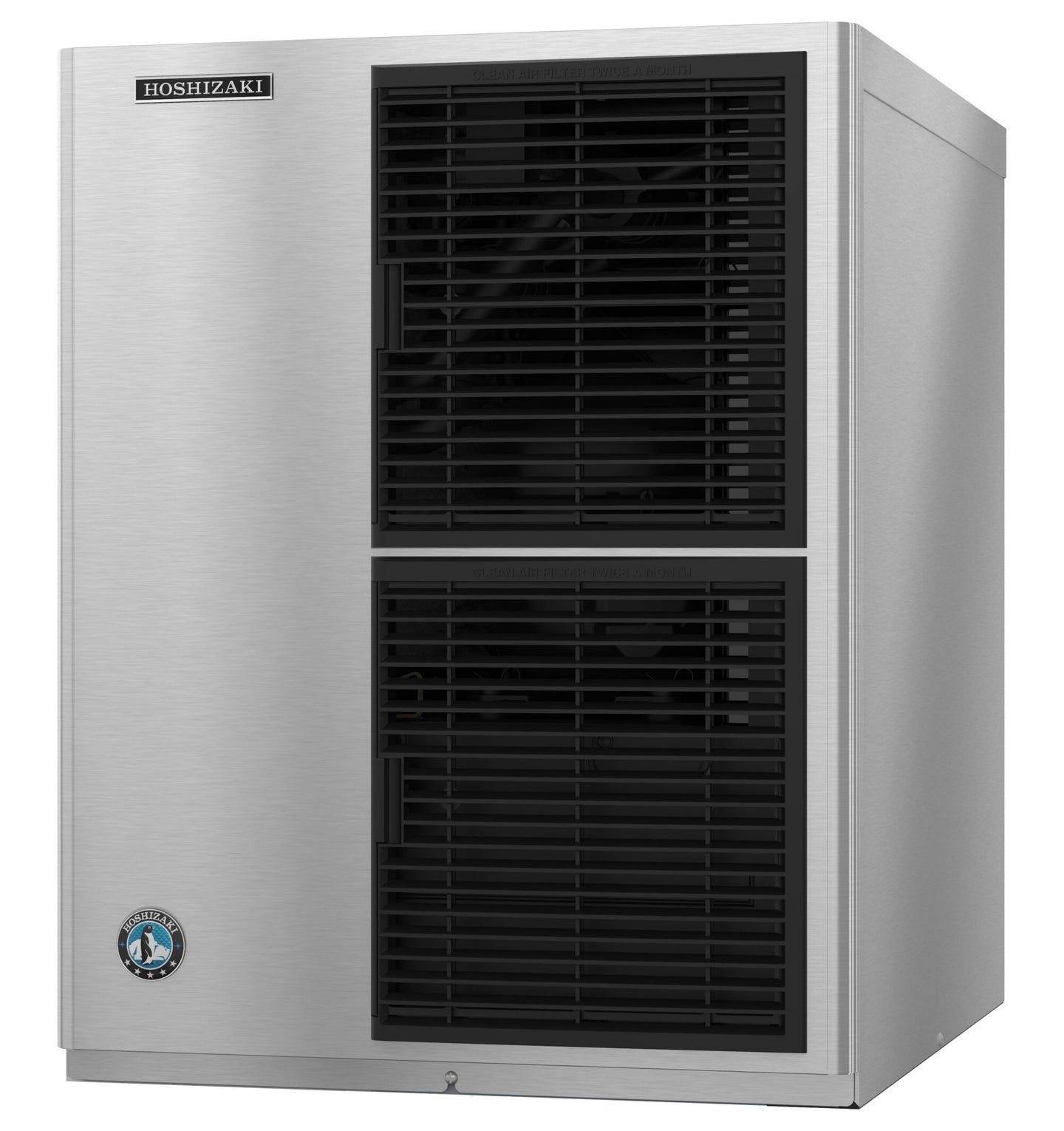

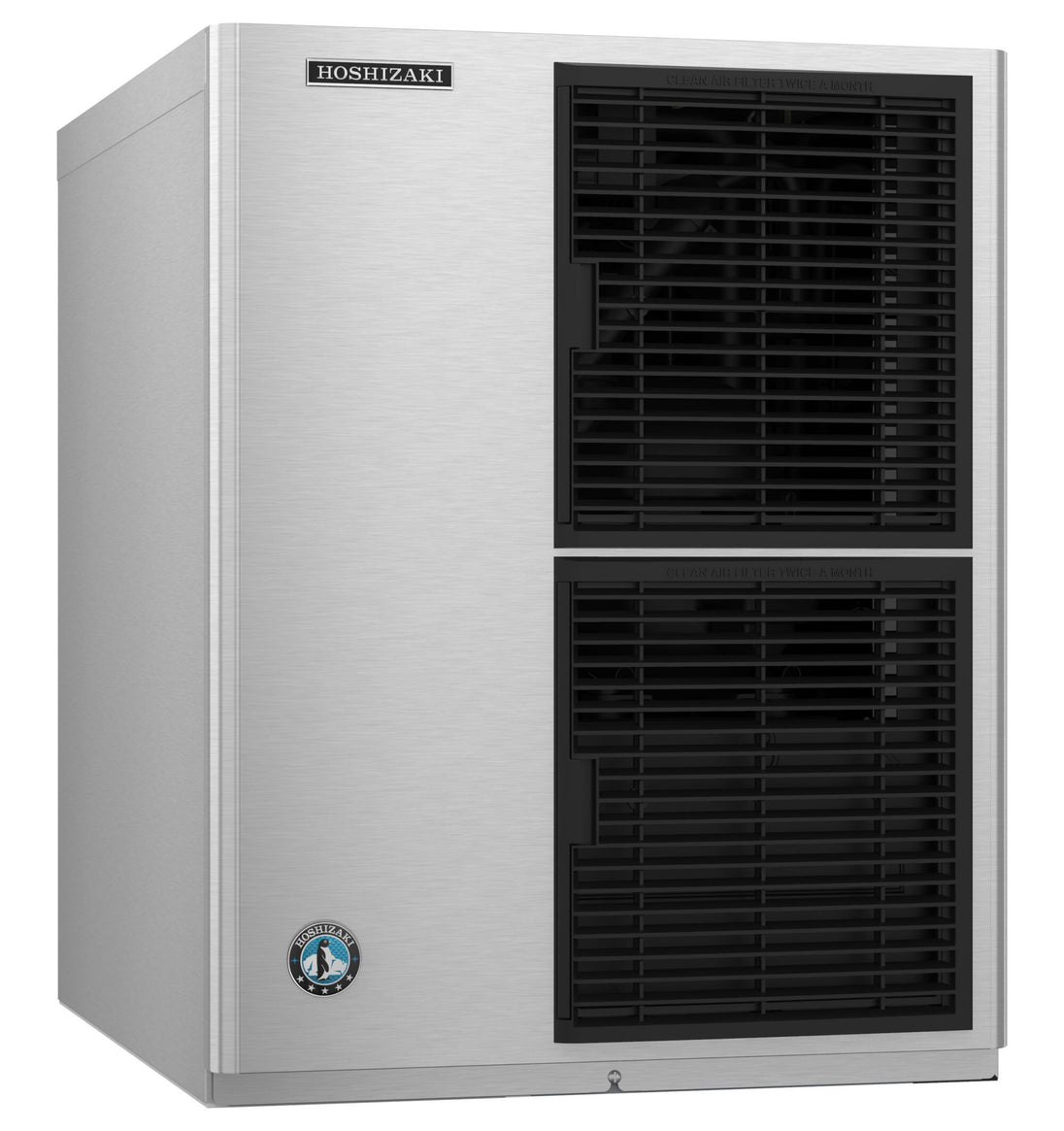

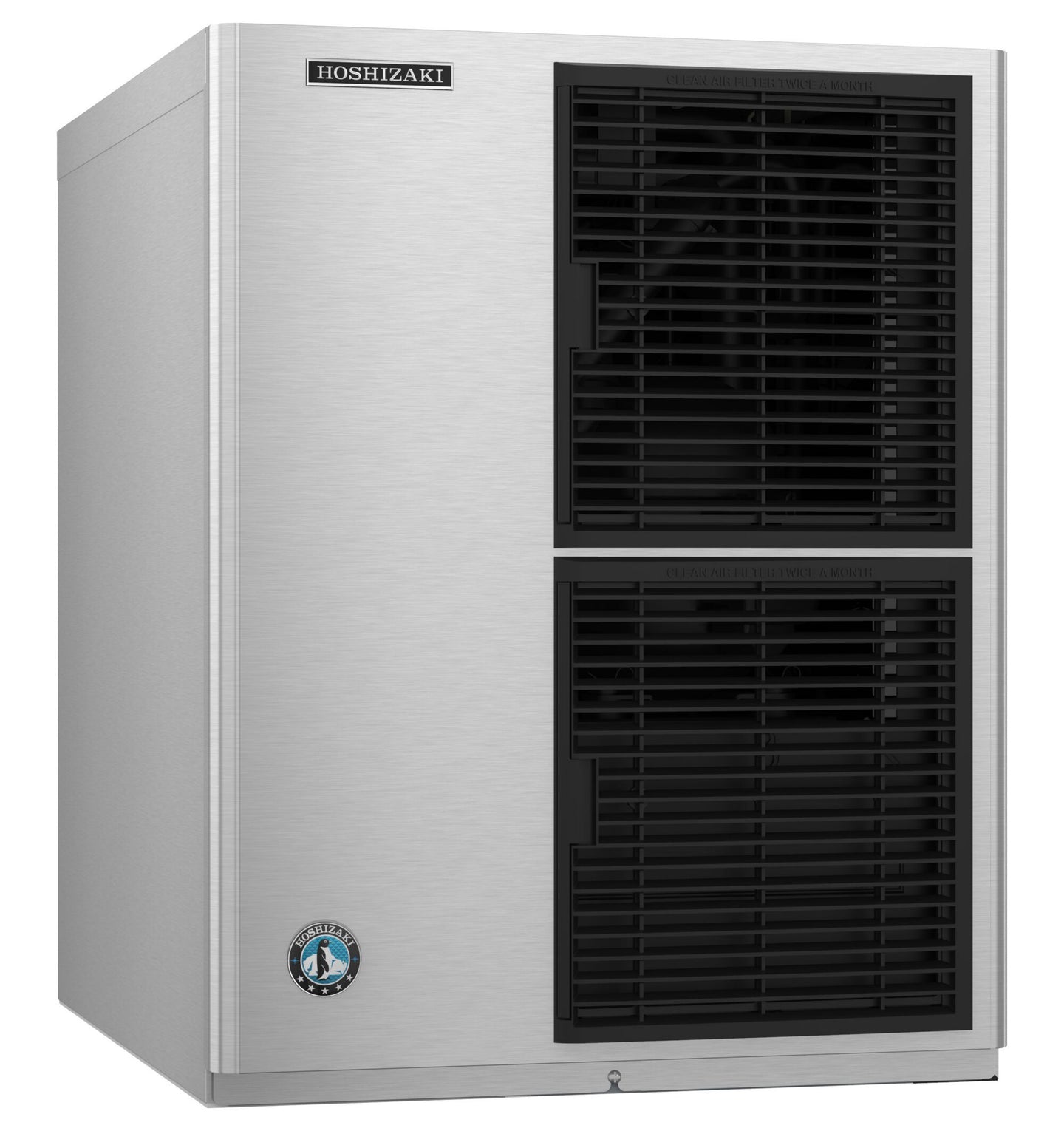

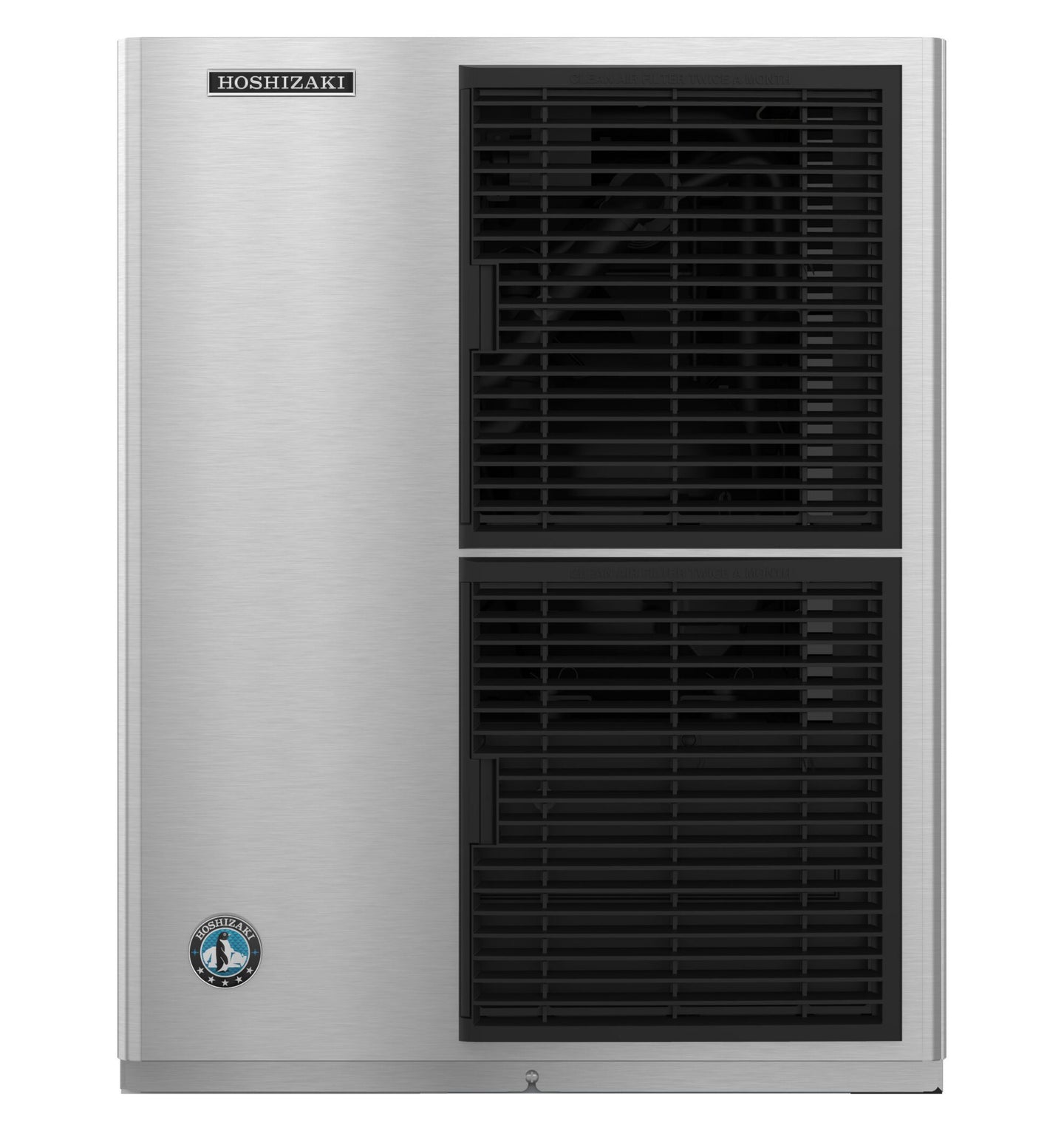

The Hoshizaki KM-622MAK is the highest-output machine in Hoshizaki's 22-inch MAK slim-line range, making 673 pounds of crescent cube ice per 24 hours on R290 natural refrigerant while still running from a 115V circuit.

673 pounds a day from 22 inches and 115 volts

The combination is the point. Getting close to 700 pounds of daily production usually means either a 30-inch cabinet or a 208-230V supply, and often both. This machine needs neither: 22 inches of wall, 14.6 amps at 115V, and a 20 amp maximum fuse. For a bar, quick-service kitchen or hotel pantry that has outgrown a 500-pound head but has no room and no spare panel capacity, that is a rare specification to find.

R290 natural refrigerant

The sealed circuit carries 5.3 ounces of R290 hydrocarbon refrigerant, giving the machine a global warming potential in the single digits and keeping it outside the HFC phase-down schedules that will eventually reach R-404A equipment. It is ENERGY STAR qualified at 5.25 kWh and 17 gallons of potable water per 100 pounds of ice at 90/70 conditions.

Serviceability and ice

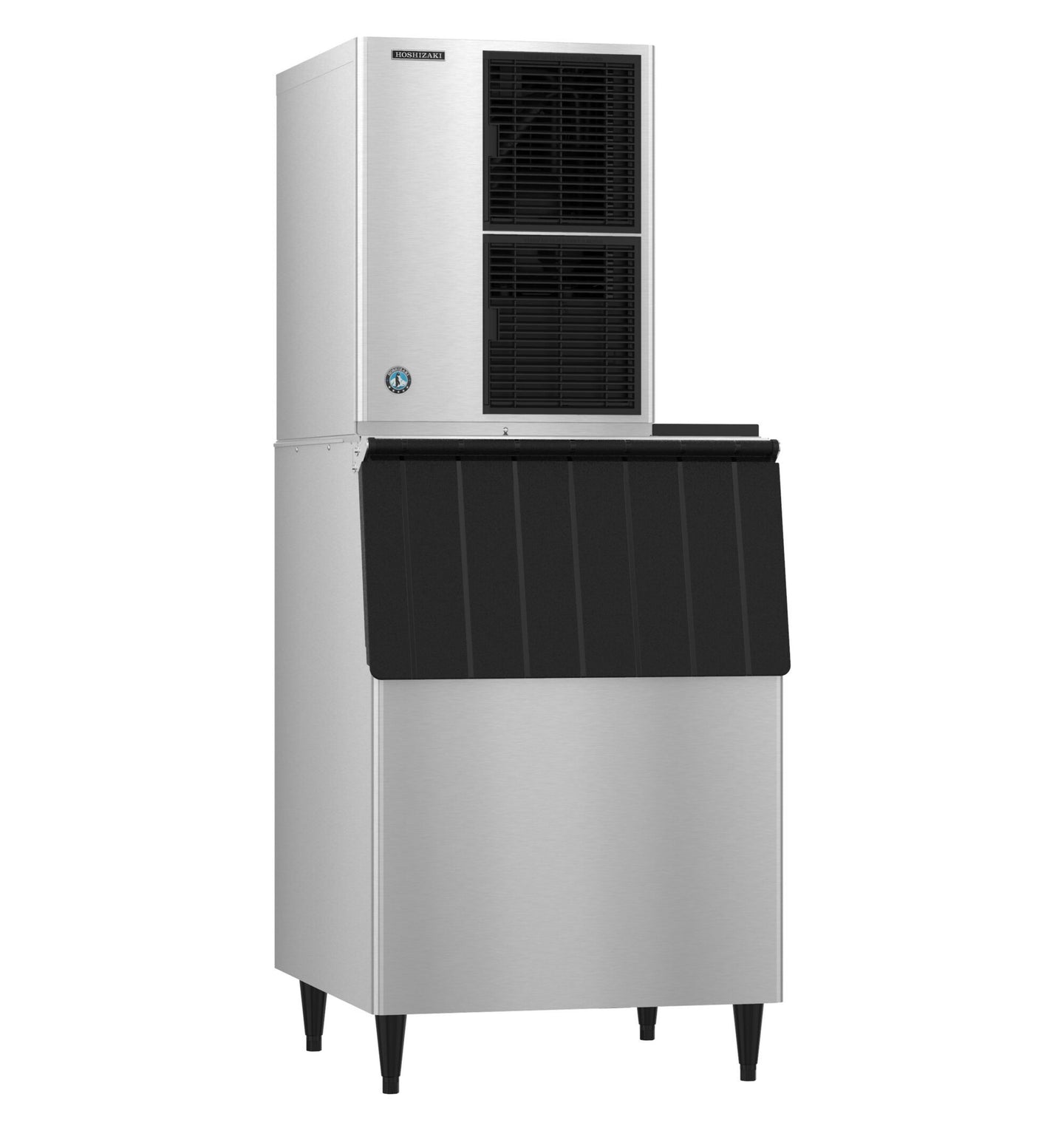

CleanAssist shortens the cleaning cycle to about an hour and the EverCheck alert system surfaces developing faults before they stop production. Ice is Hoshizaki's crescent cube, flat on one face and curved on the other, which packs a glass without bridging and melts slowly. This is a head only and pairs with the B-300SF and B-500SF bins and the DB-130H dispenser.

Specifications

Model KM-622MAK
Ice production 673 lb per 24 hours
Ice shape Crescent cube
Condenser Air-cooled
Exterior dimensions 22" W x 27-3/8" D x 28" H
Shipping weight 180 lb
Electrical 115V / 60Hz / 1 phase, 3-wire with ground, hardwired
Amperage 14.6 A
Maximum fuse / HACR breaker 20 A
Refrigerant R290 hydrocarbon, 5.3 oz
Energy consumption 5.25 kWh per 100 lb at 90/70
Water consumption 17 gal potable water per 100 lb at 90/70
Certifications ENERGY STAR qualified, AHRI Standard 810, NSF, UL Safety, Georgia Made Certified

Warranty

Hoshizaki covers the KM-622MAK with three years parts and labor on the entire machine and five years parts on the compressor and air-cooled condenser coil.
