Product Description

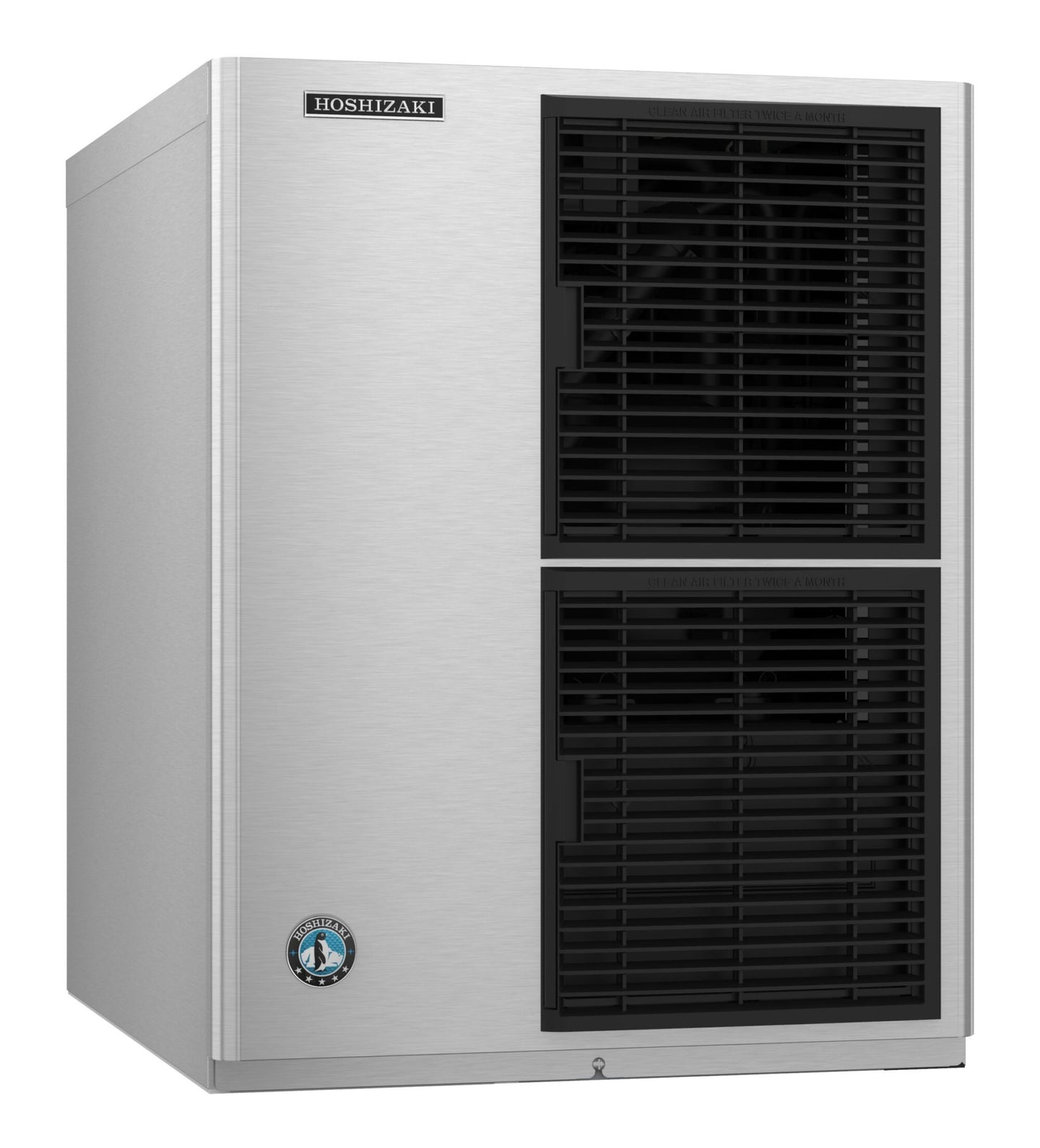

The Hoshizaki KM-520MAJ-E is the 50Hz export build of Hoshizaki's 22-inch air-cooled modular Crescent Cuber, rated at 238 kg (525 lb) of ice per 24 hours. It is specified for installations running on 220-240V 50Hz supply rather than North American 115V 60Hz.

Built for 50Hz supply

This is not a 60Hz machine with an adapter. The compressor, fan motor and controls are matched to 50Hz, so the unit runs at its rated output and duty cycle on a 220-240V single-phase supply drawing 8.4 amps against a 15 amp maximum fuse. It ships cord-connected with a Type G plug and a 3,000 mm lead. Specifications are published in metric alongside imperial: the cabinet is 559 mm wide, 695 mm deep and 711 mm tall.

Slim-line modular format

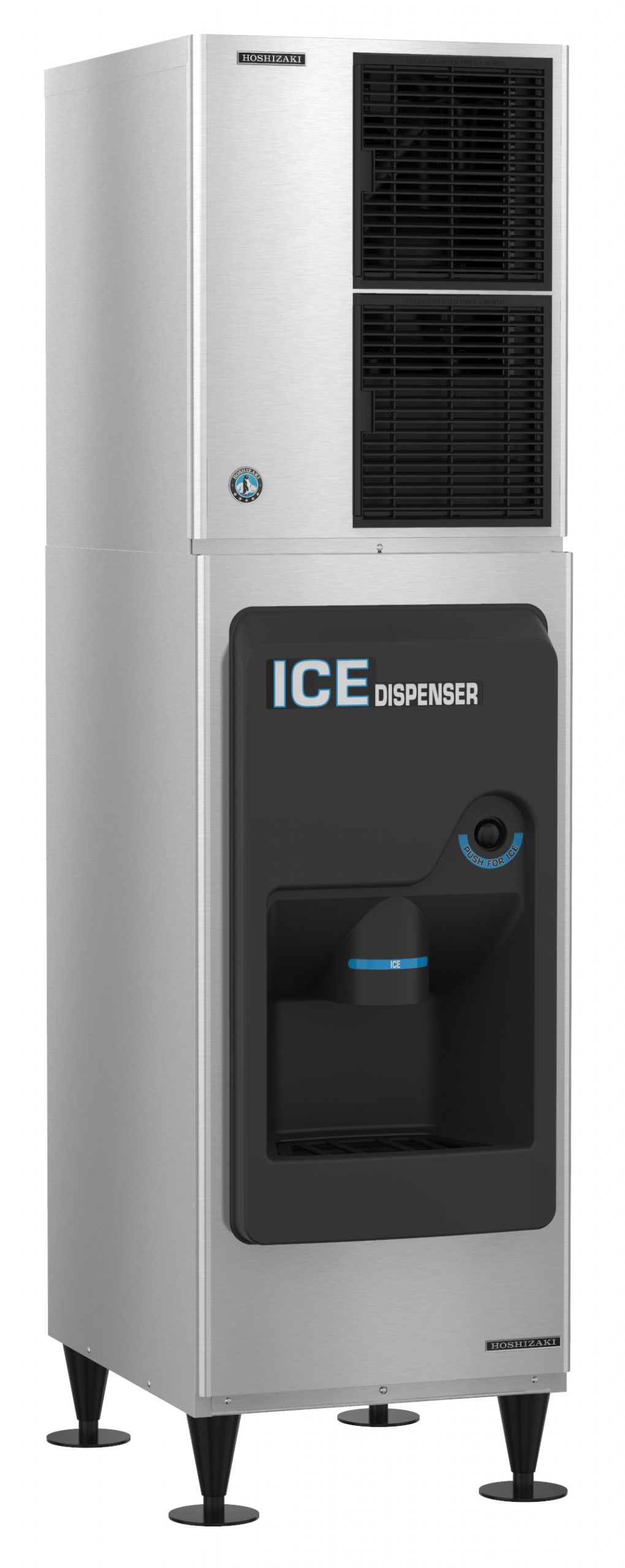

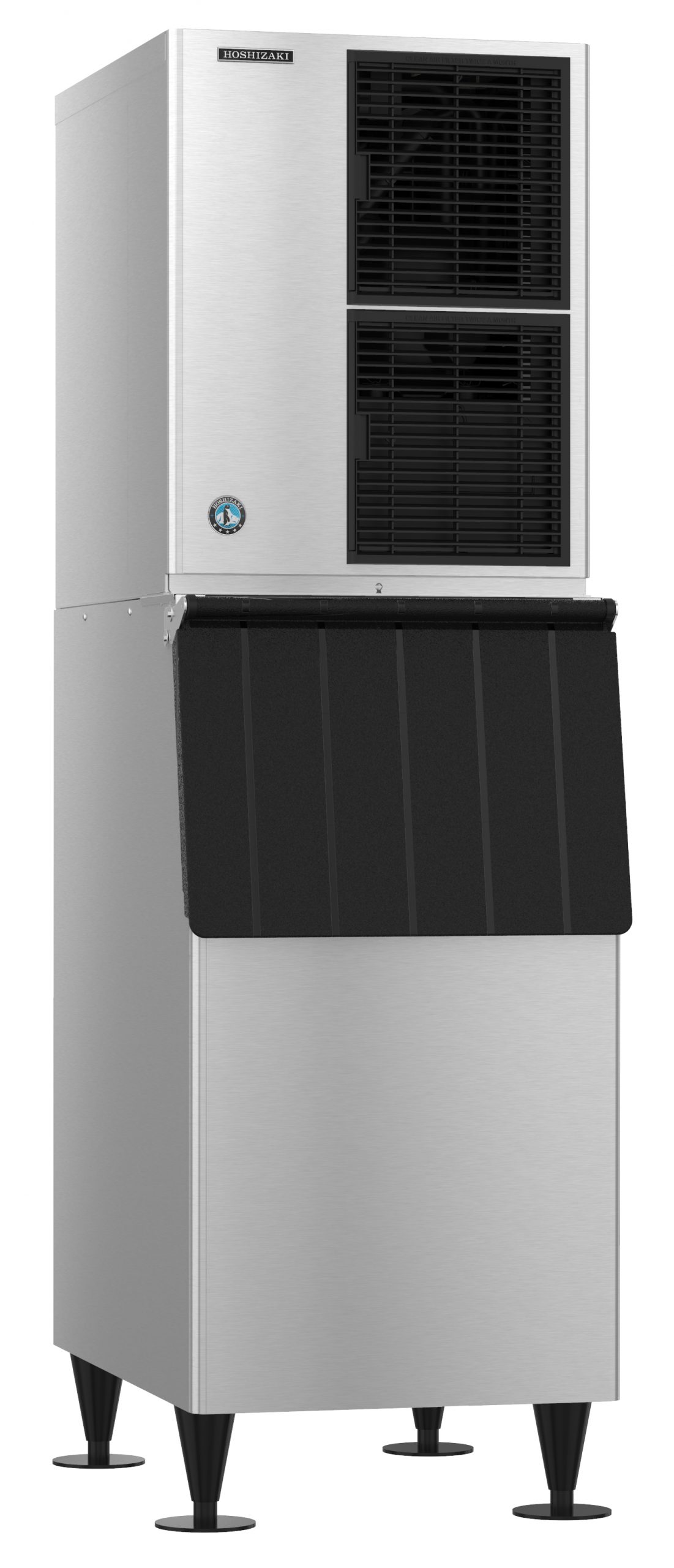

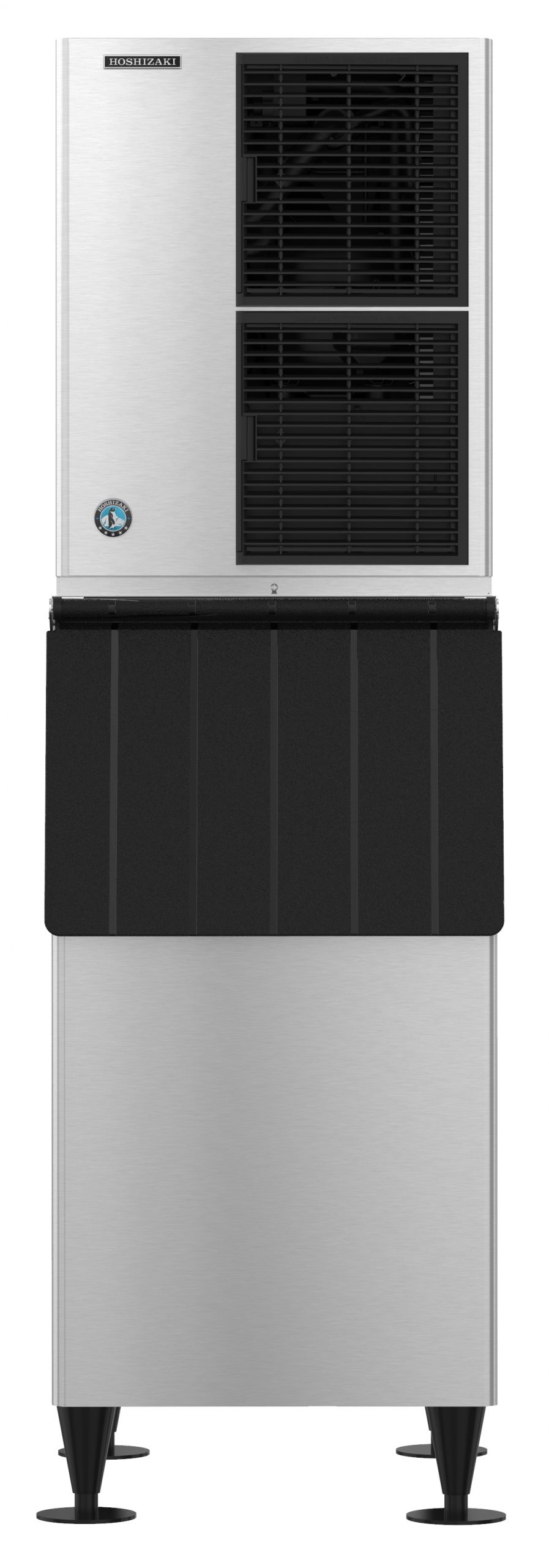

At 559 mm (22 inches) wide the head fits narrow equipment runs where a 30-inch machine will not. It is a head only and mates with Hoshizaki's B-250, B-300, B-500, B-700, B-800, B-900, B-1150 and B-1300 storage bins and the DB-130H, DB-200H and DM-200B dispensers. Ice is formed on double-sided stainless steel KM Edge evaporators.

Crescent cube ice

Crescent cubes are flat on one face and curved on the other, so they settle into a glass evenly without bridging and are slow to melt in a drink. Hoshizaki rates the machine at 6.52 kWh and 108 litres of potable water per 45 kg of ice at 32/21 °C conditions. Refrigerant is R-404A with a 500 g charge, and the unit is NSF certified.

Specifications

Model KM-520MAJ-E
Ice production 238 kg (525 lb) per 24 hours
Ice shape Crescent cube
Condenser Air-cooled
Exterior dimensions 559 mm W x 695 mm D x 711 mm H (22" x 27-3/8" x 28")
Shipping weight 68 kg (150 lb)
Electrical 220-240V / 50Hz / 1 phase, Type G plug, 3,000 mm cord
Amperage 8.4 A
Maximum fuse 15 A
Refrigerant R-404A, 500 g (1 lb 1.6 oz)
Energy consumption 6.52 kWh per 45 kg at 32/21 °C
Water consumption 108 L potable water per 45 kg at 32/21 °C
Compatible bins B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, DB-130H, DB-200H, DM-200B
Certifications NSF

Warranty

Hoshizaki does not publish standard warranty terms for this export model. Contact the factory for warranty coverage applicable to your territory.
