Product Description

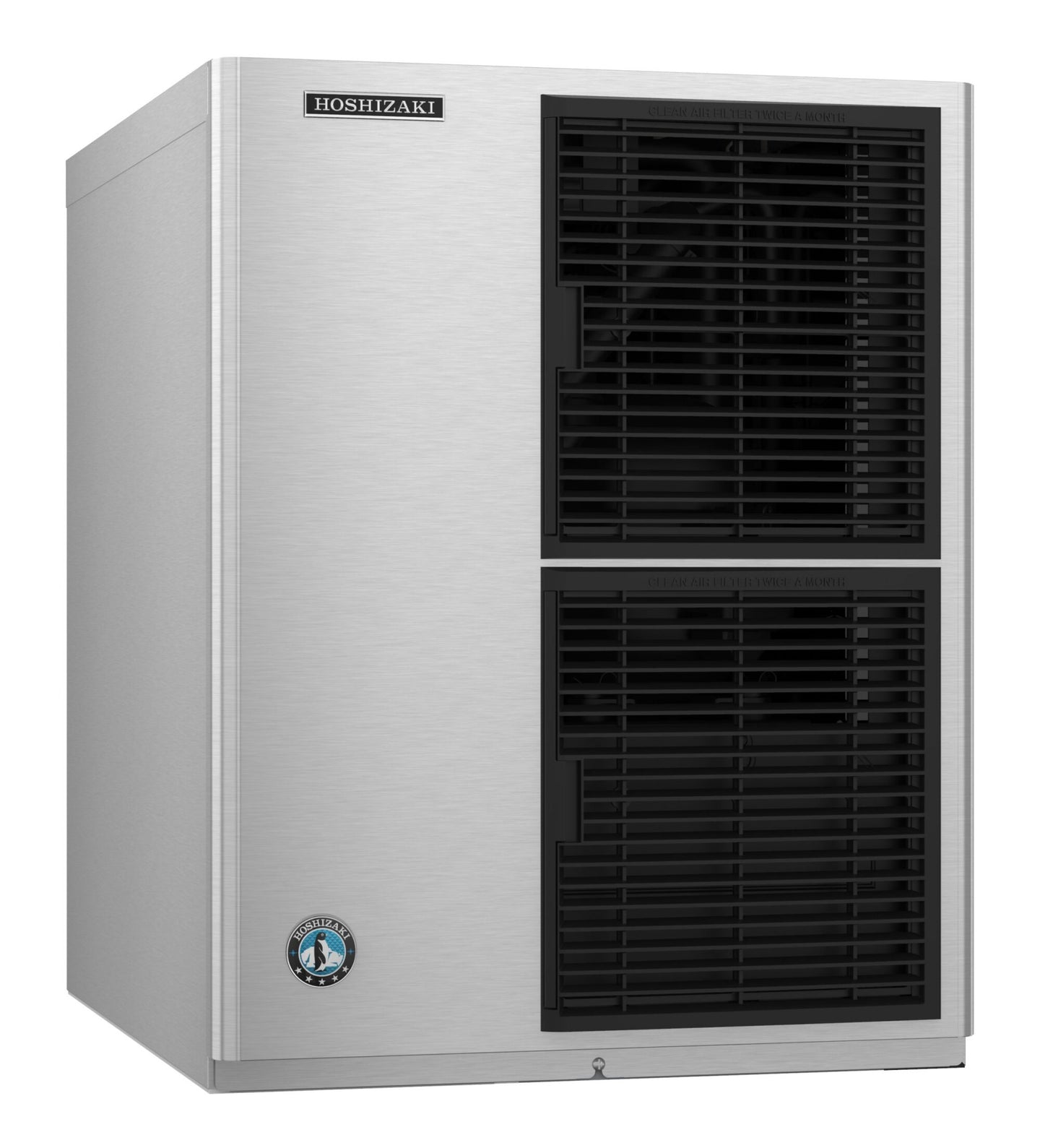

The Hoshizaki KM-520MAJ is a 22-inch air-cooled modular Crescent Cuber head rated at 556 pounds of ice per 24 hours. It is the workhorse of Hoshizaki's slim-line range: enough output for a full-service restaurant or a busy café, on a standard 115V circuit, in a cabinet narrow enough to fit almost anywhere.

556 pounds a day from a 115V circuit

The notable number here is not the production, it is the electrical. Most machines that make more than 500 pounds of ice a day need a 208-230V supply. This one draws 10.6 amps at 115V on a 20 amp maximum fuse, which means an existing kitchen circuit will usually take it without a panel upgrade. It is hardwired at the site rather than cord-connected.

Air-cooled and ENERGY STAR qualified

No condenser water line, no additional water bill beyond what goes into the ice: 14.7 gallons of potable water per 100 pounds at 90/70 conditions, among the leanest in its class. Energy use is 4.68 kWh per 100 pounds and the machine carries ENERGY STAR qualification. Leave Hoshizaki's specified clearances around the condenser — an air-cooled head boxed into a cabinet will lose production in a warm kitchen.

Crescent cube ice and bin pairing

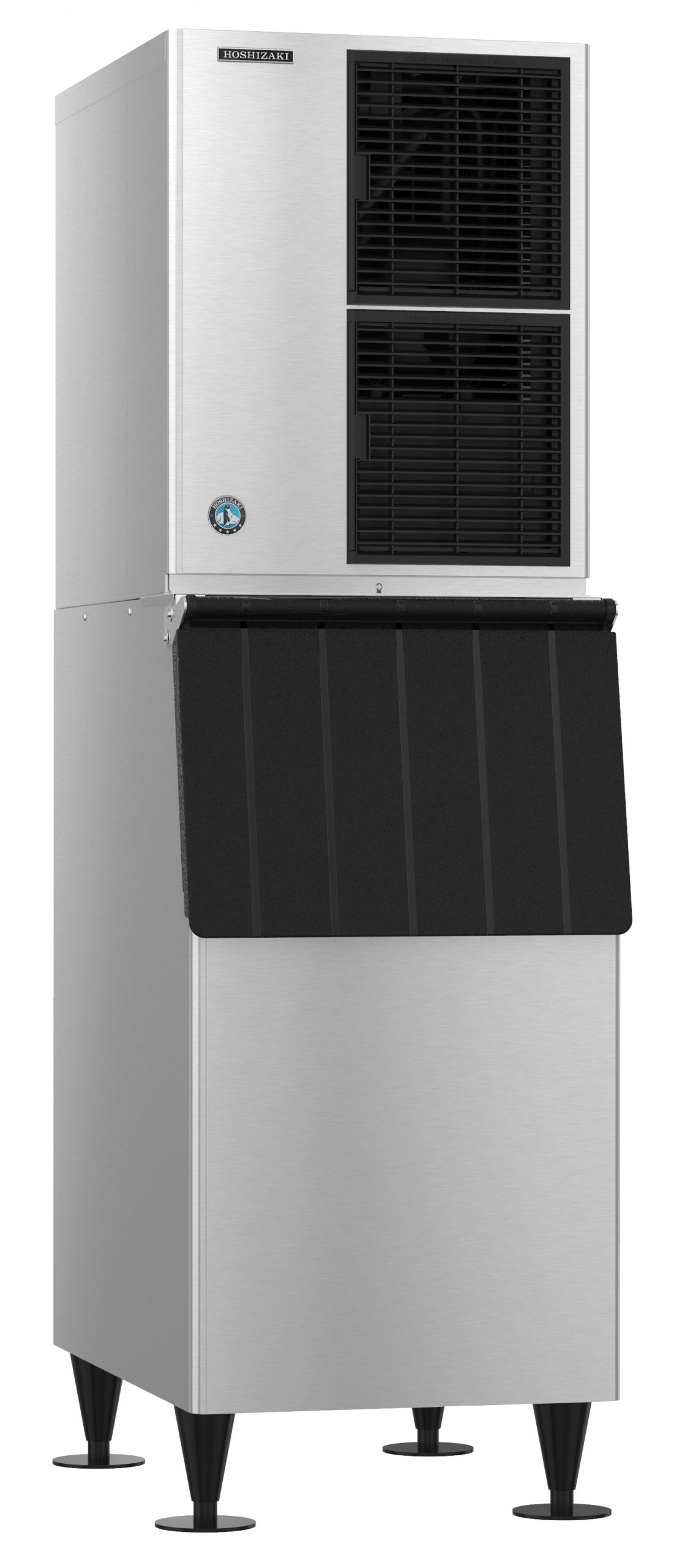

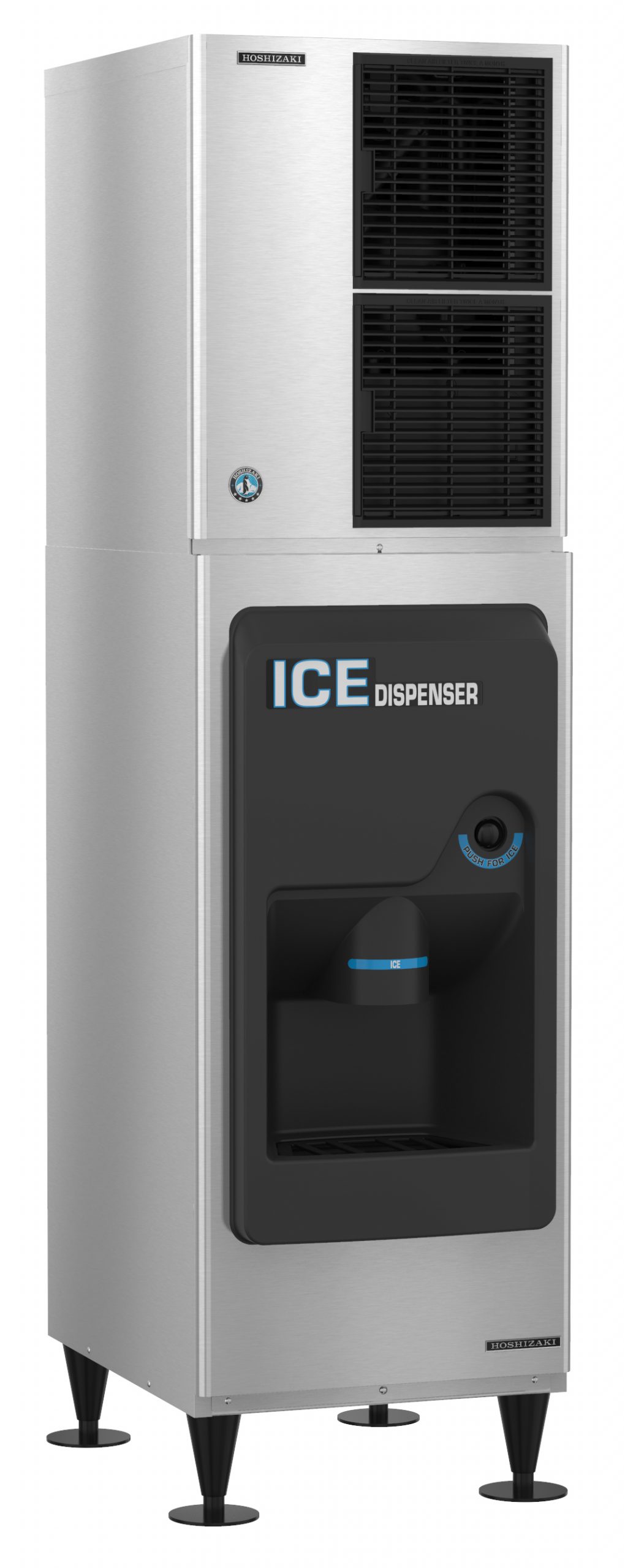

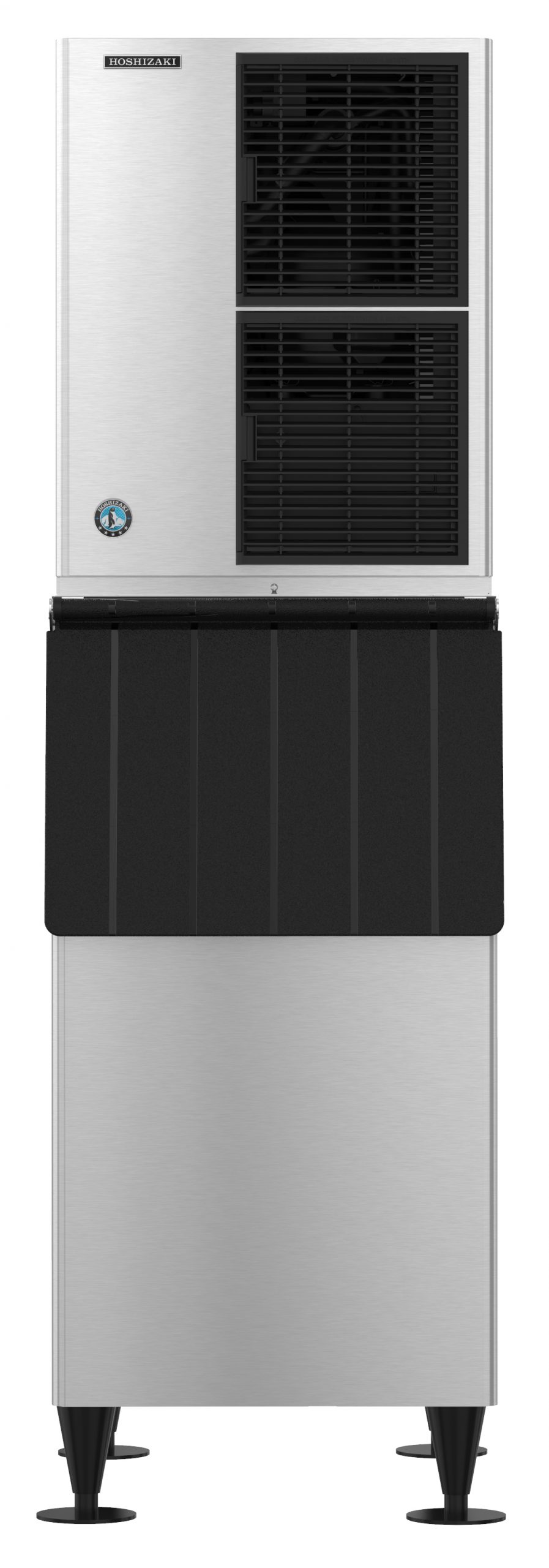

Double-sided stainless steel KM Edge evaporators form Hoshizaki's crescent cube, which packs a glass without bridging and melts slowly. As a modular head it takes a separate bin or dispenser: B-250, B-300, B-500, B-700, B-800, B-900, B-1150 and B-1300 bins, or the DB-130H, DB-200H and DM-200B.

Specifications

Model KM-520MAJ
Ice production 556 lb per 24 hours
Ice shape Crescent cube
Condenser Air-cooled
Exterior dimensions 22" W x 27-3/8" D x 28" H
Shipping weight 175 lb
Electrical 115V / 60Hz / 1 phase, 3-wire, hardwired
Amperage 10.6 A
Maximum fuse 20 A
Refrigerant R-404A, 1 lb 10.8 oz (760 g)
Energy consumption 4.68 kWh per 100 lb at 90/70
Water consumption 14.7 gal potable water per 100 lb at 90/70
Compatible bins B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, DB-130H, DB-200H, DM-200B
Certifications ENERGY STAR qualified, AHRI Standard 810, NSF, UL Listed, Georgia Made Certified

Warranty

Hoshizaki covers the KM-520MAJ with three years parts and labor on the entire machine and five years parts and labor on the evaporator.
