Product Description

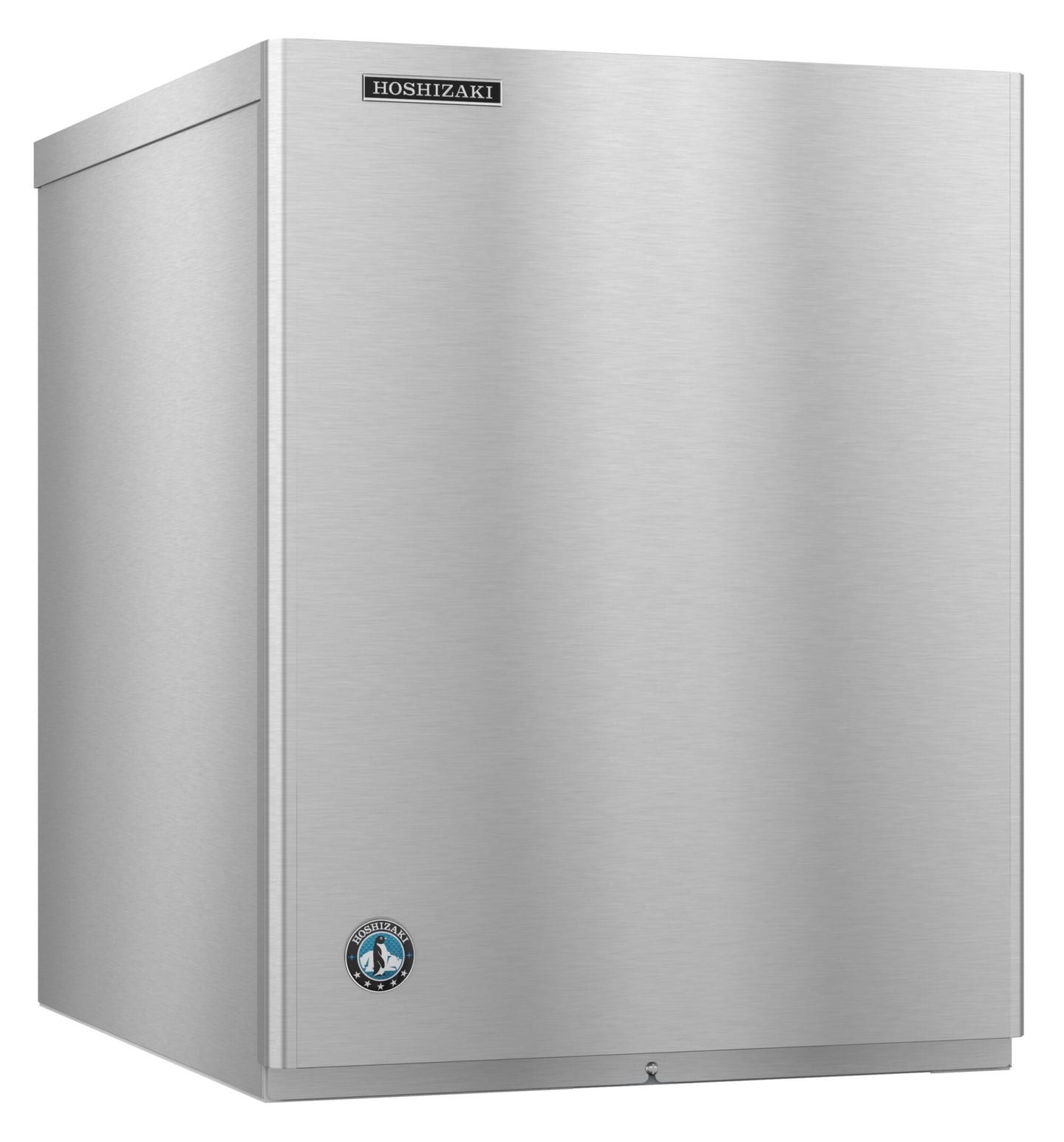

The Hoshizaki KM-350MWJ is a 22-inch water-cooled modular Crescent Cuber head producing 414 pounds of ice per 24 hours. Water-cooled condensing at this size is a deliberate choice, usually made when the machine has to go somewhere an air-cooled unit would either overheat or heat up its surroundings.

Where water-cooling makes sense on a small head

Enclosed bar wells, interior rooms with no mechanical ventilation and equipment closets shared with other refrigeration all punish air-cooled ice machines: the condenser recirculates its own warm air, production falls and the compressor runs longer. A water-cooled condenser sidesteps that entirely by dumping heat into the water line. The cost is 15.5 gallons of potable water per 100 pounds of ice at 90/70 conditions on top of what goes into the ice itself, so a drain and supply have to be available.

Efficient and low-draw

The machine is rated at 4.9 kWh per 100 pounds at 90/70, and it draws only 7.5 amps on a 115V single-phase circuit with a 15 amp maximum fuse. It is hardwired on site; no cord or plug is supplied. The R-404A circuit holds 11.6 ounces.

Crescent cube ice and bin options

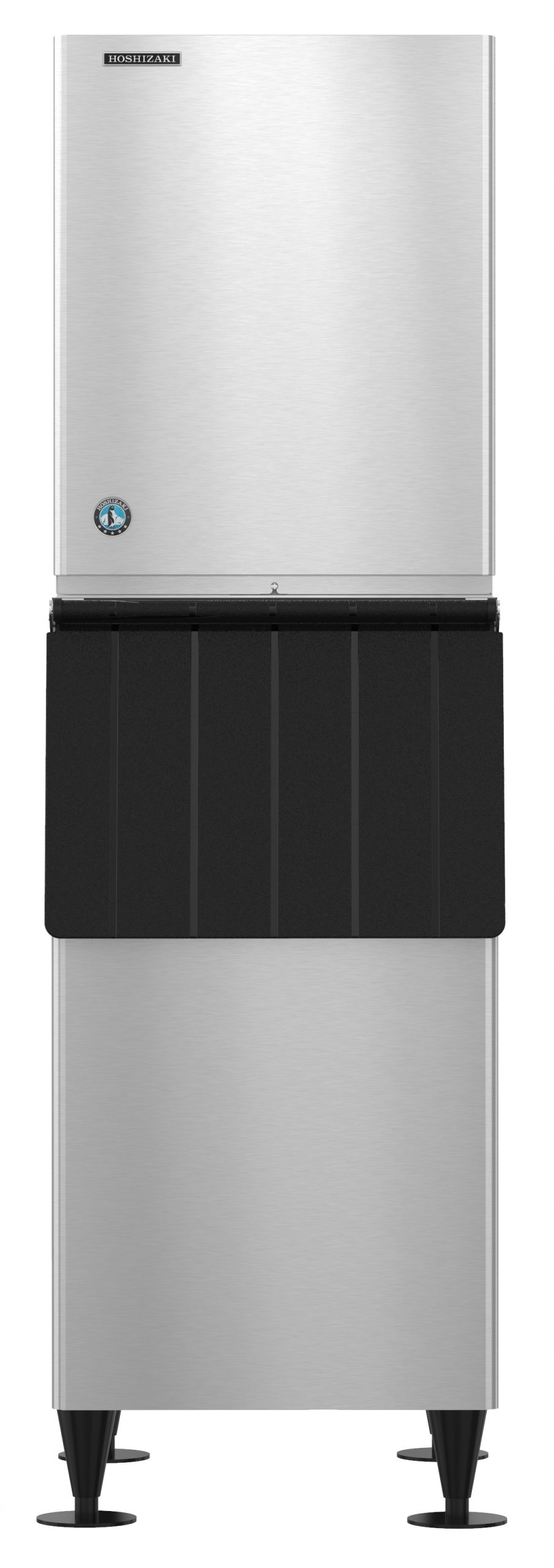

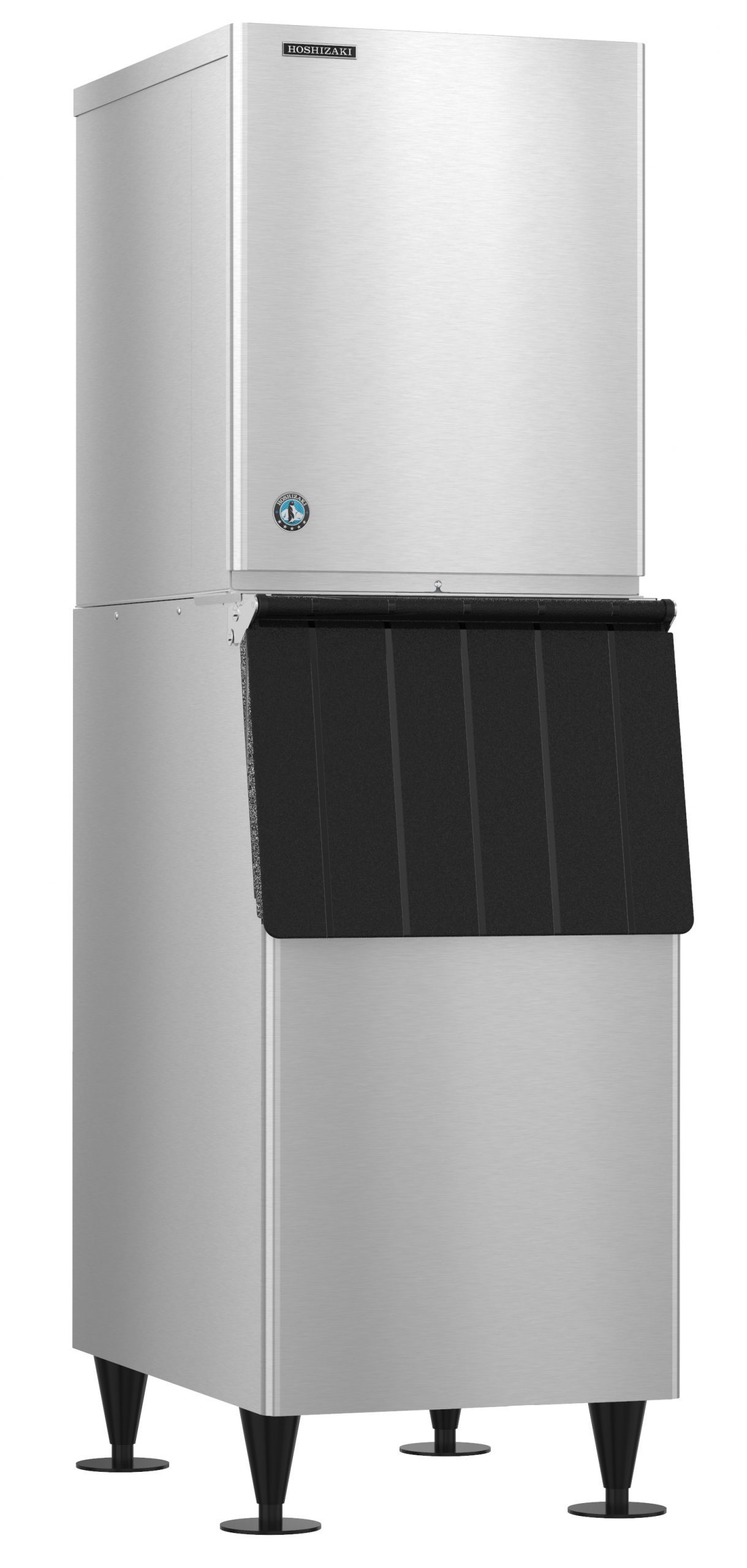

Ice forms on double-sided stainless steel KM Edge evaporators into the crescent shape, which packs densely in a glass, resists bridging in the bin and is slow to melt. As a modular head it needs a separate bin: Hoshizaki lists the B-250, B-300, B-500, B-700, B-800, B-900, B-1150 and B-1300 storage bins, plus the DB-130H, DB-200H and DM-200B dispensers.

Specifications

Model KM-350MWJ
Ice production 414 lb per 24 hours
Ice shape Crescent cube
Condenser Water-cooled
Exterior dimensions 22" W x 27-3/8" D x 28" H
Shipping weight 175 lb
Electrical 115V / 60Hz / 1 phase, 3-wire with ground, hardwired
Amperage 7.5 A
Maximum fuse 15 A
Refrigerant R-404A, 11.6 oz (329 g)
Energy consumption 4.9 kWh per 100 lb at 90/70
Water consumption 15.5 gal potable water per 100 lb at 90/70
Compatible bins B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, DB-130H, DB-200H, DM-200B
Certifications AHRI Standard 810, NSF, UL Listed, Georgia Made Certified

Warranty

Hoshizaki covers the KM-350MWJ with three years parts and labor on the entire machine and five years parts and labor on the evaporator.
