Product Description

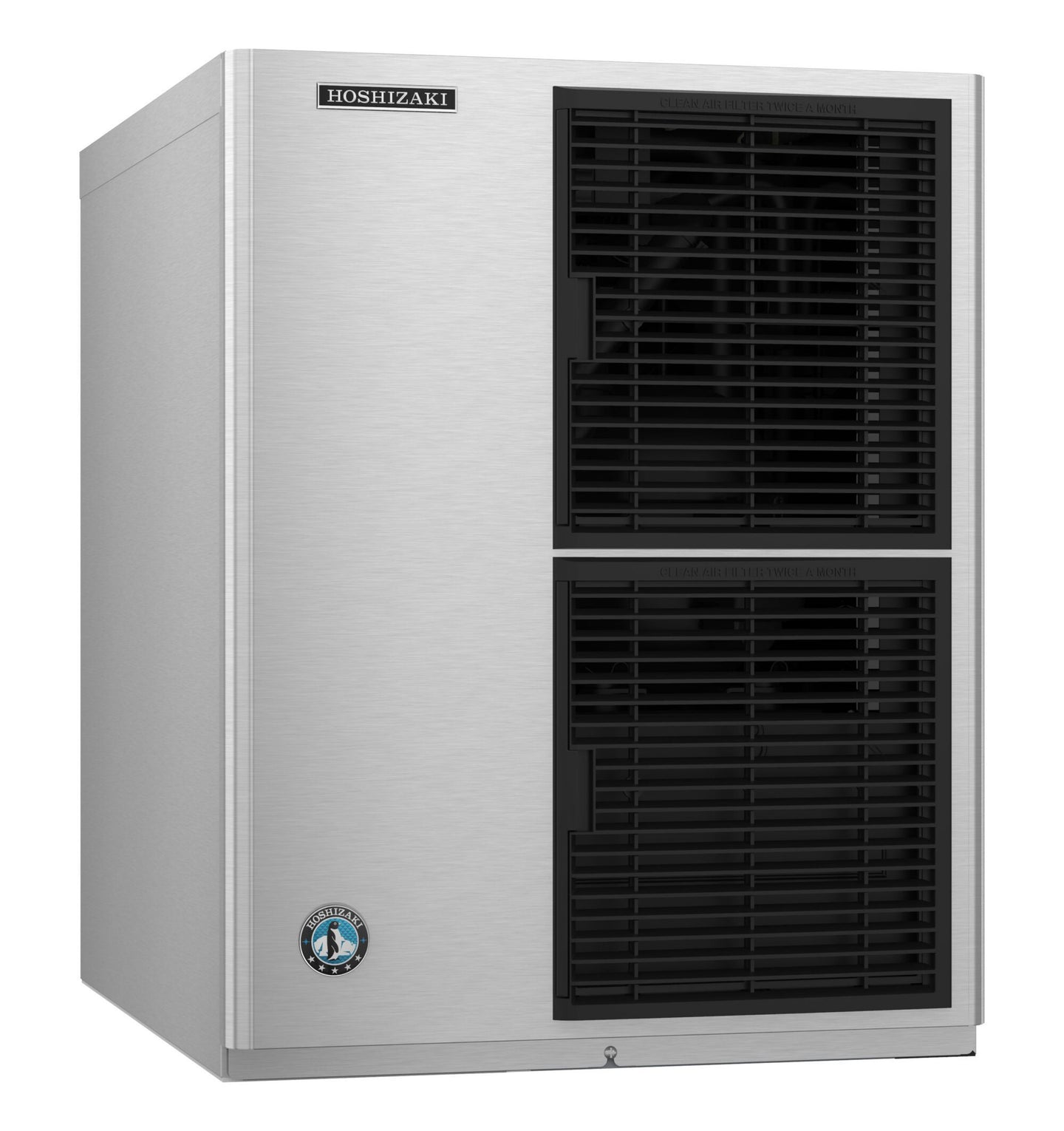

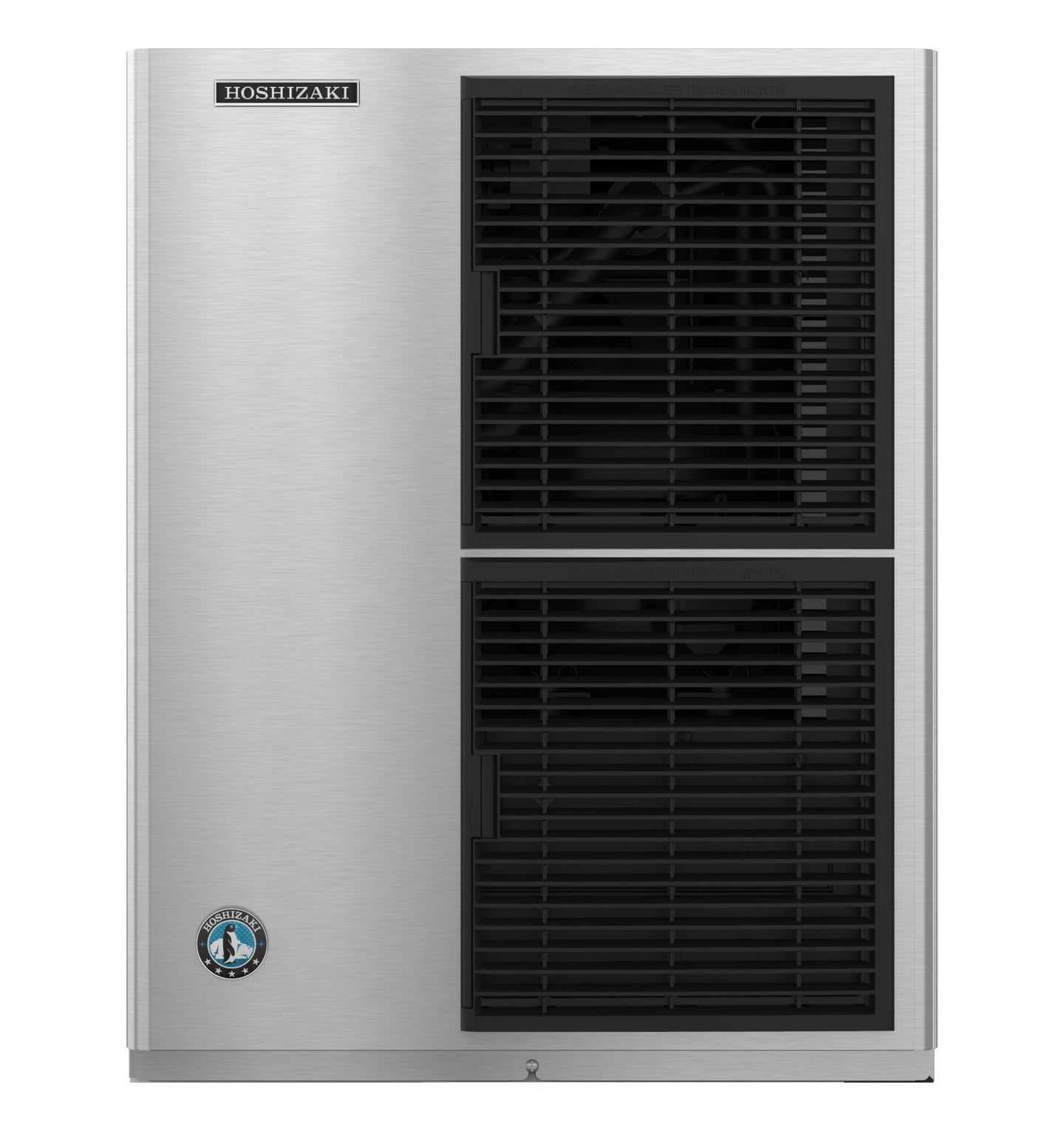

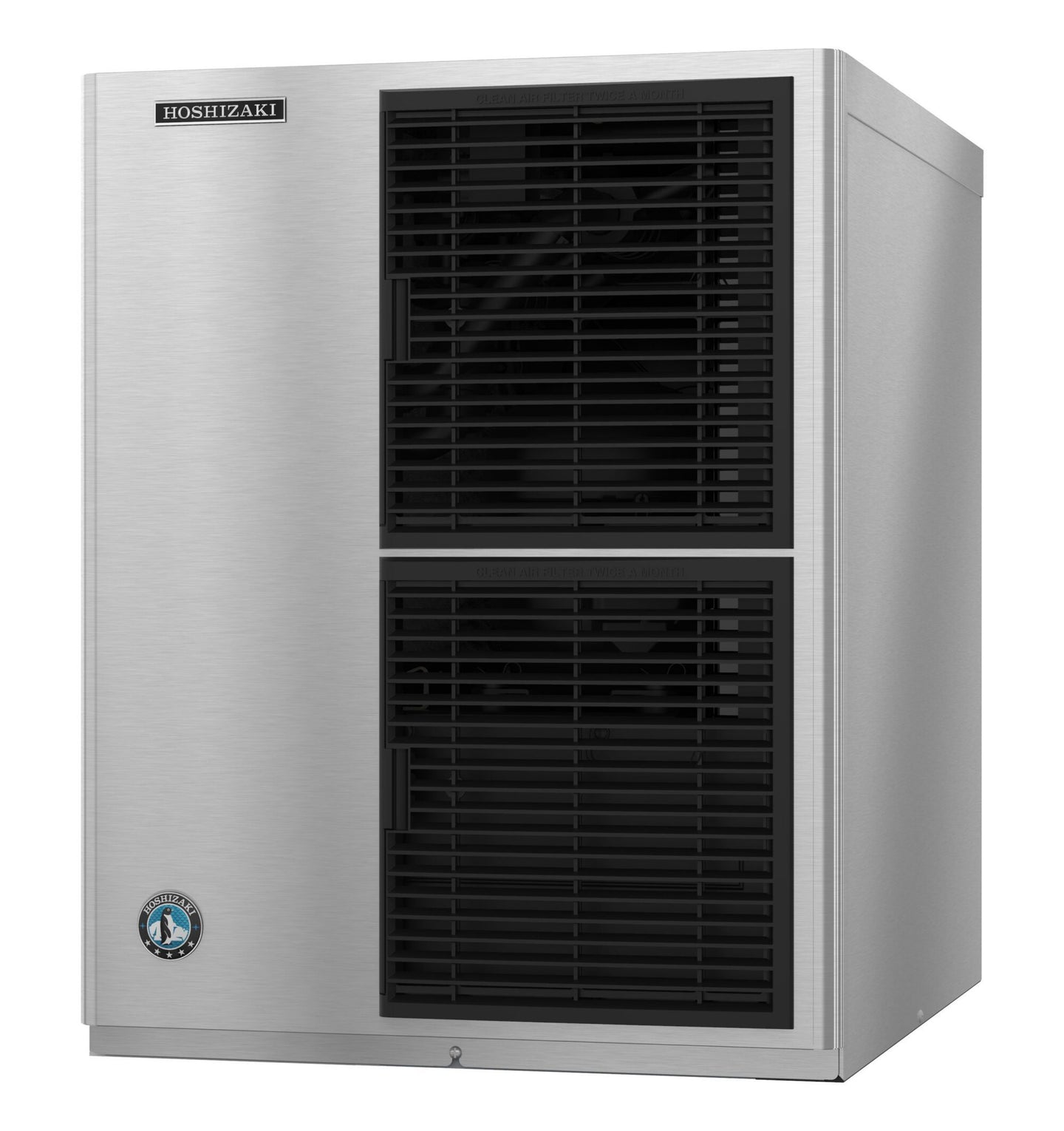

The Hoshizaki KM-322MAK is a 22-inch air-cooled modular Crescent Cuber head making 489 pounds of ice per 24 hours. It is part of Hoshizaki's newer MAK generation, which moves the refrigeration circuit to R290 — a natural hydrocarbon refrigerant with a global warming potential in the single digits rather than the thousands.

R290 natural refrigerant

R290 is propane, used in a very small sealed charge — 5.1 ounces on this machine. The practical arguments for it are regulatory and thermodynamic: it is not on any HFC phase-down schedule, so a machine bought today does not become a refrigerant liability in ten years, and it transfers heat well enough that the unit hits 489 pounds a day while drawing 9.7 amps on a 115V circuit. It is ENERGY STAR qualified at 4.9 kWh per 100 pounds at 90/70 conditions.

Slim 22-inch footprint

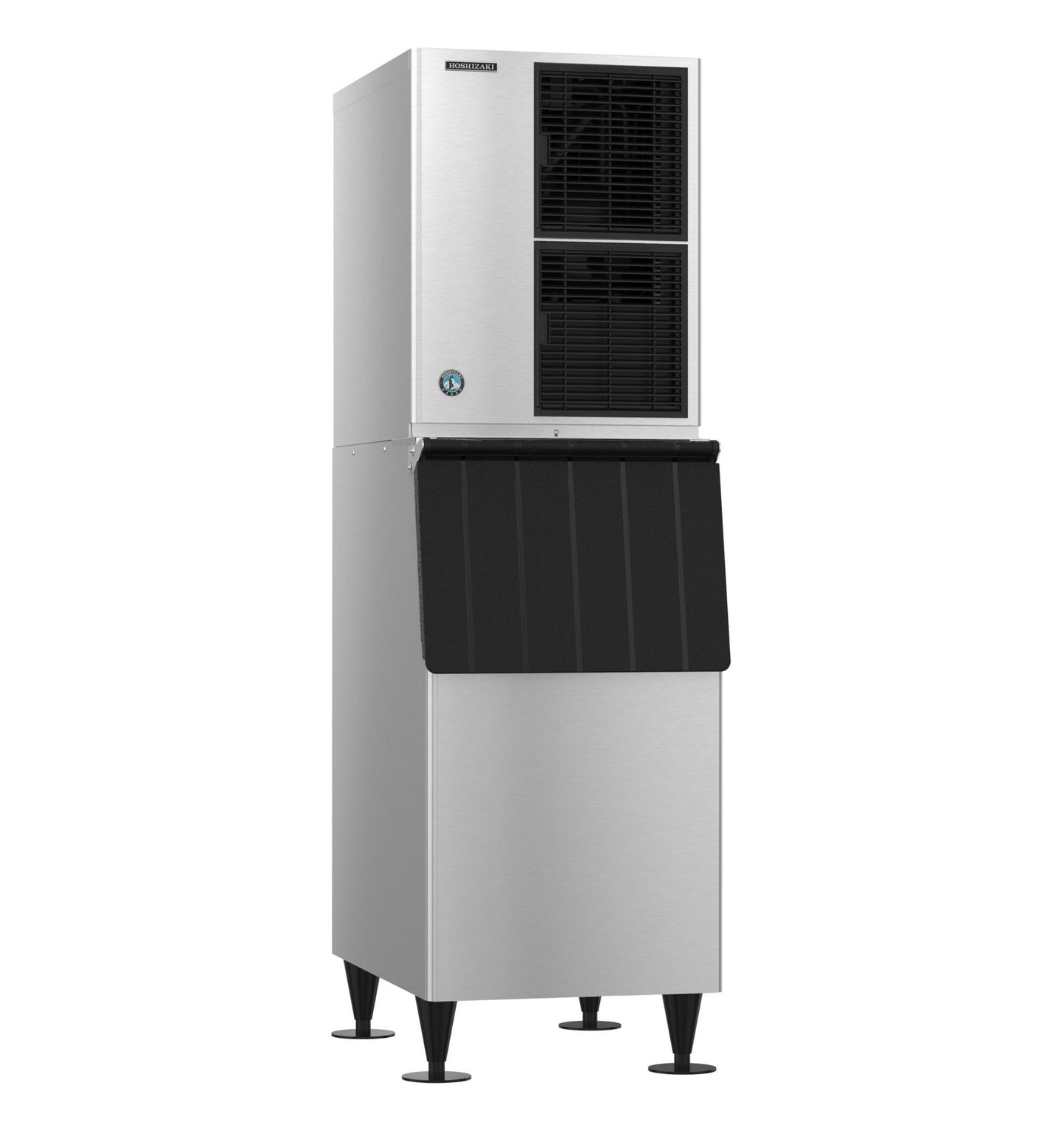

Twenty-two inches wide and 28 inches tall, the head fits a narrow bin line-up where a 30-inch machine will not. That makes it the usual answer in bar backs, coffee shops and satellite kitchens where the ice machine has to share a wall with everything else. It pairs with Hoshizaki's B-300SF and B-500SF bins and the DB-130H dispenser.

Maintenance built for a busy kitchen

Hoshizaki's CleanAssist routine brings the cleaning cycle down to about an hour, which is the difference between a task that gets done on schedule and one that gets postponed. Ice forms on stainless steel evaporators into the crescent shape — dense in the glass, slow to melt, resistant to bridging in the bin.

Specifications

Model KM-322MAK
Ice production 489 lb per 24 hours
Ice shape Crescent cube
Condenser Air-cooled
Exterior dimensions 22" W x 27-3/8" D x 28" H
Shipping weight 175 lb
Electrical 115V / 60Hz / 1 phase, 3-wire with ground, hardwired
Amperage 9.7 A
Maximum fuse / HACR breaker 20 A
Refrigerant R290 hydrocarbon, 5.1 oz
Energy consumption 4.9 kWh per 100 lb at 90/70
Water consumption 18 gal potable water per 100 lb at 90/70
Certifications ENERGY STAR qualified, AHRI Standard 810, NSF, UL Safety Health Effects, Georgia Made Certified

Warranty

Hoshizaki covers the KM-322MAK with three years parts and labor on the entire machine and five years parts on the compressor and air-cooled condenser coil.
