Product Description

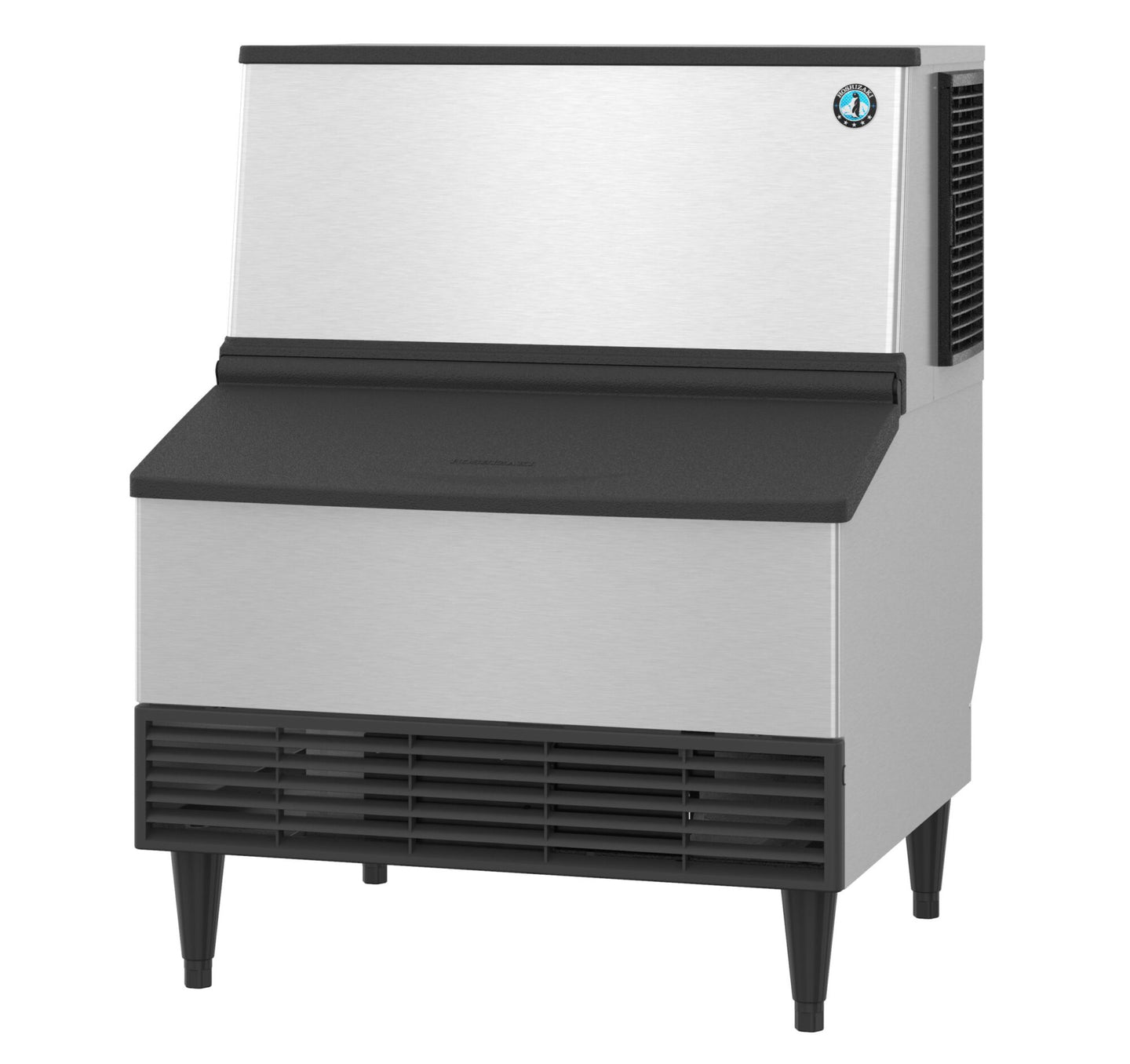

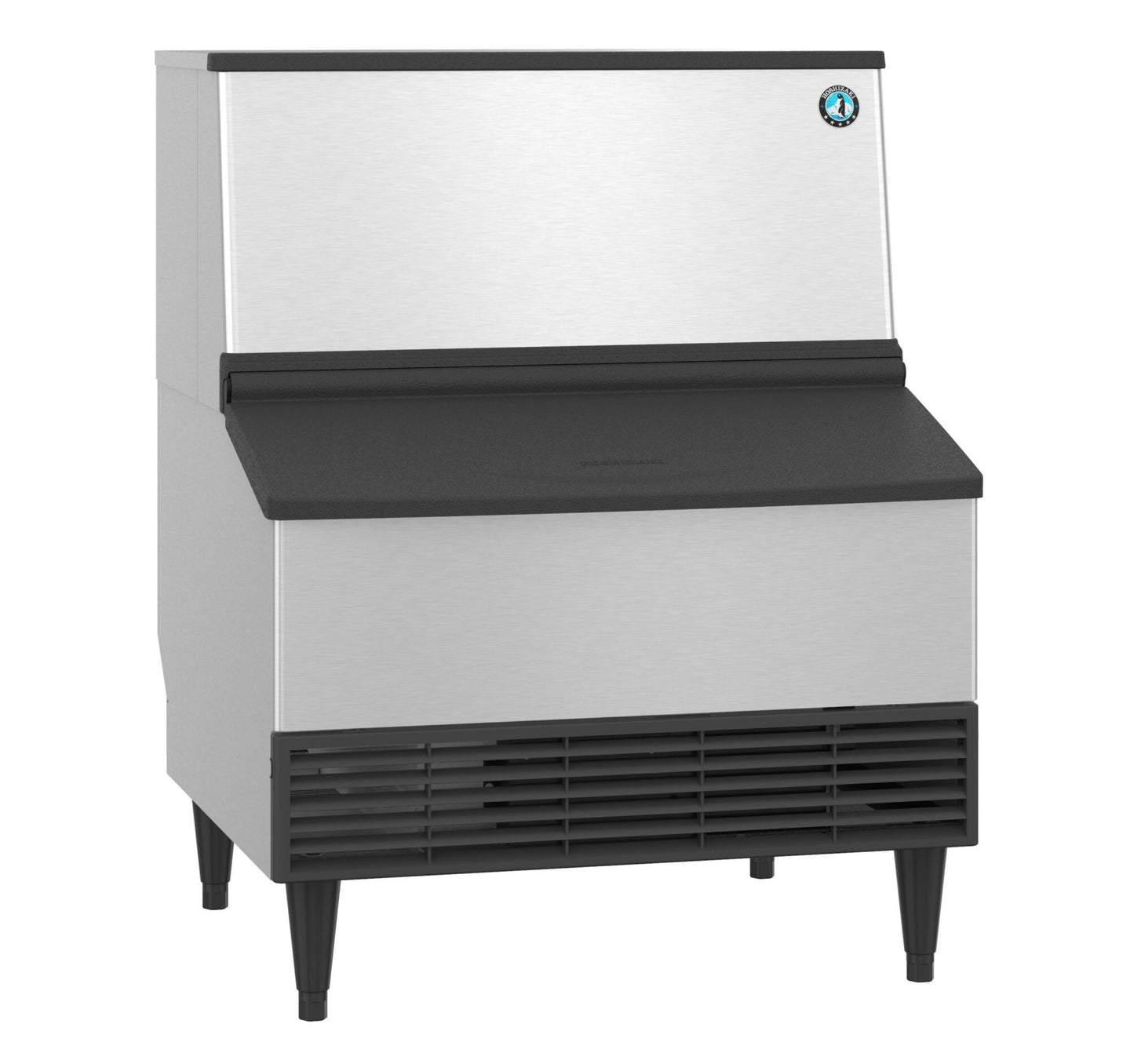

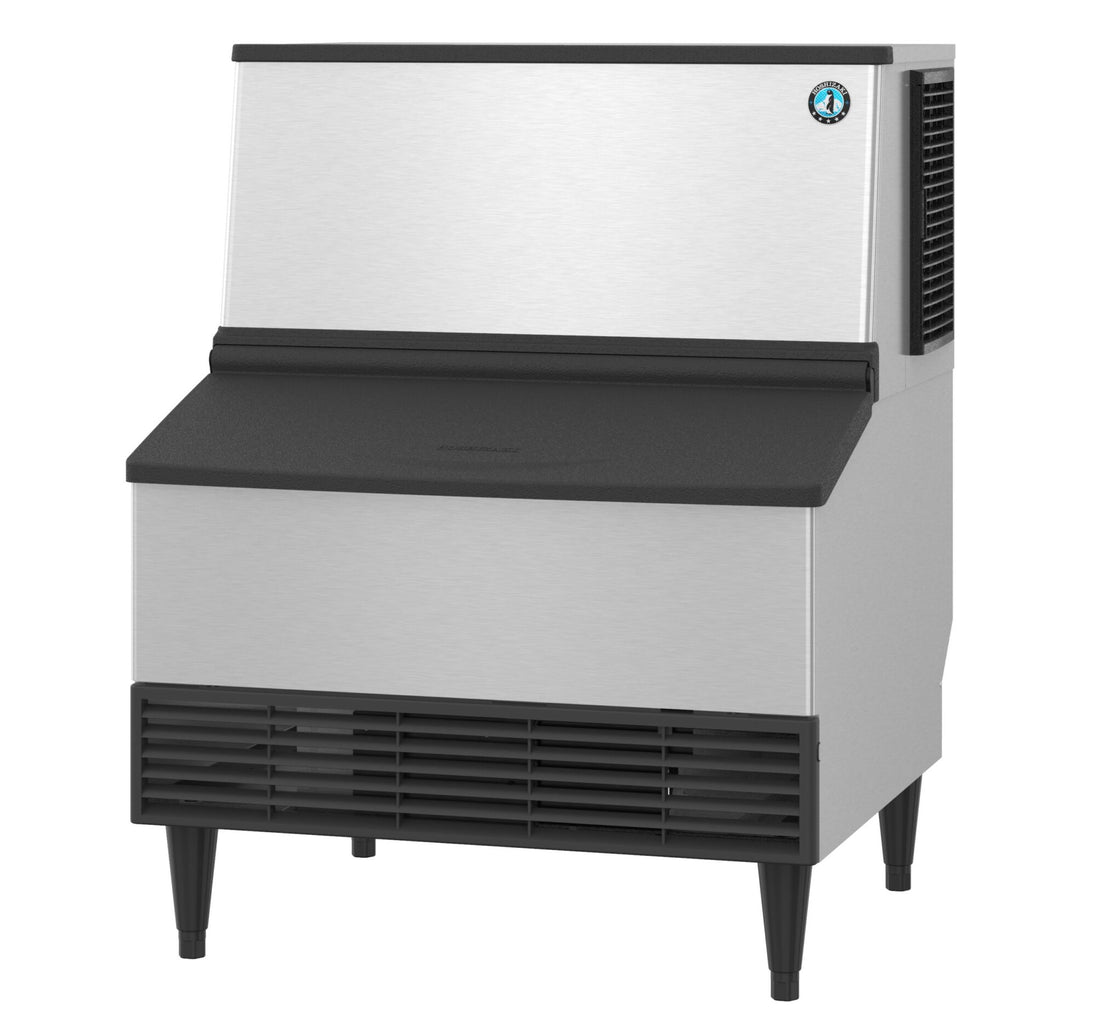

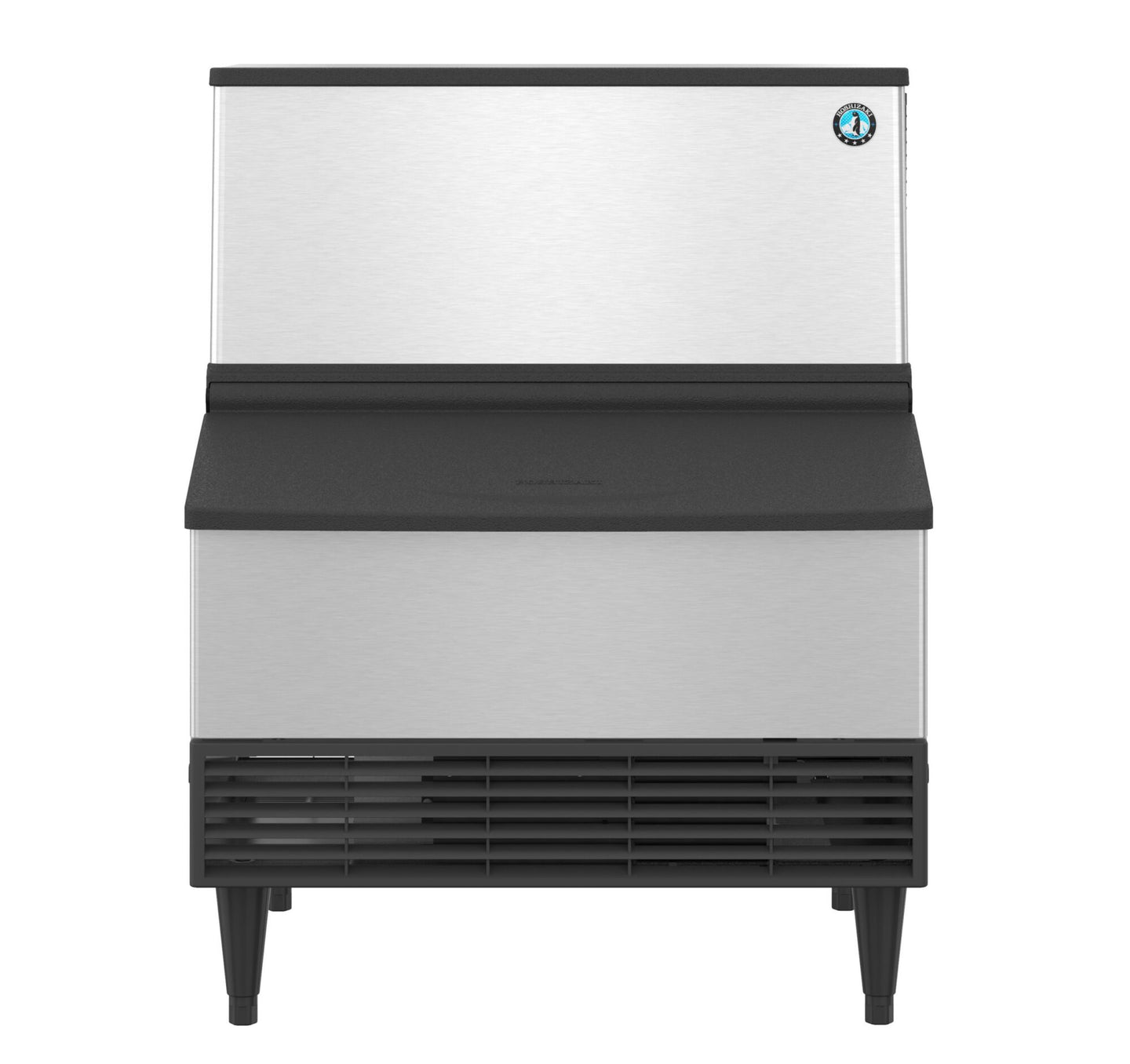

The Hoshizaki KM-301BAJ is the largest self-contained crescent cuber in Hoshizaki's undercounter line, making up to 290 lb of ice per 24 hours into a 100 lb built-in bin from a 30 inch wide cabinet. It covers sites that would otherwise need a modular head and a separate bin, without the extra footprint or the stacking work.

Self-contained at modular volumes

290 lb a day is production territory usually handled by a modular head sitting on a floor bin. Getting it in one cabinet matters where ceiling height is tight, where there is no room for a 22 inch tall bin under a head, or where the install has to be a single delivery and a single connection rather than a two-piece assembly.

Crescent cube ice

Crescent cubes are half-moons with one flat face. They stay loose in the bin rather than fusing into a block, so a 100 lb bin actually gives up 100 lb of usable ice, and the solid shape resists melting once it hits a glass. The bin opening is ADA compliant.

Air-cooled installation

The condenser is air-cooled, so there is no condenser water supply to run. The unit is cord-connected on a NEMA 5-15 plug with a 6.5 ft cord for a 115V 15A circuit, and needs a potable water line and a gravity drain. At 90/70 conditions it uses 7.1 kWh and 22 gallons of potable water per 100 lb of ice.

Specifications

Model KM-301BAJ
Ice type Crescent cube
Ice production 290 lb per 24 hours
Condenser Air-cooled
Storage capacity 100 lb (3.3 cu ft)
Exterior dimensions 30" W x 28" D x 39" H
Electrical 115V/60/1, 8.4 amps, 15A max fuse, NEMA 5-15 plug, 6.5 ft cord
Refrigerant R-404A, 13.4 oz (380 g)
Energy consumption 7.1 kWh per 100 lb @ 90/70
Water consumption 22 gallons per 100 lb @ 90/70
Shipping weight 210 lb
Certifications ADA compliant ice bin opening, AHRI Standard 820, ETL Sanitation Listed, NSF, UL Listed

Warranty

Three years parts and labor on the entire machine, plus five years parts and labor on the evaporator.
