Product Description

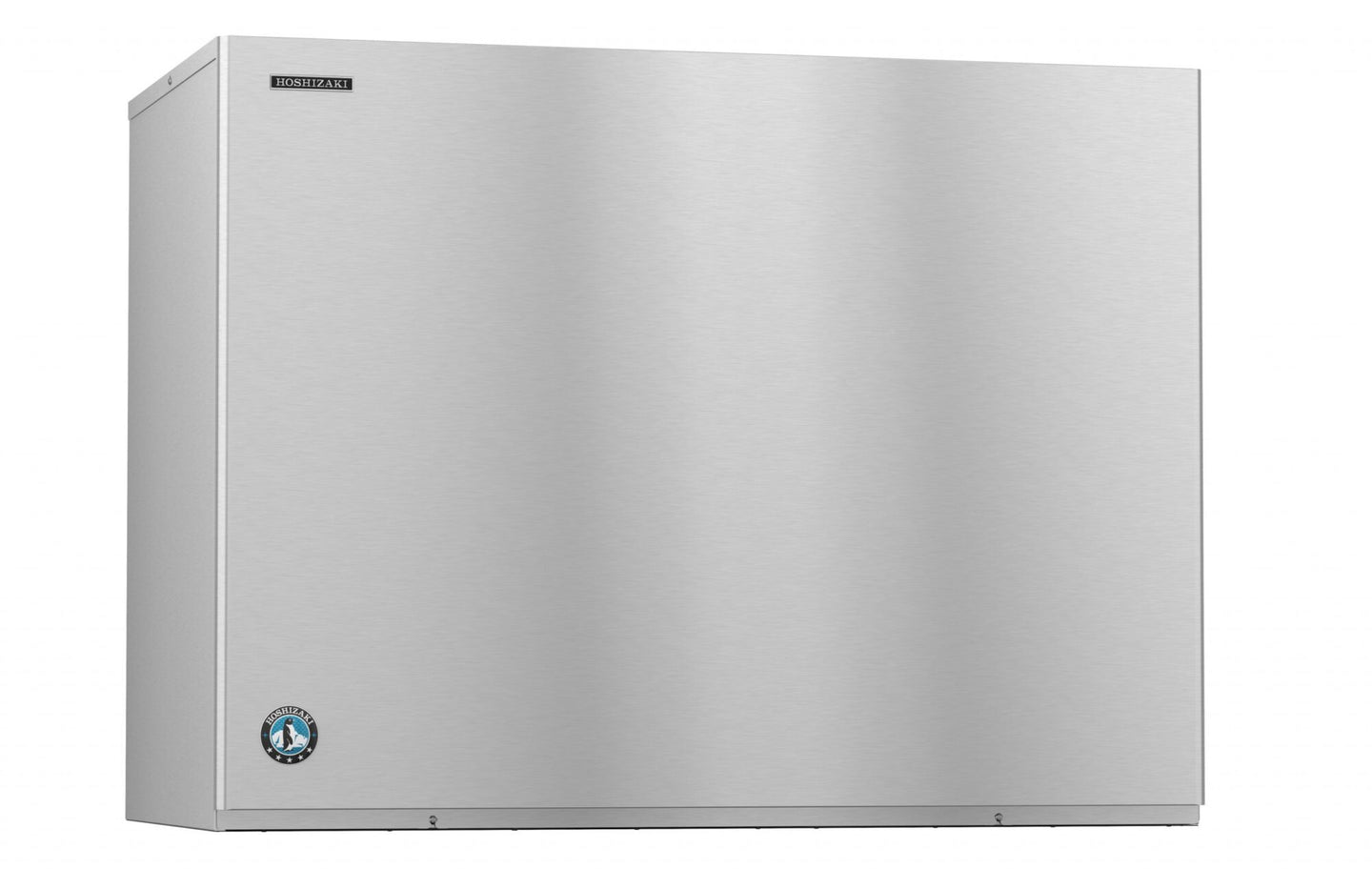

The Hoshizaki KM-2600SWJ3 is a water-cooled, three-phase Crescent Cuber head rated at 2,482 pounds of ice per 24 hours. It is the highest-output water-cooled machine in Hoshizaki's KM range, intended for buildings with an established condenser water loop and enough demand to justify a single very large machine rather than several smaller ones.

Highest water-cooled output in the range

Consolidating ice production into one head simplifies service, water treatment and cleaning schedules — one filter set, one sanitation routine, one machine to monitor. At 2,482 pounds a day this unit can carry a full-service hotel or a hospital kitchen on its own, and two heads can be stacked on a single bin location if the operation grows.

Water-cooled condensing

Heat is rejected into the building water loop rather than the room, so the machine holds its rated output whatever the mechanical room is doing and does not add to the air-conditioning load. Hoshizaki rates it at 16 gallons of potable water per 100 pounds of ice at 90/70 conditions and 3.6 kWh per 100 pounds. Verify supply pressure, drain capacity and any local restriction on single-pass condenser water before specifying.

Three-phase electrical and ice

The head runs on 208-230V three-phase drawing 12.8 amps against a 30 amp maximum fuse or HACR breaker. Ice is formed on double-sided stainless steel KM Edge evaporators into Hoshizaki's crescent shape — flat one side, curved the other — which packs a glass without bridging and melts slowly. This is a machine head only; the B-800 through B-1650 bins are listed as compatible.

Specifications

Model KM-2600SWJ3
Ice production 2,482 lb per 24 hours
Ice shape Crescent cube
Condenser Water-cooled
Exterior dimensions 48" W x 27-3/8" D x 36-7/16" H
Shipping weight 425 lb
Electrical 208-230V / 60Hz / 3 phase
Amperage 12.8 A
Maximum fuse / HACR breaker 30 A
Refrigerant R-404A, 3 lb 7.7 oz (1,580 g)
Energy consumption 3.6 kWh per 100 lb at 90/70
Water consumption 16 gal potable water per 100 lb at 90/70
Compatible bins B-800, B-900, B-1150, B-1300, B-1500, B-1650
Certifications AHRI Standard 810, NSF, UL Listed, Georgia Made Certified

Warranty

Hoshizaki covers the KM-2600SWJ3 with three years parts and labor on the entire machine and five years parts and labor on the evaporator.
