Product Description

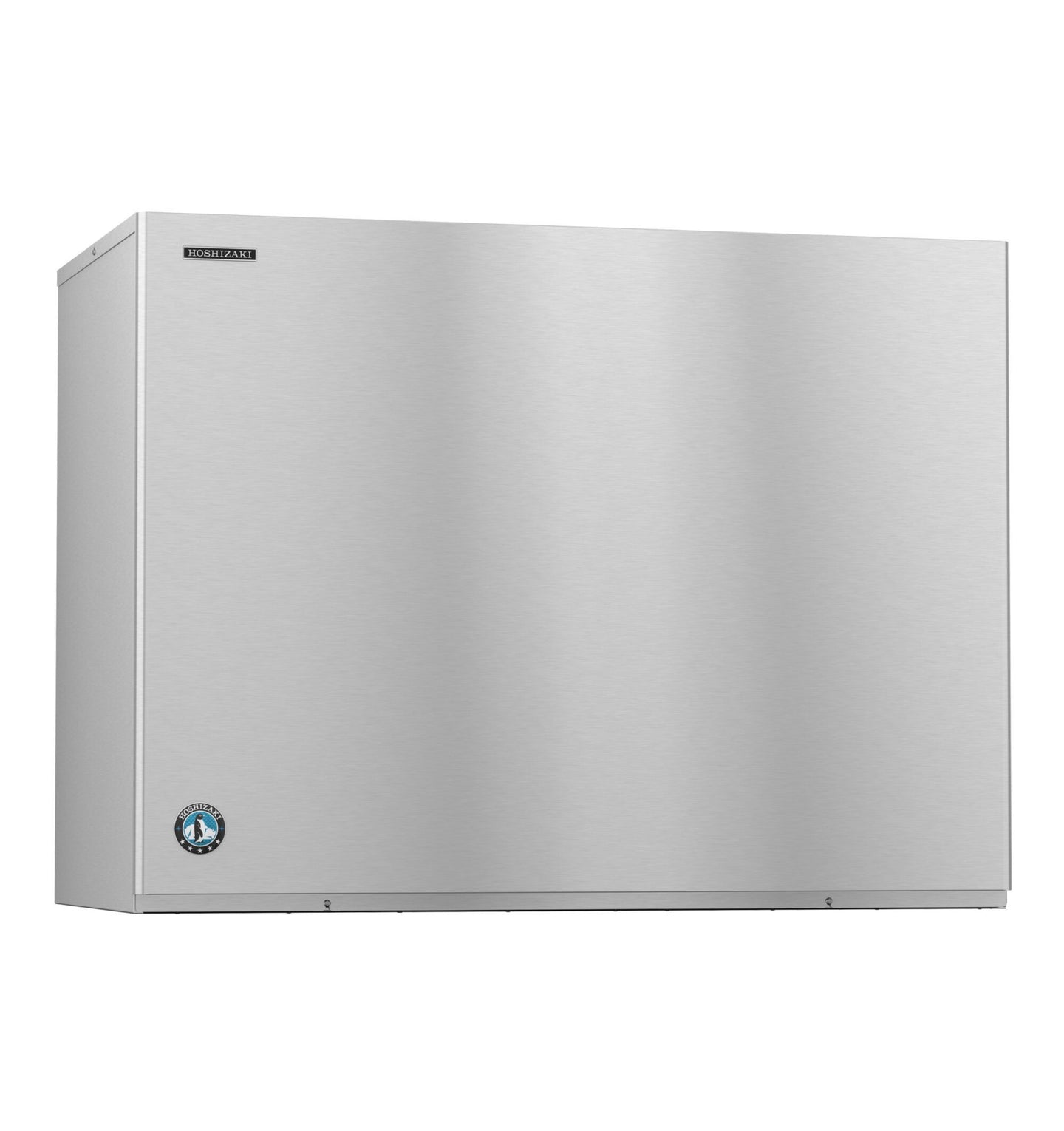

The Hoshizaki KM-2600SRJZ3 is the largest Crescent Cuber head in Hoshizaki's KM line, rated at 2,617 pounds of ice per 24 hours from a single 48-inch cabinet with a remote condenser and three-phase power. Stack two and one bin location produces more than 5,200 pounds a day.

Output where a single machine has to carry the building

At this level the machine is usually the sole ice source for a hotel, hospital wing, casino floor or stadium concourse. What matters is that it recovers fast enough that the bin is never empty at peak, and that it does so without derating in a hot mechanical room. The remote condenser handles the second problem directly: heat goes outdoors, not into the space, so ambient temperature stops being a variable in daily output.

Remote condensing and the install

Plan for a refrigerant line set to a roof or pad-mounted condenser and a mechanical contractor to make the connection and charge the system. In return the head itself runs quietly and can sit closer to the point of use than an air-cooled machine of the same capacity ever could. The unit holds a 19 lb 13.5 oz R-404A charge.

Three-phase electrical and efficiency

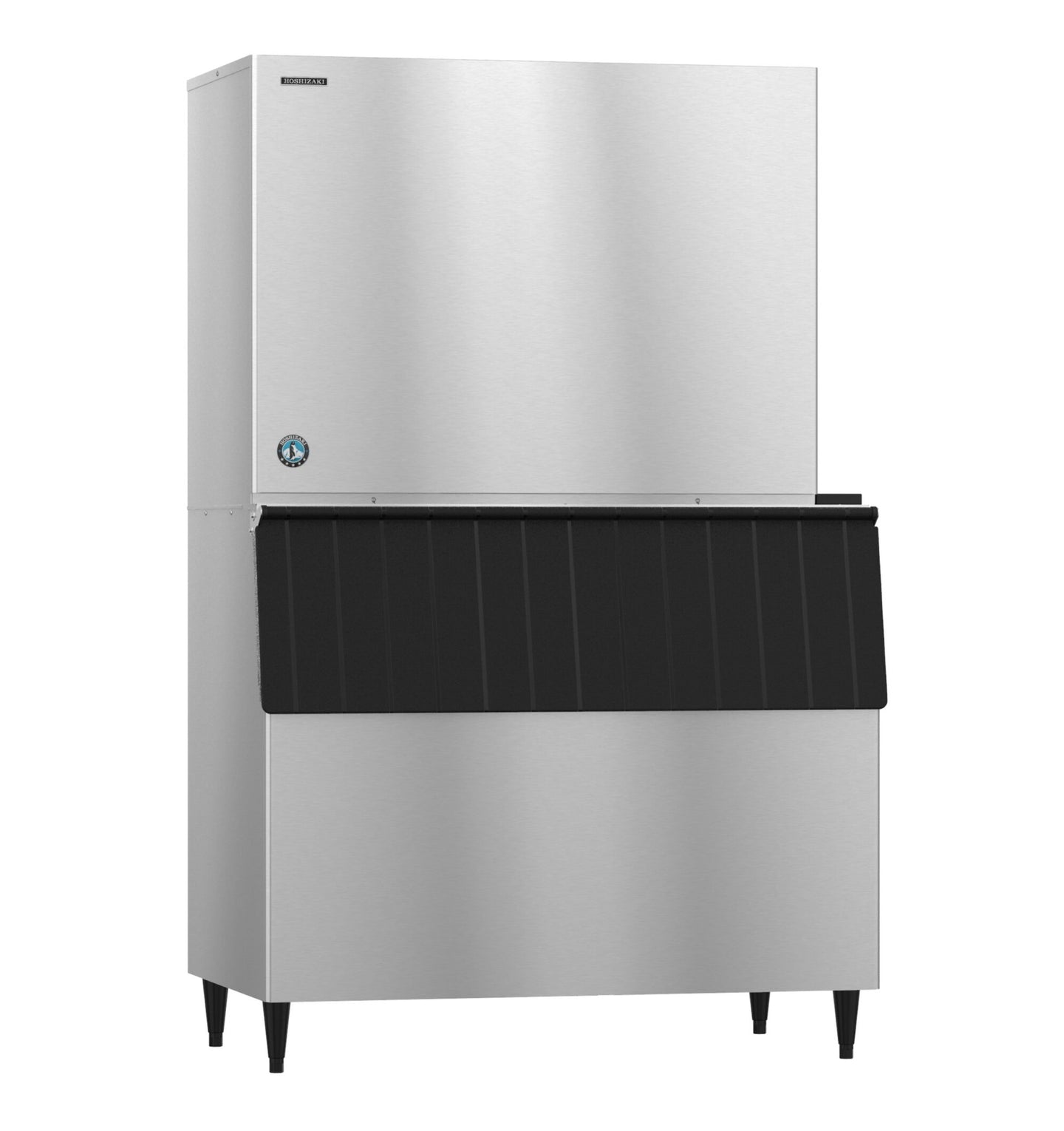

Power is 208-230V three-phase, 20.6 amps, on a 30 amp maximum fuse, hardwired at the site with no cord or plug supplied. It is ENERGY STAR qualified and rated at 3.61 kWh per 100 pounds of ice at 90/70 conditions, with 16 gallons of potable water per 100 pounds. Ice forms on double-sided stainless steel KM Edge evaporators in Hoshizaki's crescent shape, which packs a glass without bridging and melts slowly. Sold as a head only; a separate bin is required.

Specifications

Model KM-2600SRJZ3
Ice production 2,617 lb per 24 hours
Ice shape Crescent cube
Condenser Remote-cooled
Exterior dimensions 48" W x 27-3/8" D x 36-7/16" H
Shipping weight 440 lb
Electrical 208-230V / 60Hz / 3 phase, hardwired
Amperage 20.6 A
Maximum fuse 30 A
Refrigerant R-404A, 19 lb 13.5 oz (9,000 g)
Energy consumption 3.61 kWh per 100 lb at 90/70
Water consumption 16 gal potable water per 100 lb at 90/70
Certifications ENERGY STAR qualified, AHRI Standard 810, NSF, UL Listed, Georgia Made Certified

Warranty

Hoshizaki covers the KM-2600SRJZ3 with three years parts and labor on the entire machine and five years parts and labor on the evaporator.
