Product Description

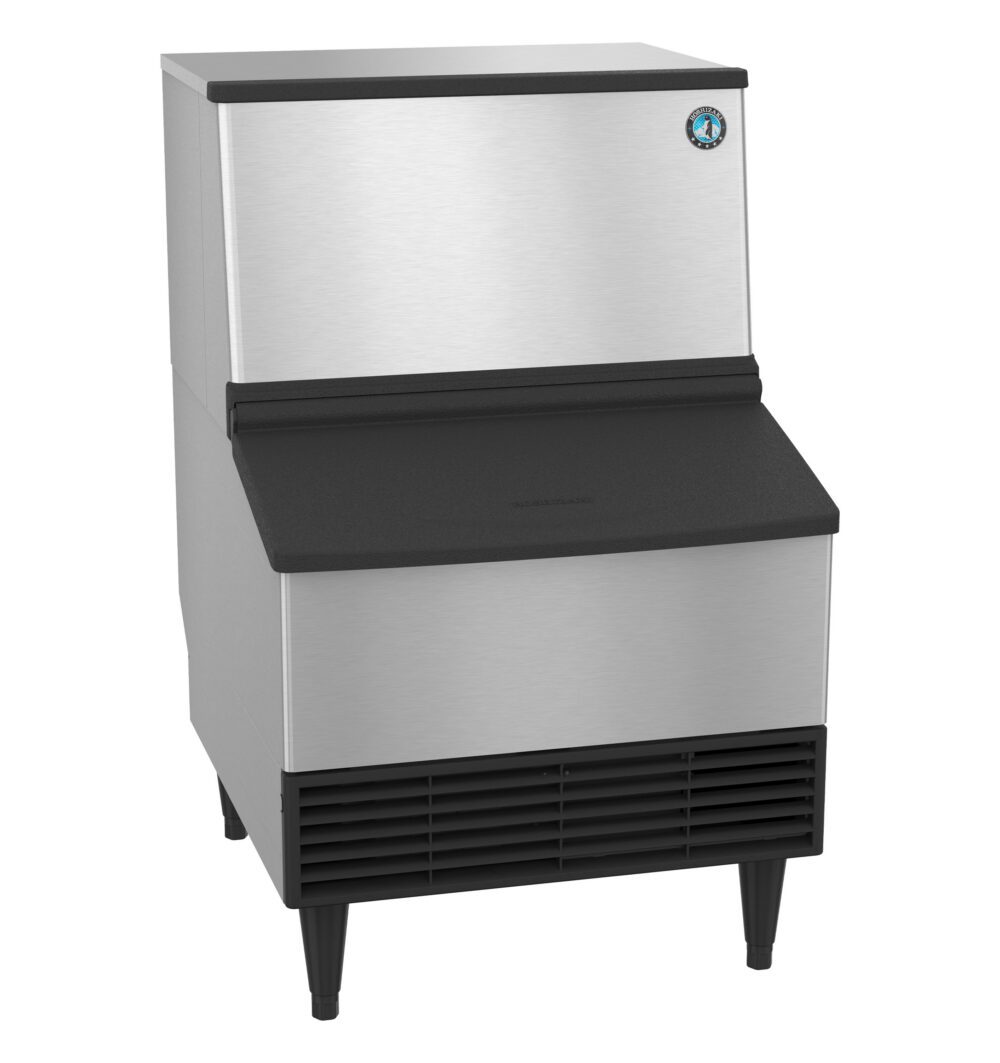

The Hoshizaki KM-231BAK is a self-contained crescent cuber that makes up to 223 lb of ice a day into an 80 lb built-in bin, all within a 24 inch wide cabinet. It sits at the point in the undercounter range where a busy bar or a full dining room stops outrunning the machine.

Output where it counts

223 lb a day from a 24 inch footprint is roughly 70 lb more than the 23-3/4 inch KM-161BAK, on essentially the same bin. That extra make rate is what keeps a bin topped up during a long service rather than merely refilling it overnight. If your problem is running dry at 9pm rather than at open, this is the size step that fixes it.

R290 refrigerant and CycleSaver

The machine runs on R290, a low-GWP hydrocarbon refrigerant, on a 4.1 oz charge, and draws 5.2 amps. Hoshizaki's CycleSaver design keeps the evaporator producing through more of each cycle, which is where the efficiency figure of 6.2 kWh per 100 lb at 90/70 comes from. An EverCheck alert system surfaces service conditions on the front panel before they become a callout.

Crescent cube and installation

Crescent cubes are half-moons with one flat face. They stay loose in the bin instead of welding into a block and melt slowly in a glass. The unit is air-cooled and cord-connected on a NEMA 5-15 plug with a 6.5 ft cord, needing a 115V 15A circuit, potable water and a gravity drain. The bin opening is ADA compliant. It does not stack on a separate bin.

Specifications

Model KM-231BAK
Ice type Crescent cube
Ice production 223 lb per 24 hours
Condenser Air-cooled
Storage capacity 80 lb (2.7 cu ft)
Exterior dimensions 24" W x 28" D x 39" H
Electrical 115V/60/1, 5.2 amps, 15A max fuse/HACR breaker, NEMA 5-15 plug, 6.5 ft cord
Refrigerant R290, 4.1 oz
Energy consumption 6.2 kWh per 100 lb @ 90/70
Water consumption 34 gallons per 100 lb @ 90/70
Shipping weight 165 lb
Certifications ADA Compliant, AHRI Standard 820, ETL Listed (US & C), Georgia Made Certified, NSF, UL Health Effects

Warranty

Three years parts and labor on the entire machine, plus five years parts on the compressor and air-cooled condenser coil.
