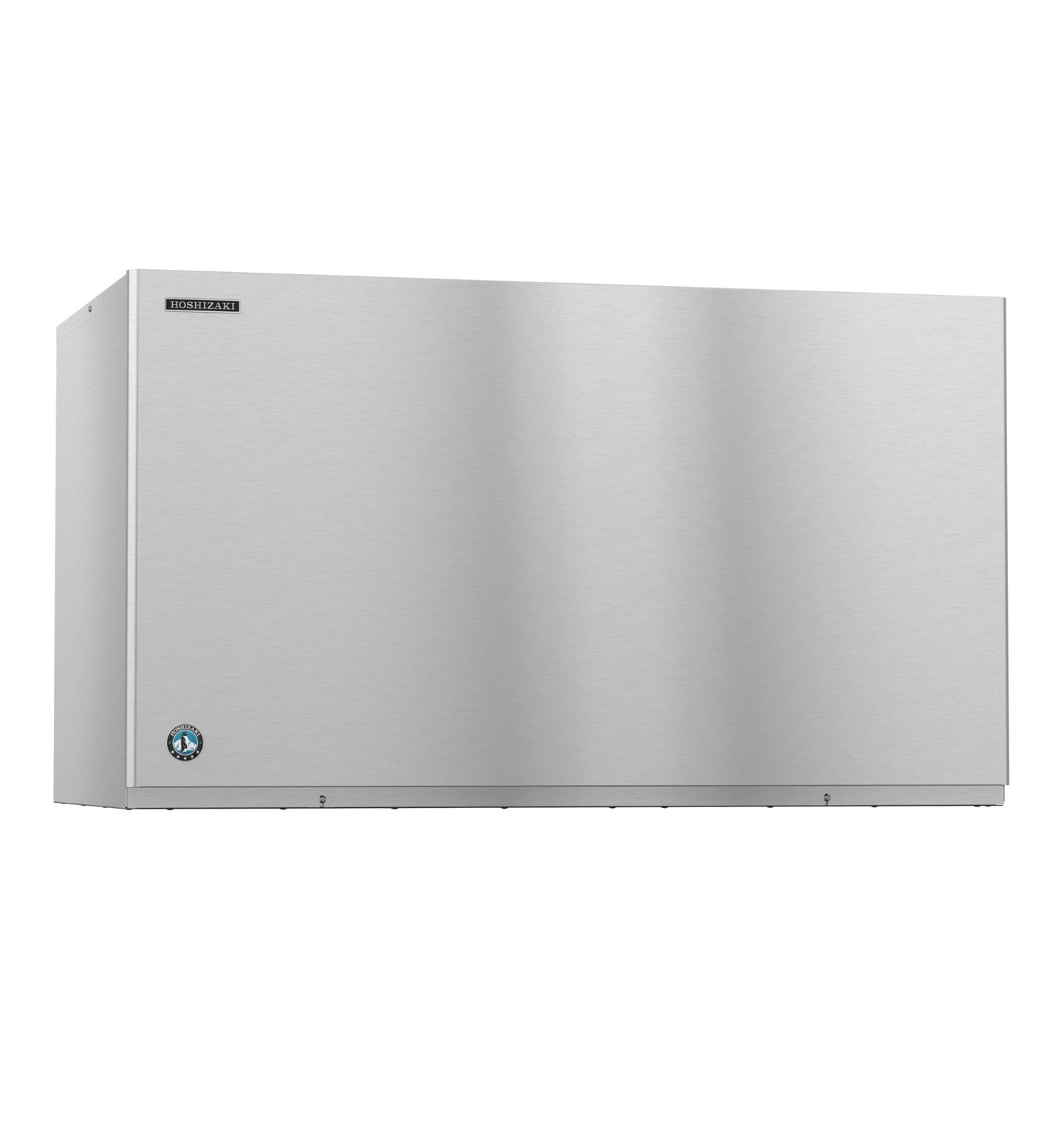

Hoshizaki KM-1601SRJZ3 48 Inch Remote-Cooled Stackable Crescent Cube Ice Machine 3 Phase 1635 lb/24hr

SKU KM-1601SRJZ3

Regular price: $10,840.00

Regular price: $10,840.00

Quantity

Estimated shipping time

Orders are processed within 1–2 business days. After processing, orders typically arrive within 4–7 business days, for a total estimated delivery time of about 5–9 business days from the order date, depending on your location and carrier schedules.

Feel free to reach out to support@supplyza.com or 1-877-731-7972 with any questions about shipping timeline.

What is your Return Policy?

At Supplyza, we want every customer to shop with confidence. Here is exactly how returns work.

1. Return Window

You can request a return within 30 days of receiving your order. We are unable to accept returns after that time frame.

2. Who Arranges the Return, and Who Pays

We arrange every return. Contact us for a Return Merchandise Authorization and we will email you a prepaid parcel label, or — for large equipment that shipped by LTL freight — book the pickup and send you a Bill of Lading. Please do not book your own carrier or buy your own postage; we cannot reimburse shipping we did not book.
Damaged, defective, or the wrong item: we pay the return shipping in full, parcel or freight. No restocking fee.
Changed your mind: the actual return shipping cost is deducted from your refund, along with the 25% restocking fee. We quote that cost to you in writing when we issue your RMA, before anything is booked, and you can cancel the return at no cost up to that point.

3. Damaged or Defective Items

Received something broken or not working properly? Contact us within 30 days. We will arrange and pay for the return, and once the item is back and inspected we will issue either a full refund or a replacement, including any original shipping costs.

4. Freight Deliveries — Inspect Before You Sign

Large equipment is delivered by appointment and you will be asked to sign for it. Note any visible damage or shortage on the driver's delivery receipt before you sign it, photograph the crate and the item, and contact us within 1 business day. Damage you only discover after uncrating must be reported within 5 business days of delivery, because freight carriers set their own concealed-damage claim deadlines. Please call us at +1-877-731-7972 before refusing a shipment — in most cases we can resolve it faster if you accept the delivery with the damage noted.

5. Changed Your Mind?

You can return the item within 30 days as long as it is unused, in its original packaging, and in resellable condition. Freight items must go back on their original pallet or in their original crate with the bracing reinstalled. Equipment that has been installed, plumbed, wired, or put into service cannot be returned. We refund the product cost minus the 25% restocking fee and the return shipping cost.

6. Refund Processing

Once we receive and approve your return, we will send a confirmation email and issue a refund to your original payment method within 7 business days. Please allow additional time for your bank or credit card company to process it. If it has been over 10 business days since your refund was approved and you still do not see it, contact us at support@supplyza.com and we will look into it immediately.

7. Restocking Fees

Change-of-mind returns are subject to a 25% restocking fee, deducted from your refund. There is no restocking fee (0%) for defective, damaged, or incorrect items, and we cover the return shipping on those.

Product Description

The Hoshizaki KM-1601SRJZ3 is the three-phase remote-cooled build of the 48-inch stackable Crescent Cuber, producing 1,635 pounds of ice per 24 hours. On three-phase service it draws 12.8 amps rather than the 15.9 amps its single-phase counterpart needs — often the deciding factor when a machine of this size has to be added to an existing electrical panel.

Three-phase with remote condensing

Both choices reduce load on the building. Three-phase power cuts current draw and improves efficiency; remote condensing moves the compressor and condenser outdoors so none of the machine's substantial heat rejection reaches the kitchen, no compressor noise enters the space, and the head requires no airflow clearance around it. For a 1,600-pound machine this is usually the only way to site it anywhere but a dedicated equipment room. A line set and a separately purchased remote condensing unit are required.

Stackable to over 3,000 pounds a day

The 27-3/8-inch cabinet height exists so a second identical head can be stacked directly on it, taking site output past 3,200 pounds a day on the same footprint and bin line. Crescent ice interlocks loosely rather than packing solid, so at that volume it still flows out of a bin and through a scoop instead of bridging into a mass. Bins are purchased separately, from the B-800 through the B-1650.

Specifications

Model	KM-1601SRJZ3
Ice type	Crescent cube
Ice production	1,635 lb per 24 hours
Condenser	Remote-cooled; remote condensing unit sold separately
Configuration	Stackable modular head unit, bin sold separately
Compatible bins	B-800, B-900, B-1150, B-1300, B-1500, B-1650
Exterior dimensions	48" W x 27-3/8" D x 27-3/8" H
Shipping weight	355 lb
Electrical	Three phase, 208-230V/60/3, 4-wire, 12.8 amps, 20 amp max fuse or HACR breaker; voltage range 187-253V
Connection	Hard-wired; no cord or plug supplied
Refrigerant	R-404A, 15 lb 3.4 oz (6900 g)
Energy consumption	4.14 kWh per 100 lb at 90/70
Water consumption	18 gal potable water per 100 lb at 90/70
Certifications	AHRI Standard 810, NSF, UL Listed, Georgia Made Certified

Warranty

Three years parts and labor on the entire machine. Five years parts and labor on the evaporator.
