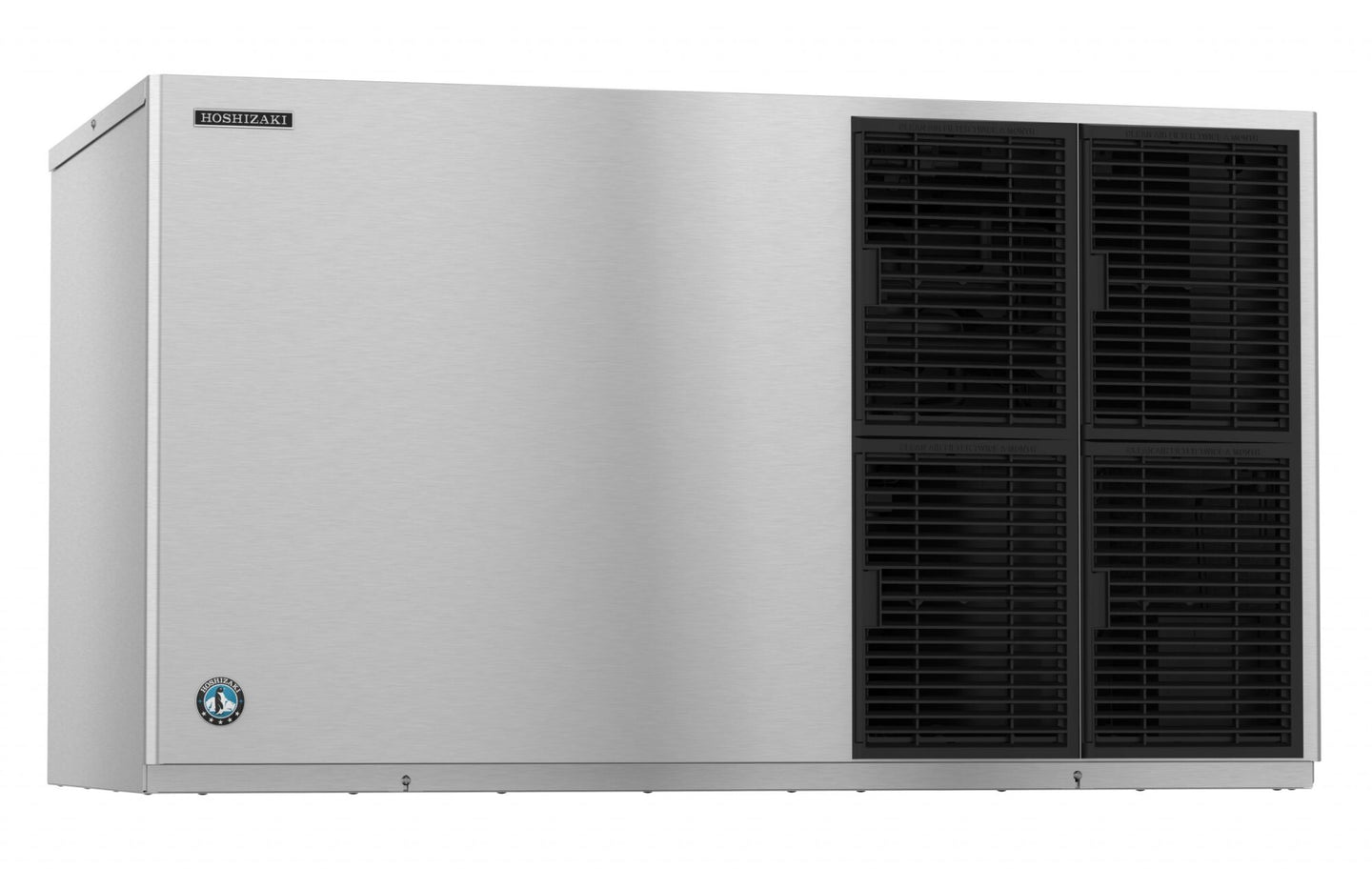

Hoshizaki KM-1601SAJ3 48 Inch Air-Cooled Stackable Crescent Cube Ice Machine 3 Phase 1513 lb/24hr

SKU KM-1601SAJ3

Regular price: $11,180.00

Regular price: $11,180.00

Quantity

Estimated shipping time

Orders are processed within 1–2 business days. After processing, orders typically arrive within 4–7 business days, for a total estimated delivery time of about 5–9 business days from the order date, depending on your location and carrier schedules.

Feel free to reach out to support@supplyza.com or 1-877-731-7972 with any questions about shipping timeline.

What is your Return Policy?

At Supplyza, we want every customer to shop with confidence. Here is exactly how returns work.

1. Return Window

You can request a return within 30 days of receiving your order. We are unable to accept returns after that time frame.

2. Who Arranges the Return, and Who Pays

We arrange every return. Contact us for a Return Merchandise Authorization and we will email you a prepaid parcel label, or — for large equipment that shipped by LTL freight — book the pickup and send you a Bill of Lading. Please do not book your own carrier or buy your own postage; we cannot reimburse shipping we did not book.
Damaged, defective, or the wrong item: we pay the return shipping in full, parcel or freight. No restocking fee.
Changed your mind: the actual return shipping cost is deducted from your refund, along with the 25% restocking fee. We quote that cost to you in writing when we issue your RMA, before anything is booked, and you can cancel the return at no cost up to that point.

3. Damaged or Defective Items

Received something broken or not working properly? Contact us within 30 days. We will arrange and pay for the return, and once the item is back and inspected we will issue either a full refund or a replacement, including any original shipping costs.

4. Freight Deliveries — Inspect Before You Sign

Large equipment is delivered by appointment and you will be asked to sign for it. Note any visible damage or shortage on the driver's delivery receipt before you sign it, photograph the crate and the item, and contact us within 1 business day. Damage you only discover after uncrating must be reported within 5 business days of delivery, because freight carriers set their own concealed-damage claim deadlines. Please call us at +1-877-731-7972 before refusing a shipment — in most cases we can resolve it faster if you accept the delivery with the damage noted.

5. Changed Your Mind?

You can return the item within 30 days as long as it is unused, in its original packaging, and in resellable condition. Freight items must go back on their original pallet or in their original crate with the bracing reinstalled. Equipment that has been installed, plumbed, wired, or put into service cannot be returned. We refund the product cost minus the 25% restocking fee and the return shipping cost.

6. Refund Processing

Once we receive and approve your return, we will send a confirmation email and issue a refund to your original payment method within 7 business days. Please allow additional time for your bank or credit card company to process it. If it has been over 10 business days since your refund was approved and you still do not see it, contact us at support@supplyza.com and we will look into it immediately.

7. Restocking Fees

Change-of-mind returns are subject to a 25% restocking fee, deducted from your refund. There is no restocking fee (0%) for defective, damaged, or incorrect items, and we cover the return shipping on those.

Product Description

The Hoshizaki KM-1601SAJ3 is the three-phase build of the 48-inch air-cooled stackable Crescent Cuber, producing 1,513 pounds of ice per 24 hours. Three-phase service is the reason to specify it: current draw falls to 12.9 amps against the 15.9 amps the single-phase machine needs, which frequently decides whether a unit of this size can be added to an existing panel at all.

Three-phase, air-cooled, stackable

This configuration keeps the installation simple in a way few 1,500-pound machines do. There is no condenser water loop to run and no outdoor line set to install — air cooling handles heat rejection inside the cabinet, so the site needs an electrical connection, water and drain, and adequate airflow around the machine. The 27-3/8-inch cabinet height then allows a second identical head to be stacked on top, taking site output past 3,000 pounds a day without widening the machine wall. Bins are purchased separately, from the B-800 through the B-1650.

Crescent cube with KMEdge evaporators

Crescent ice interlocks loosely rather than freezing into a solid mass, so at this volume it still pours from a bin and moves through a scoop instead of bridging and requiring staff to break it up. Hoshizaki's double-sided KMEdge stainless evaporators harvest from both faces to keep the cycle short, holding energy use to 4.4 kWh per 100 pounds.

Specifications

Model	KM-1601SAJ3
Ice type	Crescent cube
Ice production	1,513 lb per 24 hours
Condenser	Air-cooled
Configuration	Stackable modular head unit, bin sold separately
Compatible bins	B-800, B-900, B-1150, B-1300, B-1500, B-1650
Exterior dimensions	48" W x 27-3/8" D x 27-3/8" H
Shipping weight	315 lb
Electrical	Three phase, 208-230V/60/3, 4-wire, 12.9 amps, 20 amp max fuse
Connection	Hard-wired; no cord or plug supplied
Refrigerant	R-404A, 5 lb 1.1 oz (2300 g)
Energy consumption	4.4 kWh per 100 lb at 90/70
Water consumption	21 gal potable water per 100 lb at 90/70
Certifications	AHRI Standard 810, NSF, UL Listed, Georgia Made Certified

Warranty

Three years parts and labor on the entire machine. Five years parts on the compressor and air-cooled condenser coil.
