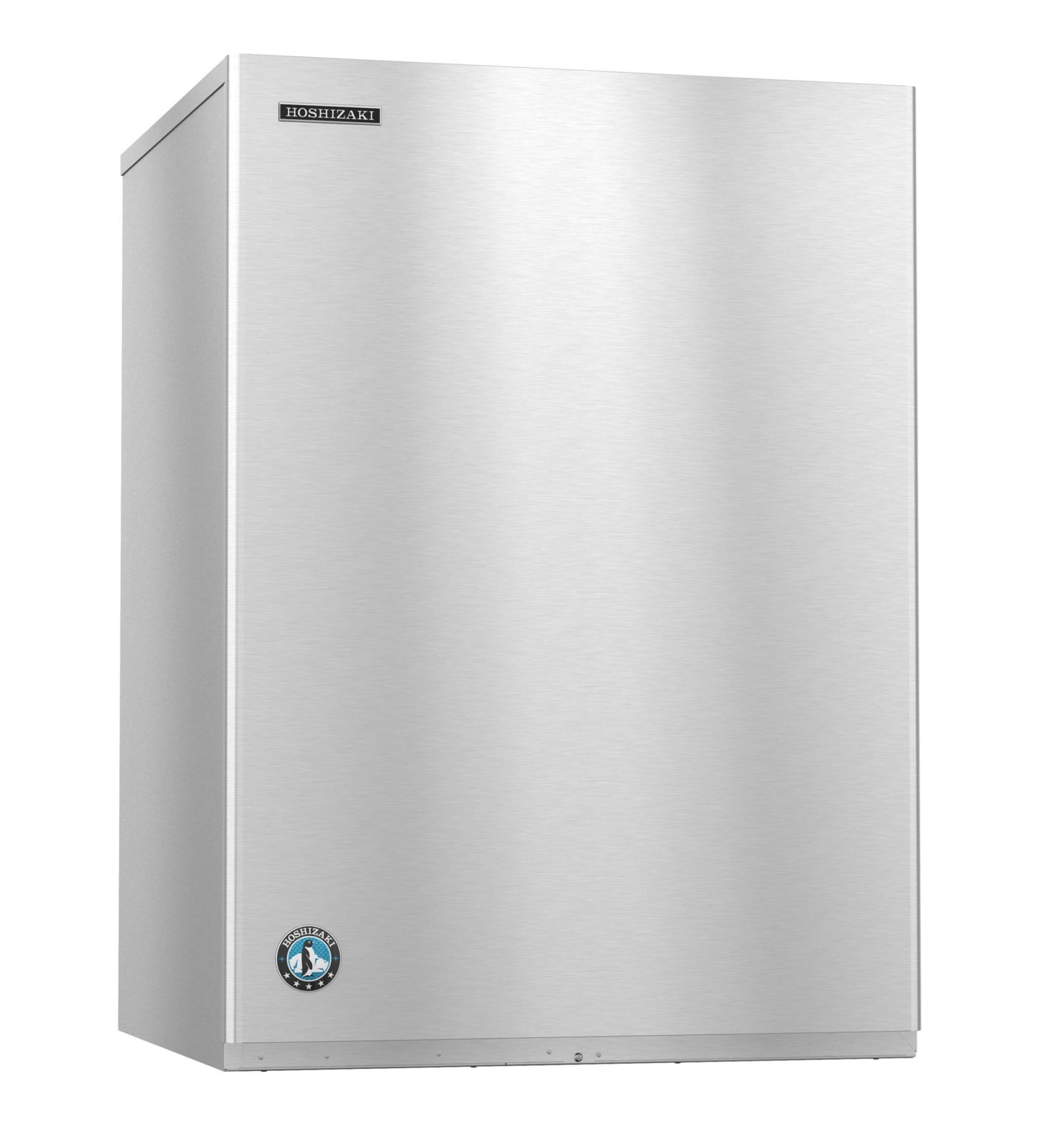

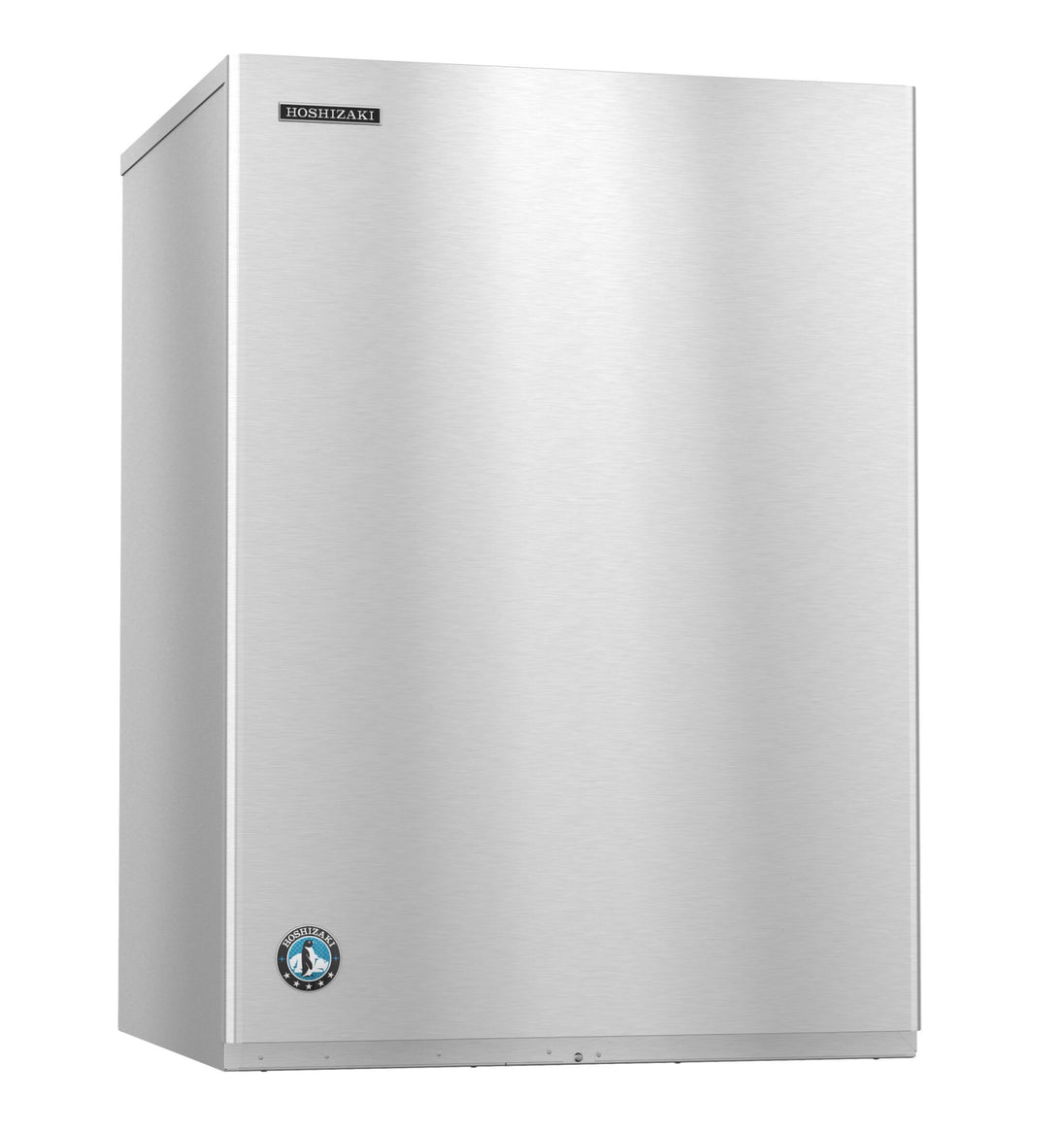

Hoshizaki KM-1601MRJZ3 remote-cooled three-phase modular crescent cube ice machine

Product Description

The Hoshizaki KM-1601MRJZ3 is the three-phase remote-cooled build of the 30-inch Crescent Cuber, producing 1,653 pounds of ice per 24 hours. It is the highest-output 30-inch modular machine Hoshizaki builds — nearly 60 pounds a day more than the single-phase version, at lower current draw and lower energy per pound.

Three-phase efficiency at maximum capacity

On 208-230V three-phase service the machine draws 12.9 amps against the 15.9 amps its single-phase sibling needs, and runs at 4.09 kWh per 100 pounds. For a site already committed to a machine of this size, the three-phase configuration is the cheaper one to operate and the easier one to fit onto a loaded panel. Remote condensing then keeps all the heat rejection outdoors, so a 1,650-pound machine adds no HVAC load and no noise to the kitchen and needs no airflow clearance around the head. A line set and a separately purchased remote condensing unit complete the installation.

Crescent cube in high-volume storage

Crescent ice interlocks loosely instead of packing solid, which at this output is what keeps a bin usable — the ice pours and scoops rather than bridging into a block that has to be broken up by hand every morning. KMEdge dual-sided stainless evaporators harvest from both faces to keep the cycle short.

Specifications

Model KM-1601MRJZ3
Ice type Crescent cube
Ice production 1,653 lb per 24 hours
Condenser Remote-cooled; remote condensing unit sold separately
Configuration Modular head unit, bin sold separately
Exterior dimensions 30" W x 27-3/8" D x 41-5/8" H
Shipping weight 316 lb
Electrical Three phase, 208-230V/60/3, 4-wire with ground, 12.9 amps, 20 amp max fuse; voltage range 187-253V
Connection Hard-wired; no cord or plug supplied
Refrigerant R-404A, 8 lb 2.5 oz (3700 g)
Energy consumption 4.09 kWh per 100 lb at 90/70
Water consumption 18 gal potable water per 100 lb at 90/70
Certifications AHRI Standard 810, NSF, UL Listed, Georgia Made Certified

Warranty

Three years parts and labor on the entire machine. Five years parts and labor on the evaporator.
