Product Description

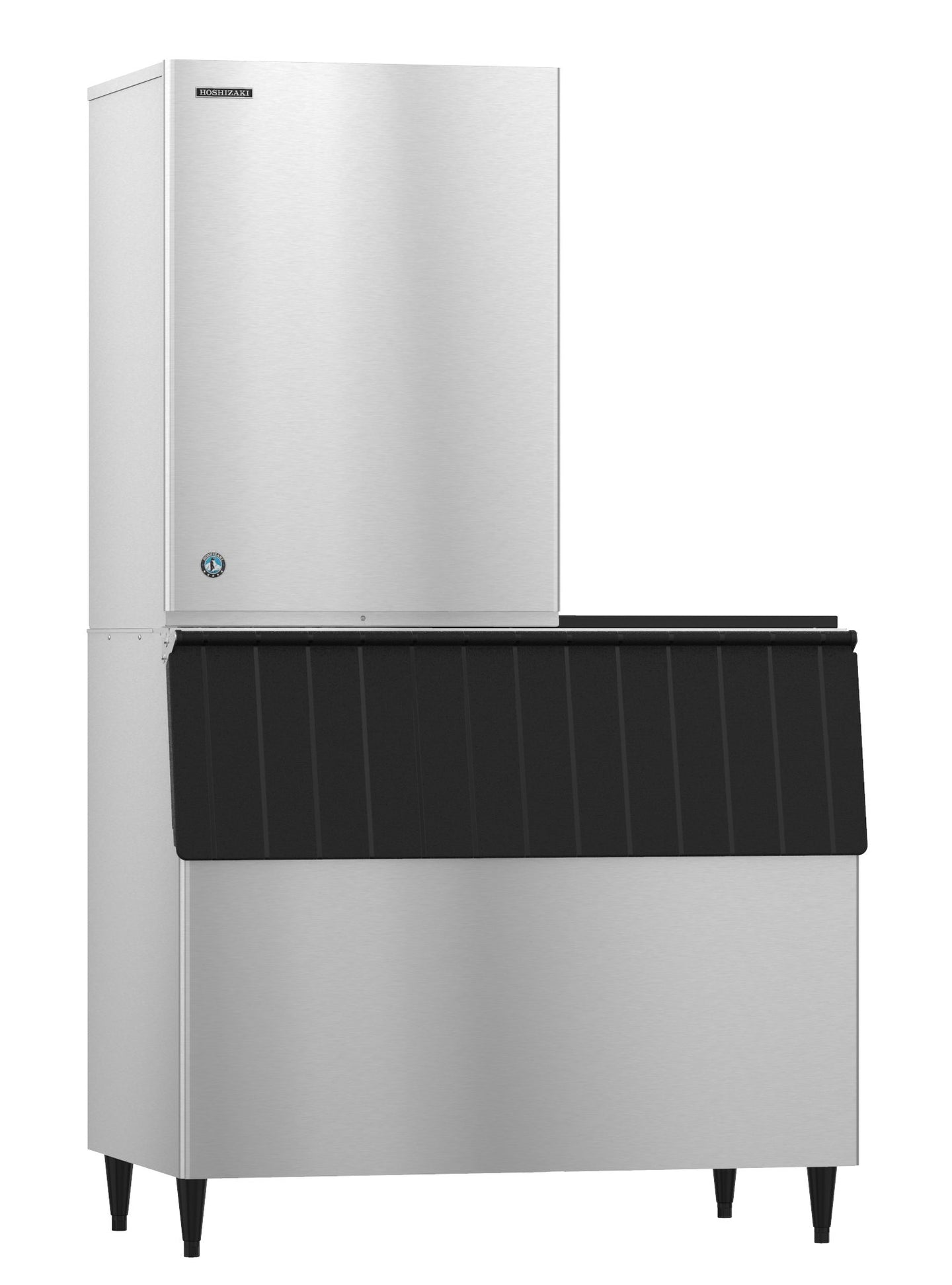

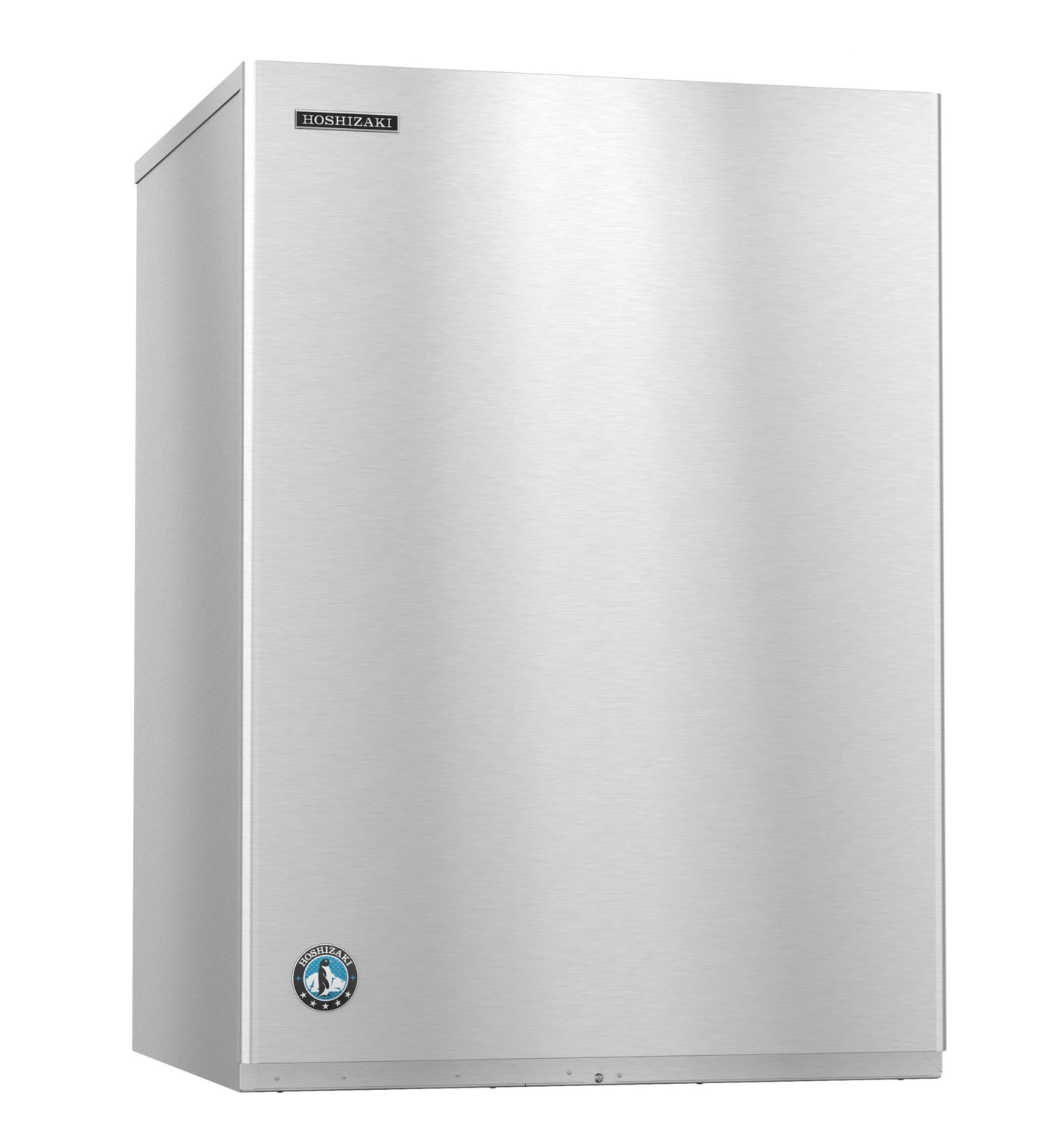

The Hoshizaki KM-1601MRJ is a 30-inch remote-cooled Crescent Cuber producing up to 1,594 pounds of ice per 24 hours — close to 800 pounds an hour at peak from a cabinet only 30 inches wide. It is specified with the URC-22F remote condensing unit and is aimed at the operations that consume ice continuously: hotels, hospitals, high-volume restaurants and beverage-heavy quick service.

Remote condensing at 1,600 pounds a day

A machine producing this much ice rejects a great deal of heat. Putting the condensing unit outdoors keeps all of it out of the kitchen — no added HVAC load, no compressor noise in the space, and none of the ventilation clearance an air-cooled cabinet of this capacity would need around it. The indoor head is a 30-inch, 41-5/8-inch-tall cabinet and nothing more. A refrigeration line set and the remote condensing unit are part of the installation and purchased separately.

Crescent cube, CycleSaver and EverCheck

Crescent ice interlocks loosely rather than freezing into a block, so at 1,600 pounds a day it still pours from a bin and moves through a scoop instead of bridging solid — the difference between a bin that works and one staff have to break up each morning. CycleSaver design shortens the harvest cycle to hold energy use to 4.35 kWh per 100 pounds, and the EverCheck alert system surfaces developing faults before they stop production, which is what matters on the machine an operation cannot do without.

Specifications

Model KM-1601MRJ
Ice type Crescent cube
Ice production Up to 1,594 lb per 24 hours
Condenser Remote-cooled; specified with the URC-22F remote condensing unit, sold separately
Configuration Modular head unit, bin sold separately
Exterior dimensions 30" W x 27-3/8" D x 41-5/8" H
Shipping weight 320 lb
Electrical 208-230V/60/1, 4-wire with ground, 15.9 amps, 20 amp max fuse
Connection Hard-wired at site; no cord or plug supplied
Refrigerant R-404A
Energy consumption 4.35 kWh per 100 lb at 90/70
Water consumption 18 gal potable water per 100 lb at 90/70
Certifications NSF, UL Listed

Warranty

Three years parts and labor on the entire machine. Five years parts and labor on the evaporator.
