Product Description

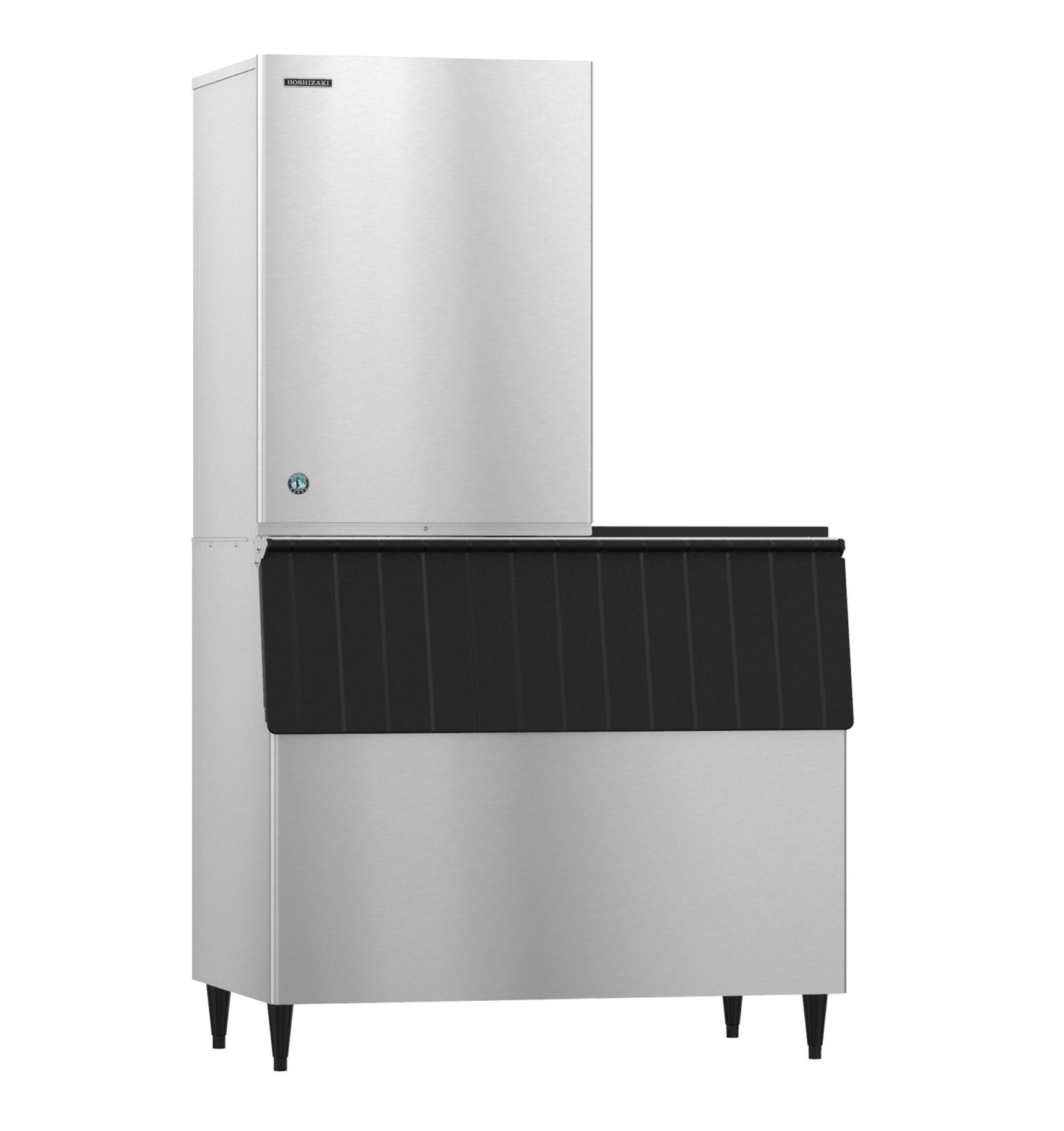

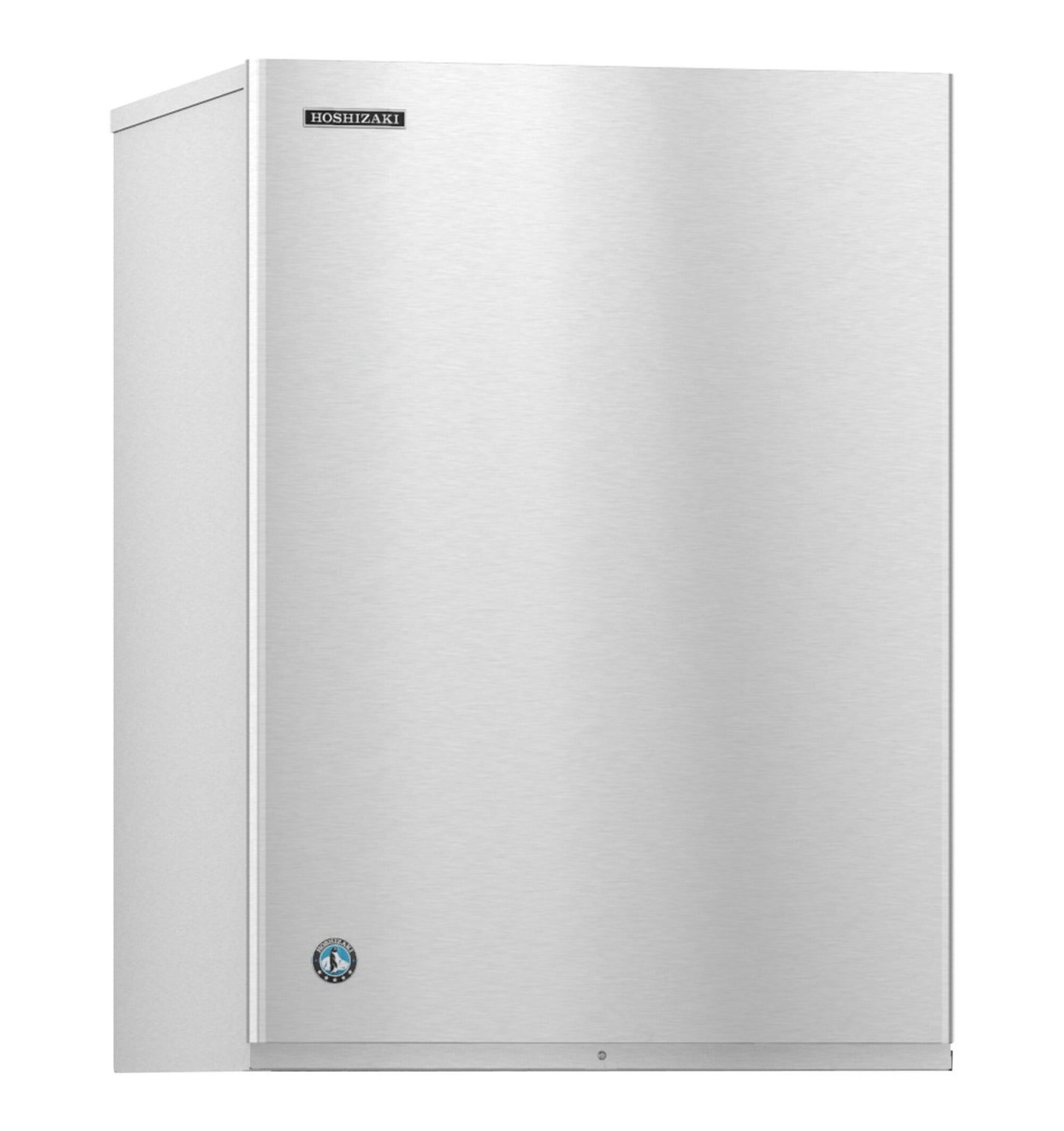

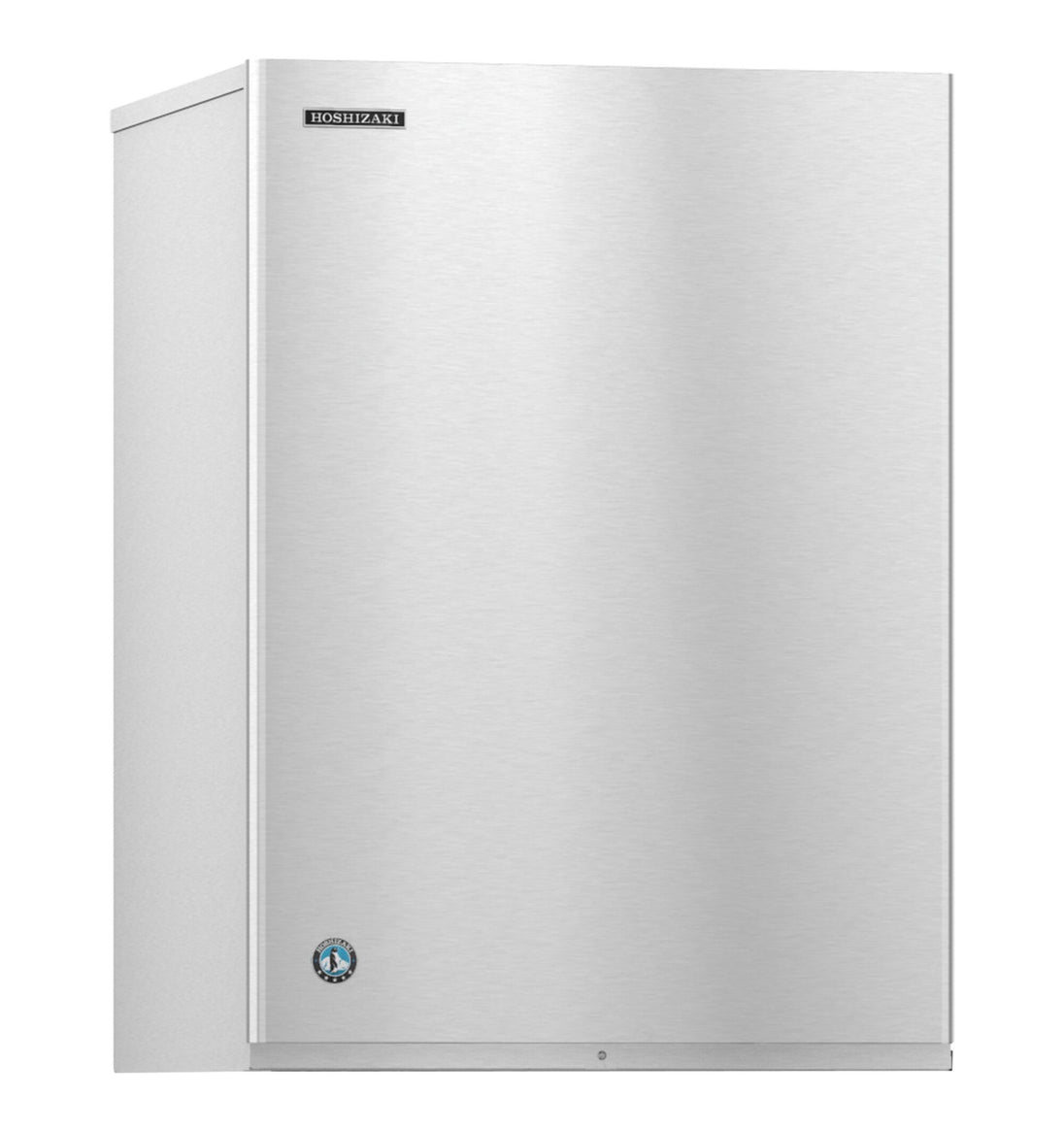

The Hoshizaki KM-1340MRJZ3 is the three-phase remote-cooled build of the 30-inch Crescent Cuber, producing 1,428 pounds of ice per 24 hours. It is the highest-output configuration Hoshizaki offers in a 30-inch modular cabinet, and it is ENERGY STAR qualified at 4.12 kWh per 100 pounds.

Maximum capacity from a fixed footprint

Three-phase power and remote condensing work in the same direction here. Three-phase service drops the current draw to 12.5 amps and improves efficiency over the single-phase machine; remote condensing puts the compressor and condenser outdoors so the head is not derating itself against its own waste heat. The result is close to 1,430 pounds a day from a 30-inch-wide cabinet — the practical ceiling for a site that cannot widen its machine wall. Plan for a refrigeration line set and a separately purchased remote condensing unit.

Crescent cube and KMEdge evaporators

Crescent ice interlocks loosely rather than packing, so it flows out of a bin and through a scoop instead of bridging into a solid mass — the failure mode that costs labor every morning in a high-volume bin. Hoshizaki's KMEdge dual-sided stainless evaporators harvest from both faces to keep the cycle short. Bins are purchased separately.

Specifications

Model KM-1340MRJZ3
Ice type Crescent cube
Ice production 1,428 lb per 24 hours
Condenser Remote-cooled; remote condensing unit sold separately
Configuration Modular head unit, bin sold separately
Exterior dimensions 30" W x 27-3/8" D x 41-1/2" H
Shipping weight 289 lb
Electrical Three phase, 208-230V/60/3, 4-wire with ground, 12.5 amps, 20 amp max fuse
Connection Hard-wired; no cord or plug supplied
Refrigerant R-404A, 6 lb 9.8 oz (3000 g)
Energy consumption 4.12 kWh per 100 lb at 90/70
Water consumption 17.5 gal potable water per 100 lb at 90/70
Certifications ENERGY STAR qualified, AHRI Standard 810, NSF, UL Listed, Georgia Made Certified

Warranty

Three years parts and labor on the entire machine. Five years parts and labor on the evaporator.
