Product Description

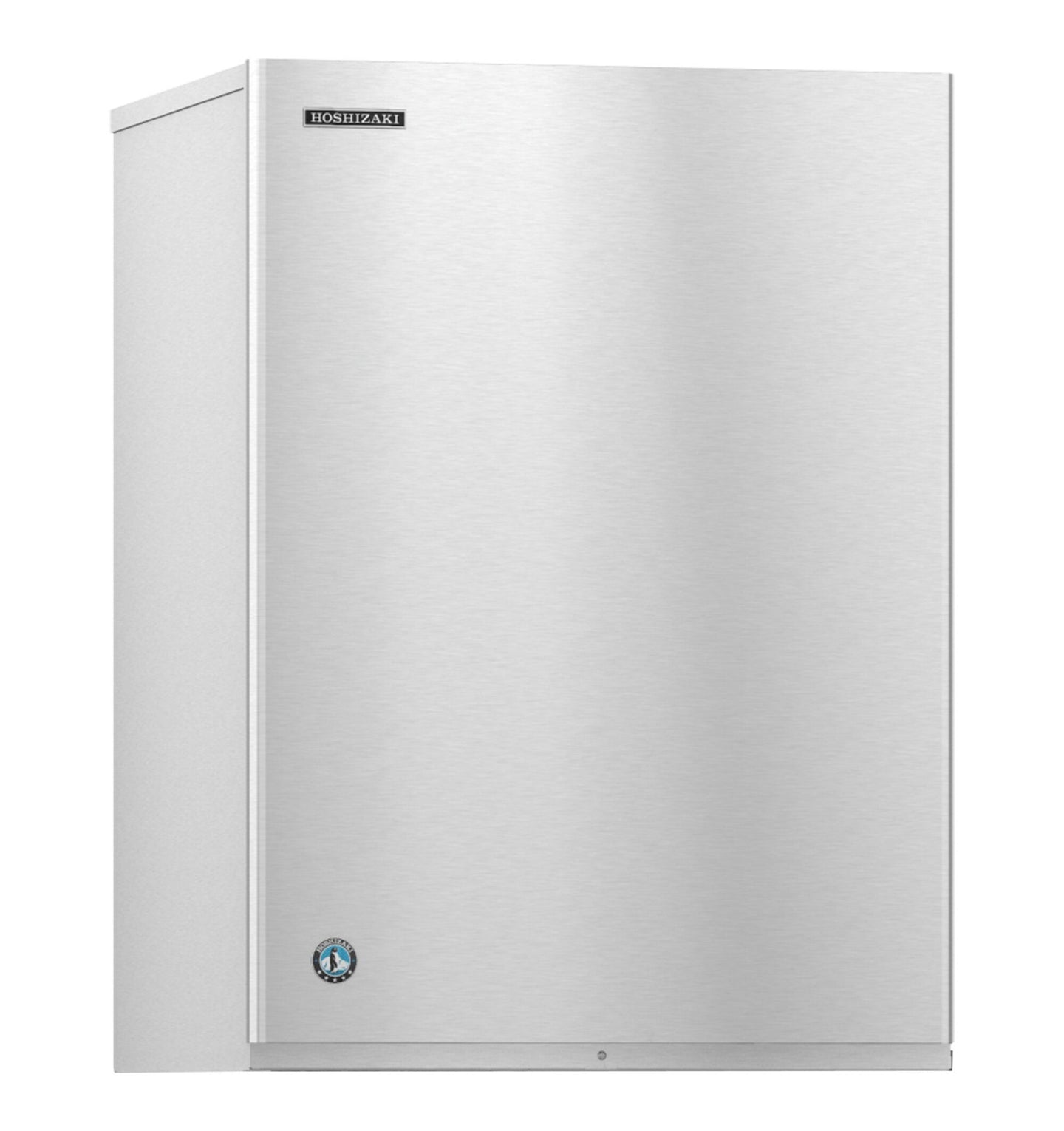

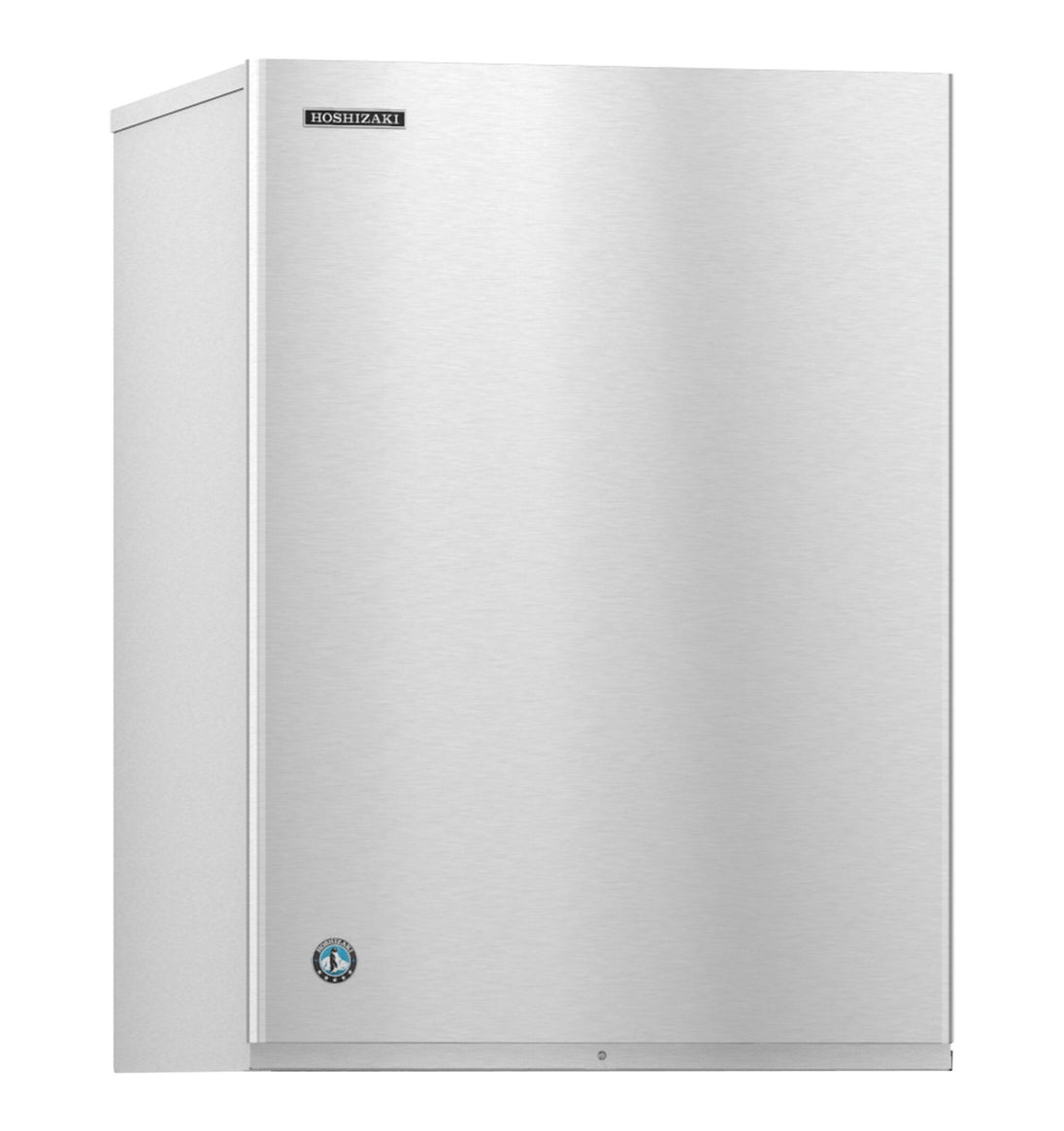

The Hoshizaki KM-1340MRJZ is a 30-inch remote-cooled Crescent Cuber producing 1,371 pounds of ice per 24 hours — nearly 100 pounds a day more than the air-cooled version of the same cabinet, because the condenser is working at outdoor conditions instead of fighting the room it sits in.

Remote condensing in a 30-inch footprint

This machine puts almost 1,400 pounds a day of production into a cabinet 30 inches wide while leaving the compressor and condenser outside the building. No condenser heat enters the kitchen, no compressor noise reaches the space, and the head needs none of the ventilation clearance an air-cooled unit of this size demands. For a fixed machine wall in a hot kitchen, that combination is often the only way to reach this capacity. A refrigeration line set and a separately purchased remote condensing unit are part of the installation.

Crescent cube, CycleSaver and EverCheck

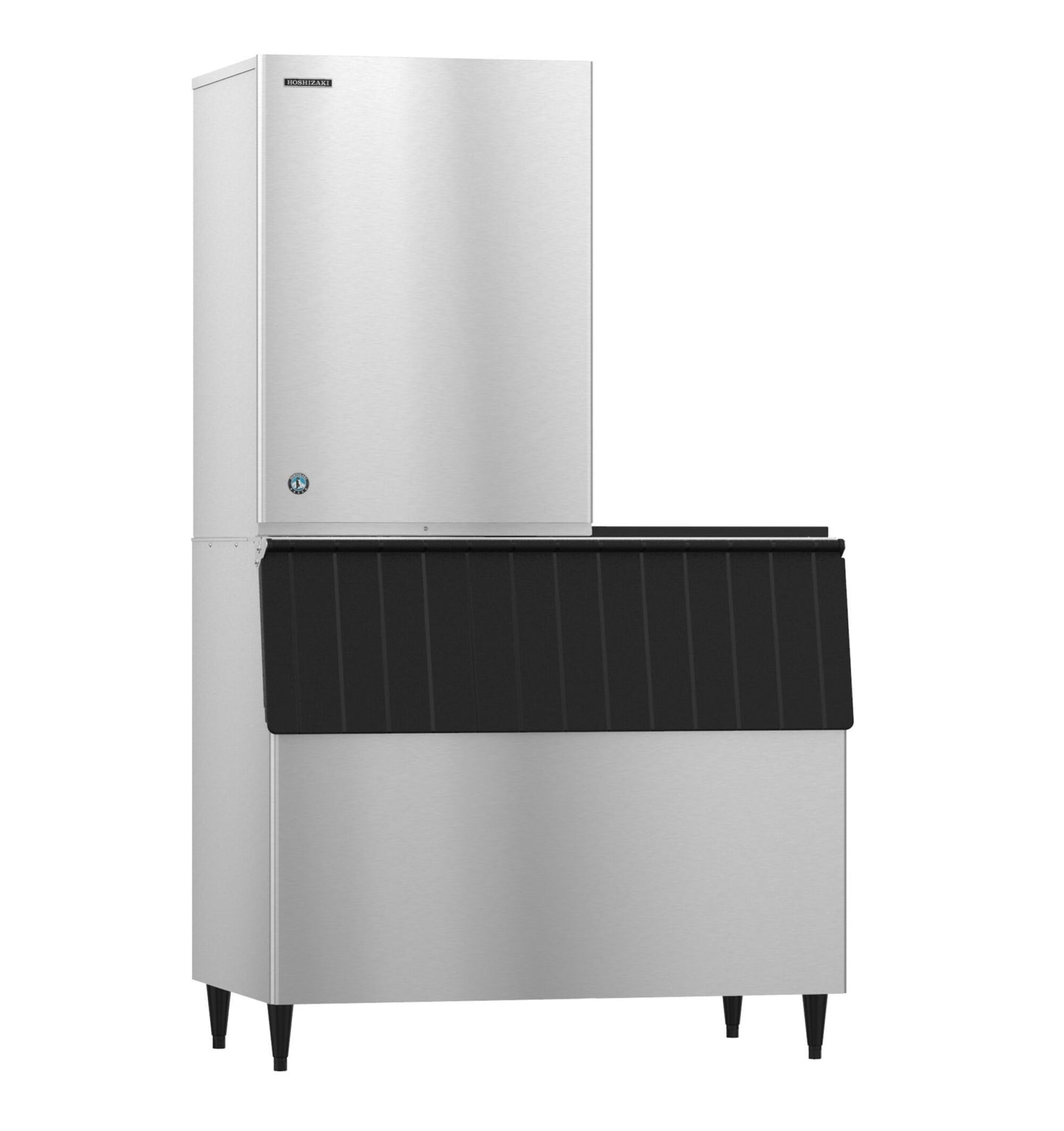

Crescent ice interlocks loosely rather than packing, so it pours out of a bin and moves through a scoop instead of bridging into a solid mass — the practical failure mode of cube ice in high-volume storage. CycleSaver design harvests from a dual-sided evaporator to shorten the cycle, holding energy to 4.54 kWh per 100 pounds, and the EverCheck alert system surfaces developing faults before they become a no-ice morning. Bins are purchased separately, from the B-500 through the B-1650.

Specifications

Model KM-1340MRJZ
Ice type Crescent cube
Ice production 1,371 lb per 24 hours
Condenser Remote-cooled; remote condensing unit sold separately
Configuration Modular head unit, bin sold separately
Compatible bins B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650
Exterior dimensions 30" W x 27-3/8" D x 41-1/2" H
Shipping weight 289 lb
Electrical 208-230V/60/1, 4-wire, 14 amps, 20 amp max fuse
Connection Hard-wired; no cord or plug supplied
Refrigerant R-404A, 6 lb 9.8 oz (3000 g)
Energy consumption 4.54 kWh per 100 lb at 90/70
Water consumption 17.5 gal potable water per 100 lb at 90/70
Certifications AHRI Standard 810, NSF, UL Listed, Georgia Made Certified

Warranty

Three years parts and labor on the entire machine. Five years parts and labor on the evaporator.
