Product Description

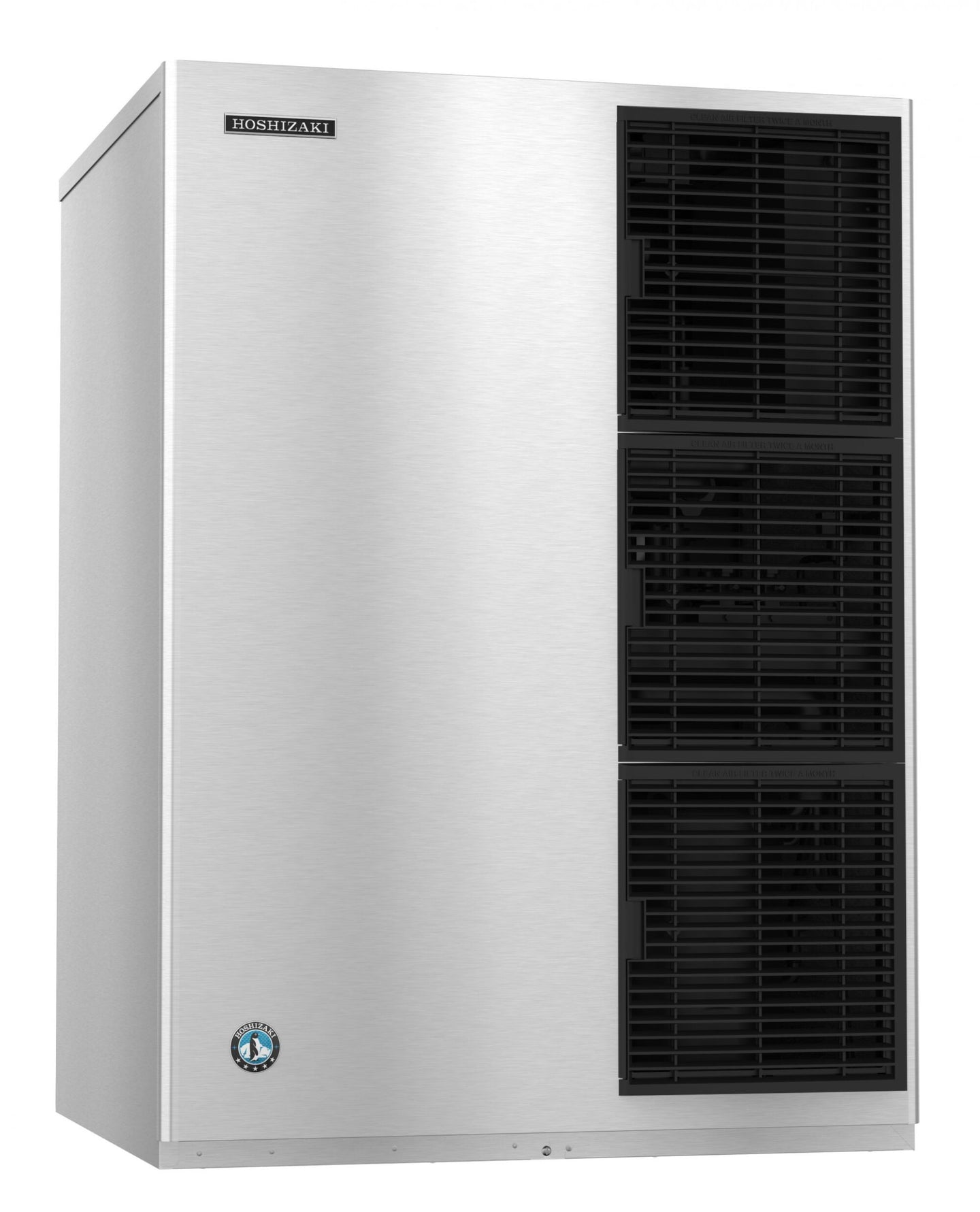

The Hoshizaki KM-1340MAJ is a 30-inch air-cooled Crescent Cuber producing 1,275 pounds of ice per 24 hours. It sits at the top of Hoshizaki's 30-inch modular range: a full 1,275 pounds a day from a cabinet no wider than a 1,000-pound machine, which is what makes it the answer when the machine wall is fixed but demand is not.

High output from a 30-inch footprint

The capacity comes from a taller cabinet rather than a wider one — 41-1/2 inches high against the 32-1/2 inches of the KM-1100 — so a site that cannot give up another foot of wall can still gain roughly 200 pounds a day of production. It is ENERGY STAR qualified at 4.81 kWh per 100 pounds. Note one installation detail before quoting: if the site has no neutral available, the HS-5030 transformer kit is required.

Crescent cube with a dual-sided evaporator

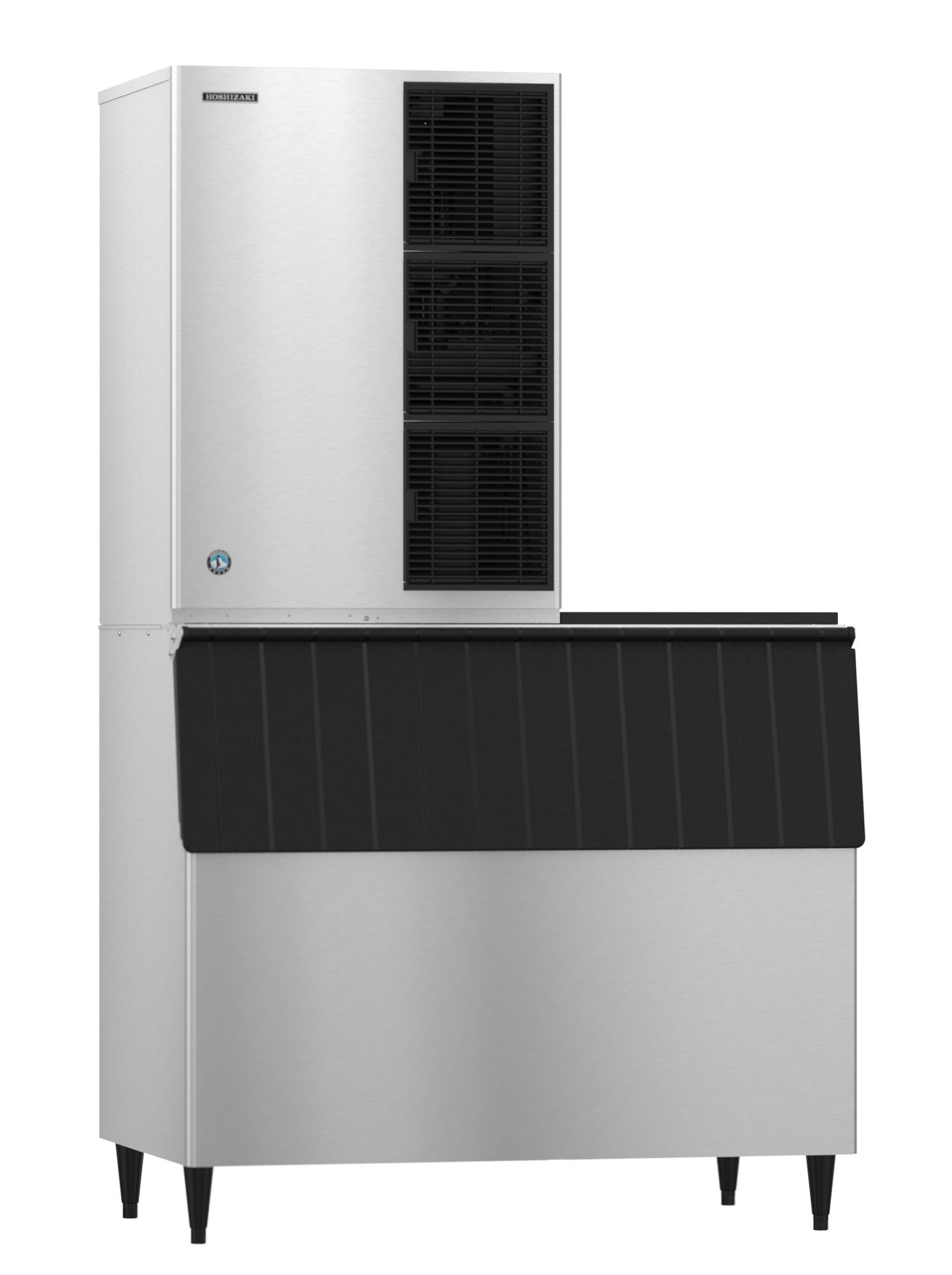

Crescent ice interlocks loosely instead of packing solid, so it flows out of a bin and through a scoop rather than bridging into a frozen block that has to be broken up by hand — a daily difference at 1,275 pounds a day. Hoshizaki's dual-sided stainless evaporator harvests from both faces to shorten the cycle. The head mounts on a separately purchased bin, from the B-500 through the B-1650.

Specifications

Model KM-1340MAJ
Ice type Crescent cube
Ice production 1,275 lb per 24 hours
Condenser Air-cooled
Configuration Modular head unit, bin sold separately
Compatible bins B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650
Exterior dimensions 30" W x 27-3/8" D x 41-1/2" H
Shipping weight 295 lb
Electrical 208-230V/60/1, 13.2 amps, 20 amp max fuse
Connection Hard-wired at site; no cord or plug supplied. HS-5030 transformer kit required if no neutral is available
Refrigerant R-404A, 4 lb 10.1 oz (2100 g)
Energy consumption 4.81 kWh per 100 lb at 90/70
Water consumption 23.6 gal potable water per 100 lb at 90/70
Certifications ENERGY STAR qualified, AHRI Standard 810, NSF, UL Listed, Georgia Made Certified

Warranty

Three years parts and labor on the entire machine. Five years parts on the compressor and air-cooled condenser coil.
