Hoshizaki

Hoshizaki KM-1301SWJ3 48 Inch Water-Cooled Stackable Crescent Cube Ice Machine 3 Phase 1360 lb/24hr

SKU KM-1301SWJ3

Regular price: $9,705.00

Regular price: $9,705.00

Quantity

Estimated shipping time

Orders are processed within 1–2 business days. After processing, orders typically arrive within 4–7 business days, for a total estimated delivery time of about 5–9 business days from the order date, depending on your location and carrier schedules.

Feel free to reach out to support@supplyza.com or 1-877-731-7972 with any questions about shipping timeline.

What is your Return Policy?

At Supplyza, we want every customer to shop with confidence. Here is exactly how returns work.

1. Return Window

You can request a return within 30 days of receiving your order. We are unable to accept returns after that time frame.

2. Who Arranges the Return, and Who Pays

We arrange every return. Contact us for a Return Merchandise Authorization and we will email you a prepaid parcel label, or — for large equipment that shipped by LTL freight — book the pickup and send you a Bill of Lading. Please do not book your own carrier or buy your own postage; we cannot reimburse shipping we did not book.
Damaged, defective, or the wrong item: we pay the return shipping in full, parcel or freight. No restocking fee.
Changed your mind: the actual return shipping cost is deducted from your refund, along with the 25% restocking fee. We quote that cost to you in writing when we issue your RMA, before anything is booked, and you can cancel the return at no cost up to that point.

3. Damaged or Defective Items

Received something broken or not working properly? Contact us within 30 days. We will arrange and pay for the return, and once the item is back and inspected we will issue either a full refund or a replacement, including any original shipping costs.

4. Freight Deliveries — Inspect Before You Sign

Large equipment is delivered by appointment and you will be asked to sign for it. Note any visible damage or shortage on the driver's delivery receipt before you sign it, photograph the crate and the item, and contact us within 1 business day. Damage you only discover after uncrating must be reported within 5 business days of delivery, because freight carriers set their own concealed-damage claim deadlines. Please call us at +1-877-731-7972 before refusing a shipment — in most cases we can resolve it faster if you accept the delivery with the damage noted.

5. Changed Your Mind?

You can return the item within 30 days as long as it is unused, in its original packaging, and in resellable condition. Freight items must go back on their original pallet or in their original crate with the bracing reinstalled. Equipment that has been installed, plumbed, wired, or put into service cannot be returned. We refund the product cost minus the 25% restocking fee and the return shipping cost.

6. Refund Processing

Once we receive and approve your return, we will send a confirmation email and issue a refund to your original payment method within 7 business days. Please allow additional time for your bank or credit card company to process it. If it has been over 10 business days since your refund was approved and you still do not see it, contact us at support@supplyza.com and we will look into it immediately.

7. Restocking Fees

Change-of-mind returns are subject to a 25% restocking fee, deducted from your refund. There is no restocking fee (0%) for defective, damaged, or incorrect items, and we cover the return shipping on those.

Product Description

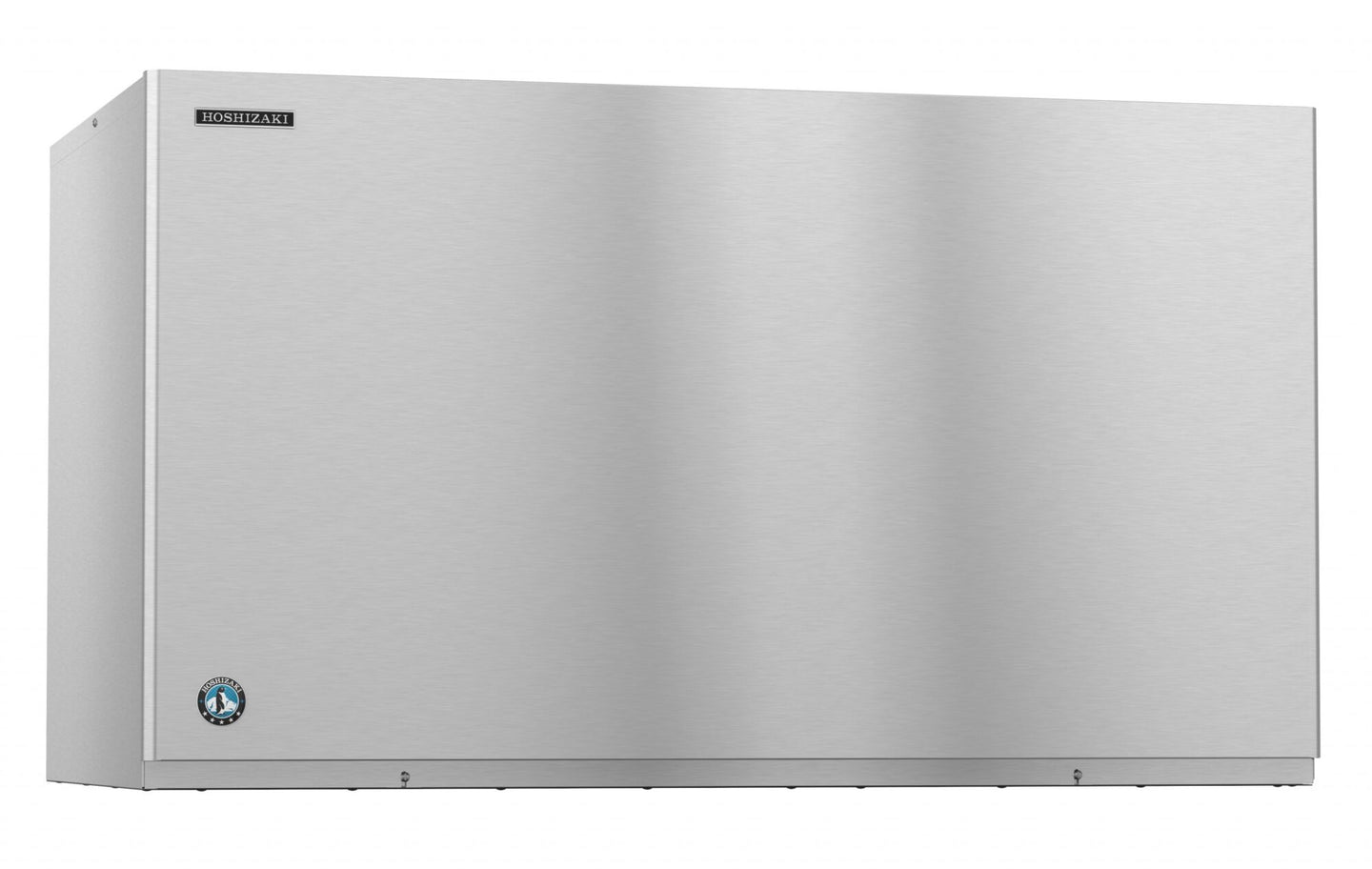

The Hoshizaki KM-1301SWJ3 is the three-phase water-cooled build of the 48-inch stackable Crescent Cuber, producing 1,360 pounds of ice per 24 hours. Combining water cooling with three-phase power produces the lowest running load anywhere in the KM-1301S family: 6.1 amps and 3.25 kWh per 100 pounds.

The lowest-draw configuration in the family

Two efficiencies compound here. Water cooling rejects condenser heat into the water circuit rather than the room, so the machine holds its rating in a warm equipment space instead of derating as it heats its own surroundings. Three-phase service then cuts the current draw further, to 6.1 amps — less than half what the remote-cooled single-phase version pulls. Where an electrical panel is tight or the mechanical space is already warm, this is the configuration that fits. It also uses less water per pound than the single-phase water-cooled model, at 16 gallons per 100 pounds. Budget a condenser supply and drain.

Stackable head, crescent ice

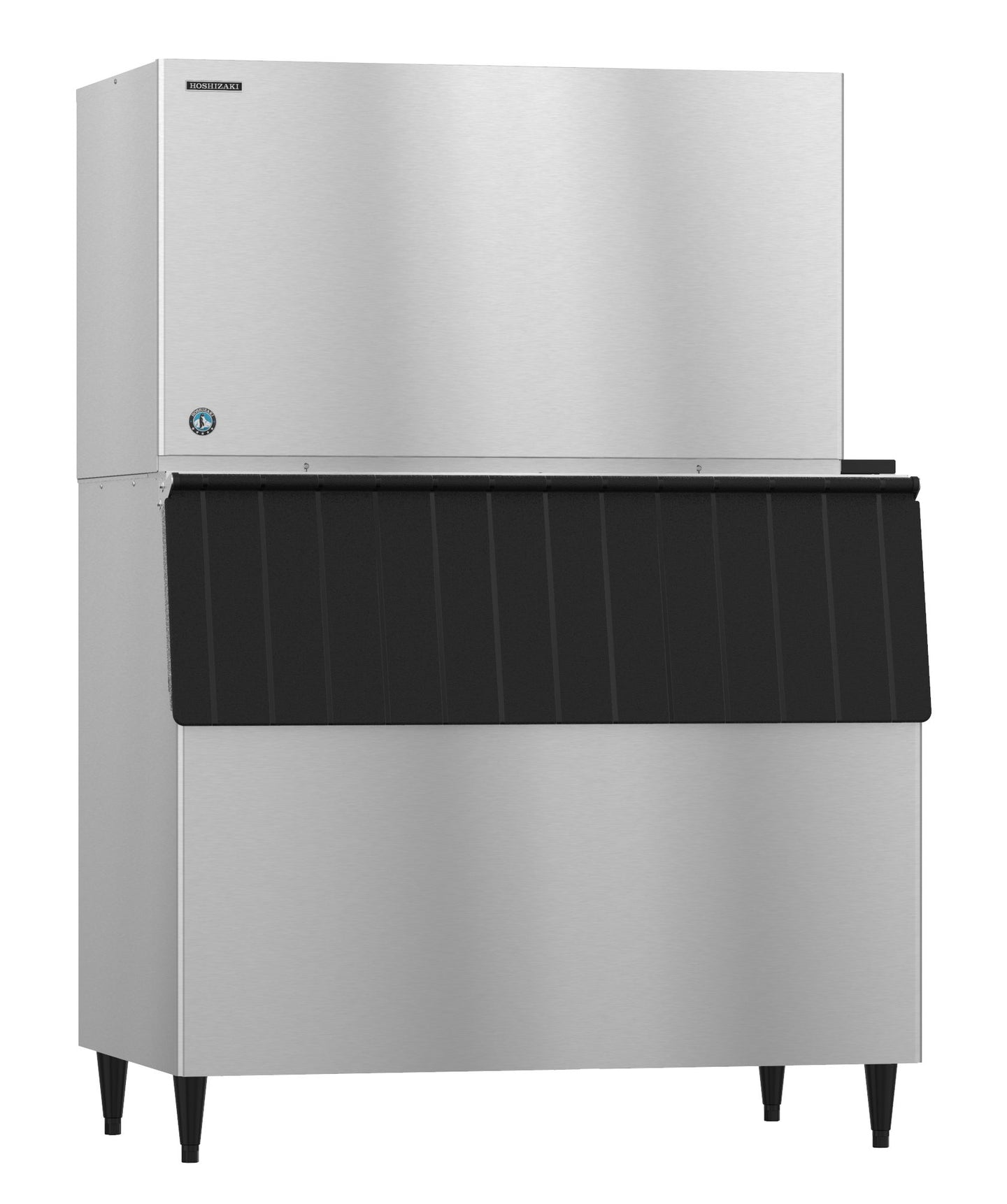

The 27-3/8-inch cabinet is short by design so a second identical head can be stacked on it, doubling site output to roughly 2,700 pounds a day without additional floor. Crescent ice interlocks loosely instead of packing solid, so it pours out of a bin and through a scoop rather than bridging into a mass that has to be broken up. Bins are purchased separately, from the B-800 through the B-1650.

Specifications

Model	KM-1301SWJ3
Ice type	Crescent cube
Ice production	1,360 lb per 24 hours
Condenser	Water-cooled
Configuration	Stackable modular head unit, bin sold separately
Compatible bins	B-800, B-900, B-1150, B-1300, B-1500, B-1650
Exterior dimensions	48" W x 27-3/8" D x 27-3/8" H
Shipping weight	340 lb
Electrical	Three phase, 208-230V/60/3, 4-wire, 6.1 amps, 20 amp max fuse
Connection	Hard-wired at site; no cord or plug supplied
Refrigerant	R-404A, 2 lb 2.4 oz (975 g)
Energy consumption	3.25 kWh per 100 lb at 90/70
Water consumption	16 gal potable water per 100 lb at 90/70
Certifications	AHRI Standard 810, NSF, UL Listed, Georgia Made Certified

Warranty

Three years parts and labor on the entire machine. Five years parts and labor on the evaporator.
