Hoshizaki KM-1301SAJ-E 48 Inch Air-Cooled Stackable Crescent Cube Ice Machine 50Hz 624 kg/24hr

SKU KM-1301SAJ-E

Regular price: $9,875.00

Regular price: $9,875.00

Quantity

Estimated shipping time

Orders are processed within 1–2 business days. After processing, orders typically arrive within 4–7 business days, for a total estimated delivery time of about 5–9 business days from the order date, depending on your location and carrier schedules.

Feel free to reach out to support@supplyza.com or 1-877-731-7972 with any questions about shipping timeline.

What is your Return Policy?

At Supplyza, we want every customer to shop with confidence. Here is exactly how returns work.

1. Return Window

You can request a return within 30 days of receiving your order. We are unable to accept returns after that time frame.

2. Who Arranges the Return, and Who Pays

We arrange every return. Contact us for a Return Merchandise Authorization and we will email you a prepaid parcel label, or — for large equipment that shipped by LTL freight — book the pickup and send you a Bill of Lading. Please do not book your own carrier or buy your own postage; we cannot reimburse shipping we did not book.
Damaged, defective, or the wrong item: we pay the return shipping in full, parcel or freight. No restocking fee.
Changed your mind: the actual return shipping cost is deducted from your refund, along with the 25% restocking fee. We quote that cost to you in writing when we issue your RMA, before anything is booked, and you can cancel the return at no cost up to that point.

3. Damaged or Defective Items

Received something broken or not working properly? Contact us within 30 days. We will arrange and pay for the return, and once the item is back and inspected we will issue either a full refund or a replacement, including any original shipping costs.

4. Freight Deliveries — Inspect Before You Sign

Large equipment is delivered by appointment and you will be asked to sign for it. Note any visible damage or shortage on the driver's delivery receipt before you sign it, photograph the crate and the item, and contact us within 1 business day. Damage you only discover after uncrating must be reported within 5 business days of delivery, because freight carriers set their own concealed-damage claim deadlines. Please call us at +1-877-731-7972 before refusing a shipment — in most cases we can resolve it faster if you accept the delivery with the damage noted.

5. Changed Your Mind?

You can return the item within 30 days as long as it is unused, in its original packaging, and in resellable condition. Freight items must go back on their original pallet or in their original crate with the bracing reinstalled. Equipment that has been installed, plumbed, wired, or put into service cannot be returned. We refund the product cost minus the 25% restocking fee and the return shipping cost.

6. Refund Processing

Once we receive and approve your return, we will send a confirmation email and issue a refund to your original payment method within 7 business days. Please allow additional time for your bank or credit card company to process it. If it has been over 10 business days since your refund was approved and you still do not see it, contact us at support@supplyza.com and we will look into it immediately.

7. Restocking Fees

Change-of-mind returns are subject to a 25% restocking fee, deducted from your refund. There is no restocking fee (0%) for defective, damaged, or incorrect items, and we cover the return shipping on those.

Product Description

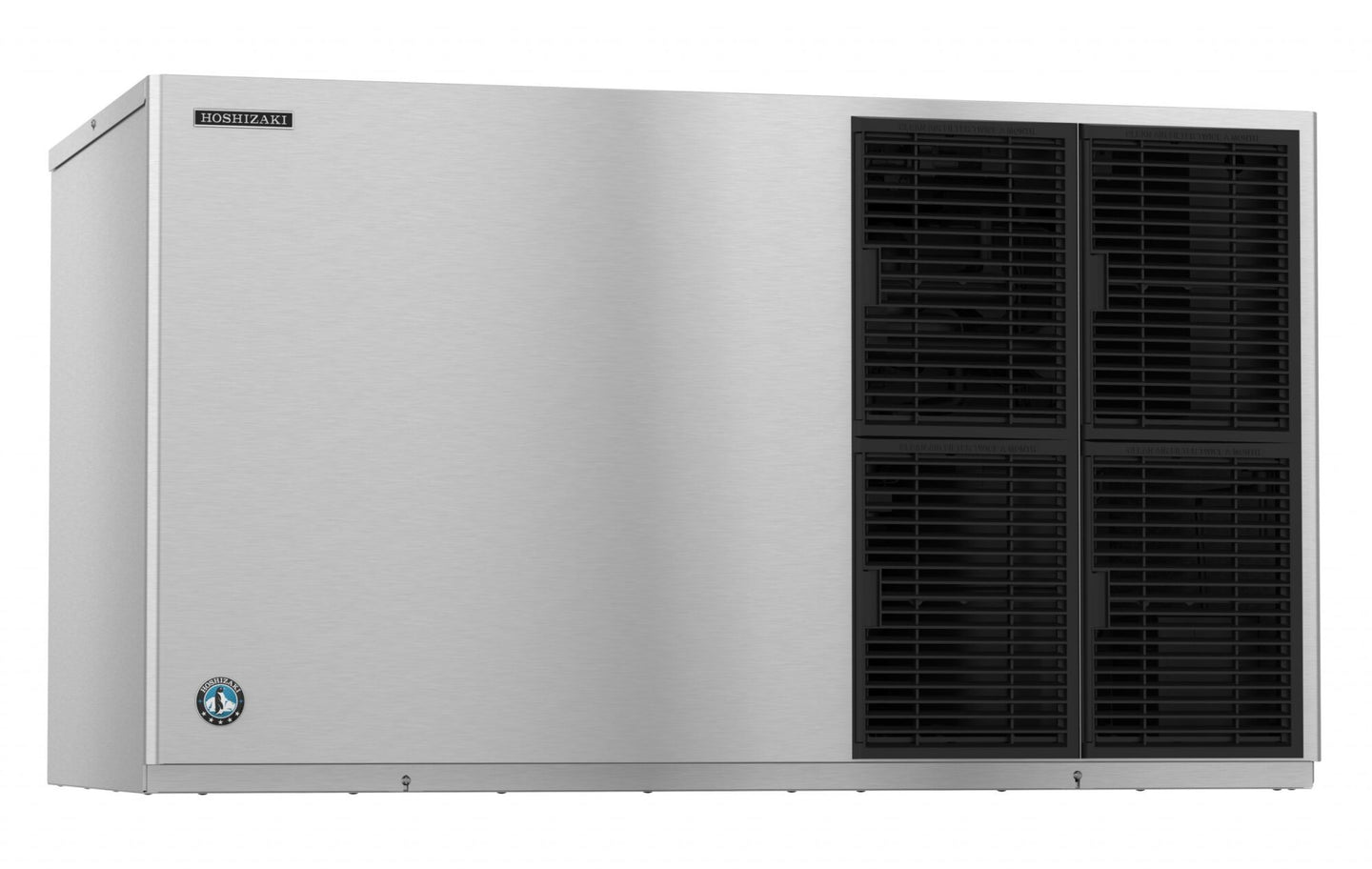

The Hoshizaki KM-1301SAJ-E is the 50Hz export build of the 48-inch stackable air-cooled Crescent Cuber, producing 624 kilograms of ice per 24 hours on 220-240V single phase. The -E suffix denotes the export electrical package; on a 60Hz North American supply the standard KM-1301SAJ is the correct model. Confirm the site's electrical service before ordering — this is the single most consequential detail on the SKU.

Stackable head for capacity growth

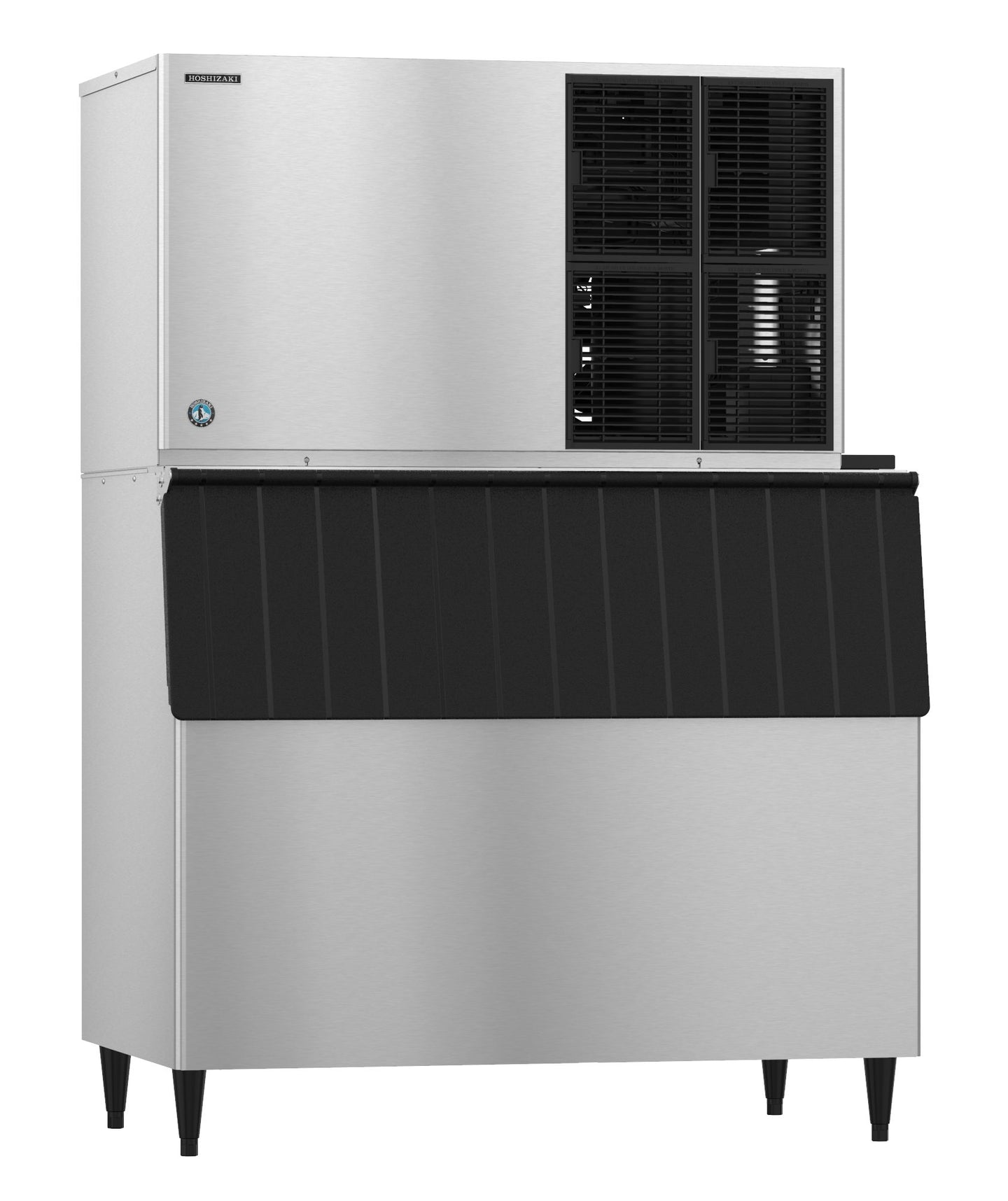

At 695 mm tall the cabinet is deliberately short so a second identical head can sit on top of it, doubling site output on the same footprint and the same bin line. For an operation that expects demand to rise but has no additional floor to give, that vertical path is a materially different plan than replacing the machine. Bins are purchased separately, with the factory listing the B-800 through the B-1650.

Crescent cube with KMEdge evaporators

Crescent ice interlocks loosely rather than packing into a block, so it pours from a bin and moves through a scoop cleanly instead of bridging solid in storage. Hoshizaki's double-sided KMEdge stainless evaporators harvest from both faces to shorten the cycle, holding energy use to 4.52 kWh per 100 pounds. Because this is an export-electrical variant, Hoshizaki directs warranty questions to the factory rather than publishing standard North American terms.

Specifications

Model	KM-1301SAJ-E
Ice type	Crescent cube
Ice production	Up to 624 kg per 24 hours
Condenser	Air-cooled
Configuration	Stackable modular head unit, bin sold separately
Compatible bins	B-800, B-900, B-1150, B-1300, B-1500, B-1650
Exterior dimensions	1219 mm W x 695 mm D x 695 mm H (48" W x 27-3/8" D x 27-3/8" H)
Shipping weight	340 lb
Electrical	220-240V/50Hz/1 phase, 11.35 amps, 20 amp max fuse, voltage range 198-254V
Connection	Hard-wired; no cord or plug supplied
Refrigerant	R-404A, 1900 g (4 lb 3 oz)
Energy consumption	4.52 kWh per 100 lb at 90/70
Water consumption	34.9 gal potable water per 100 lb at 90/70
Certifications	NSF

Warranty

Hoshizaki directs warranty enquiries on this 50Hz export model to the factory. Contact Hoshizaki for the terms applicable to your installation before purchase.
