Product Description

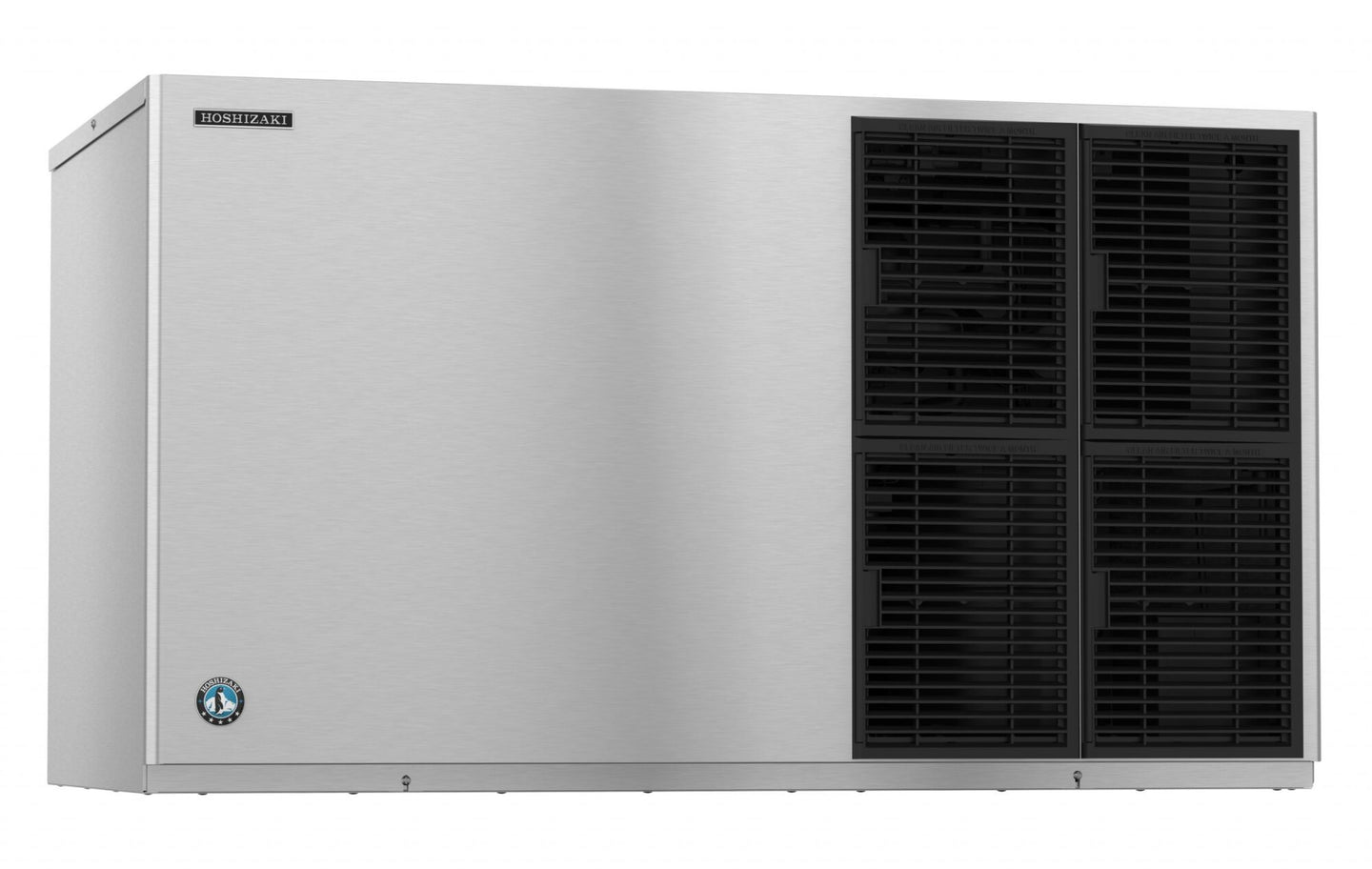

The Hoshizaki KM-1301SAJ is a 48-inch air-cooled Crescent Cuber producing 1,365 pounds of ice per 24 hours. The S in the model number is the important part: this is a stackable head, only 27-3/8 inches tall, designed so a second identical unit can sit on top of it and double site capacity to roughly 2,700 pounds a day without widening the machine wall.

Stackable capacity planning

Most operations that outgrow an ice machine cannot find more floor. Specifying a stackable head means the expansion path is vertical and uses the same bin line and the same footprint — a second head, not a new installation. It is the difference between planning for growth and re-engineering for it, and it is why the 48-inch S-series is the standard answer for hotels, hospitals and high-volume restaurants. The bin is purchased separately, with the factory listing the B-800 through the B-1650.

Crescent cube and the dual-sided evaporator

Crescent ice interlocks loosely rather than packing solid, so it flows out of a bin and through a scoop instead of bridging into a frozen mass that has to be broken up by hand — a daily operational difference at this volume. Hoshizaki's double-sided KMEdge stainless evaporators harvest from both faces to shorten the cycle, holding energy use to 4.27 kWh per 100 pounds on a machine of this size.

Specifications

Model KM-1301SAJ
Ice type Crescent cube
Ice production 1,365 lb per 24 hours
Condenser Air-cooled
Configuration Stackable modular head unit, bin sold separately

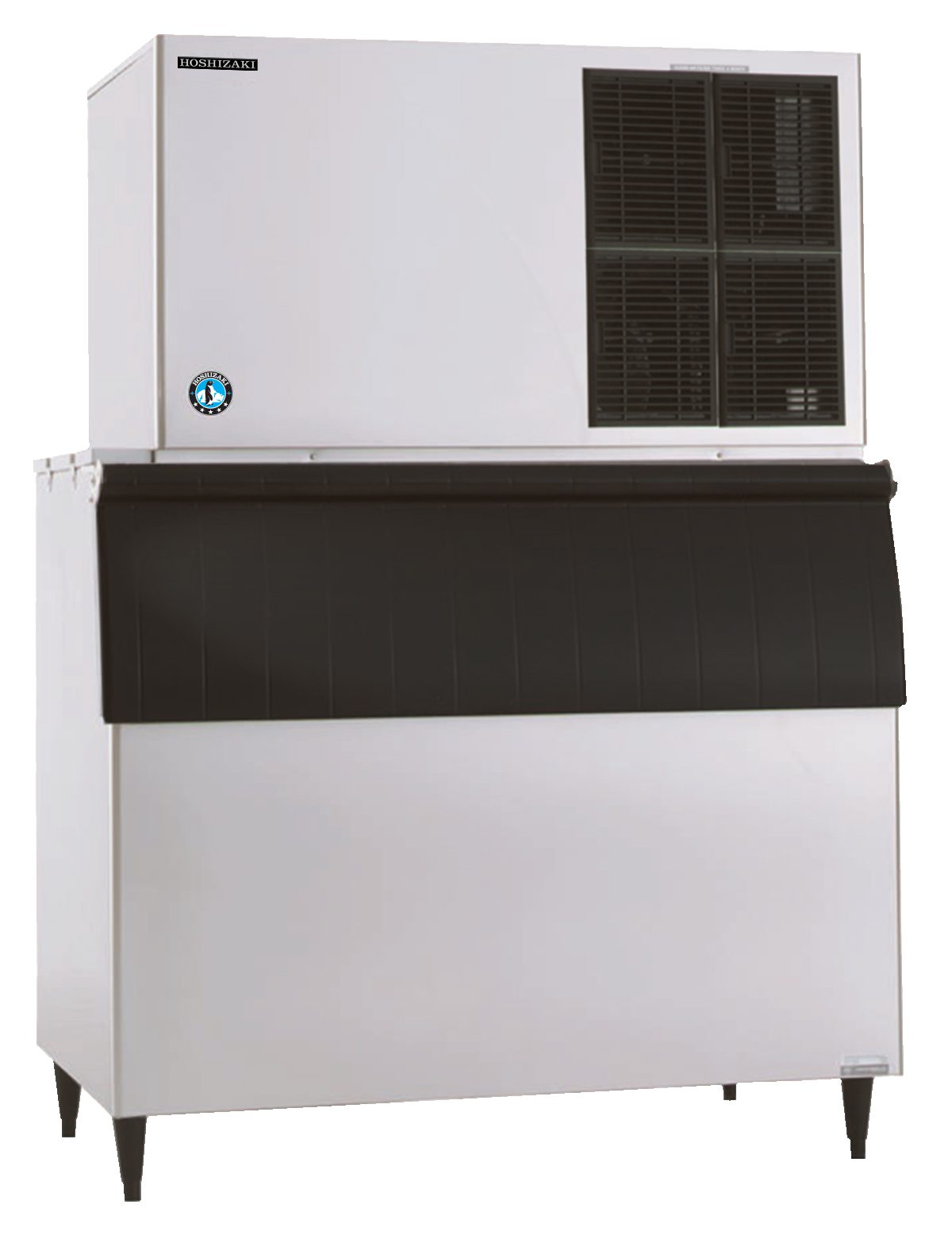

Compatible bins B-800, B-900, B-1150, B-1300, B-1500, B-1650
Exterior dimensions 48" W x 27-3/8" D x 27-3/8" H
Shipping weight 340 lb
Electrical 208-230V/60/1, 12.4 amps, 20 amp max fuse
Connection Hard-wired; no cord or plug supplied
Refrigerant R-404A, 3 lb 15.5 oz (1800 g)
Energy consumption 4.27 kWh per 100 lb at 90/70
Water consumption 21 gal potable water per 100 lb at 90/70
Certifications AHRI Standard 810, NSF, UL Listed, Georgia Made Certified

Warranty

Three years parts and labor on the entire machine. Five years parts on the compressor and air-cooled condenser coil.
