Product Description

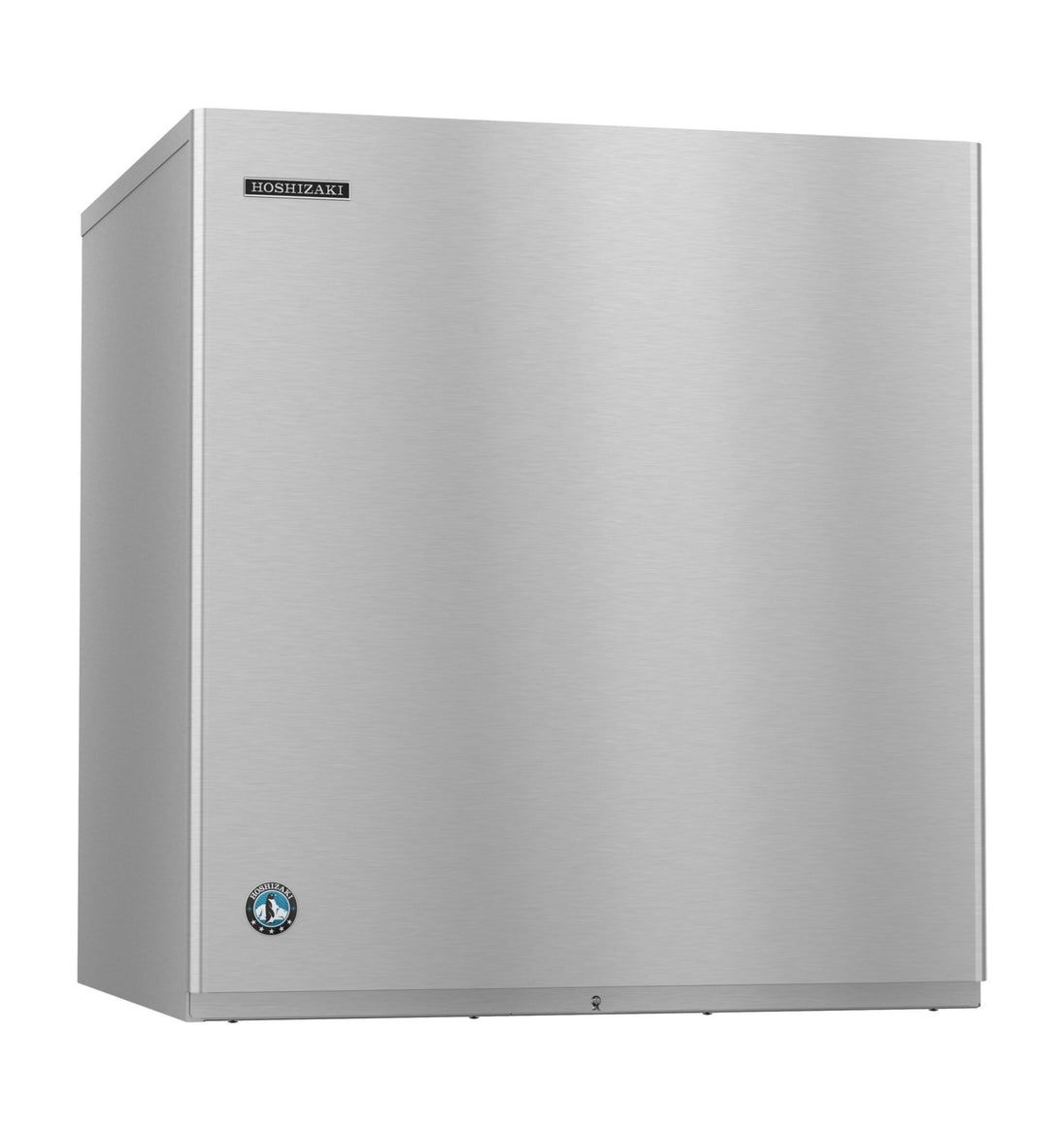

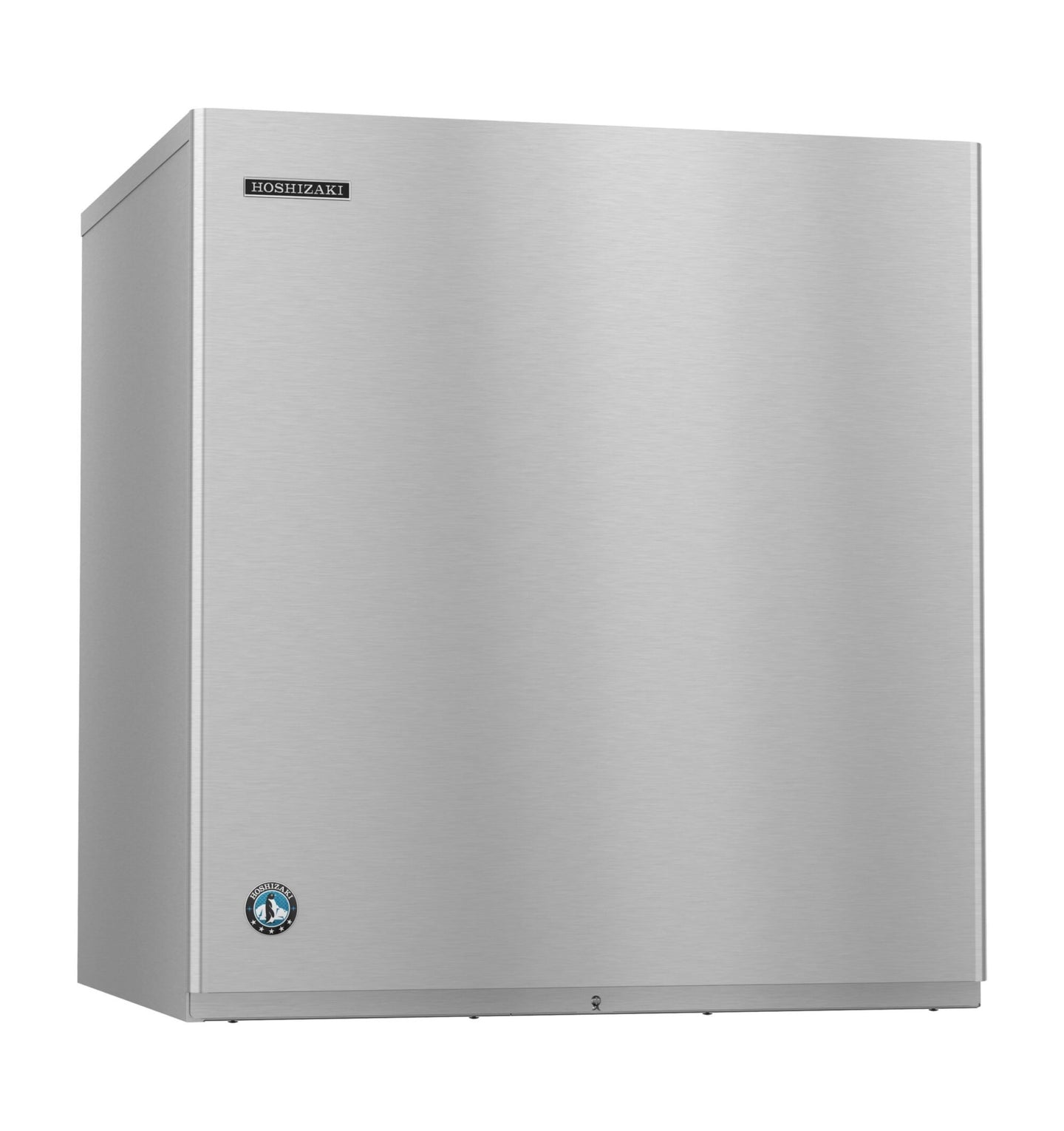

The Hoshizaki KM-1100MRJZ is a 30-inch remote-cooled Crescent Cuber producing 1,156 pounds of ice per 24 hours. It is the highest-output member of the KM-1100 family, and the extra capacity over the air- and water-cooled versions comes from where the condenser sits: outdoors, at ambient conditions the machine controls for rather than fighting.

Remote condensing, and what it buys you

Only the ice-making head occupies the kitchen. Compressor heat and noise leave with the condensing unit, so a 1,100-pound machine can sit near a bar or service line without adding load to the HVAC system or noise to the room, and the head no longer needs the ventilation clearance an air-cooled cabinet demands. Installation is the trade: a refrigeration line set and a separately purchased remote condenser are part of the job.

Crescent cube, CycleSaver and EverCheck

The crescent shape interlocks loosely instead of packing solid, so ice flows out of a bin and through a scoop without bridging into a frozen mass — the failure mode that plagues cube ice in storage at this volume. Hoshizaki's dual-sided stainless evaporator with CycleSaver design harvests from both faces, shortening the cycle and lowering energy per pound to 4.5 kWh per 100 pounds. EverCheck monitors the machine and signals a fault before it becomes a no-ice call, which is what matters on a unit this size.

Specifications

Model KM-1100MRJZ
Ice type Crescent cube
Ice production 1,156 lb per 24 hours
Condenser Remote-cooled; remote condensing unit sold separately
Configuration Modular head unit, bin sold separately
Compatible bins B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650
Exterior dimensions 30" W x 27-3/8" D x 32-1/2" H
Shipping weight 272 lb
Electrical 208-230V/60/1, 3-wire including ground, 12.5 amps, 20 amp max fuse
Connection Hard-wired; no cord or plug supplied
Refrigerant R-404A, 9 lb 11.2 oz (4400 g)
Energy consumption 4.5 kWh per 100 lb at 90/70
Water consumption 18 gal potable water per 100 lb at 90/70
Certifications AHRI Standard 810, NSF, UL Listed, Georgia Made Certified

Warranty

Three years parts and labor on the entire machine. Five years parts and labor on the evaporator.
