Product Description

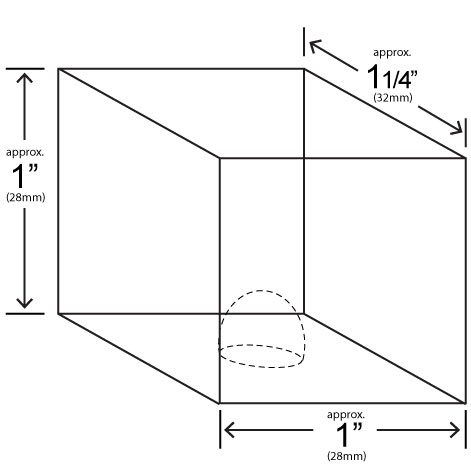

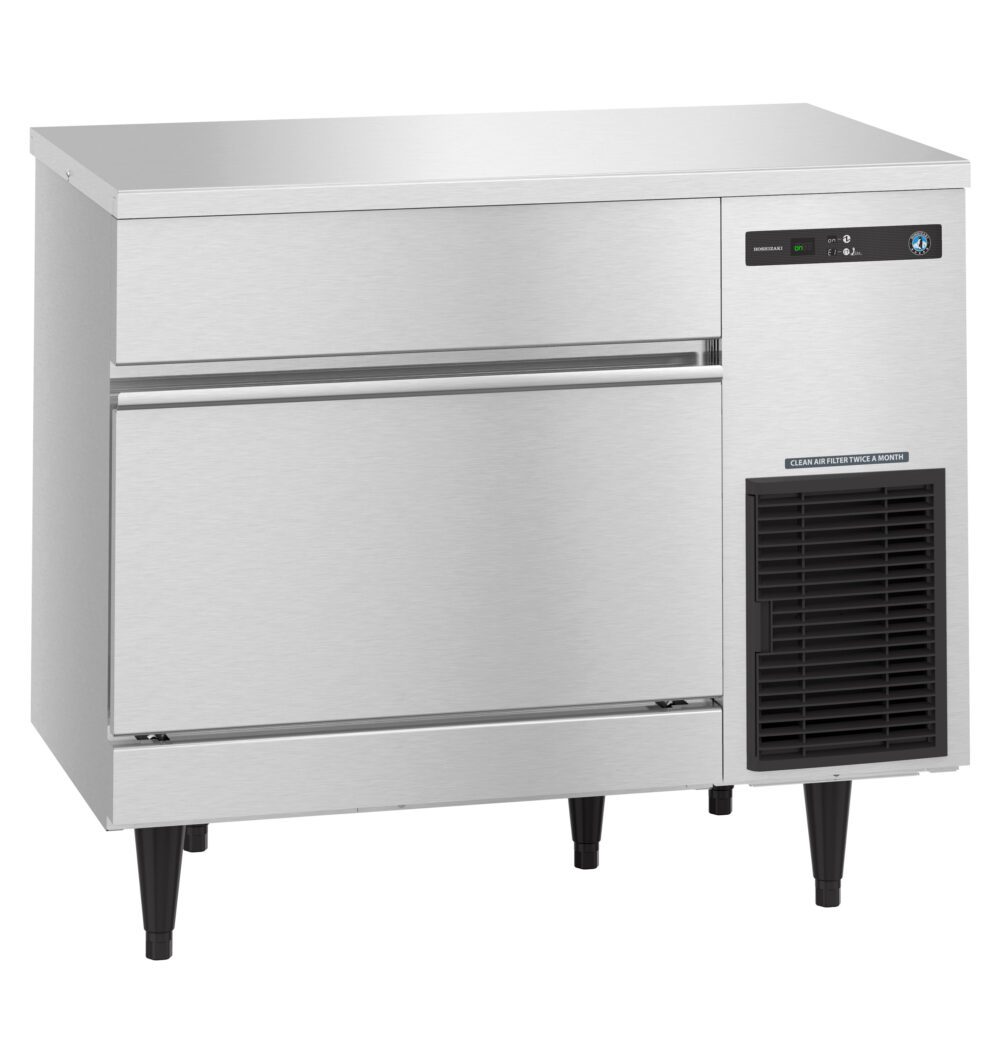

The Hoshizaki IM-200BAK is a self-contained square cube ice machine with a 75-pound storage bin built in, producing 186 pounds of ice per day. It makes Hoshizaki's 1by1 square cube — a clear, individually formed cube rather than a plate-fractured one — which is the reason bars, hotels and upscale restaurants specify the IM line: the cube looks deliberate in a glass and melts slowly enough to keep a cocktail from thinning out.

One cabinet, no separate bin to buy

Storage is integral at 75 pounds (2.5 cubic feet), so there is no bin to specify, no adapter to fit and no stacked-height problem. The machine arrives on a 6-foot cord with a standard NEMA 5-15 plug and draws only 5 amps, which means it can go on an ordinary 115V circuit without an electrician cutting in a hard-wired connection. Between the plug and the built-in bin, this is close to a drop-in installation once water and drain are run.

R290 refrigerant and ENERGY STAR efficiency

The IM-200BAK runs a 4.4-ounce charge of R290 hydrocarbon refrigerant instead of an HFC, which puts it ahead of the refrigerant transition already reshaping this equipment category. It is ENERGY STAR qualified at 6.5 kWh per 100 pounds — a substantial improvement over the older R-404A generation of the same footprint — and carries AHRI Standard 820, NSF and UL Health Effects certification for foodservice and health-department review.

Specifications

Model IM-200BAK
Ice type Square cube (1by1)
Ice production 186 lb per 24 hours
Storage capacity 75 lb (2.5 cu ft), built in
Condenser Air-cooled
Exterior dimensions 39-1/2" W x 23-5/8" D x 33-1/2" H
Shipping weight 212 lb
Electrical 115V/60/1, 5 amps, 15 amp max fuse or HACR breaker
Connection 6 ft cord with NEMA 5-15 plug
Refrigerant R290, 4.4 oz
Energy consumption 6.5 kWh per 100 lb at 90/70
Water consumption 23 gal potable water per 100 lb at 90/70
Certifications AHRI Standard 820, ENERGY STAR qualified, ETL Listed (US and C), NSF, UL Health Effects, Georgia Made Certified

Warranty

Three years parts and labor on the entire machine. Five years parts on the compressor and air-cooled condenser coil.
