Product Description

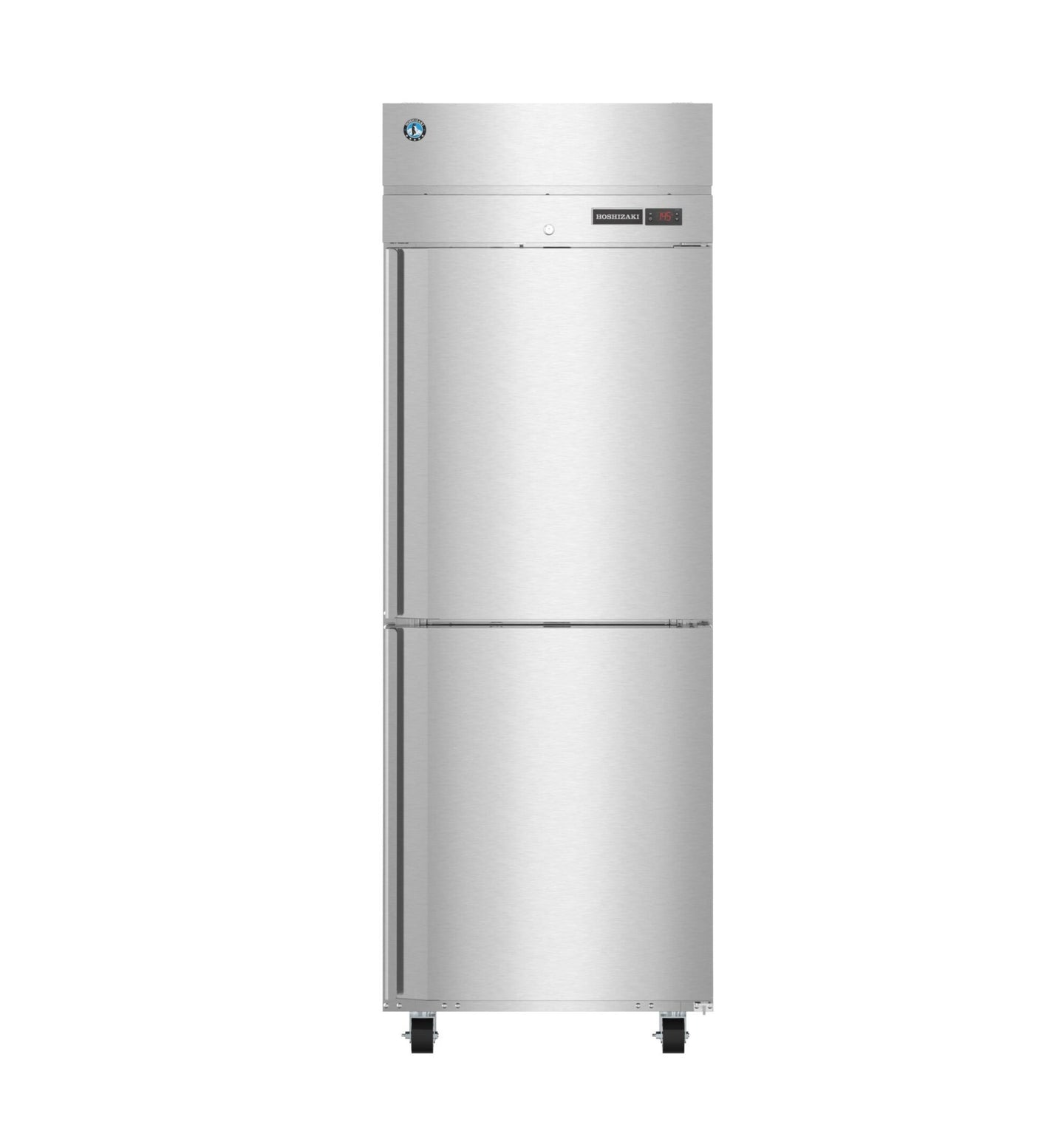

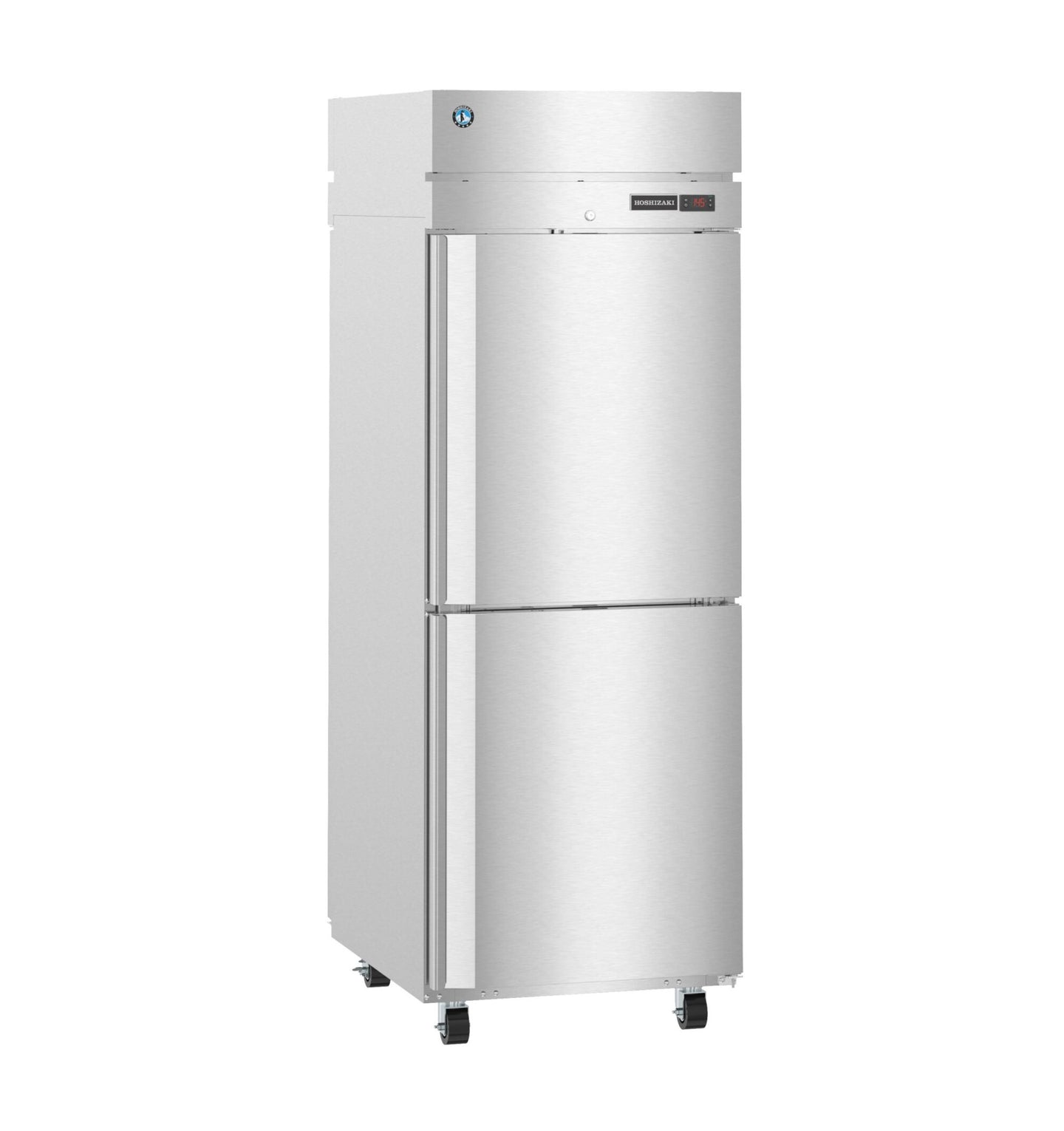

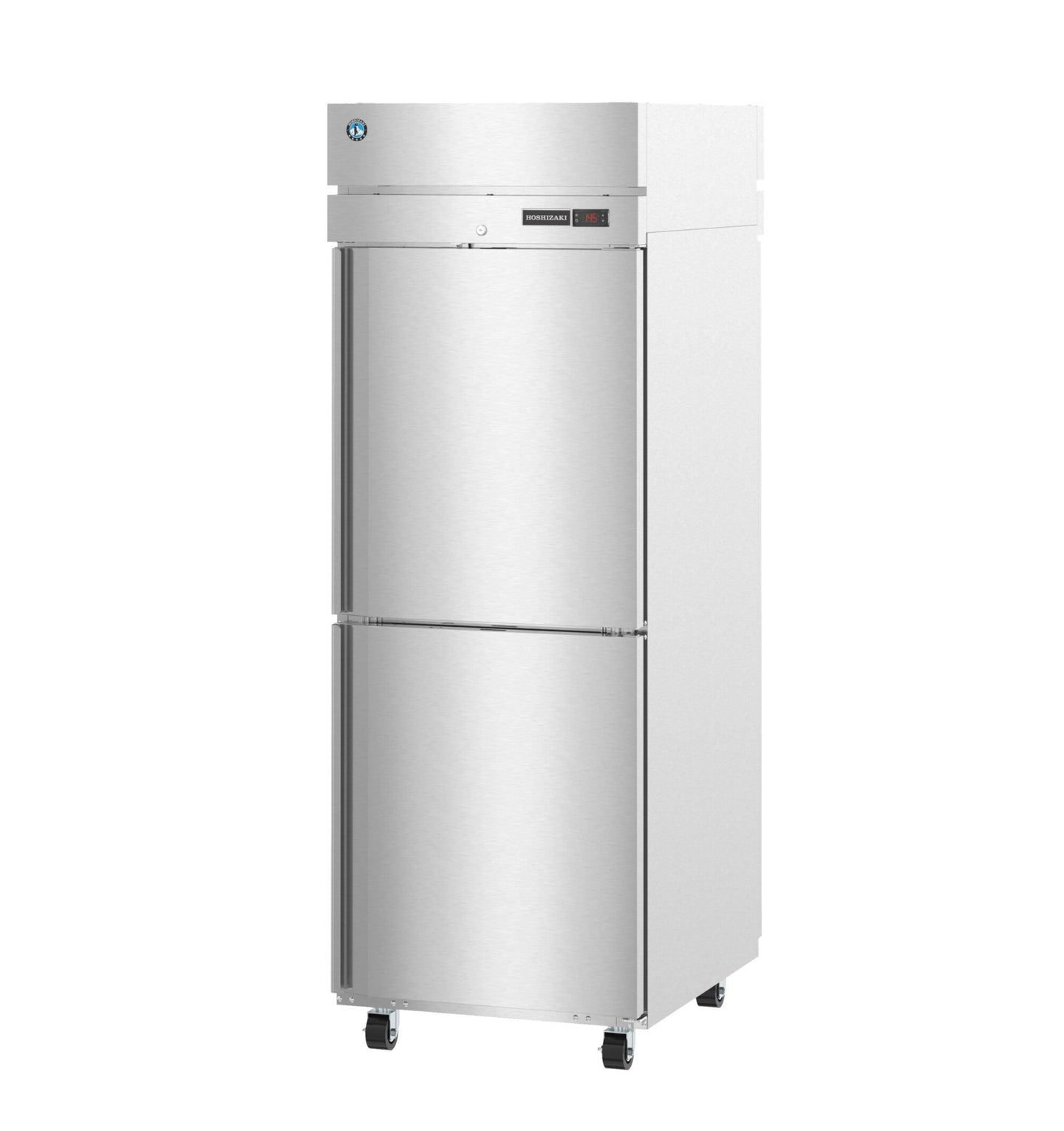

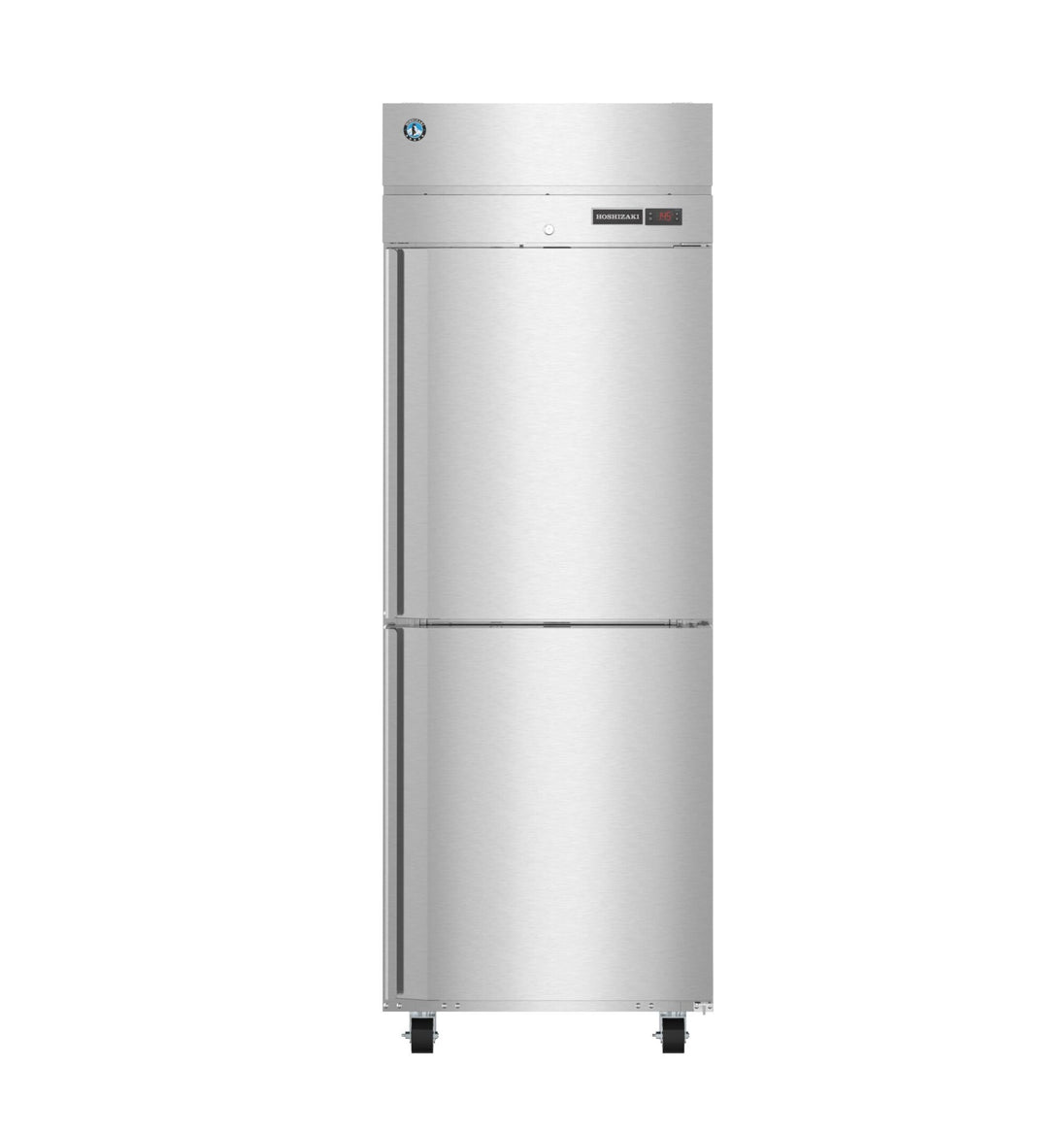

The Hoshizaki HC1A-HS-HS is a single-section pass-thru heated holding cabinet from the Steelheart Series with half solid stainless doors and locks on both faces. It holds 23.68 cubic feet — twelve full sheet pans — and is loaded from one side and served from the other, making it the handoff point between production and the pass.

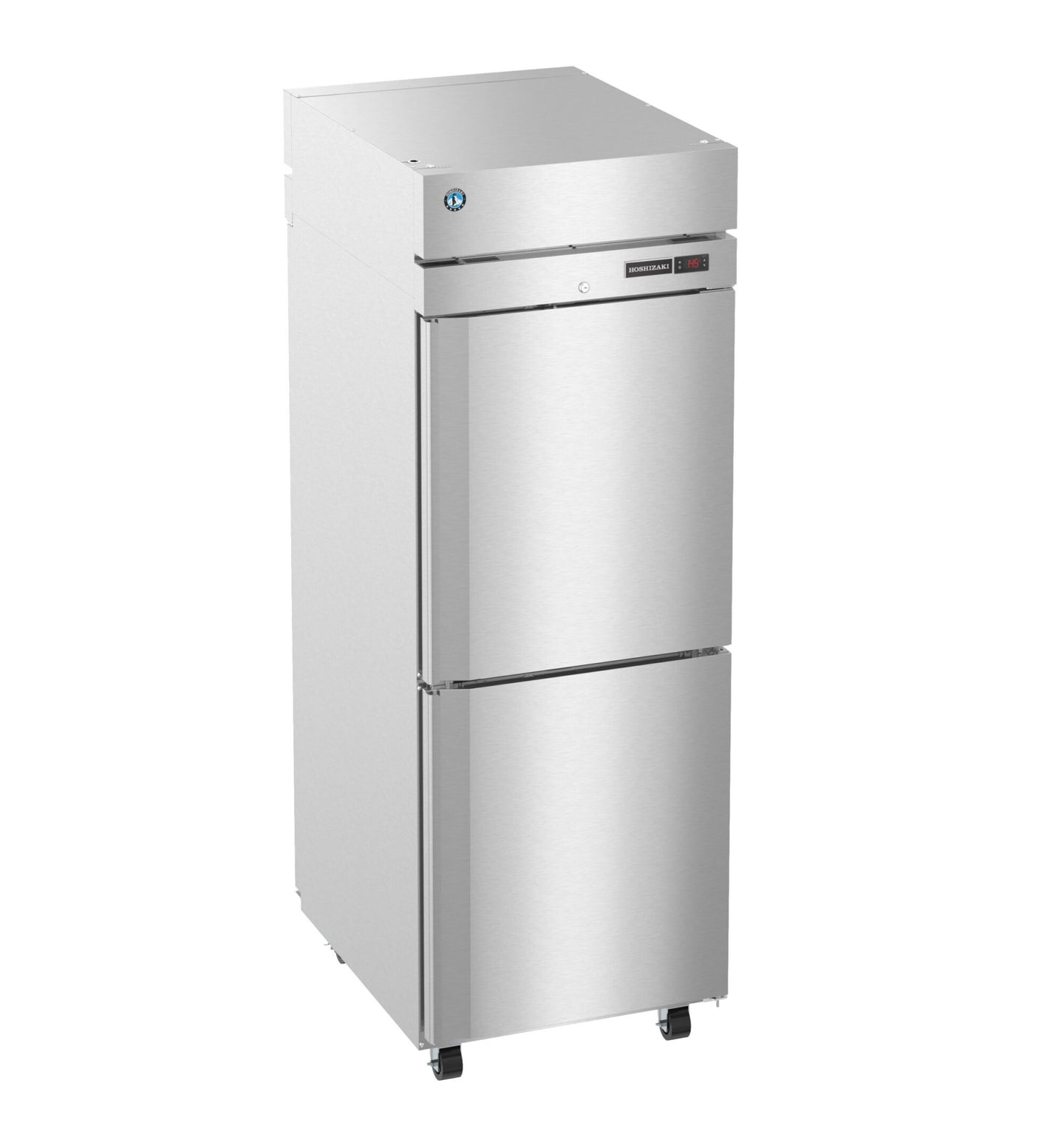

Half Doors on a Pass-Thru

Combining half doors with pass-thru access addresses the cabinet's biggest heat-loss problem. A pass-thru gets opened from both sides through a service, so exposure adds up quickly; splitting each face into upper and lower doors means any single opening exposes only a quarter of the cabinet's four door panels. For a station running continuously, that is the difference between holding temperature and chasing it.

Wider Setpoint Range

The controller runs a setpoint from 80 to 180°F, reaching lower than the 140°F floor on the single-door reach-in models. That extends the cabinet's use beyond hot holding into proofing and low-temperature holding of items that would suffer at full service temperature.

Top-Mounted Heat and Digital Control

A top-mounted heating element with fan circulation moves heat through the cabinet rather than radiating it from one surface. The solid-state digital controller sets and displays temperature, interior LED lighting shows the load through the doors, and all doors are field reversible and self-closing with a stay-open function. The cabinet is stainless steel inside and out, ENERGY STAR qualified, and draws 10 amps on a standard 115V circuit.

Specifications

Model HC1A-HS-HS
Configuration One section, pass-thru, half solid doors with lock
Capacity 23.68 cu ft, (12) sheet pans
Exterior dimensions 27.5" W x 35.75" D x 79.5" H
Shipping weight 367 lbs
Crate dimensions 38.5" L x 31.5" D x 81" H
Temperature setpoint range 80–180°F
Ambient operating range 45–100°F
Electrical 115V/60/1, 10 amps
Max fuse / HACR breaker 15 A
Cord and plug 10 ft cord, NEMA 5-15P
Heating Top-mounted element with fan circulation
Lighting Interior LED
Construction Stainless steel exterior and interior
Certifications ENERGY STAR Qualified, ETL Safety Listed (US & Canada), ETL Sanitation, UL Energy Verified, Georgia Made Certified

Warranty

The HC1A-HS-HS carries Hoshizaki's 7-7-7 warranty: seven years labor, seven years parts, and seven years on the compressor.
