Product Description

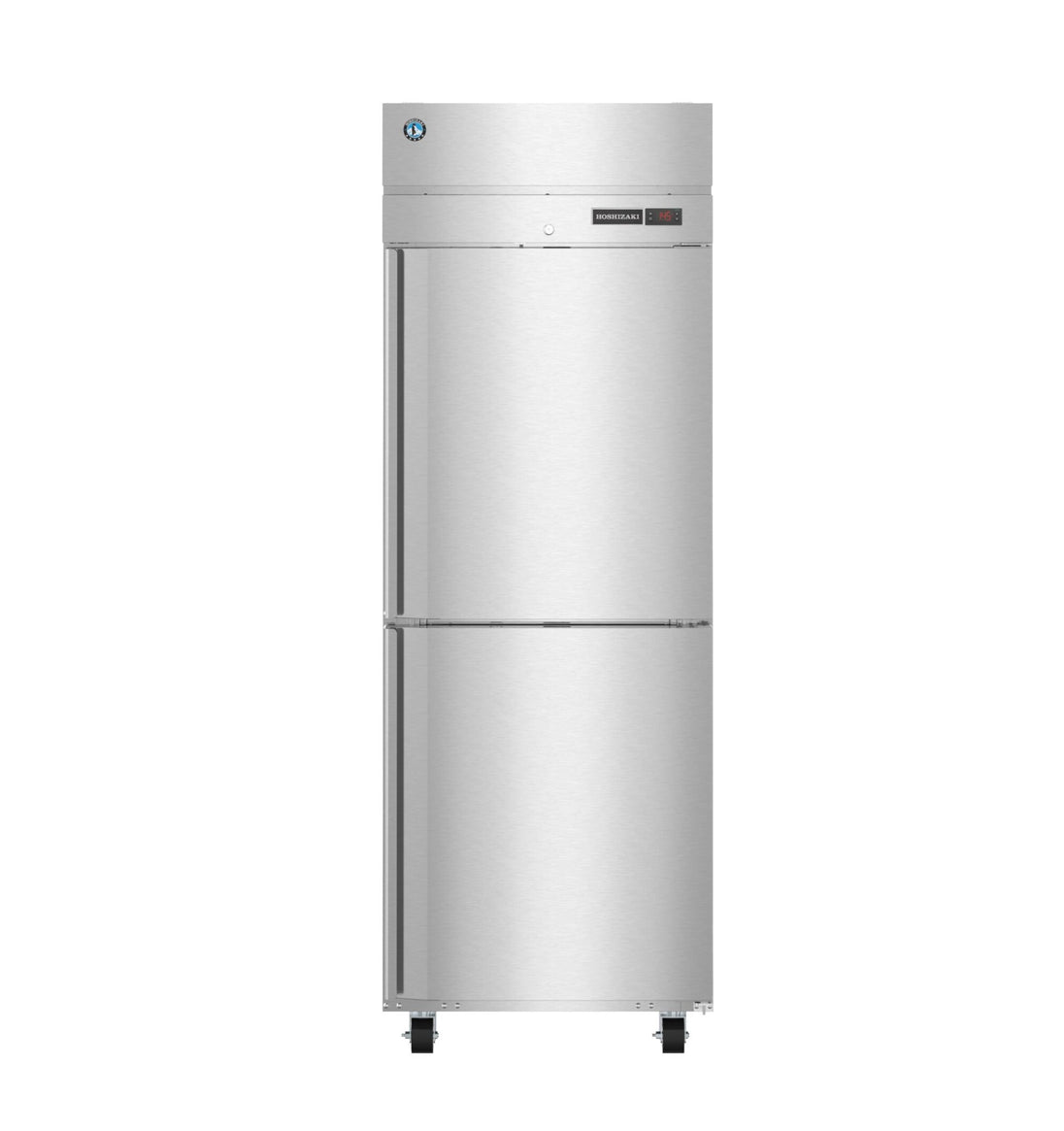

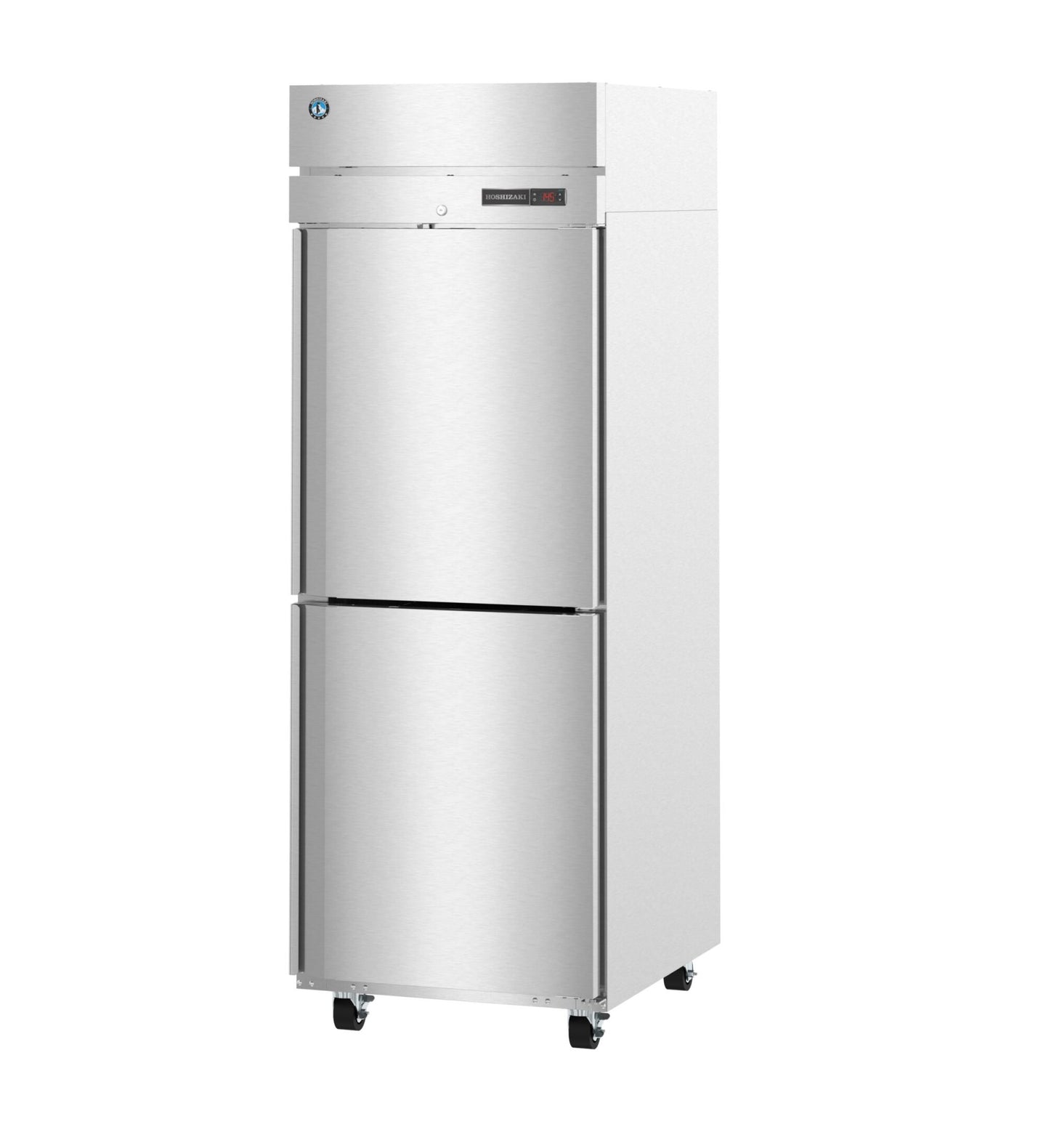

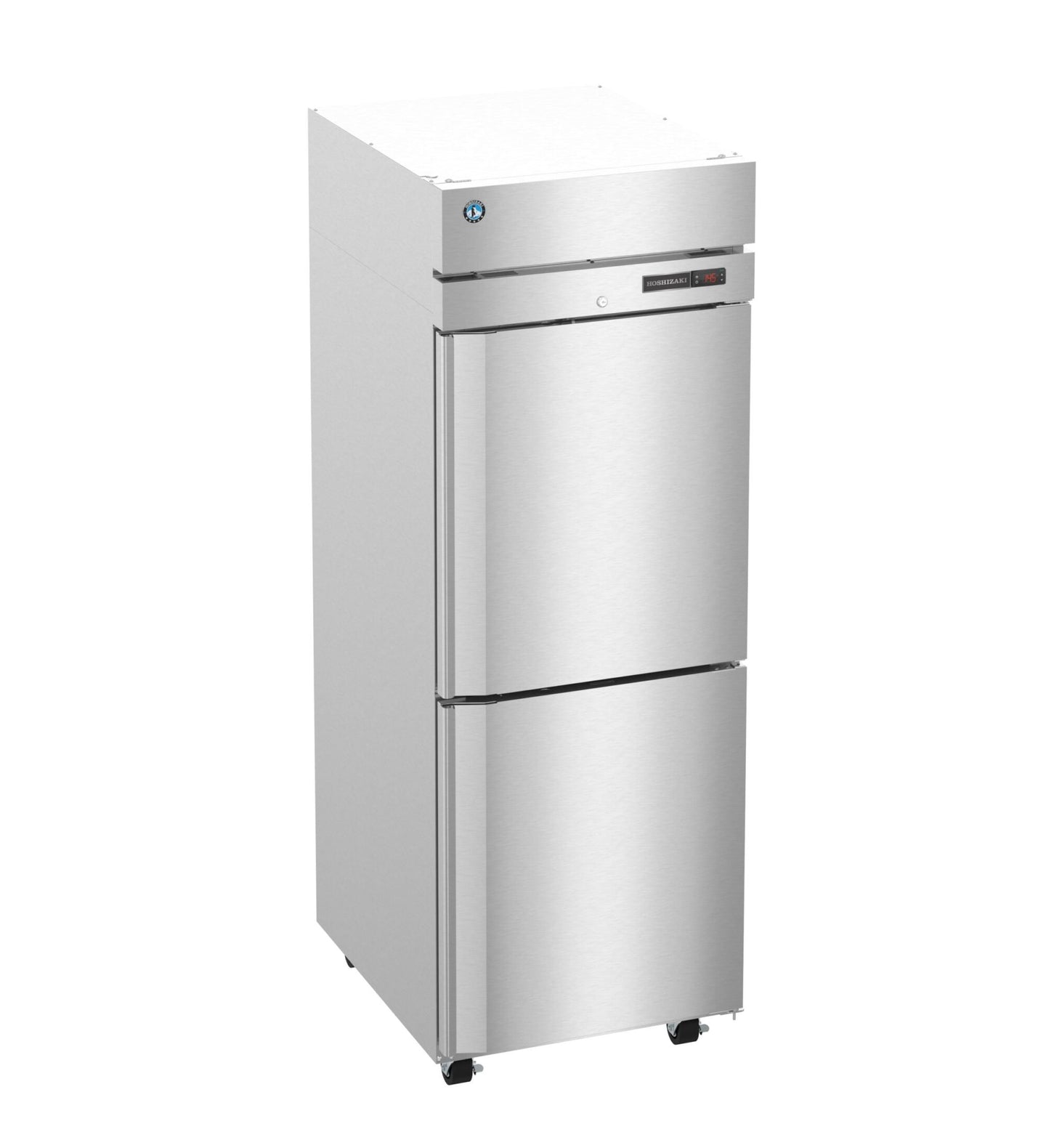

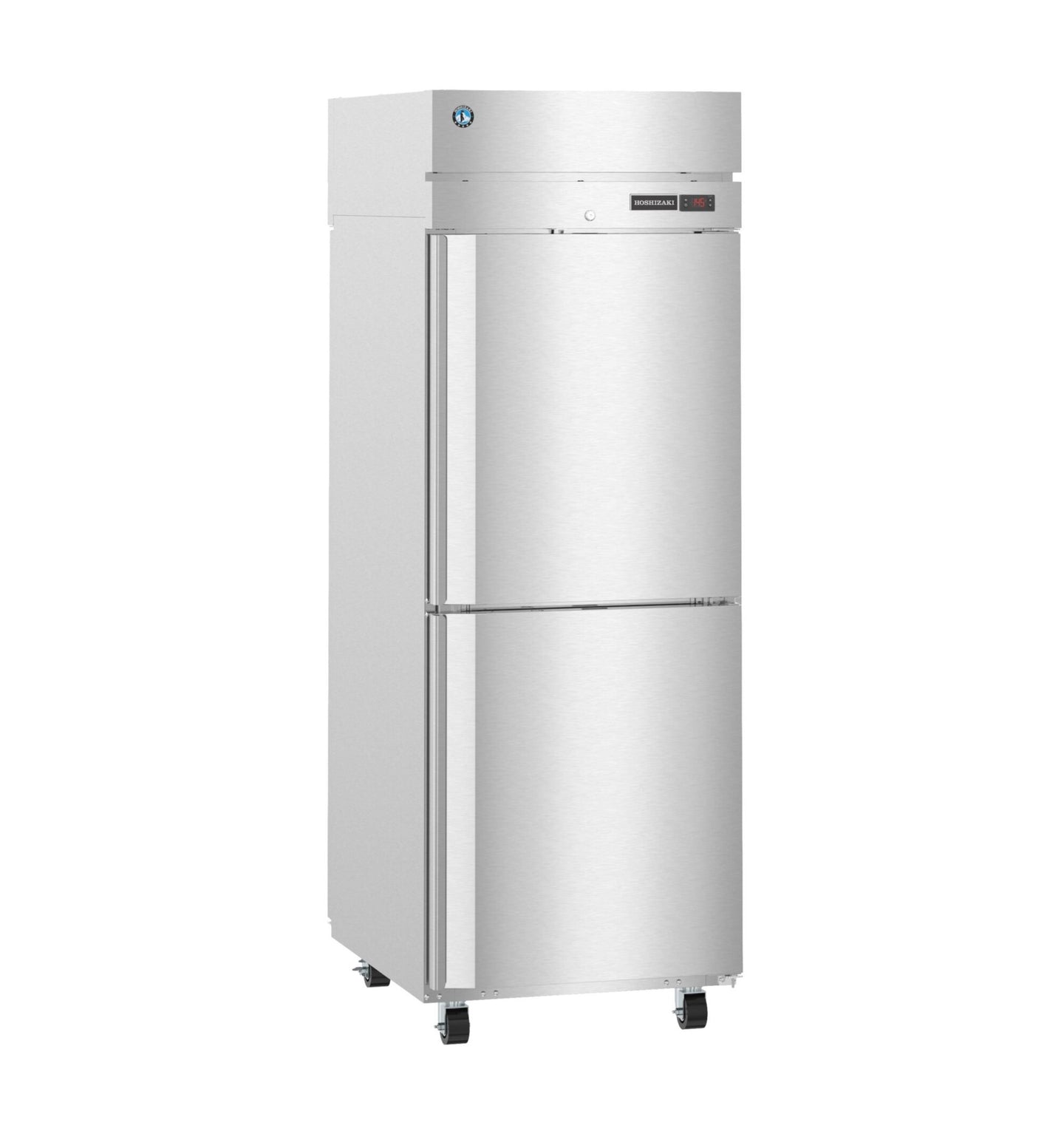

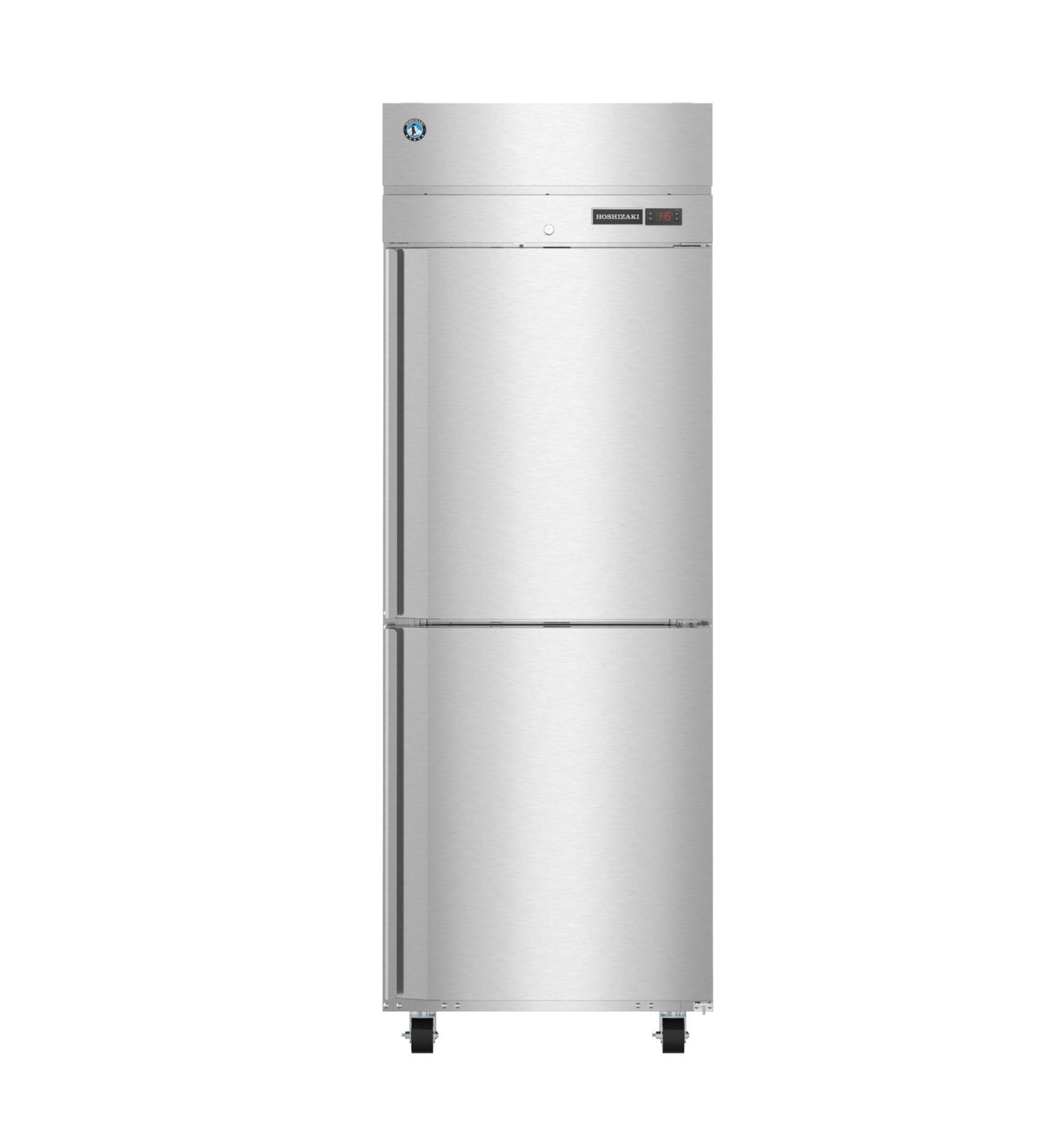

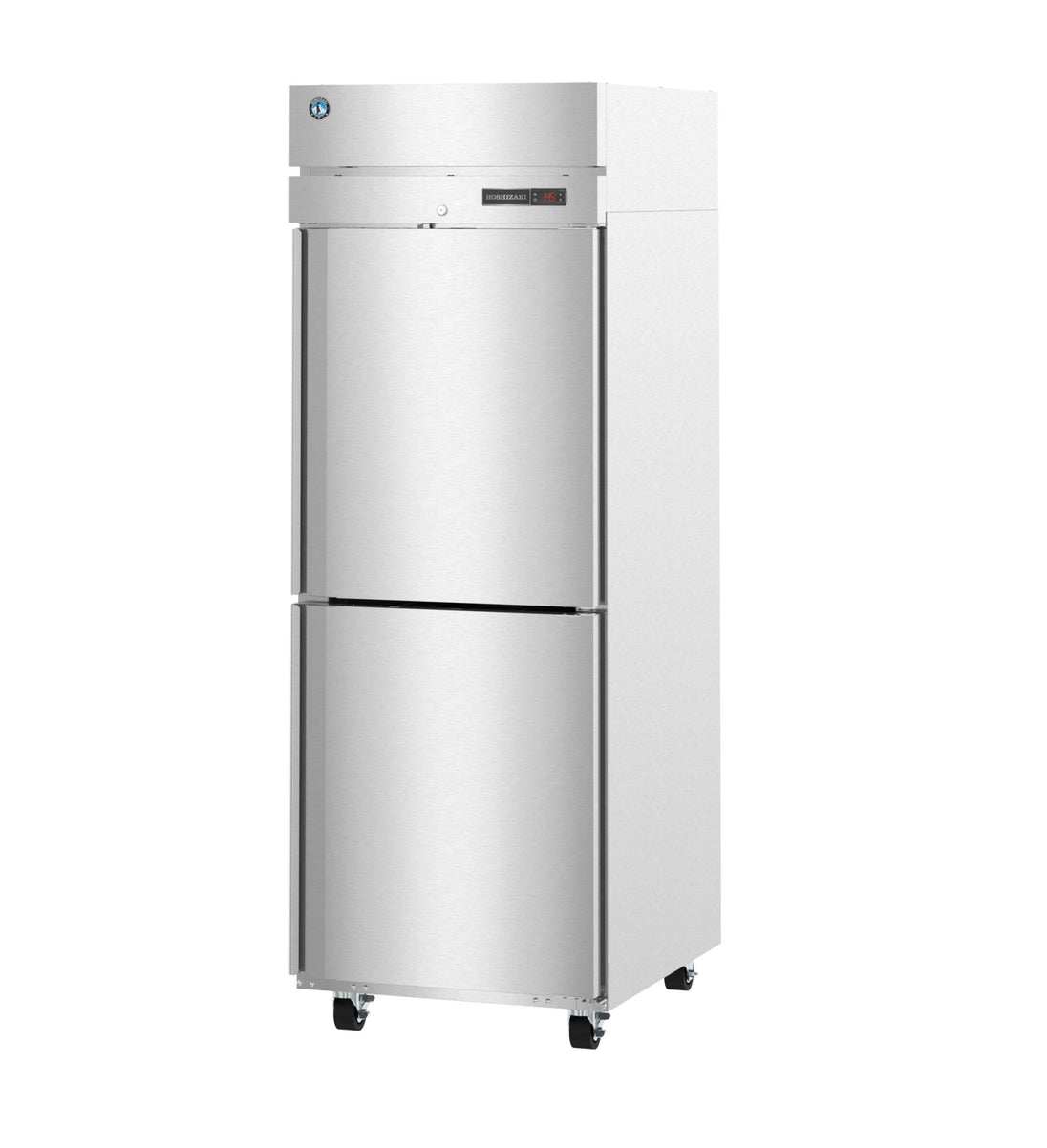

The Hoshizaki HC1A-HS is a single-section upright heated holding cabinet from the Steelheart Series fitted with two half solid stainless doors that lock. It holds 22.62 cubic feet — twelve full sheet pans — at a setpoint between 140 and 180°F, with interior LED lighting and a digital controller reading actual cabinet temperature.

Half Doors and Heat Retention

Half doors are the reason to choose this configuration over the full-door HC1A-FS. Opening only the upper or lower half exposes half the cabinet volume to the kitchen, so a cook pulling from the top rack does not dump the heat held around pans on the bottom. In a station where the cabinet is opened repeatedly through a service, that halved exposure is what keeps held food from drifting below temperature.

Lockable Solid Doors

Both doors are solid stainless and lock, which matters for cabinets staged in corridors, banquet areas, or any space not under constant kitchen supervision. Doors are field reversible and self-closing with a stay-open function, so they can be hung to suit the line and held open deliberately during loading.

Digital Control and ENERGY STAR

A solid-state digital controller with LED display sets and displays the holding temperature directly. The cabinet is ENERGY STAR qualified and UL Energy Verified, holding temperature at a rated 10 amps on a standard 115V circuit, and plugs into an ordinary outlet with a 5-15P plug on a 10-foot cord.

Specifications

Model HC1A-HS
Configuration One section, reach-in, half solid doors with lock
Capacity 22.62 cu ft, (12) sheet pans
Exterior dimensions 27.5" W x 33.5" D x 79.5" H
Shipping weight 340 lbs
Crate dimensions 37.5" L x 31.5" D x 81" H
Temperature setpoint range 140–180°F
Ambient operating range 45–100°F
Electrical 115V/60/1, 10 amps
Cord and plug 10 ft cord, NEMA 5-15P
Lighting Interior LED
Construction Stainless steel
Certifications ENERGY STAR Qualified, ETL Safety Listed (US & Canada), ETL Sanitation, UL Energy Verified, Georgia Made Certified

Warranty

The HC1A-HS carries Hoshizaki's 7-7-7 warranty: seven years labor, seven years parts, and seven years on the compressor.
