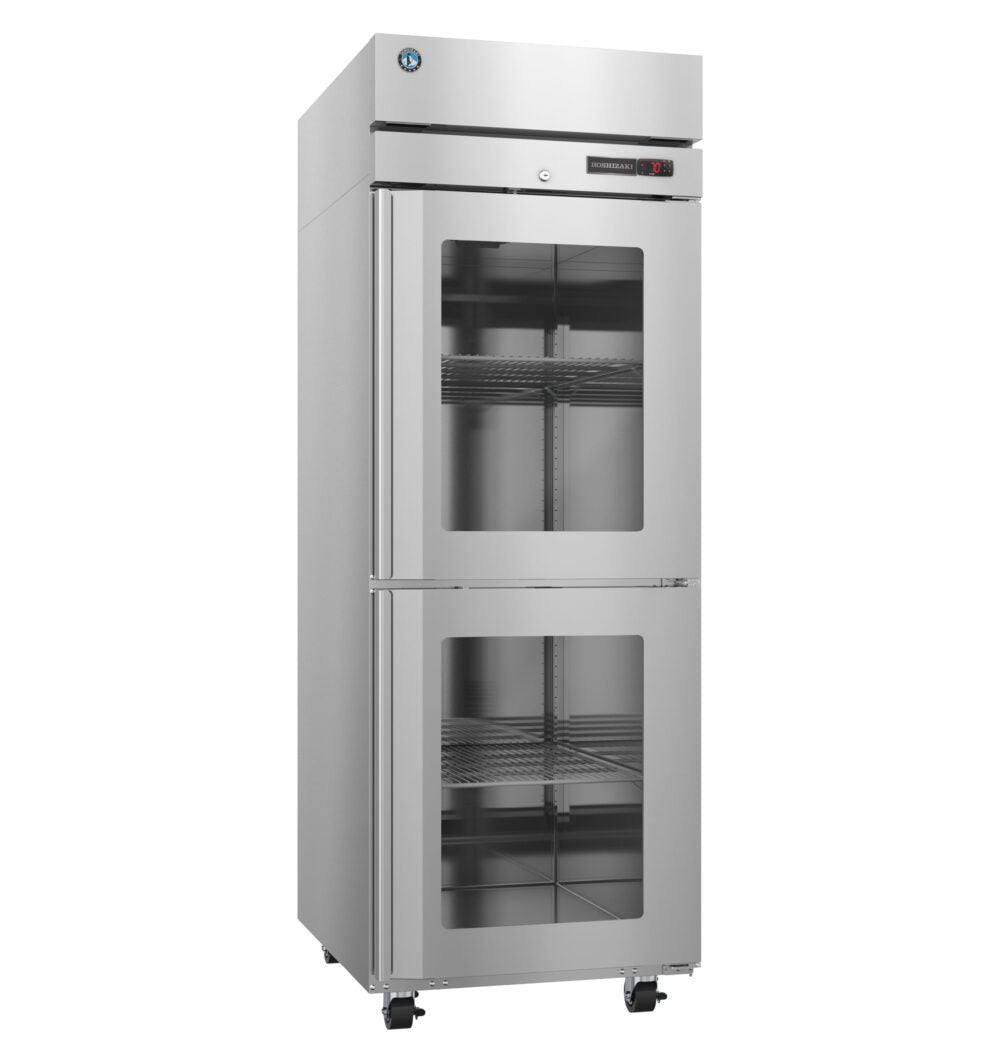

Hoshizaki HC1A-HGE single section Steelheart heated holding cabinet with half glass doors, right side view

Product Description

The Hoshizaki HC1A-HGE is a single-section Steelheart Series heated holding cabinet fitted with two half glass doors. It holds 22.62 cubic feet at a setpoint between 140 and 180°F, taking twelve sheet pans or twenty to twenty-four tray slides, and combines visible holding with the heat retention of a split-door cabinet.

Half Glass Doors

This configuration answers the main objection to a glass-door holding cabinet. A full glass door means every opening exposes the whole interior; splitting the face into two half doors means a cook reaching for the top rack leaves the bottom half sealed. Pairing that with glass keeps the load visible without opening anything, so the cabinet is opened less often to begin with.

Spring-Assisted Self-Closing Doors

Both doors are field reversible and spring-assisted self-closing with a stay-open function, so they can be hung to match the line's traffic direction, will shut on their own when released mid-service, and can still be held open deliberately during loading.

ENERGY STAR and Digital Control

Digital temperature controls set the hold point directly and the cabinet is both ENERGY STAR qualified and UL Energy Verified. It runs from a standard 115V outlet at 10 amps through a 5-15P plug on a 10-foot cord, needs no more than a 15 A breaker, and is rated at 175.5 kWh per day. Construction is stainless steel and the unit is Georgia Made Certified.

Specifications

Model HC1A-HGE
Configuration One section, reach-in, half glass doors
Capacity 22.62 cu ft, (12) sheet pans or 20–24 tray slides
Exterior dimensions 27.5" W x 33.5" D x 79.5" H
Shipping weight 340 lbs
Temperature setpoint range 140–180°F
Ambient operating range 45–100°F
Electrical 115V/60/1, 10 amps
Max fuse / HACR breaker 15 A
Cord and plug 10 ft cord, NEMA 5-15P
Energy consumption 175.5 kWh/day
Construction Stainless steel
Certifications ENERGY STAR Qualified, ETL Safety Listed (US & Canada), ETL Sanitation, UL Energy Verified, Georgia Made Certified

Warranty

The HC1A-HGE carries Hoshizaki's 7-7-7 warranty: seven years labor, seven years parts, and seven years on the compressor.
