Product Description

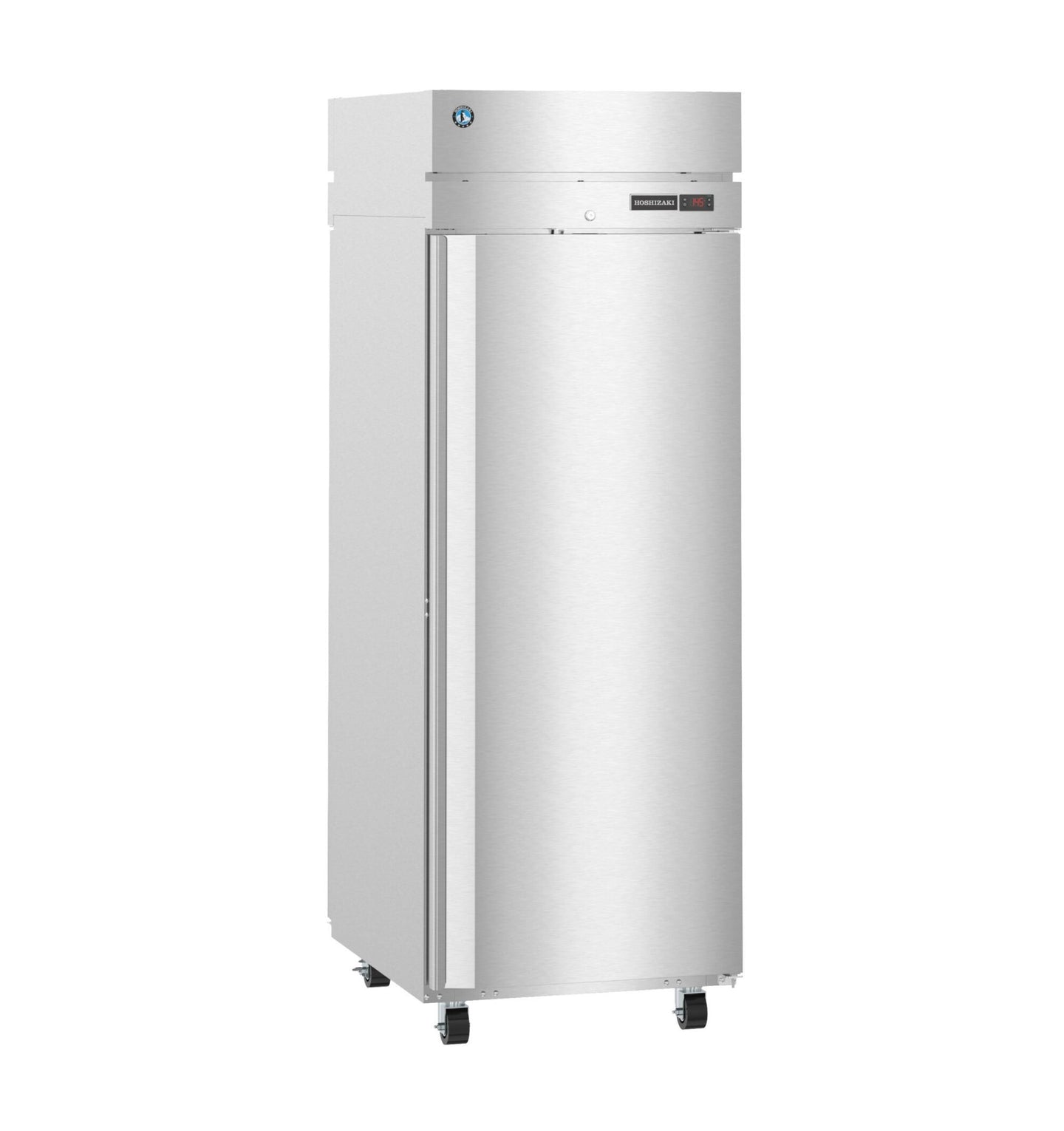

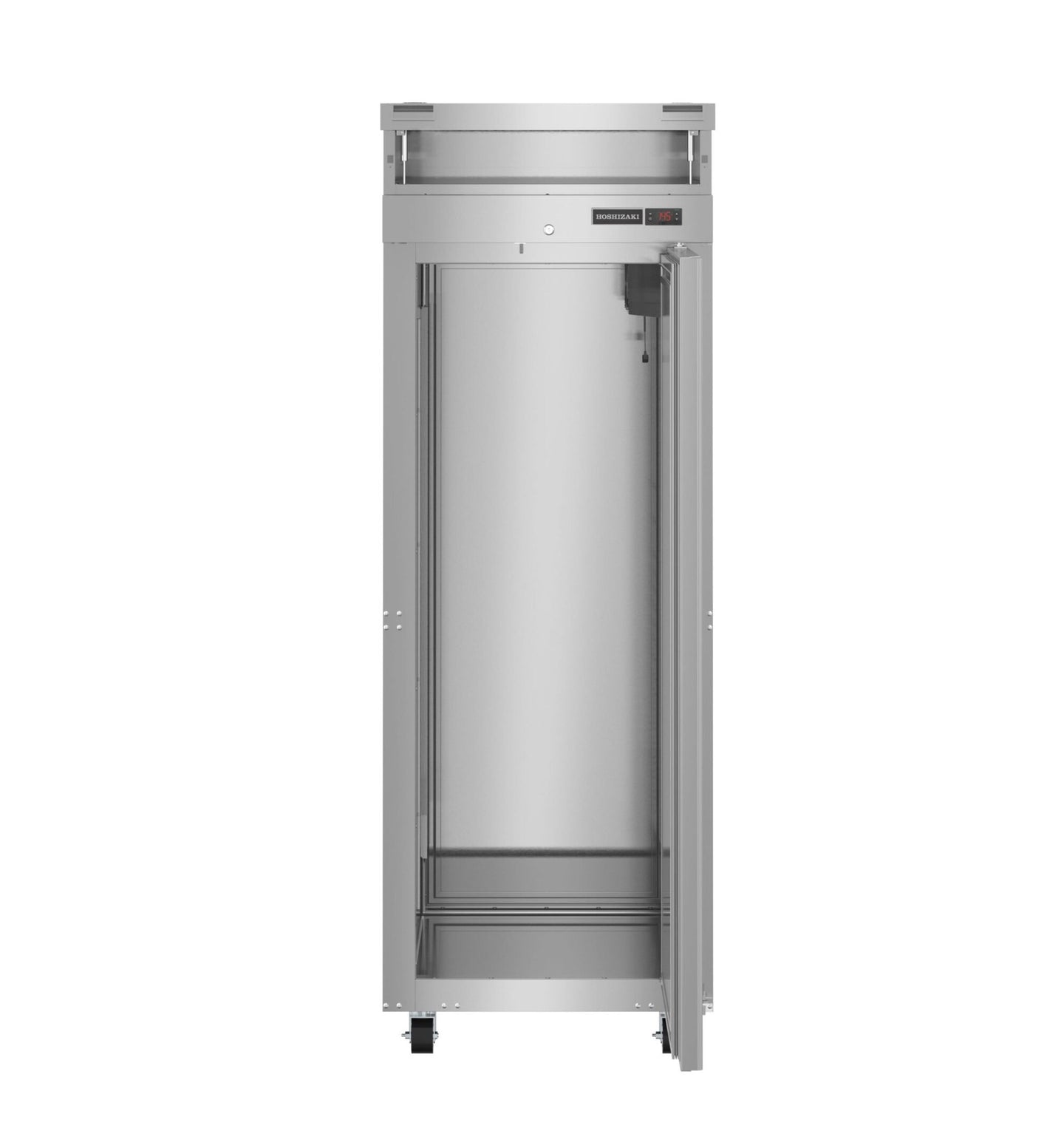

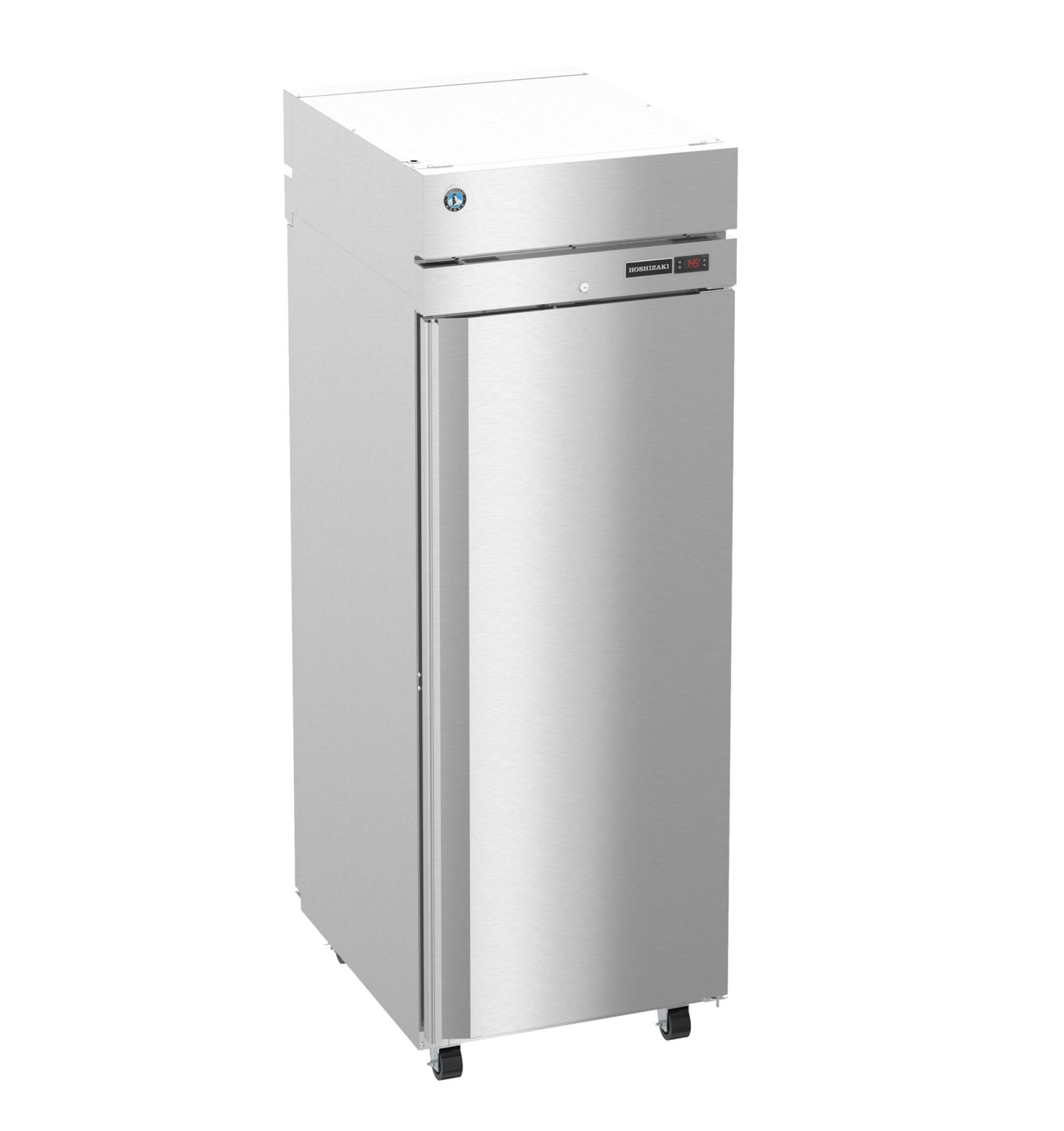

The Hoshizaki HC1A-FS-FS is a single-section pass-thru heated holding cabinet from the Steelheart Series, with full solid stainless doors and locks on both faces. It holds 23.82 cubic feet — twelve full sheet pans — and is loaded from the kitchen side and unloaded from the service side, so held food moves through the cabinet rather than back out the way it came.

Pass-Thru Workflow

The doors on both faces are what separate this model from the reach-in HC1A-FS. Set into a wall between production and the pass, the cabinet becomes the handoff point: cooks load from the hot line, expo pulls from the front, and nobody crosses the other's path mid-service. The extra 2.25 inches of depth over the reach-in accommodates the second door assembly and adds a little over a cubic foot of interior volume.

Wider Setpoint Range

The controller on this model runs a setpoint range of 80 to 180°F, broader at the low end than the 140°F floor on the single-door cabinets. That lower reach makes it usable for proofing and gentle holding of delicate items, not only for hot holding at food-safe service temperature.

Top-Mounted Heat and Digital Control

The heating element is top-mounted with fan circulation, so heat is moved through the cabinet rather than radiating from one wall. A solid-state digital controller with LED display handles the setpoint, interior LED lighting shows the load without opening a door, and both doors are field reversible and self-closing with a stay-open feature. The cabinet is ENERGY STAR qualified and UL Energy Verified, drawing 10 amps on a standard 115V circuit.

Specifications

Model HC1A-FS-FS
Configuration One section, pass-thru, full solid doors with lock
Capacity 23.82 cu ft, (12) sheet pans
Exterior dimensions 27.5" W x 35.75" D x 79.5" H
Shipping weight 367 lbs
Crate dimensions 38.5" L x 31.5" D x 81" H
Temperature setpoint range 80–180°F
Ambient operating range 45–100°F
Electrical 115V/60/1, 10 amps
Max fuse / HACR breaker 15 A
Cord and plug 10 ft cord, NEMA 5-15P
Heating Top-mounted element with fan circulation
Lighting Interior LED
Construction Stainless steel exterior and interior
Certifications ENERGY STAR Qualified, ETL Safety Listed (US & Canada), ETL Sanitation, UL Energy Verified, Georgia Made Certified

Warranty

The HC1A-FS-FS carries Hoshizaki's 7-7-7 warranty: seven years labor, seven years parts, and seven years on the compressor.
