Product Description

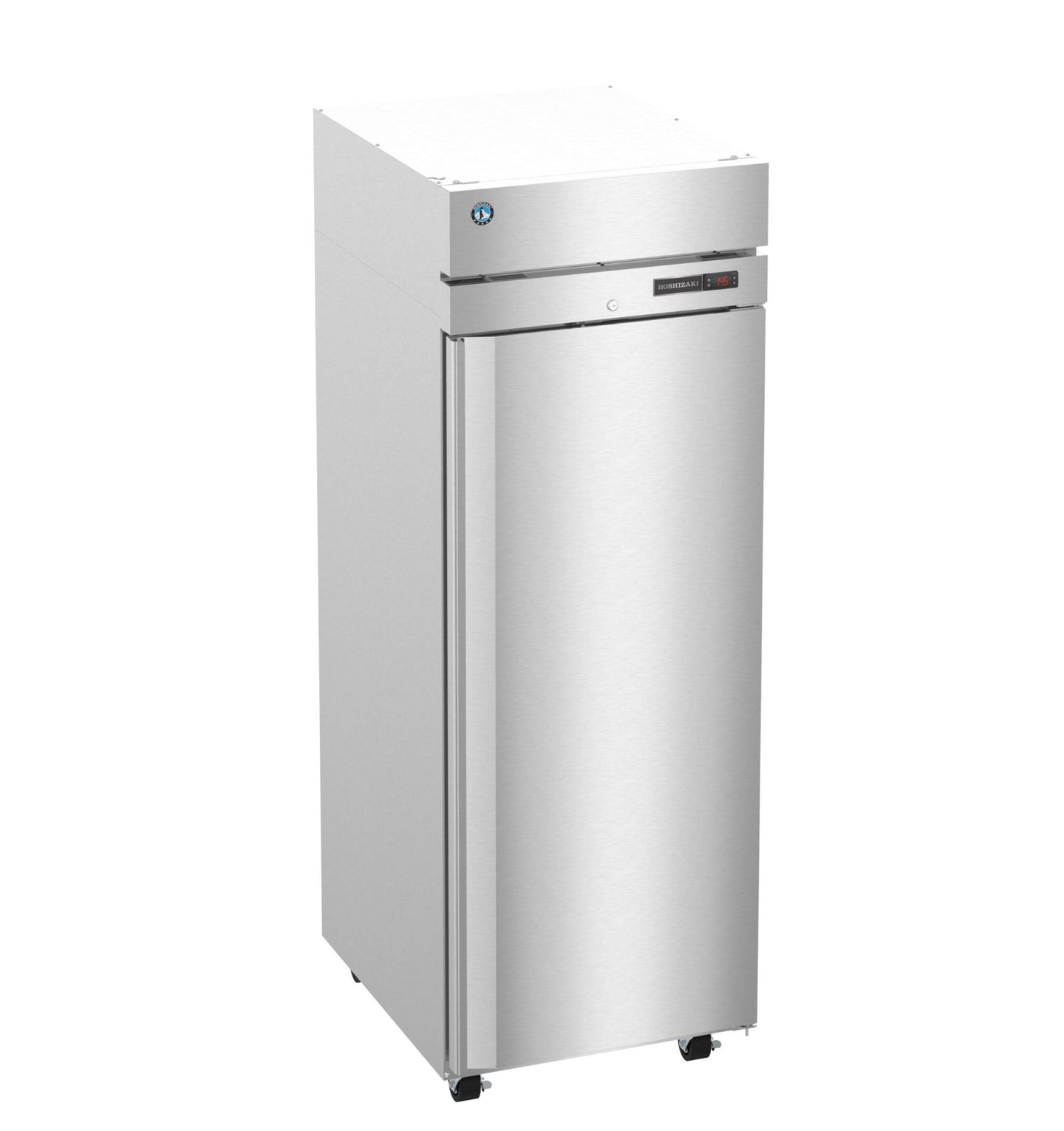

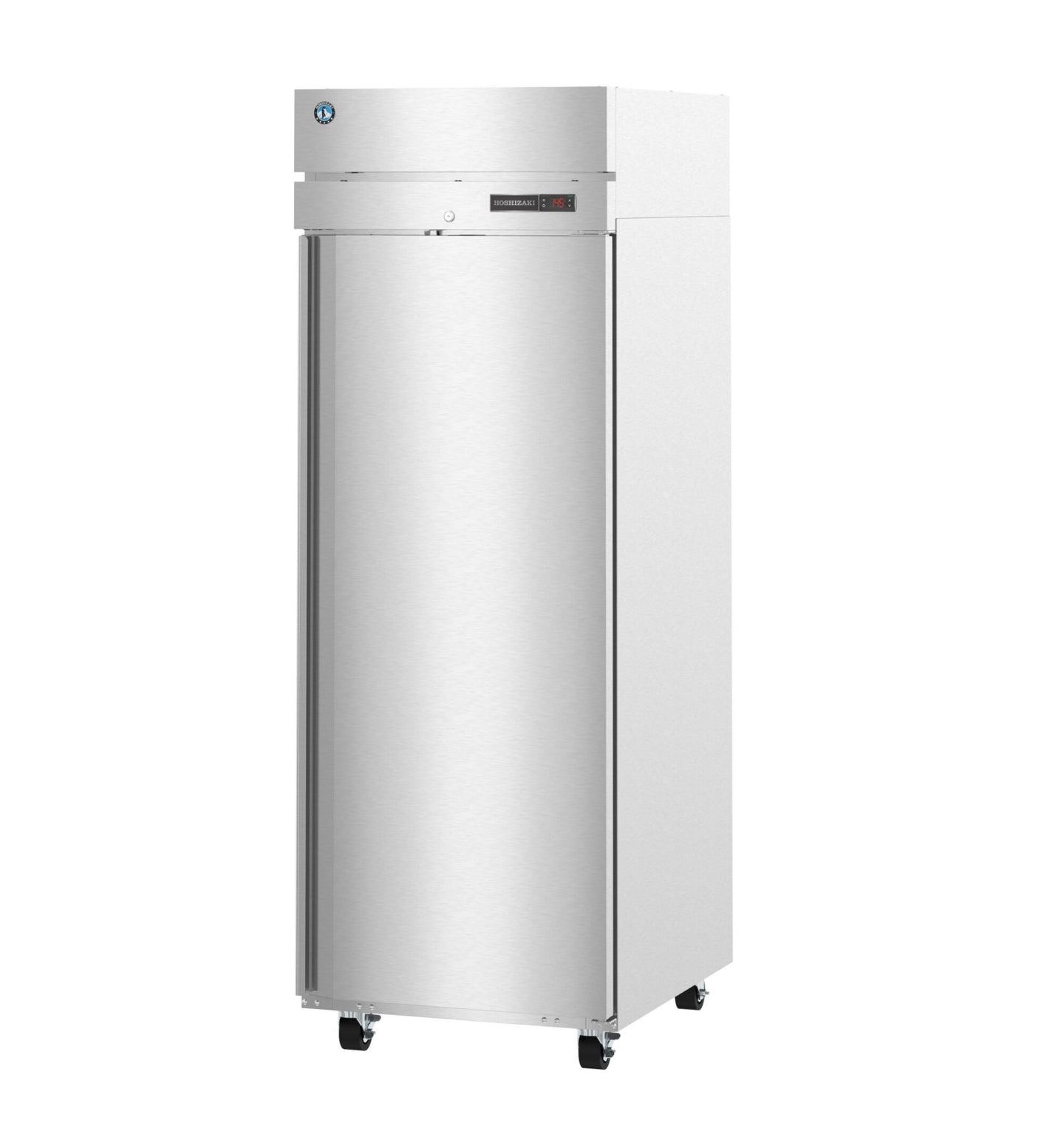

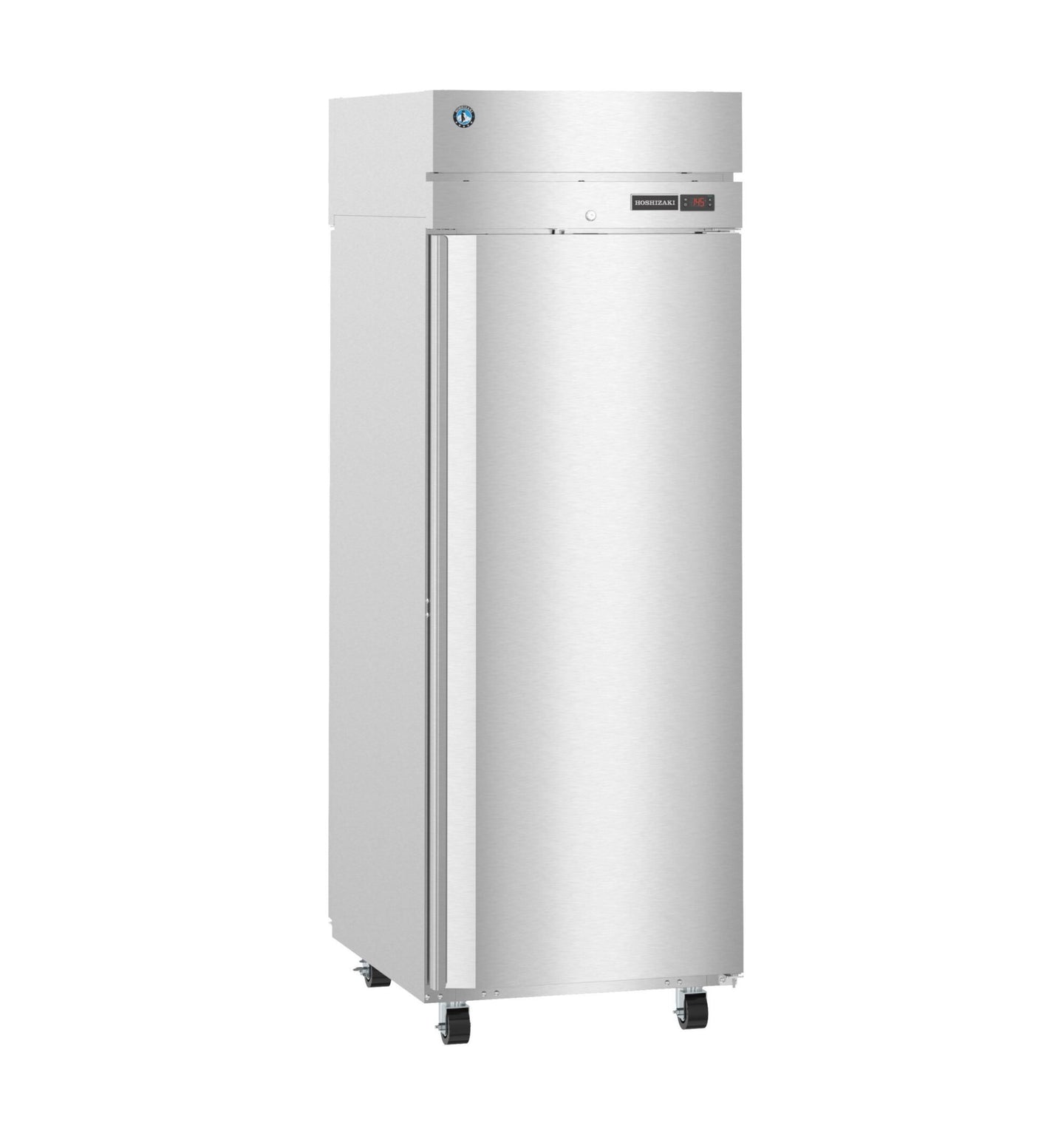

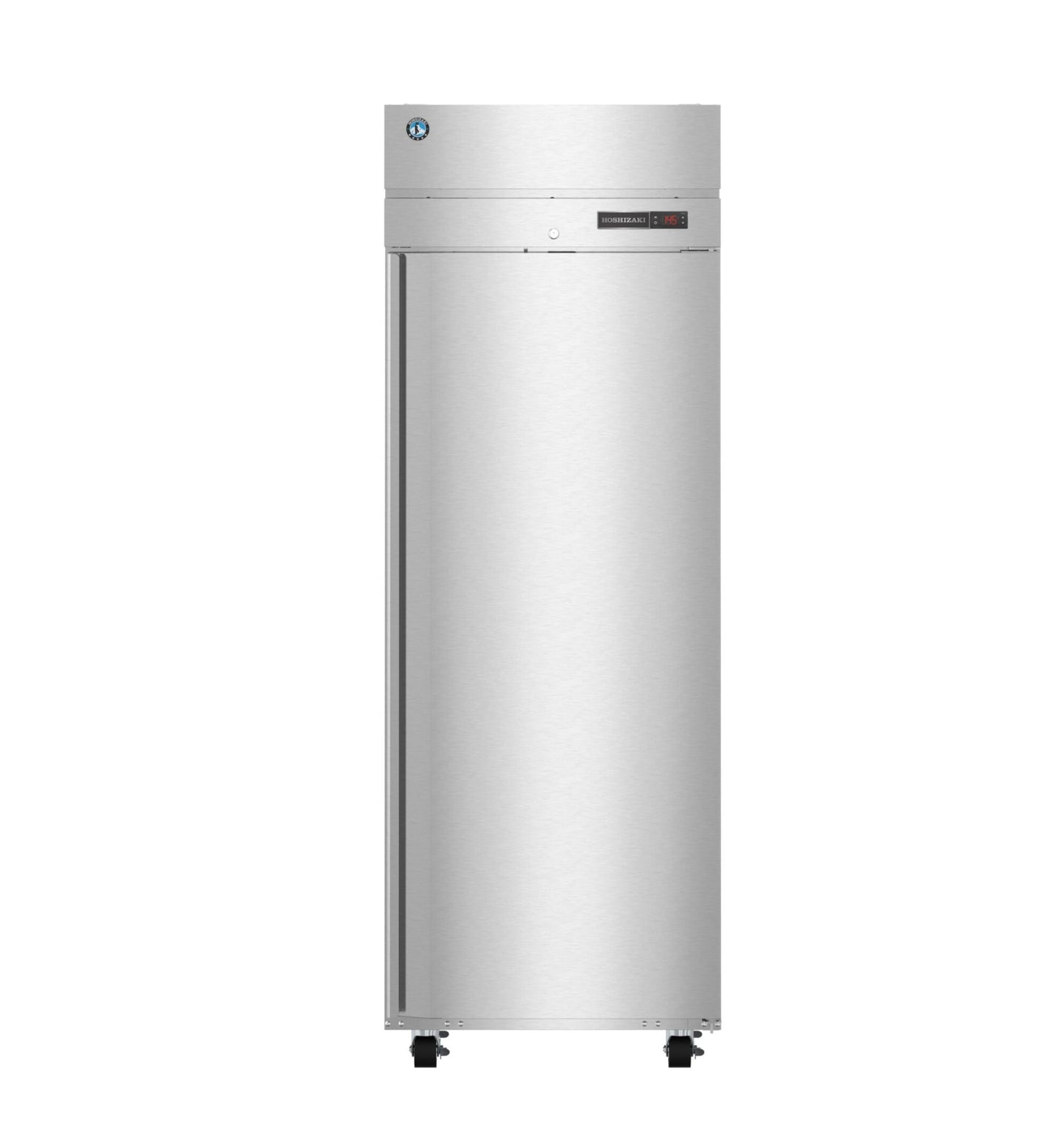

The Hoshizaki HC1A-FS is a single-section upright heated holding cabinet from the Steelheart Series, built in stainless steel with one full solid door. It holds 22.7 cubic feet — twelve full sheet pans — at a setpoint anywhere from 140 to 180°F, keeping plated and panned food at safe service temperature between the kitchen and the pass.

Solid Door Versus Glass

The full solid door is the choice where holding stability matters more than visibility. A solid stainless door loses less heat on each opening than a glass panel and gives the cabinet a more consistent internal temperature through a long hold, which suits back-of-house staging rather than front-of-house display. The door is field reversible and self-closing with a stay-open feature, so it can be hung to suit the line and will not drift shut while a cook is loading pans.

Digital Control and ENERGY STAR

A solid-state digital controller with an LED display sets and reads the holding temperature directly, rather than relying on a dial marked in arbitrary increments. The cabinet is ENERGY STAR qualified and UL Energy Verified, which is the practical distinction between this class of cabinet and an uninsulated warmer: it holds temperature at a rated draw of 10 amps on a standard 115V circuit rather than running a heater continuously.

Steelheart Construction

The cabinet is stainless steel inside and out, and is Georgia Made Certified. It plugs into a standard 115V outlet with a 5-15P plug on a 10-foot cord, so no dedicated circuit or hard wiring is needed for installation.

Specifications

Model HC1A-FS
Configuration One section, reach-in, full solid door
Capacity 22.7 cu ft, (12) sheet pans
Exterior dimensions 27.5" W x 33.5" D x 79.5" H
Shipping weight 340 lbs
Crate dimensions 37.5" L x 31.5" D x 81" H
Temperature setpoint range 140–180°F
Ambient operating range 45–100°F
Electrical 115V/60/1, 10 amps
Max fuse / HACR breaker 15 A
Cord and plug 10 ft cord, NEMA 5-15P
Construction Stainless steel exterior and interior
Certifications ENERGY STAR Qualified, ETL Safety Listed (US & Canada), ETL Sanitation, UL Energy Verified, Georgia Made Certified

Warranty

The HC1A-FS carries Hoshizaki's 7-7-7 warranty: seven years labor, seven years parts, and seven years on the compressor.
