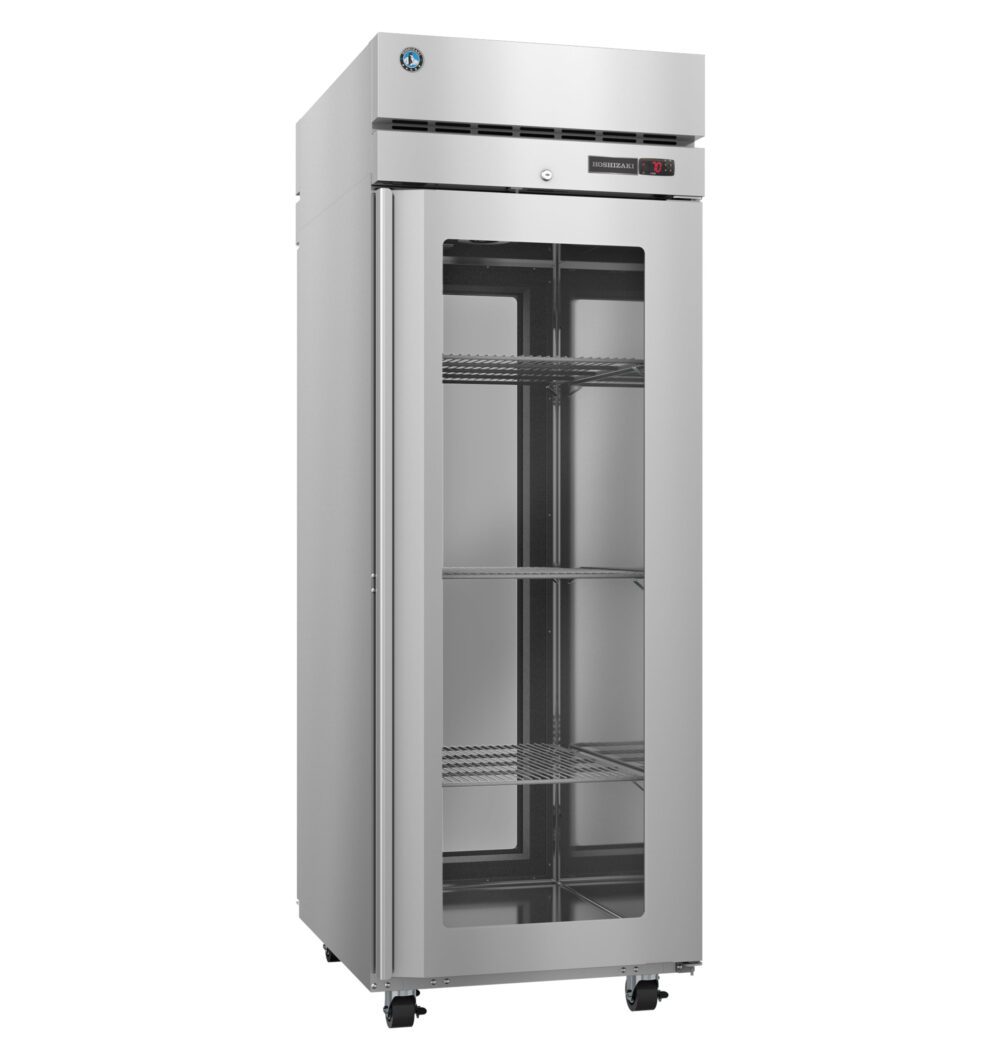

Hoshizaki HC1A-FGE-FGE pass-thru Steelheart heated holding cabinet with full glass doors, right side view

Product Description

The Hoshizaki HC1A-FGE-FGE is a single-section pass-thru heated holding cabinet with full glass doors on both faces. It holds 23.82 cubic feet — twelve sheet pans or twenty to twenty-four tray slides — at a setpoint between 140 and 180°F, and is loaded from one side and served from the other.

Glass on Both Faces

Dual glass doors make this the configuration for a cabinet built into a wall between kitchen and dining room. Production staff can see what remains without walking around, and the service side reads as a display case rather than a back-of-house appliance. Both doors are self-closing and lock.

Pass-Thru Workflow

The second door is the functional difference from the reach-in HC1A-FGE. Food is loaded from the hot line and drawn from the service side, so the two crews never work the same opening. The additional 2.25 inches of depth accommodates the second door assembly and yields just over a cubic foot more interior volume than the reach-in.

ENERGY STAR Efficiency

The cabinet is ENERGY STAR qualified and UL Energy Verified, and is rated at 161.4 kWh per day — lower than the 175.5 kWh/day of the single-door reach-in models despite the larger interior. It runs on a standard 115V circuit at 10 amps through a 5-15P plug on a 10-foot cord, with a 20 A maximum breaker.

Specifications

Model HC1A-FGE-FGE
Configuration One section, pass-thru, full glass doors with lock
Capacity 23.82 cu ft, (12) sheet pans or 20–24 tray slides
Exterior dimensions 27.5" W x 35.75" D x 79.5" H
Shipping weight 367 lbs
Temperature setpoint range 140–180°F
Ambient operating range 45–100°F
Electrical 115V/60/1, 10 amps
Cord and plug 10 ft cord, NEMA 5-15P
Energy consumption 161.4 kWh/day
Construction Stainless steel
Certifications ENERGY STAR Qualified, ETL Safety Listed (US & Canada), ETL Sanitation, UL Energy Verified, Georgia Made Certified

Warranty

The HC1A-FGE-FGE carries Hoshizaki's 7-7-7 warranty: seven years labor, seven years parts, and seven years on the compressor.
