Product Description

The Hoshizaki FS-1001MLJ-C is a Serenity Series cubelet icemaker producing up to 851 pounds of chewable nugget ice per 24 hours. The Serenity platform exists for one reason: to put high-volume ice production into rooms where people are, without the noise and heat that normally rule a machine of this capacity out of a lobby, cafeteria or patient floor.

Built around the remote condenser

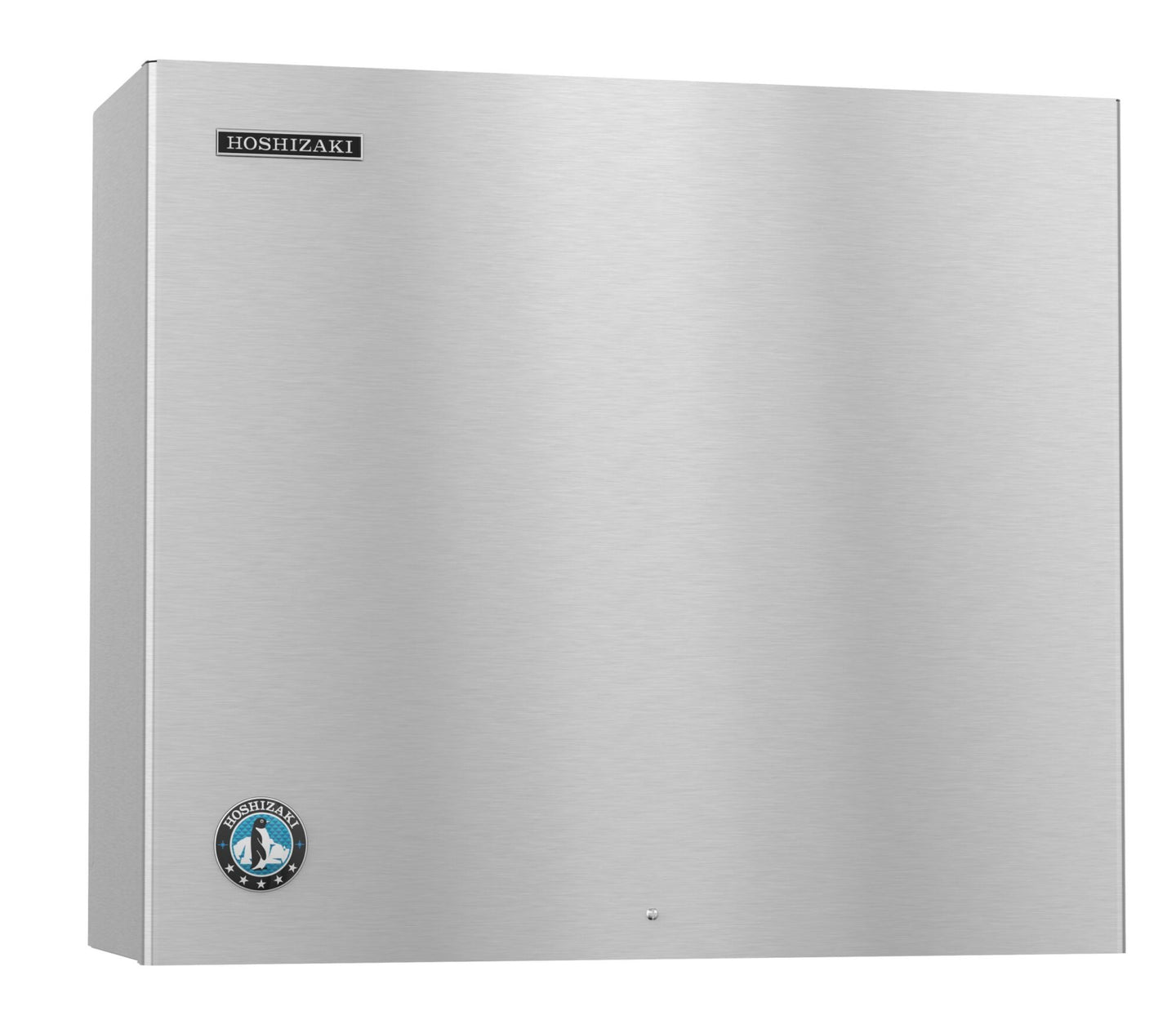

The FS-1001MLJ-C is remote-only. All the noisy, heat-generating refrigeration work happens at an SRC remote condenser mounted outdoors, and the head unit that remains indoors is a low-profile module holding only 3.5 ounces of refrigerant. The 115V supply for the icemaker is fed from the 230V remote condenser, which simplifies the rough-in to a single service run. What sits in the occupied space is a quiet, shallow cabinet rather than a full condensing unit.

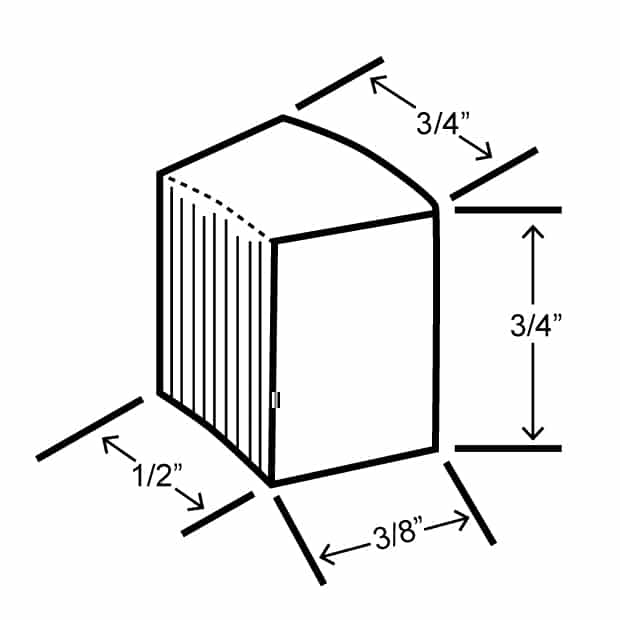

Cubelet ice for beverage and patient service

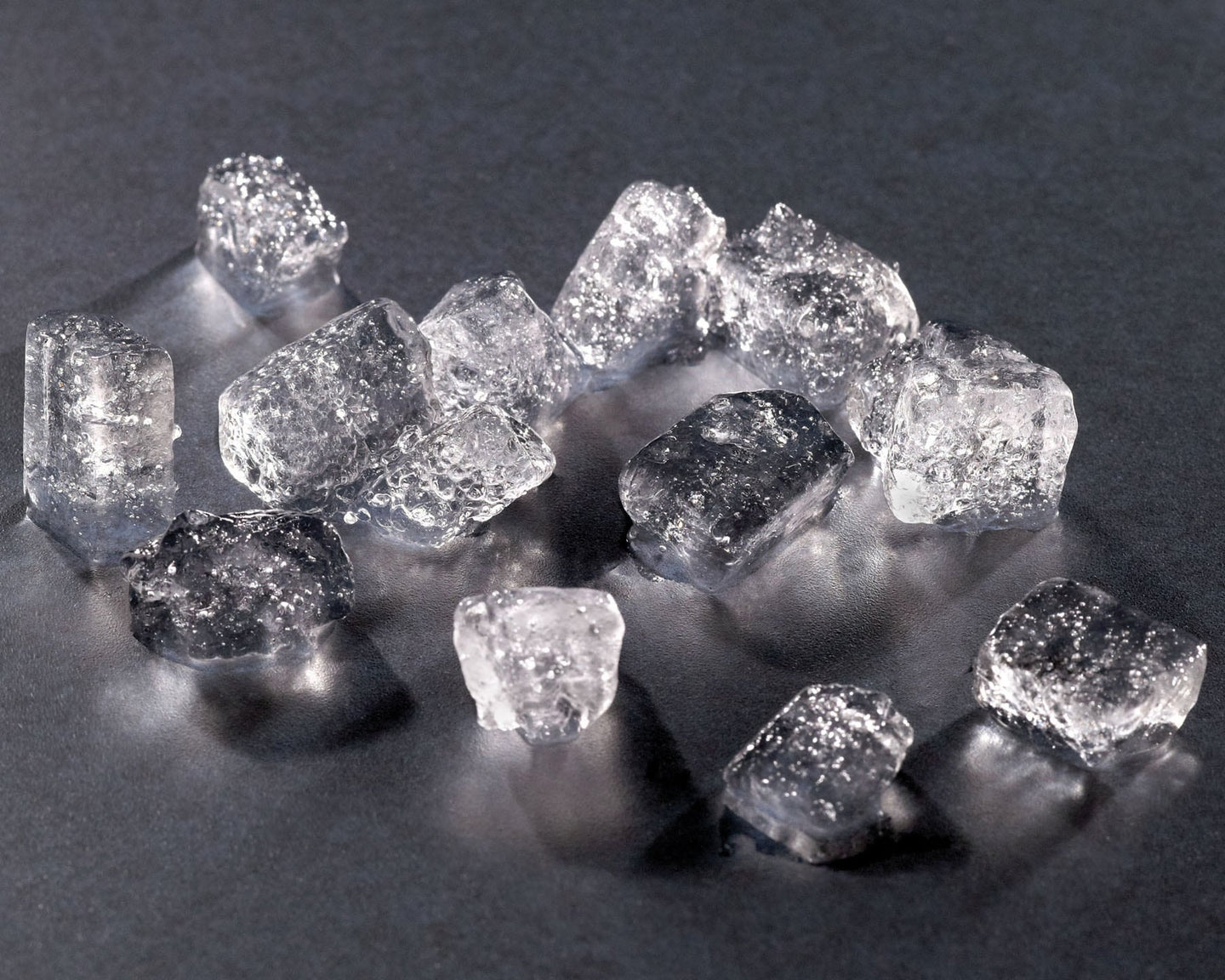

Cubelet is compressed flake: soft enough to chew without risk, high in surface area so it chills a drink almost on contact, and slow enough to melt that it will not dilute a fountain beverage. It is extruded continuously by an auger rather than harvested in batches, so output stays level through a rush. Advanced CleanCycle24 flushes the water circuit automatically each day to slow scale, and the greaseless bearing auger removes lubrication from the maintenance routine.

Specifications

Model FS-1001MLJ-C
Series Serenity
Ice type Cubelet (nugget)
Ice production Up to 851 lb per 24 hours
Condenser Remote-cooled; SRC remote condenser sold separately
Exterior dimensions 30" W x 11" D x 26" H
Shipping weight 140 lb
Electrical Single phase, 104-127V, 9.3 amps, 20 amp max fuse or HACR breaker; 115V supply fed from the 230V SRC remote condenser
Refrigerant R-404A, 3.5 oz (99 g)
Energy consumption 5.07 kWh per 100 lb at 90/70
Water consumption 12 gal potable water per 100 lb at 90/70
Certifications AHRI Standard 810, NSF, UL Listed, Georgia Made Certified

Warranty

Three years parts and labor on the entire machine. Five years parts on the compressor and air-cooled condenser coil.
