Product Description

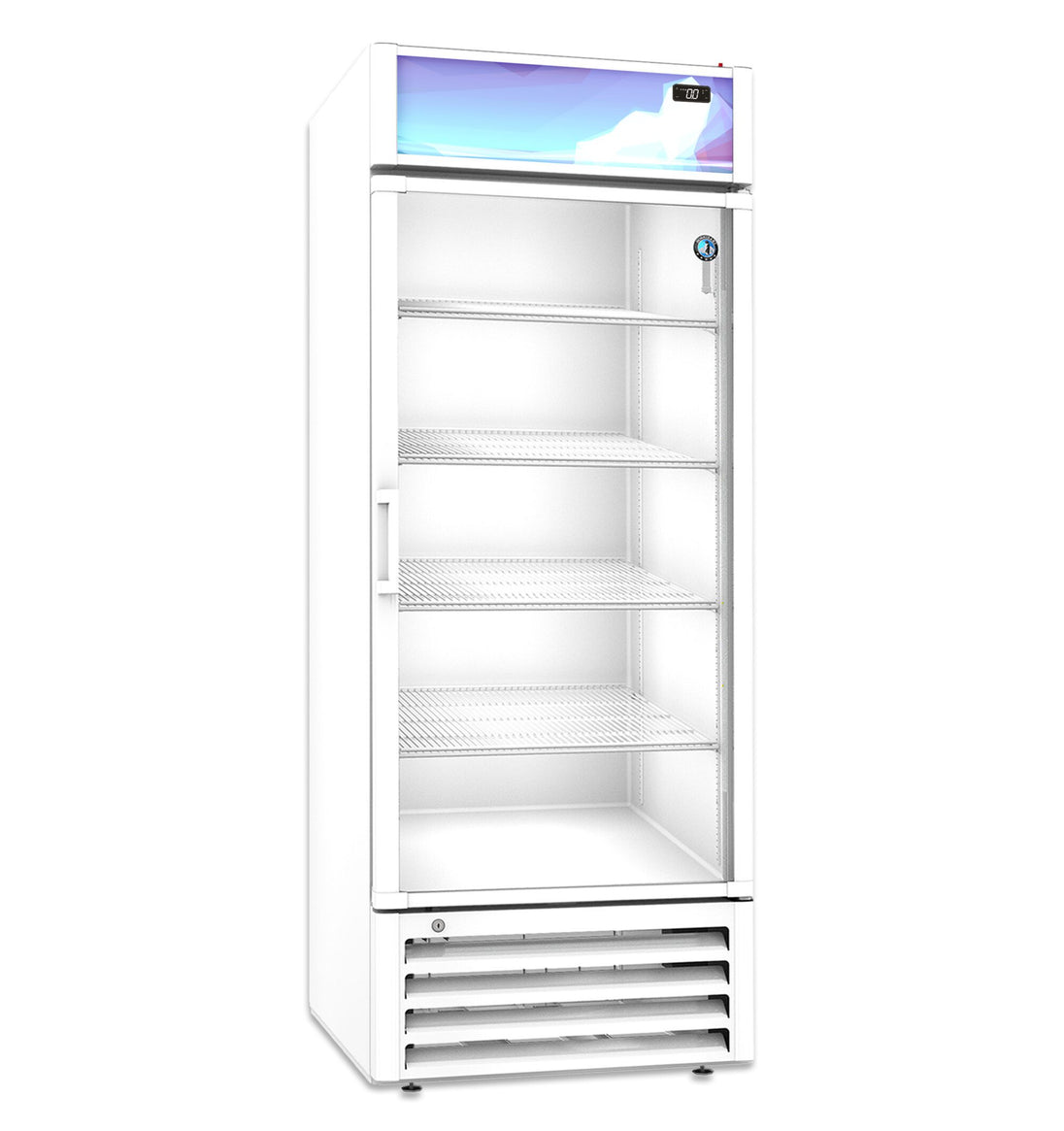

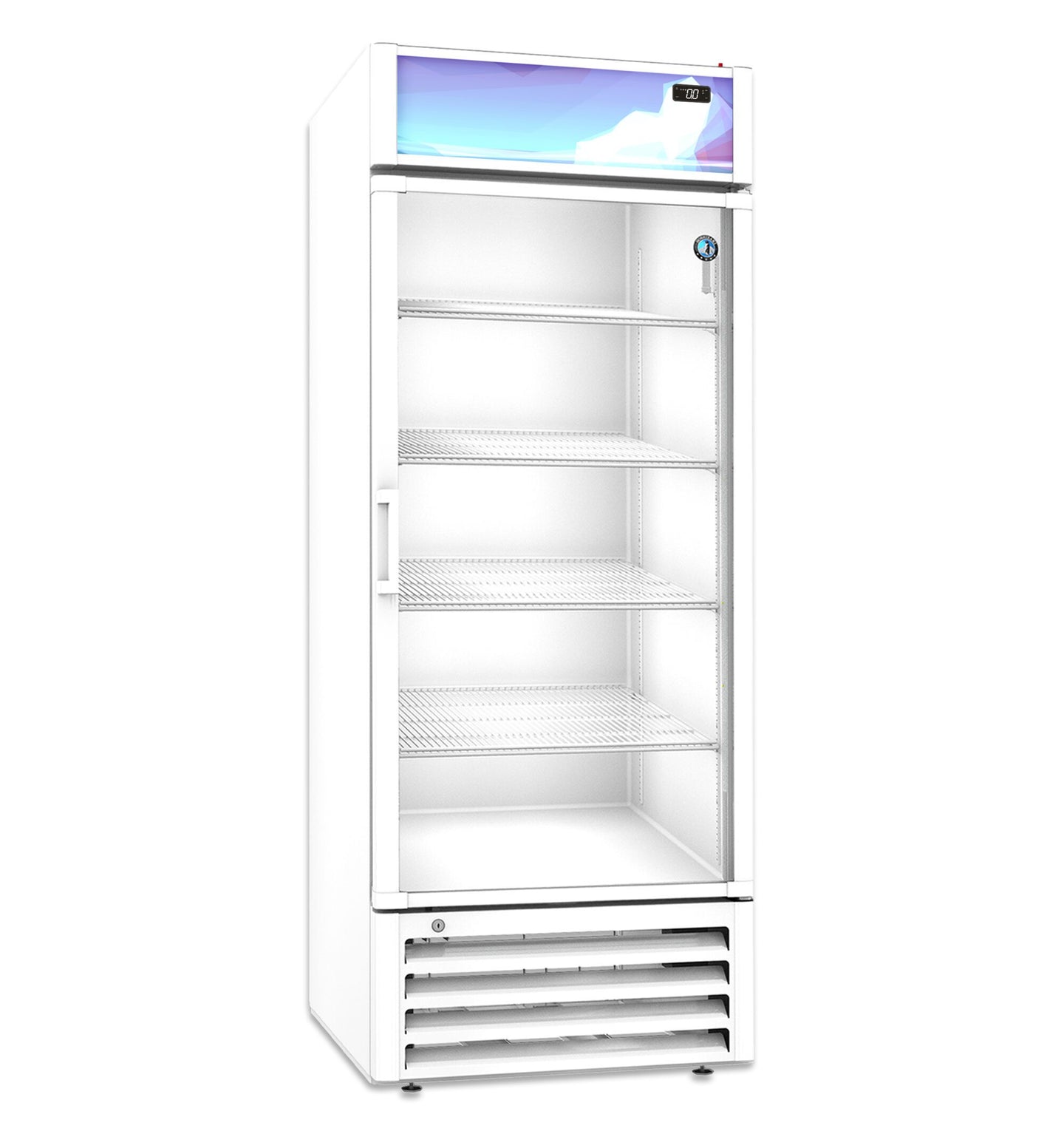

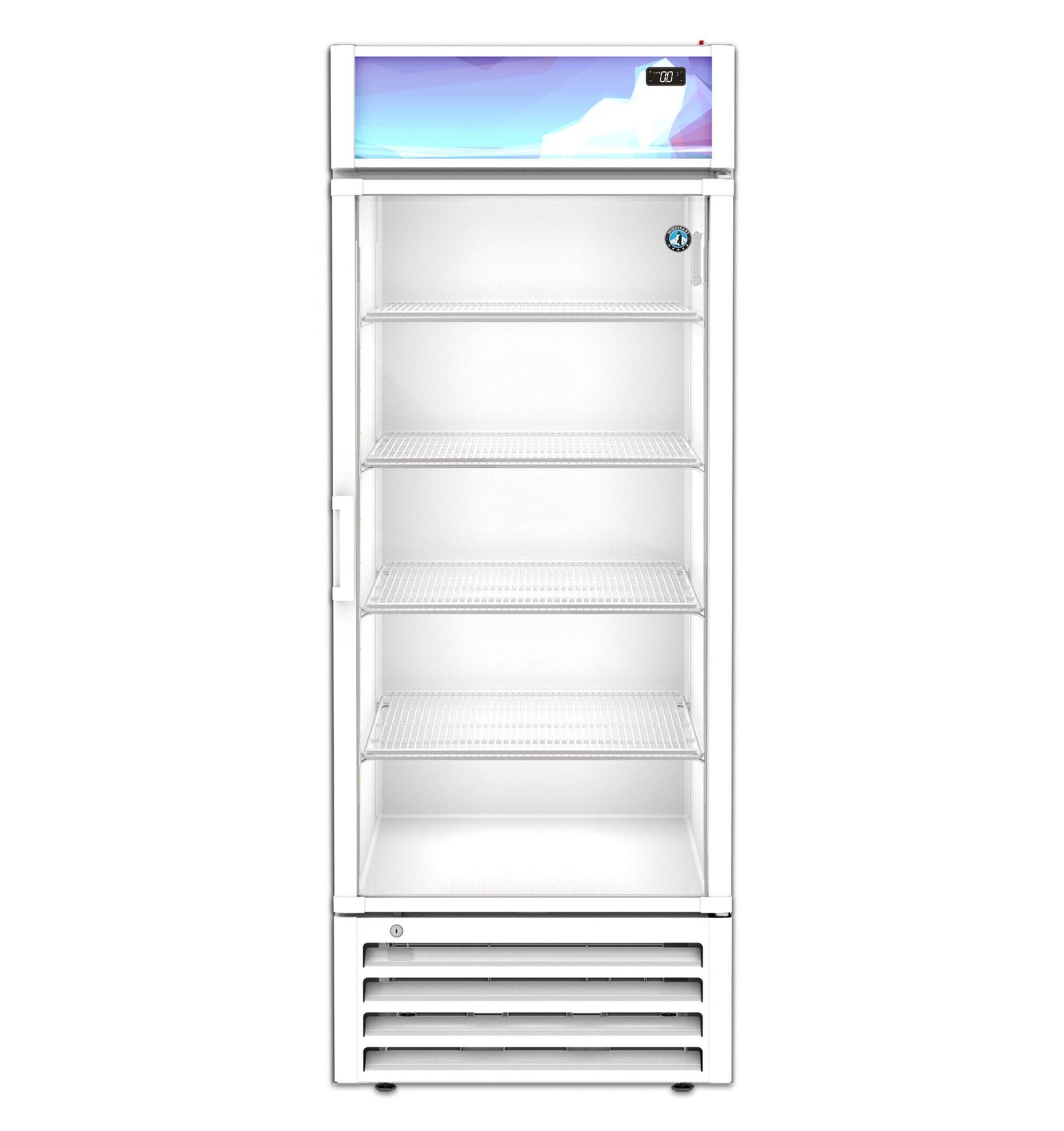

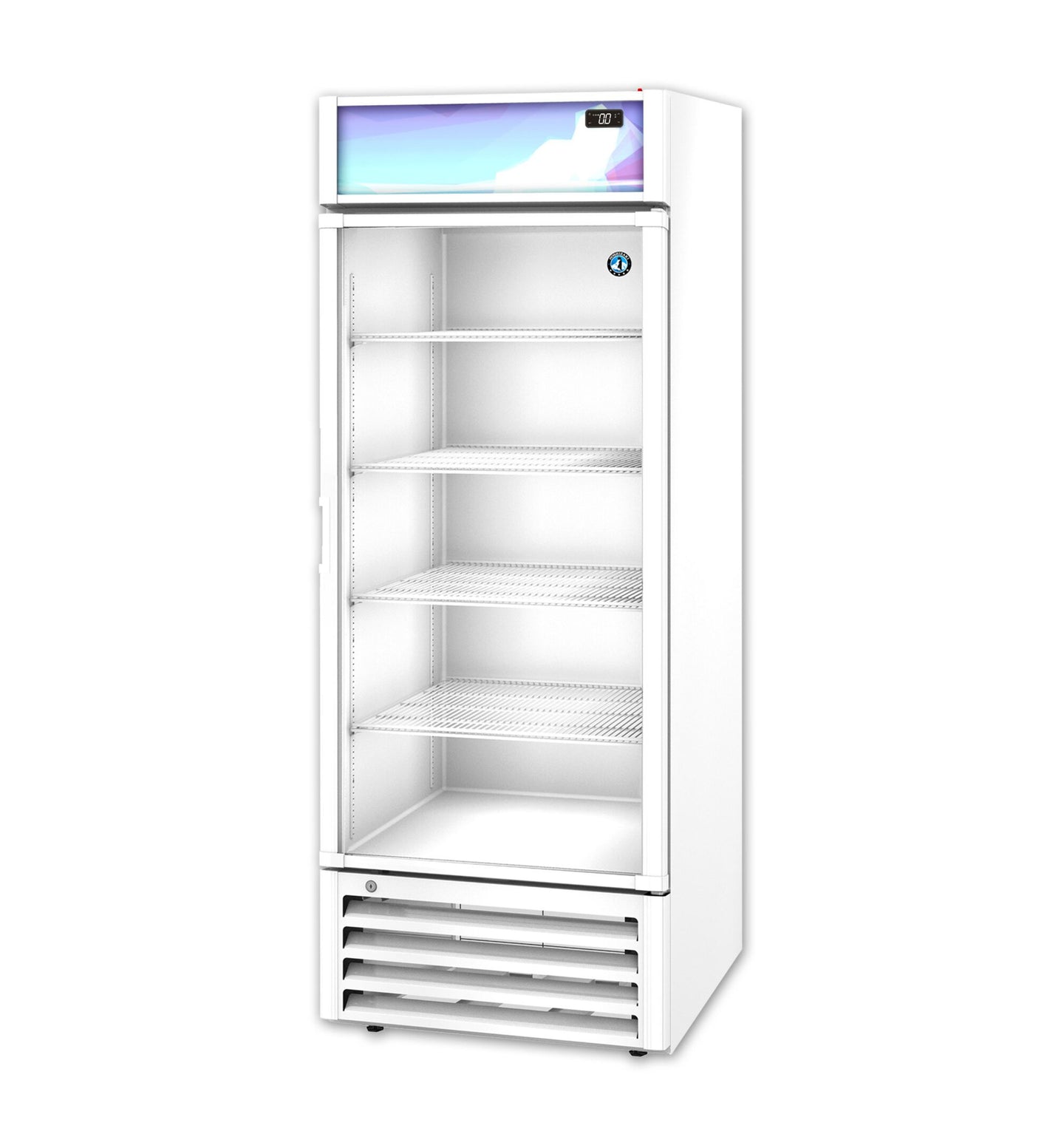

The Hoshizaki FM-23-HC-WHT is a single-section glass door freezer merchandiser in a white finish, holding 20.71 cubic feet of packaged frozen product for retail display.

White exterior for bright retail spaces

The cabinet is white painted galvanized steel — the finish that disappears into a grocery, pharmacy or cafeteria wall run rather than reading as back-of-house equipment. Functionally it is the same machine as the stainless and black versions; the choice is entirely about the room it lands in.

Forced air with an automatic hot gas loop

A forced-air evaporator keeps the cabinet temperature even from the top shelf to the bottom, and an automatic hot gas loop manages condensation around the door frame. On a glass-door freezer in a humid retail space, that loop is what stops sweating on the perimeter where the door seals.

Standard receptacle

The unit draws 4.8 amps on 115V through a NEMA 5-15P plug on an 8-foot cord behind a 15A breaker, so it can go almost anywhere on a sales floor. The sealed system carries 10.58 oz. of R290 natural refrigerant.

Specifications

Model FM-23-HC-WHT
Configuration Single section glass door freezer merchandiser
Exterior Finish White painted galvanized steel
Capacity 20.71 cu. ft.
Exterior Dimensions 30" W x 29.75" D x 78" H
Shipping Weight 385 lbs
Electrical 115V/60/1, 4.8 amps, 15A max fuse/HACR breaker
Cord and Plug 8 ft. cord, NEMA 5-15P
Refrigerant R290, 10.58 oz. charge
Certifications NSF/ANSI Std 7, UL Listed, UL EPH Listed, Norma Oficial Mexicana

Warranty

Hoshizaki covers the FM-23-HC-WHT with 3 years parts and labor on the entire machine and 5 years parts on the compressor.
