Product Description

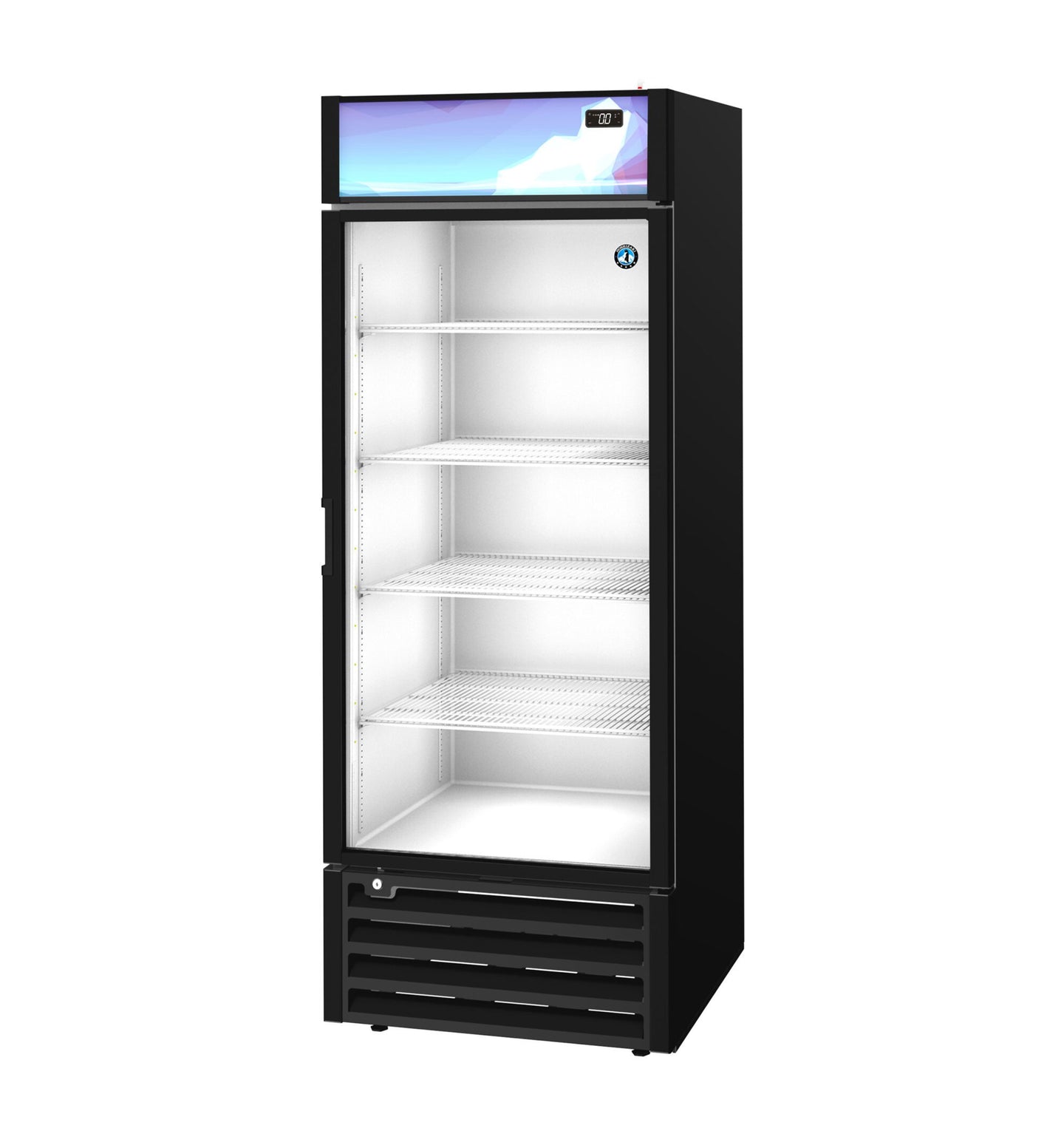

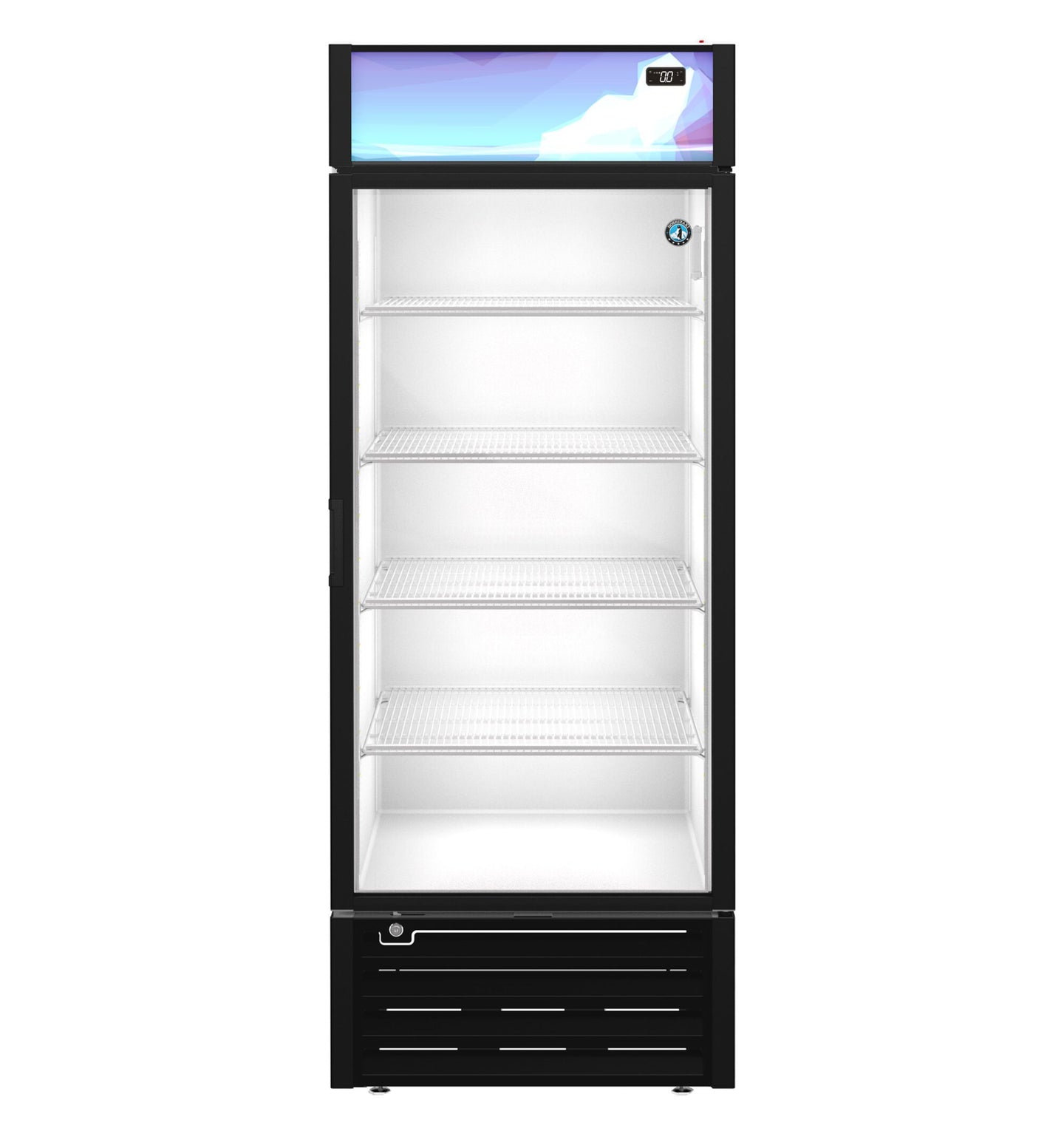

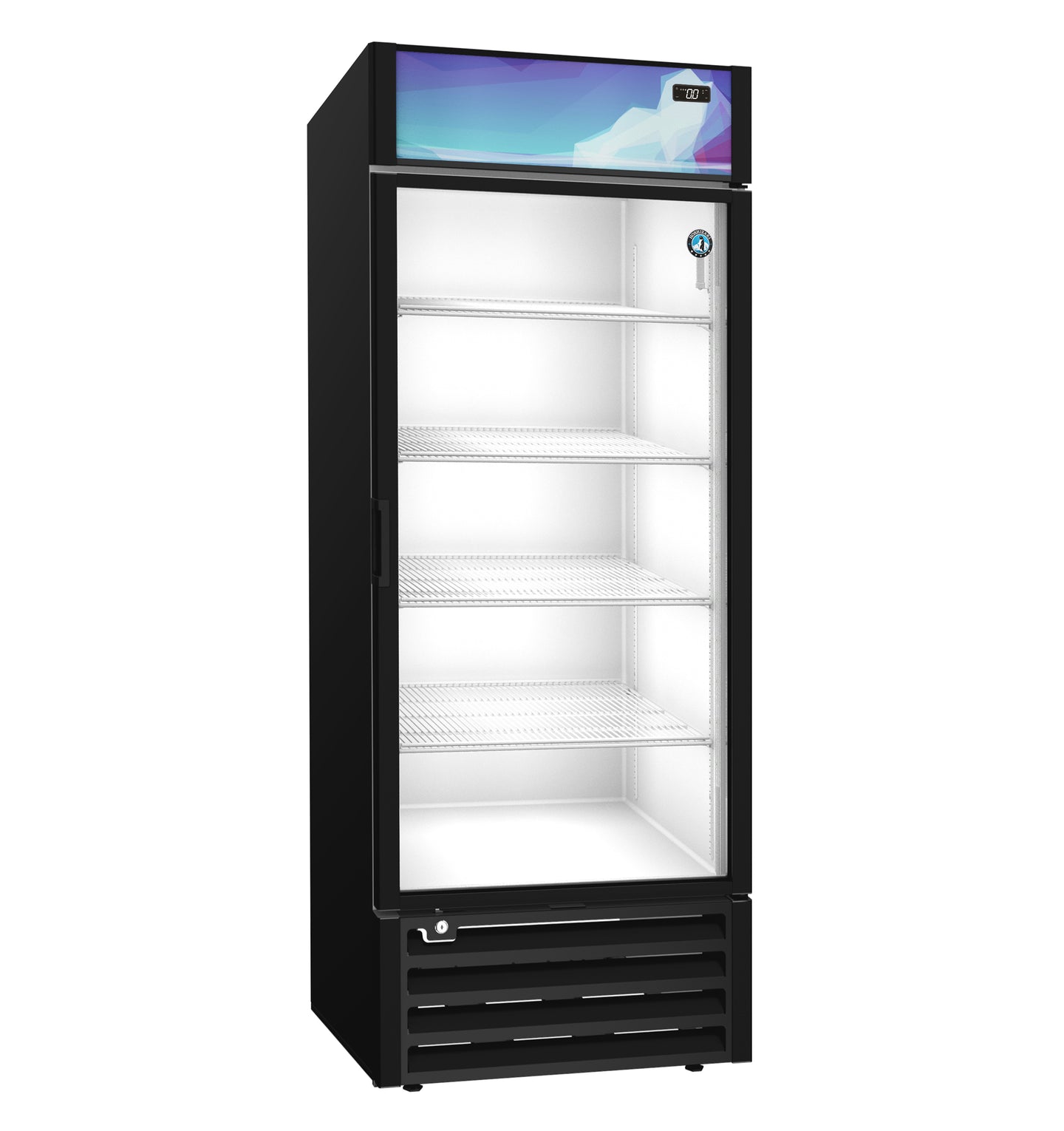

The Hoshizaki FM-23-HC-BLK is a single-section glass door freezer merchandiser in a black finish, holding 20.71 cubic feet of packaged frozen product behind a full glass swing door.

Black cabinet for a retail floor

The exterior is black painted galvanized steel; the interior is white steel over a stainless steel floor. The black finish is a merchandising decision — it recedes behind the lit product rather than competing with it, and it hides fingerprints and cart scuffs better than a stainless front on a customer-facing unit.

Low-E multi-pane glass

The swing door uses Low-E multi-pane glass and closes itself. On a freezer, that glass package is what keeps the pane clear and the surface from sweating; on a self-serve unit, the self-closing mechanism is what keeps it from being left open by a customer who walked away.

Retail certifications and a standard plug

NSF/ANSI Standard 7, UL Listed, UL EPH Listed and Norma Oficial Mexicana. The sealed system holds 10.58 oz. of R290 natural refrigerant and draws 4.8 amps on a standard 115V outlet through a NEMA 5-15P plug on an 8-foot cord.

Specifications

Model FM-23-HC-BLK
Configuration Single section glass door freezer merchandiser
Exterior Finish Black painted galvanized steel
Interior White steel with stainless steel floor
Capacity 20.71 cu. ft.
Exterior Dimensions 30" W x 29.75" D x 78" H
Shipping Weight 385 lbs
Electrical 115V/60/1, 4.8 amps
Cord and Plug 8 ft. cord, NEMA 5-15P
Refrigerant R290, 10.58 oz. charge
Certifications NSF/ANSI Std 7, UL Listed, UL EPH Listed, Norma Oficial Mexicana

Warranty

Hoshizaki covers the FM-23-HC-BLK with 3 years parts and labor on the entire machine and 5 years parts on the compressor.
