Product Description

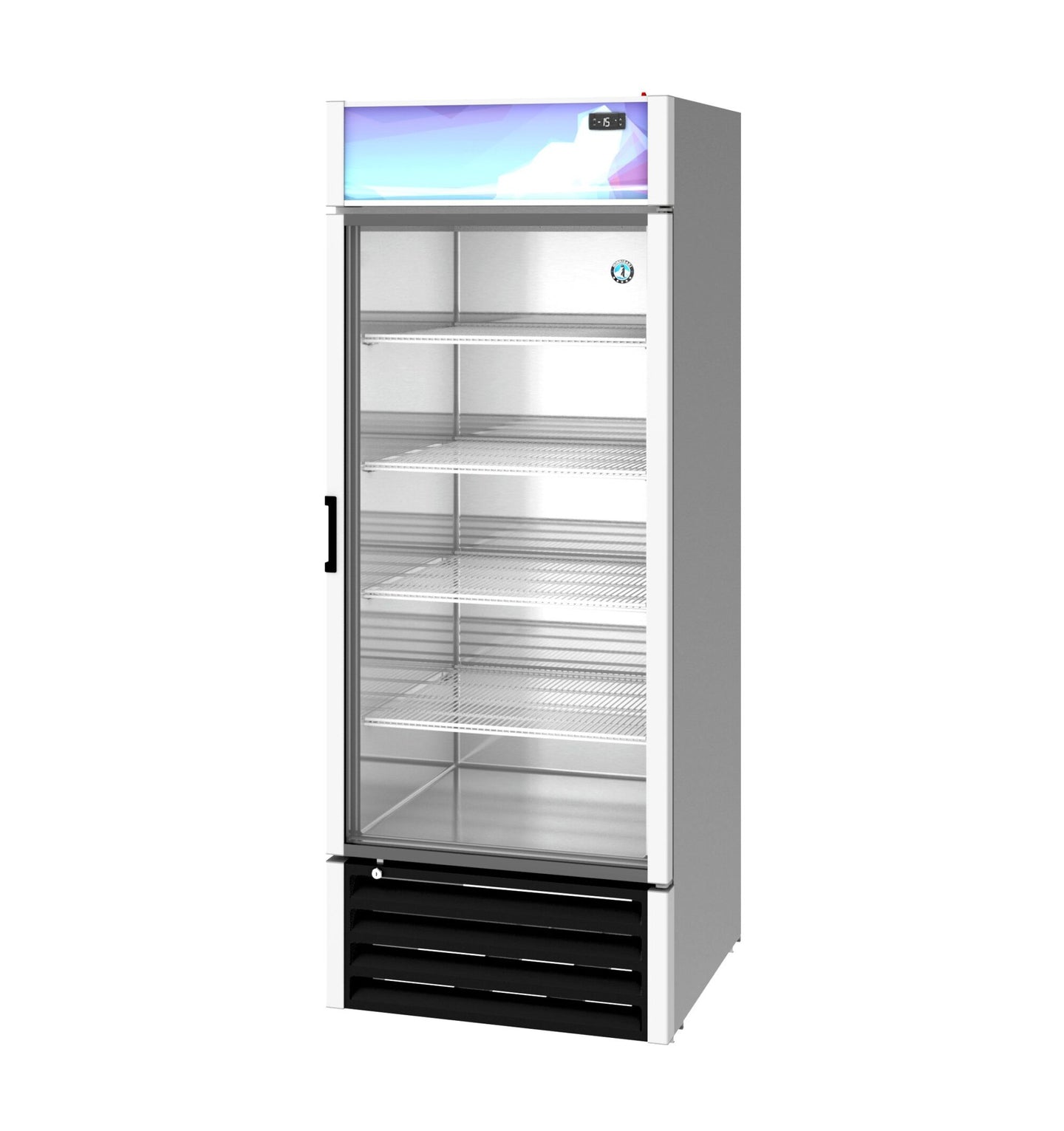

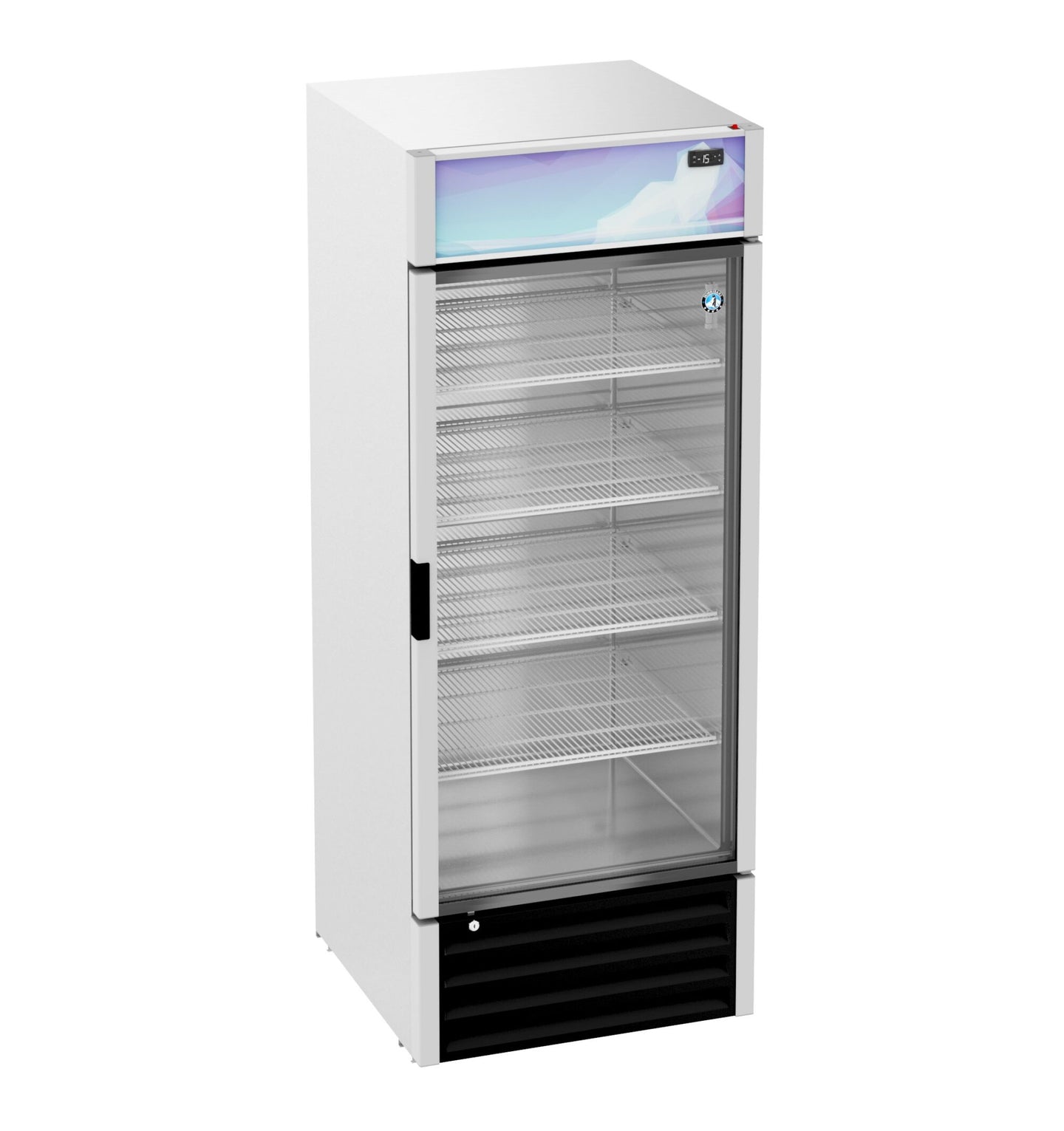

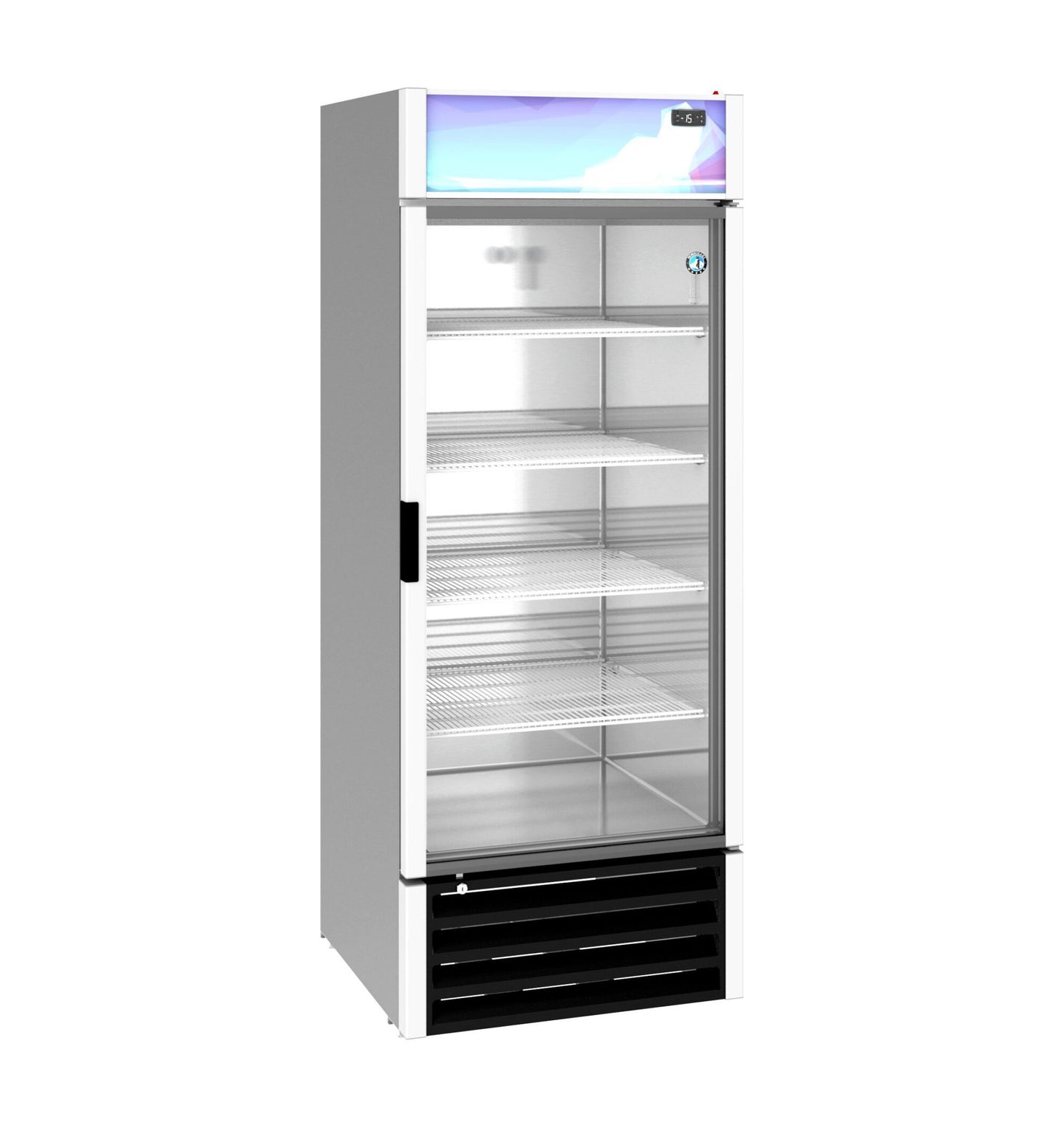

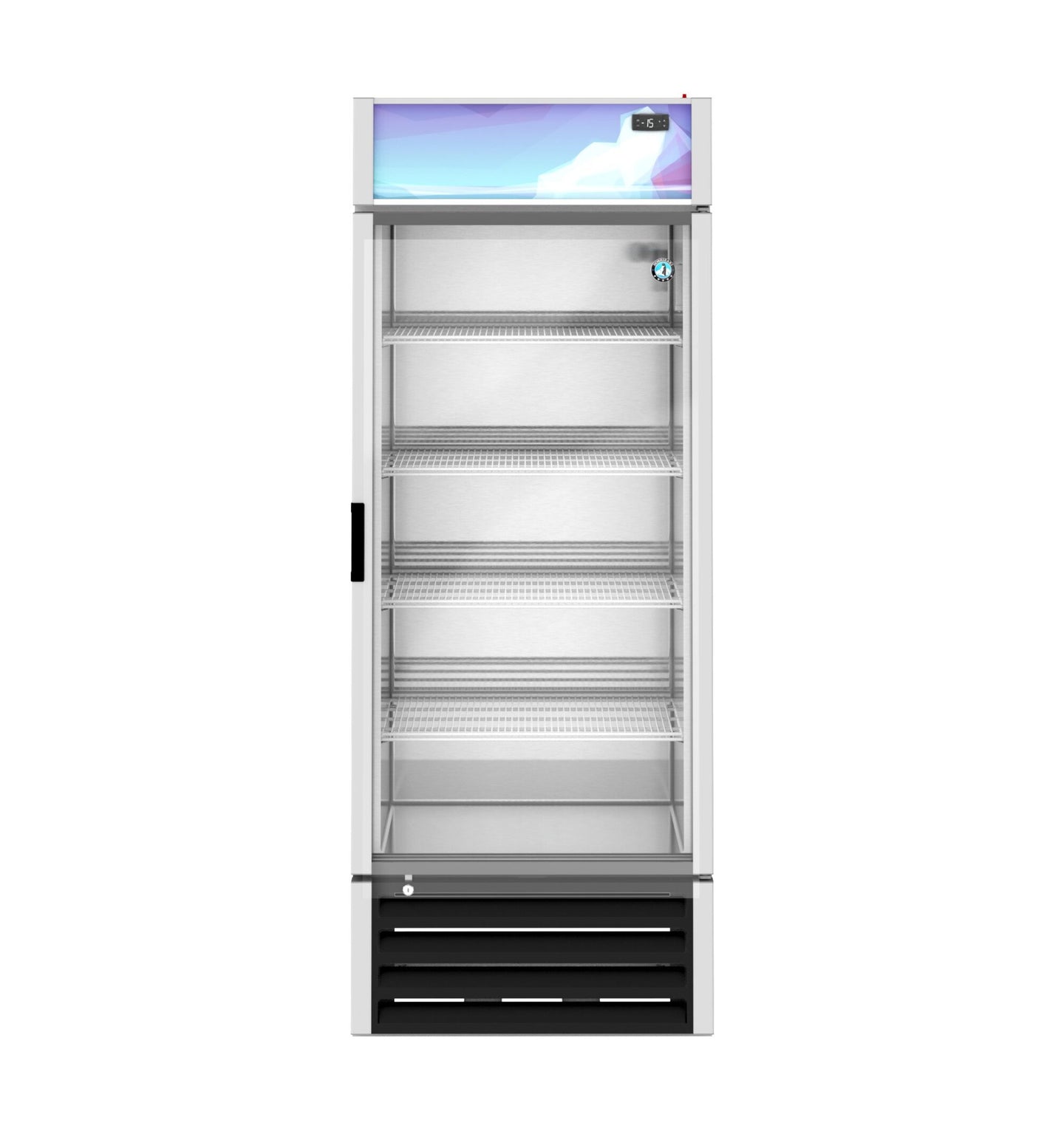

The Hoshizaki FM-23-HC is a single-section glass door freezer merchandiser holding 20.71 cubic feet, built to display packaged frozen product behind a full glass swing door.

Built to sell, not to store

A merchandiser is a different machine from a back-of-house reach-in. The full glass swing door and the cabinet behind it exist to put packaged frozen goods in front of a customer at a decision point — a c-store cooler run, a cafeteria grab-and-go, a retail checkout line — where product that cannot be seen does not get bought.

Retail-ready certifications

The FM-23-HC carries NSF/ANSI Standard 7 certification for open food display, plus UL and UL EPH listings and Norma Oficial Mexicana approval. NSF 7 is the one that matters for a merchandiser going into a regulated retail environment.

Standard outlet, natural refrigerant

At 4.8 amps on 115V through a NEMA 5-15P plug on an 8-foot cord, the unit plugs into an ordinary receptacle — an important detail for retail floors where a dedicated circuit is not on offer. The sealed system carries 10.58 oz. of R290 natural refrigerant.

Specifications

Model FM-23-HC
Configuration Single section glass door freezer merchandiser
Capacity 20.71 cu. ft.
Exterior Dimensions 30" W x 29.75" D x 78" H
Shipping Weight 385 lbs
Electrical 115V/60/1, 4.8 amps
Cord and Plug 8 ft. cord, NEMA 5-15P
Refrigerant R290, 10.58 oz. charge
Certifications NSF/ANSI Std 7, UL Listed, UL EPH Listed, Norma Oficial Mexicana

Warranty

Hoshizaki covers the FM-23-HC with 3 years parts and labor on the entire machine and 5 years parts on the compressor.
