Product Description

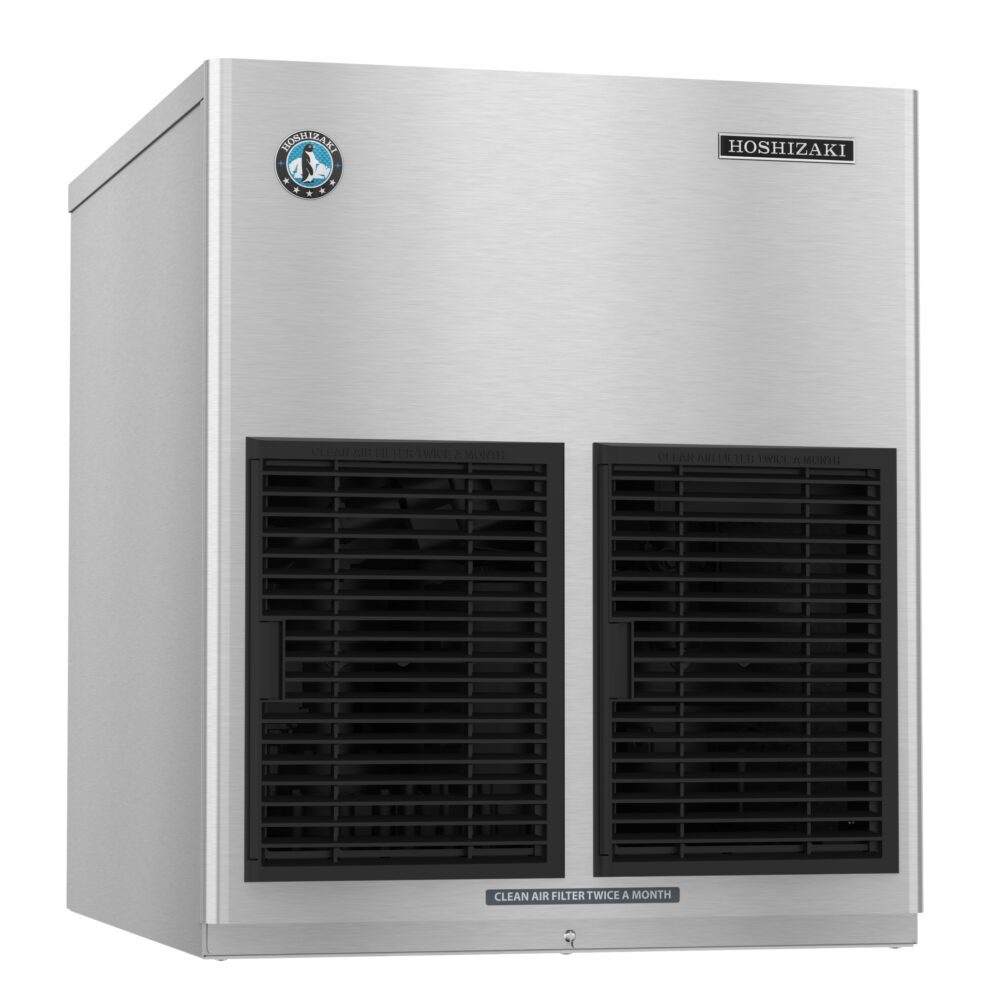

The Hoshizaki F-822MAK is a current-generation slim-line flaker that produces 750 pounds of soft flake ice per day from a 22-inch-wide air-cooled cabinet. Flake ice packs around irregular shapes and drains as it melts, which is why it is the working shape for seafood cases, produce misting, salad bar wells and blast chilling. The head unit mounts on a separately purchased Hoshizaki bin, with factory compatibility spanning 250 to 1,650 pounds of storage.

R290 natural refrigerant and ENERGY STAR performance

This is the newer K-generation platform, and the change that matters most is the refrigerant: R290 hydrocarbon with a charge of only 5.3 ounces, replacing the multi-pound HFC charges of earlier flakers. R290 has negligible global warming potential, which puts the machine on the right side of refrigerant phase-down rules that are steadily tightening for commercial ice equipment. It is also ENERGY STAR qualified at 3.95 kWh per 100 pounds, so the specification survives most utility rebate and green-building reviews without an exception request.

Ultrasonic bin control and hourly self-cleaning

Ice level is read ultrasonically rather than by a mechanical paddle or thermostat, so the machine restarts promptly as ice is drawn down and stops cleanly when the bin is full — fewer nuisance shutdowns and less over-run in a busy service window. Advanced CleanCycle24 flushes the water circuit automatically each day, slowing scale build-up between manual cleanings, and the auger rides on greaseless bearings so there is no lubrication step in the maintenance routine.

Specifications

Model F-822MAK
Ice type Flake
Ice production 750 lb per 24 hours
Condenser Air-cooled
Configuration Modular head unit, bin sold separately
Compatible bin range 250 to 1,650 lb storage
Exterior dimensions 22" W x 24-1/4" D x 26" H
Shipping weight 190 lb
Electrical 115V/60/1, 9.7 amps, 20 amp max fuse or HACR breaker
Connection Hard-wired; no cord or plug supplied
Refrigerant R290, 5.3 oz
Energy consumption 3.95 kWh per 100 lb at 90/70
Water consumption 12 gal potable water per 100 lb at 90/70
Certifications AHRI Standard 810, ENERGY STAR qualified, NSF, UL Safety Health Effects, Georgia Made Certified

Warranty

Three years parts and labor on the entire machine. Five years parts on the compressor and air-cooled condenser coil.
