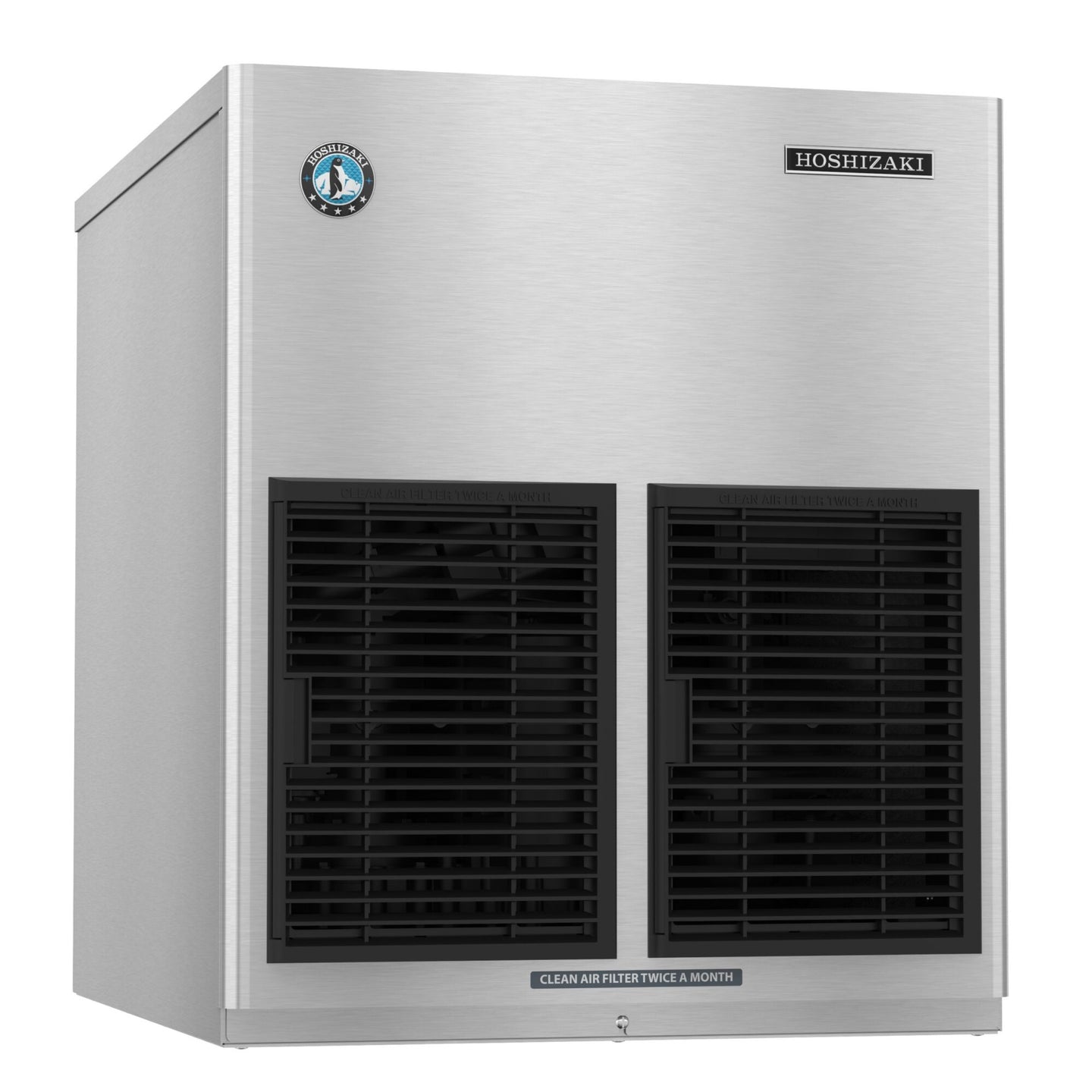

• Hoshizaki F-801MWJ-C water-cooled modular cubelet ice machine head unit

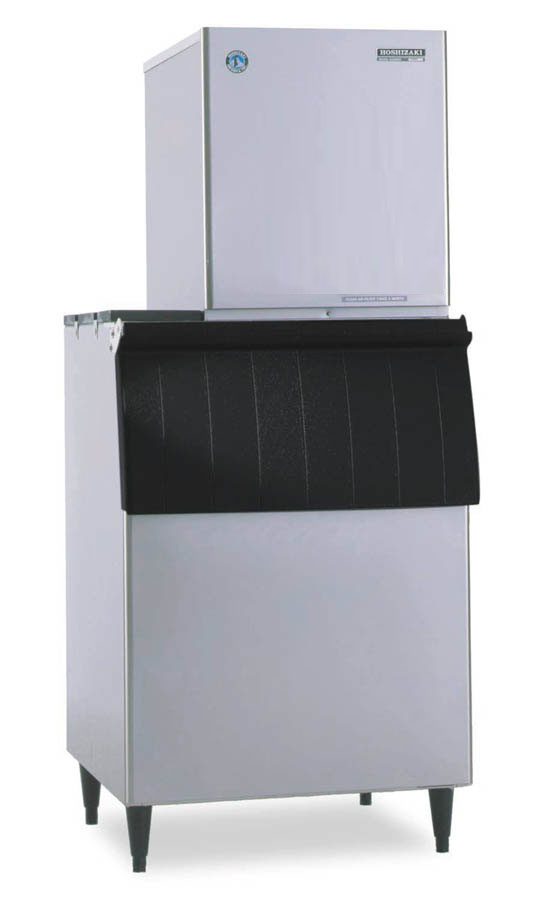

  • Hoshizaki F-801MWJ series ice machine mounted on a B-500 storage bin

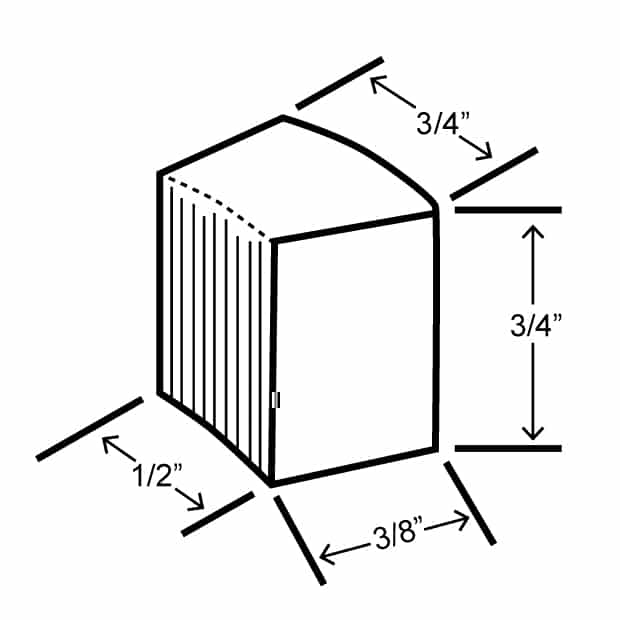

  • Cubelet nugget ice piece dimensions produced by the Hoshizaki F-801MWJ-C

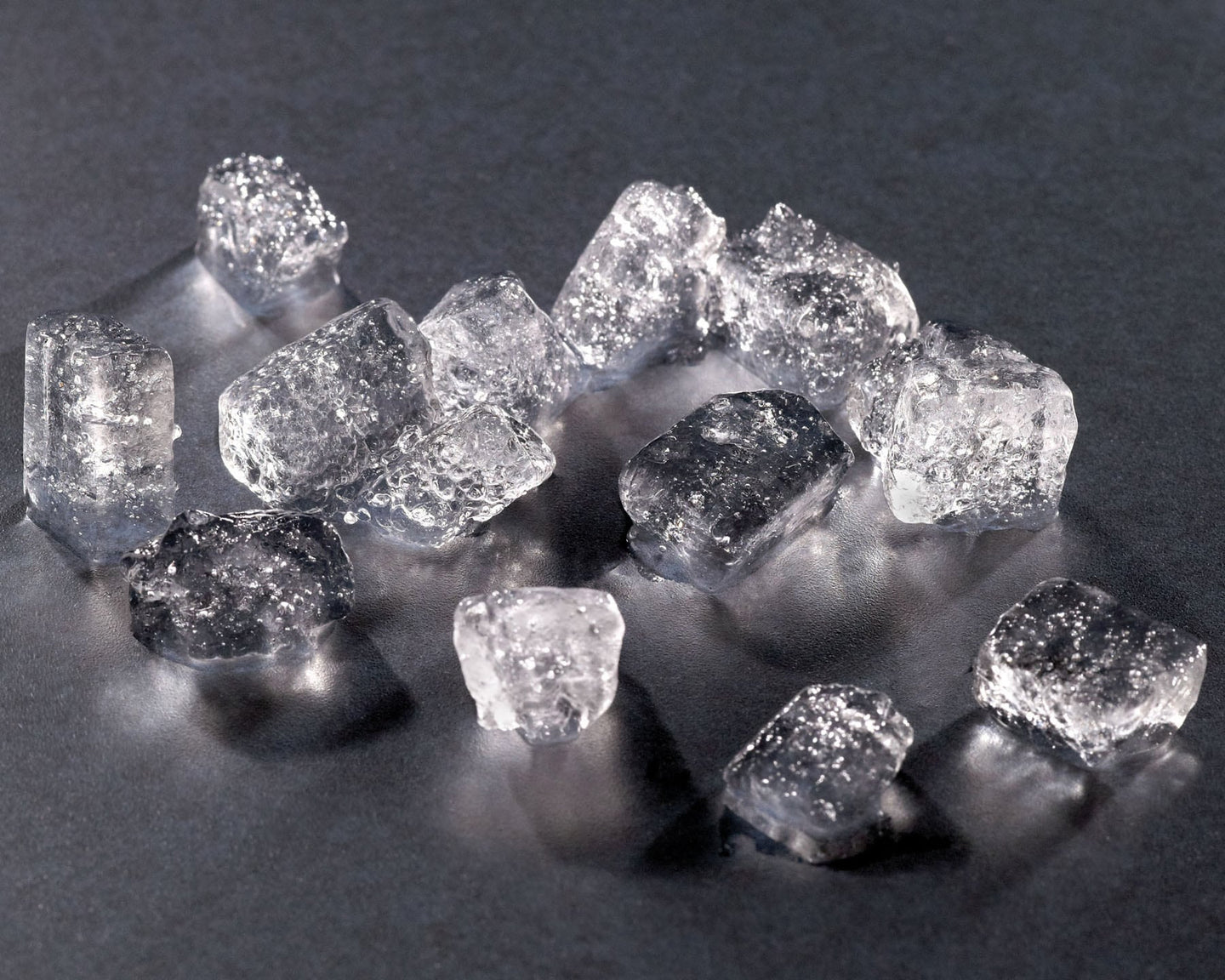

  • Close view of cubelet nugget ice produced by the Hoshizaki F-801MWJ-C
Hoshizaki F-801MWJ-C water-cooled modular cubelet ice machine head unit
Hoshizaki F-801MWJ series ice machine mounted on a B-500 storage bin
Cubelet nugget ice piece dimensions produced by the Hoshizaki F-801MWJ-C
Close view of cubelet nugget ice produced by the Hoshizaki F-801MWJ-C

Hoshizaki

Hoshizaki F-801MWJ-C 22 Inch Water-Cooled Modular Cubelet Ice Machine 632 lb/24hr

SKU F-801MWJ-C
$7,590.00
$7,590.00

Estimated shipping time

Orders are processed within 1–2 business days. After processing, orders typically arrive within 4–7 business days, for a total estimated delivery time of about 5–9 business days from the order date, depending on your location and carrier schedules.

Feel free to reach out to support@supplyza.com or 1-877-731-7972 with any questions about shipping timeline.

What is your Return Policy?

At Supplyza, we want every customer to shop with confidence. Here is exactly how returns work.

1. Return Window

You can request a return within 30 days of receiving your order. We are unable to accept returns after that time frame.

2. Who Arranges the Return, and Who Pays

  • We arrange every return. Contact us for a Return Merchandise Authorization and we will email you a prepaid parcel label, or — for large equipment that shipped by LTL freight — book the pickup and send you a Bill of Lading. Please do not book your own carrier or buy your own postage; we cannot reimburse shipping we did not book.
  • Damaged, defective, or the wrong item: we pay the return shipping in full, parcel or freight. No restocking fee.
  • Changed your mind: the actual return shipping cost is deducted from your refund, along with the 25% restocking fee. We quote that cost to you in writing when we issue your RMA, before anything is booked, and you can cancel the return at no cost up to that point.

3. Damaged or Defective Items

Received something broken or not working properly? Contact us within 30 days. We will arrange and pay for the return, and once the item is back and inspected we will issue either a full refund or a replacement, including any original shipping costs.

4. Freight Deliveries — Inspect Before You Sign

Large equipment is delivered by appointment and you will be asked to sign for it. Note any visible damage or shortage on the driver's delivery receipt before you sign it, photograph the crate and the item, and contact us within 1 business day. Damage you only discover after uncrating must be reported within 5 business days of delivery, because freight carriers set their own concealed-damage claim deadlines. Please call us at +1-877-731-7972 before refusing a shipment — in most cases we can resolve it faster if you accept the delivery with the damage noted.

5. Changed Your Mind?

You can return the item within 30 days as long as it is unused, in its original packaging, and in resellable condition. Freight items must go back on their original pallet or in their original crate with the bracing reinstalled. Equipment that has been installed, plumbed, wired, or put into service cannot be returned. We refund the product cost minus the 25% restocking fee and the return shipping cost.

6. Refund Processing

Once we receive and approve your return, we will send a confirmation email and issue a refund to your original payment method within 7 business days. Please allow additional time for your bank or credit card company to process it. If it has been over 10 business days since your refund was approved and you still do not see it, contact us at support@supplyza.com and we will look into it immediately.

7. Restocking Fees

Change-of-mind returns are subject to a 25% restocking fee, deducted from your refund. There is no restocking fee (0%) for defective, damaged, or incorrect items, and we cover the return shipping on those.

Hoshizaki F-801MWJ-C water-cooled modular cubelet ice machine head unit Hoshizaki F-801MWJ series ice machine mounted on a B-500 storage bin Cubelet nugget ice piece dimensions produced by the Hoshizaki F-801MWJ-C Close view of cubelet nugget ice produced by the Hoshizaki F-801MWJ-C
Hoshizaki F-801MWJ-C water-cooled modular cubelet ice machine head unit Hoshizaki F-801MWJ series ice machine mounted on a B-500 storage bin Cubelet nugget ice piece dimensions produced by the Hoshizaki F-801MWJ-C Close view of cubelet nugget ice produced by the Hoshizaki F-801MWJ-C

Product Description

The Hoshizaki F-801MWJ-C is the cubelet version of the 22-inch slim-line water-cooled modular head, producing up to 632 pounds of chewable nugget-style ice per 24 hours. Cubelet is compressed flake — soft enough to chew, slow to melt in a cup, and the shape that healthcare, convenience-store and fountain-beverage operators specifically ask for. This is a head unit only and mounts on a separately purchased Hoshizaki bin; the factory lists compatibility from the B-250 up through the B-1650.

Cubelet ice and why operators choose it

Unlike a plate-type cuber, the F-801MWJ-C extrudes and compresses ice continuously through an auger, so there is no batch harvest cycle and output stays level under sustained demand. The resulting nugget displaces beverage volume efficiently, chills quickly because of its high surface area, and is soft enough that chewing it will not damage teeth or blender blades. In practice that makes it the default choice for patient care, soft-drink dispensing and smoothie prep.

Water-cooled condensing and infrared bin control

Water cooling rejects condenser heat into the water circuit rather than the room, so the machine holds capacity in warm, poorly ventilated equipment areas where an air-cooled head would derate. Budget for 12 gallons of potable water per 100 pounds of ice at 90/70 conditions plus a condenser drain. Infrared bin control senses the ice level optically rather than mechanically, and Advanced CleanCycle24 automatically flushes the water system daily to slow scale accumulation between full cleanings.

Specifications

Model F-801MWJ-C
Ice type Cubelet (nugget)
Ice production Up to 632 lb per 24 hours
Condenser Water-cooled
Configuration Modular head unit, bin sold separately
Compatible bins B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650
Exterior dimensions 22" W x 27-3/8" D x 26" H
Shipping weight 200 lb
Electrical 115V/60/1, 11.5 amps, 15 amp max fuse
Connection Hard-wired; no cord or plug supplied
Refrigerant R-404A, 1 lb 12 oz (790 g)
Energy consumption 4.13 kWh per 100 lb at 90/70
Water consumption 12 gal potable water per 100 lb at 90/70
Certifications AHRI Standard 810, NSF, UL Listed, Georgia Made Certified

Warranty

Three years parts and labor on the entire machine. Five years parts on the compressor and air-cooled condenser coil.
