Product Description

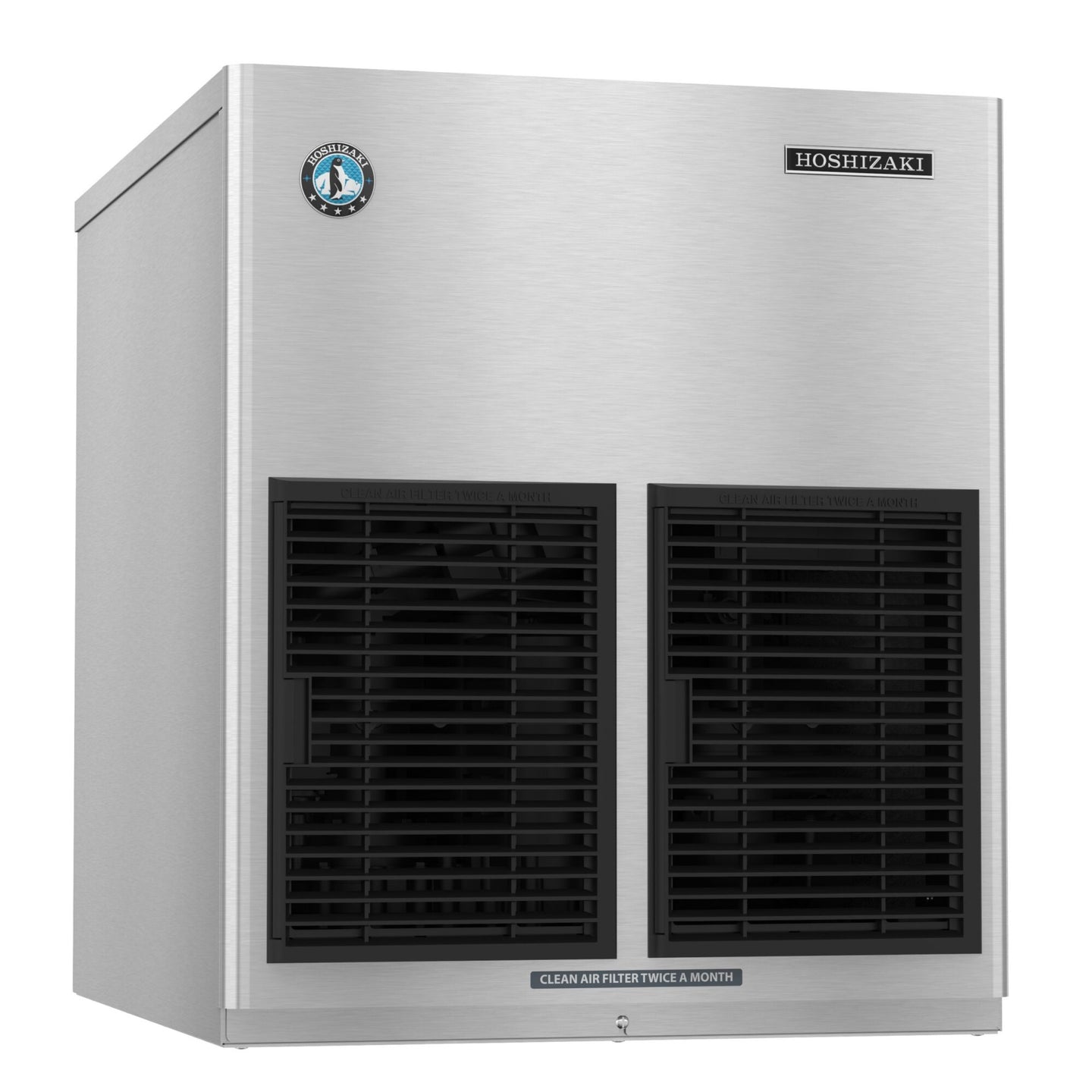

The F-801MAJ is a 22 inch air-cooled slim-line modular flaker producing up to 751 lbs of flake ice per 24 hours. It is ENERGY STAR qualified, which is comparatively rare among self-contained flakers at this output.

Self-Contained and Efficient

Everything is on board — no remote condenser, no field refrigeration work — and the machine still meets ENERGY STAR at 4.5 kWh per 100 lbs. It runs on a standard 115v supply at 11.8 amps with a 15A max fuse, so it does not need the 208-230v service the larger flakers in the range require.

Flake Ice for Display and Chilling

Flake is soft and formable with a very high surface area, which makes it the standard on seafood counters, salad bars and produce displays. It chills fast and packs around irregular product without bruising it. It is not a beverage ice.

Advanced CleanCycle24 and Greaseless Auger

Automatic cleaning cycle plus greaseless bearing auger construction. Both exist to lengthen the interval between service calls on a machine type where scale build-up quietly erodes daily output.

Specifications

Model F-801MAJ
Ice type Flake
Ice production Up to 751 lbs. per 24 hours
Condenser Air-cooled

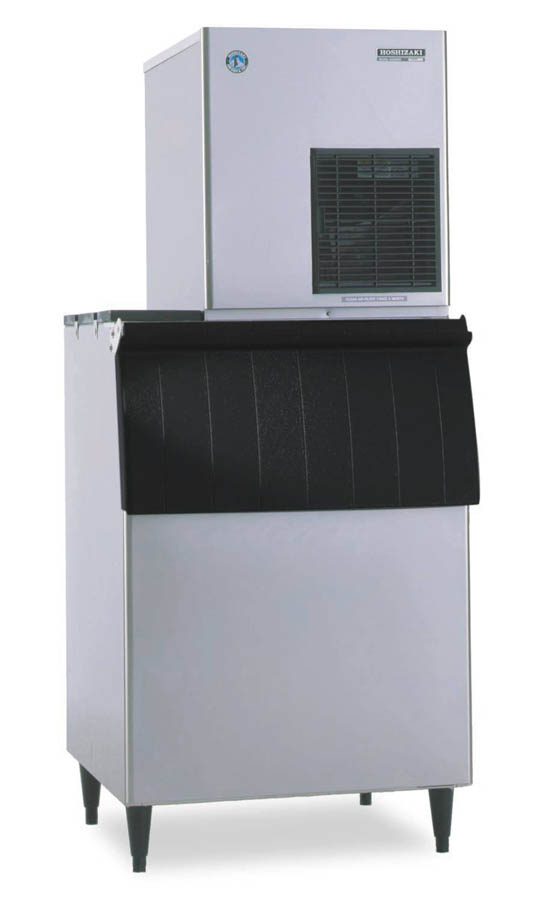

Configuration Modular, bin sold separately
Exterior dimensions 22" W x 27-3/8" D x 26" H
Shipping weight 200 lbs.
Electrical 115v / 60 / 1, 3-wire, 11.8 amps, 15A max fuse
Connection Hardwired at site, no cord or plug included
Refrigerant R-404A, 1 lb. 12 oz. (790 g)
Energy consumption 4.5 kWh per 100 lbs. at 90/70
Water consumption 12 gal. potable water per 100 lbs. at 90/70
Certifications ENERGY STAR, AHRI Standard 810, NSF, UL Listed, Georgia Made

Warranty

Three years parts and labor on the entire machine. Five years parts on the compressor and air-cooled condenser coil.
