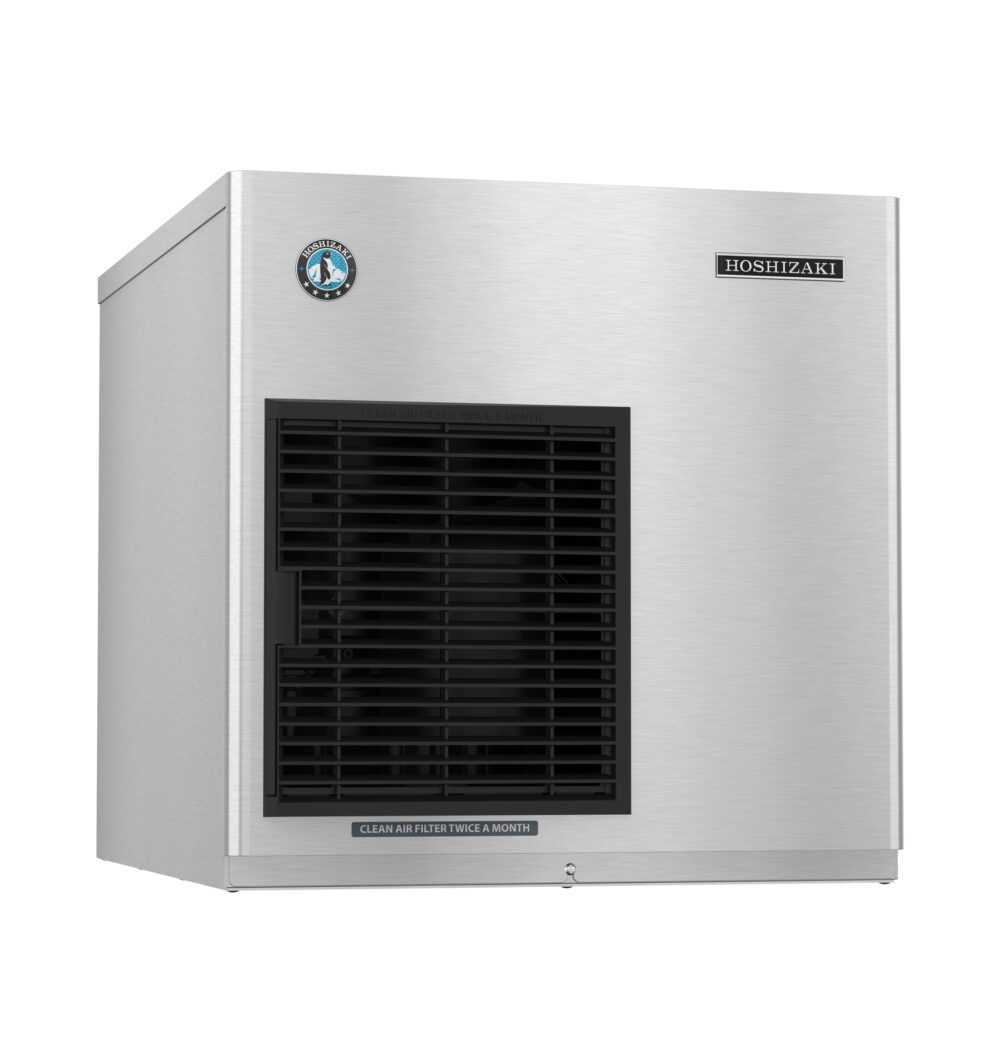

Hoshizaki F-422MAK-C 22 inch air-cooled modular cubelet ice machine, right side view

Product Description

The F-422MAK-C makes 476 lbs of cubelet ice per day from Hoshizaki's compact 22 inch air-cooled modular head, running R290 natural refrigerant. It replaces the discontinued F-450MAJ-C and brings nugget ice within reach of operations too small to justify the larger machines in the range.

Nugget Ice at Small-Site Volume

Chewable cubelet ice is usually associated with high-volume beverage programs, but a single-location cafe, a clinic or a small hotel does not need 800 lbs a day. At 476 lbs this machine covers a modest fountain or self-serve station without oversizing the install or the electrical.

R290 and a 2.8 oz Charge

Natural hydrocarbon refrigerant with a very low global warming potential, and a small enough charge to keep hydrocarbon handling requirements straightforward. The machine draws 8.8 amps on 115v and only needs a 15A circuit.

Advanced CleanCycle24 and Ultrasonic Bin Control

Automatic hourly cleaning under Advanced CleanCycle24, a greaseless bearing auger, and an ultrasonic bin sensor with no mechanical part in the ice stream. On nugget machines these three features are what determine whether output holds up over a year of service.

Specifications

Model F-422MAK-C
Ice type Cubelet (nugget style)
Ice production 476 lbs. per 24 hours
Condenser Air-cooled
Configuration Modular, bin sold separately (B-250SF through B-1650SS)
Exterior dimensions 22" W x 27-3/8" D x 22" H
Shipping weight 175 lbs.
Electrical 115v / 60 / 1, 3-wire with ground, 8.8 amps, 15A max fuse / HACR breaker
Connection Hardwired, no cord or plug included
Refrigerant R290, 2.8 oz.
Energy consumption 5.3 kWh per 100 lbs. at 90/70
Water consumption 12 gal. potable water per 100 lbs. at 90/70
Certifications AHRI Standard 810, NSF, UL Safety Health Effects

Warranty

Three years parts and labor on the entire machine. Five years parts on the compressor and air-cooled condenser coil.
