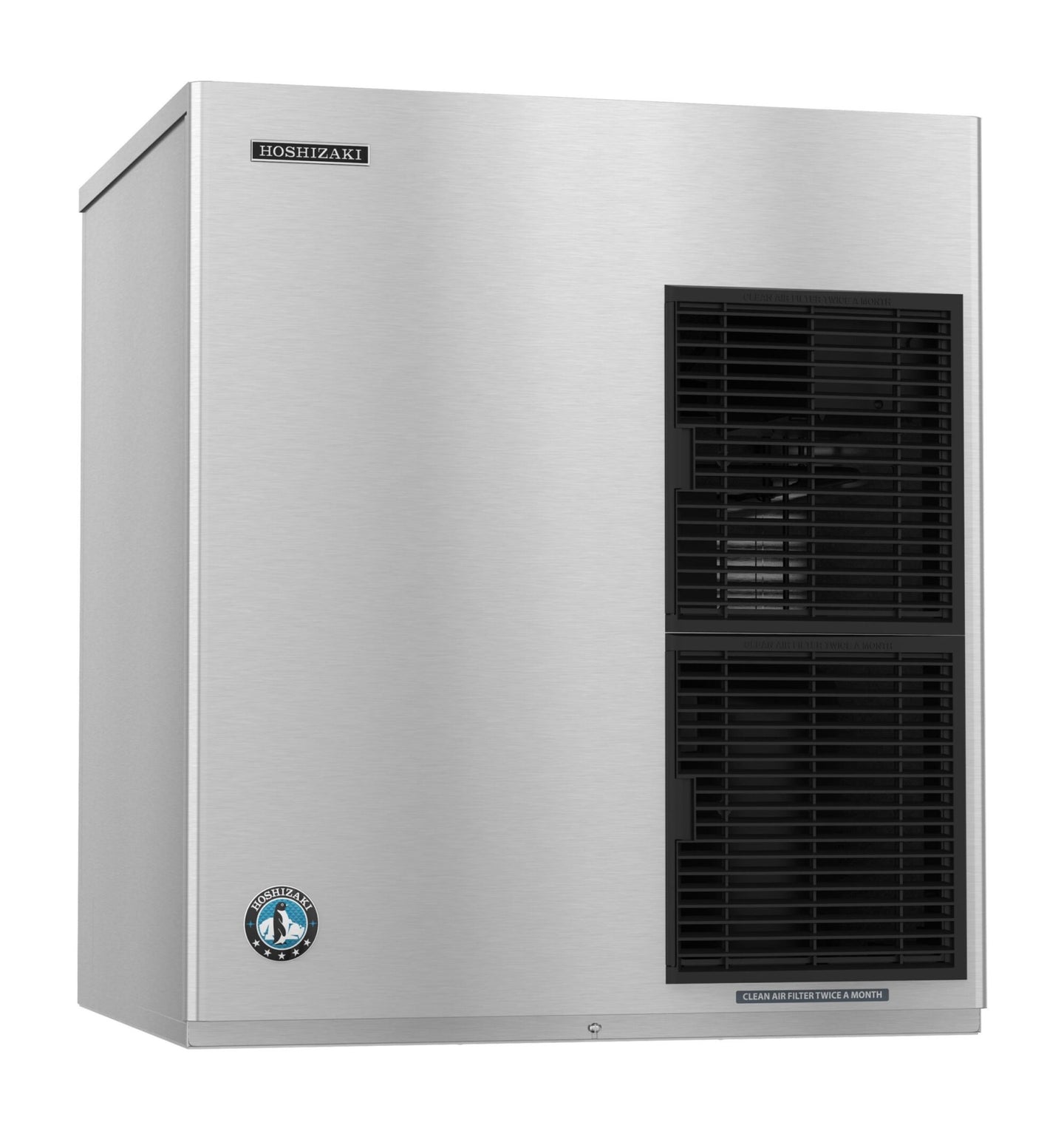

Hoshizaki F-2001MRJZ3 30 inch three phase remote-cooled modular flake ice machine

Product Description

The F-2001MRJZ3 is the three-phase, remote-cooled flaker at the top of Hoshizaki's 30 inch modular range, producing up to 2,098 lbs of flake ice per 24 hours. It replaces the F-2001MRJ3 and pairs with a URC-series remote condensing unit.

Three-Phase Supply

The trailing 3 in the model number is the important part: this machine requires 208-230v three-phase power, four-wire including ground, hardwired at site. It draws 18.1 amps. If the building has three-phase service the balanced load is easier on the supply than the single-phase alternatives at this output; if it does not, this is the wrong model and the single-phase machines in the range are the fallback.

Flake Ice at 2,098 lbs a Day

This is production-scale flake for seafood houses, food processing and large supermarket programs. Flake packs around irregular product and pulls heat out faster than any cube, and at this output a single head can serve a full retail case plus back-of-house chilling.

Remote Condensing and Maintenance

With the condenser outside, none of the substantial heat this machine rejects stays in the room. Advanced CleanCycle24 handles the automatic cleaning interval and the auger runs greaseless bearings, which is what keeps a machine at this duty inside a reasonable service schedule.

Specifications

Model F-2001MRJZ3
Ice type Flake
Ice production Up to 2098 lbs. per 24 hours
Condenser Remote air-cooled
Configuration Modular, bin sold separately (B-250 through B-1650)
Exterior dimensions 30" W x 27-1/2" D x 34-7/16" H
Shipping weight 360 lbs.
Electrical 208-230v / 60 / 3 (three phase), 4-wire including ground, 18.1 amps, 20A max fuse
Voltage range 187-253V
Connection Hardwired at site, no cord or plug included
Refrigerant R-404A, 8 lbs. 2.5 oz. (3700 g)
Energy consumption 3.9 kWh per 100 lbs. at 90/70
Water consumption 12 gal. potable water per 100 lbs. at 90/70
Certifications AHRI Standard 810, NSF, UL Listed, Georgia Made

Warranty

Three years parts and labor on the entire machine. Five years parts on the compressor and air-cooled condenser coil.
