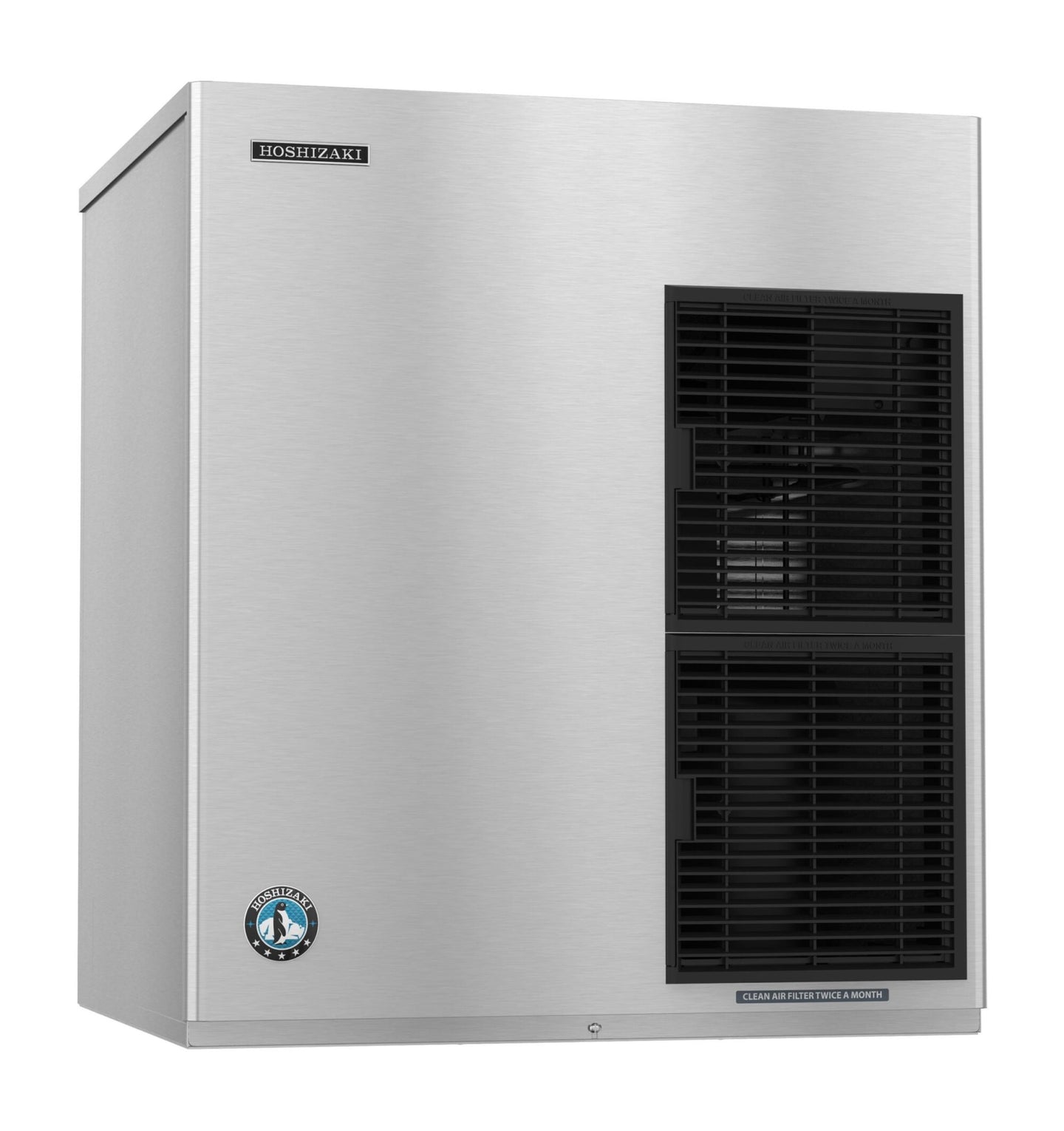

Hoshizaki F-2001MRJZ remote-cooled flake ice machine modular head

Product Description

The Hoshizaki F-2001MRJZ is the highest-output flaker in Hoshizaki's 30-inch modular range, producing up to 2,073 lbs of flake ice per 24 hours from a remote-cooled head. It carries no integral storage and is designed to sit on a separately purchased ice bin.

Output Class

At 2,073 lbs per day this machine is specified for operations where flake ice is consumed continuously rather than topped up — a supermarket seafood and produce department, a fish processor, a hospital, or a large banquet operation. If daily consumption sits closer to 1,500 lbs, the F-1501MRJZ covers the same footprint at lower output and lower refrigerant charge.

Flake Ice

Flake is soft, mouldable ice with a high surface-area-to-volume ratio. It chills quickly and packs around irregular shapes without bruising, which is why it is the display standard for seafood and produce and why it is used for blast chilling. It is not intended for beverage service.

Remote-Cooled Installation

Being remote-cooled, the condenser mounts outside and only refrigerant lines run to the head, so compressor heat and fan noise are rejected outside the kitchen rather than into it. On a machine of this output that is a significant load to keep out of the room. The matching remote condenser is a separate purchase. Electrically the unit is hardwired at 208-230V single phase, drawing 19.9 amps with a 30 A maximum fuse — not a cord-and-plug installation.

Auger and Cleaning

Greaseless bearing auger construction removes routine bearing lubrication from the maintenance schedule, and Hoshizaki's Advanced CleanCycle24™ design manages cleaning intervals. Consumption is 3.81 kWh and 12 gallons of potable water per 100 lbs at 90°F air / 70°F water.

Specifications

Model F-2001MRJZ
Ice Type Flake
Ice Production 2,073 lbs / 24 hours
Condenser Remote-cooled (condenser sold separately)
Storage None integral; requires separate bin
Exterior Dimensions 30" W x 27-1/2" D x 34-7/16" H
Shipping Weight 360 lbs
Electrical 208-230V / 60 Hz / 1 phase, 4 wire, hardwired (no cord or plug)
Amperage 19.9 amps, 30 A max fuse
Refrigerant R-404A, 8 lbs 2.5 oz (3700 g)
Energy Consumption 3.81 kWh per 100 lbs at 90/70
Water Consumption 12 gallons potable water per 100 lbs at 90/70
Certifications AHRI Standard 810, NSF, UL Listed, Georgia Made Certified

Warranty

Three years parts and labor on the entire machine, and five years parts on the compressor and air-cooled condenser coil.
