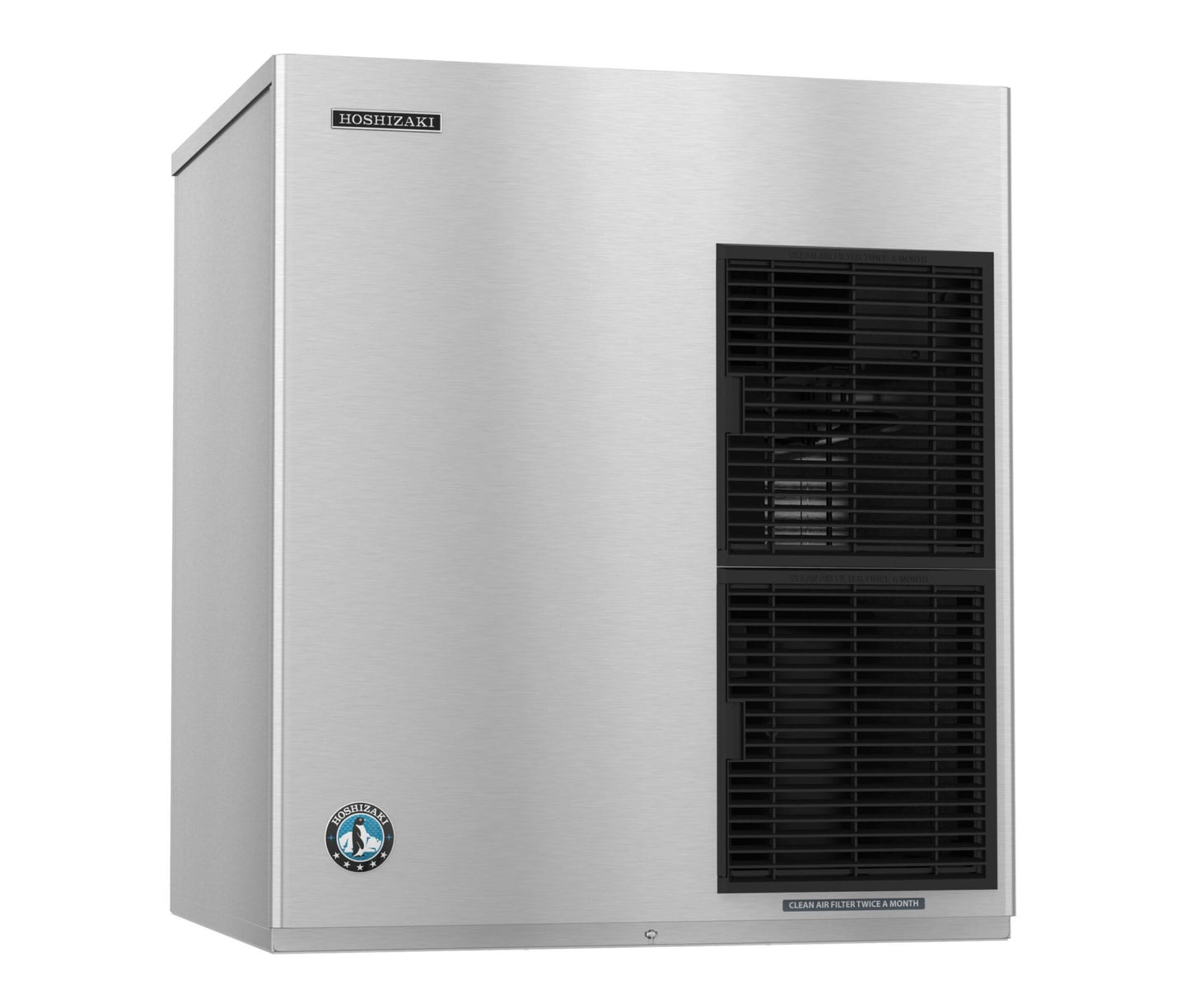

Hoshizaki F-1501MRJZ-SC 30 inch remote-cooled modular soft cubelet ice machine

Product Description

The F-1501MRJZ-SC is the soft cubelet variant of Hoshizaki's 30 inch remote-cooled modular auger machine, rated at 1,417 lbs per 24 hours. The SC build produces a less compressed nugget than the standard -C, and gains about 64 lbs of daily output in the process.

Soft Cubelet and Where It Is Specified

Soft cubelet chews easily and fills a cup without gaps, and it is the ice format specified into healthcare, senior living and premium beverage programs where guests interact with the ice directly. The softer form also puts less load on the auger and dispenser mechanism than a harder cube.

Remote Condenser

The head connects to an outdoor condensing unit, so no compressor heat and no compressor noise stay in the space. It draws 15.3 amps on 208-230v single phase and is hardwired at site; the refrigerant charge is 5 lbs 2.5 oz of R-404A.

Advanced CleanCycle24

Automatic cleaning on a 24 hour interval plus greaseless bearing auger construction. Soft ice forms are the most sensitive to evaporator fouling of any ice type, so the automatic cycle protects output more directly here than on a cuber or flaker.

Specifications

Model F-1501MRJZ-SC
Ice type Soft cubelet (nugget style)
Ice production 1417 lbs. per 24 hours
Condenser Remote air-cooled
Configuration Modular, bin sold separately
Exterior dimensions 30" W x 27-3/8" D x 34-5/8" H
Shipping weight 325 lbs.
Electrical 208-230v / 60 / 1, 3-wire, 15.3 amps, 20A max fuse
Connection Hardwired at site, no cord or plug included
Refrigerant R-404A, 5 lbs. 2.5 oz. (2340 g)
Energy consumption 4.3 kWh per 100 lbs. at 90/70
Water consumption 12 gal. potable water per 100 lbs. at 90/70
Certifications AHRI Standard 810, NSF, UL Listed, Georgia Made

Warranty

Three years parts and labor on the entire machine (serial numbers VxxxxxJ and after). Five years parts on the compressor and air-cooled condenser coil.
