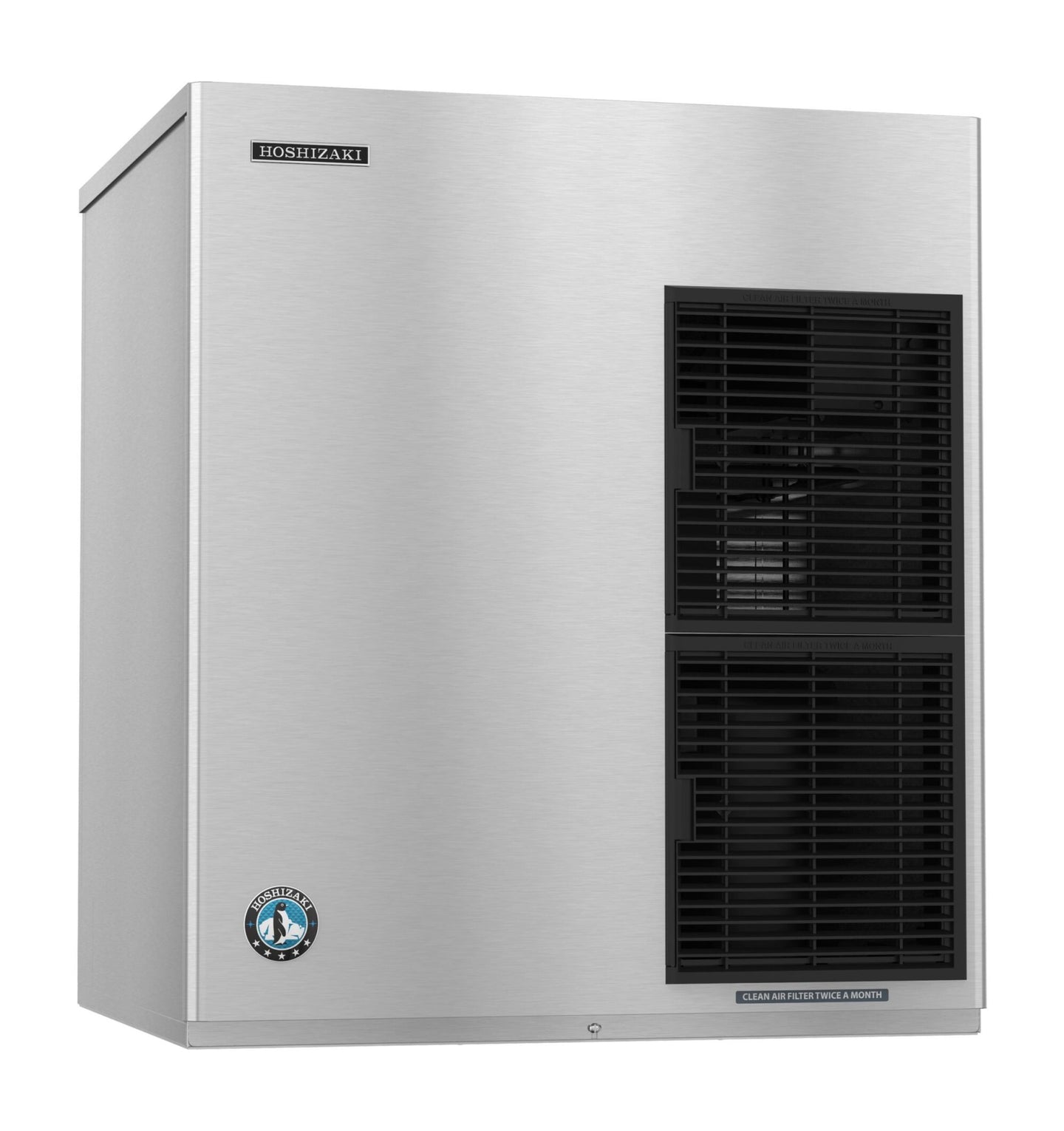

Hoshizaki F-1501MRJZ remote-cooled flake ice machine modular head

Product Description

The Hoshizaki F-1501MRJZ is a remote-cooled flake ice machine producing up to 1,532 lbs of ice per 24 hours from a 30-inch modular head. It is a bin-top unit with no integral storage, designed to sit on a separately purchased ice bin sized to the operation.

Flake Ice and What It Is For

Flake ice is soft, mouldable and has a very large surface area relative to its volume, which makes it chill fast and pack around irregular shapes. That is why it is the standard for seafood and produce display, salad bars, and blast-chilling applications — it holds product cold without bruising it the way cube ice does. It is not the right ice for beverage service, where a crescent or cube machine belongs.

Remote-Cooled: Heat and Noise Leave the Room

This is a remote-cooled machine, meaning the condenser mounts outside the kitchen and only refrigerant lines run to the head. The compressor heat and fan noise that an air-cooled machine dumps into the room go outside instead. That matters for a high-output machine like this one: 1,532 lbs per day is a substantial heat load to reject indoors. The remote condenser is a separate purchase and must be matched to this model.

Auger Design and Cleaning

The F-1501MRJZ uses greaseless bearing auger construction, removing the routine bearing lubrication that flakers have traditionally required. Hoshizaki's Advanced CleanCycle24™ design and infrared bin control handle cleaning intervals and fill sensing. Ice production is rated at 4 kWh and 12 gallons of potable water per 100 lbs at 90°F air / 70°F water.

Specifications

Model F-1501MRJZ
Ice Type Flake
Ice Production 1,532 lbs / 24 hours
Condenser Remote-cooled (condenser sold separately)
Storage None integral; requires separate bin
Compatible Bins B-250, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650
Exterior Dimensions 30" W x 27-3/8" D x 34-5/8" H
Shipping Weight 325 lbs
Electrical 208-230V / 60 Hz / 1 phase, 4 wire, hardwired
Amperage 15.3 amps, 20 A max fuse
Refrigerant R-404A, 5 lbs 2.5 oz (2340 g)
Energy Consumption 4 kWh per 100 lbs at 90/70
Water Consumption 12 gallons potable water per 100 lbs at 90/70
Certifications AHRI Standard 810, NSF, UL Listed, Georgia Made Certified

Warranty

Three years parts and labor on the entire machine, and five years parts on the compressor and air-cooled condenser coil.
