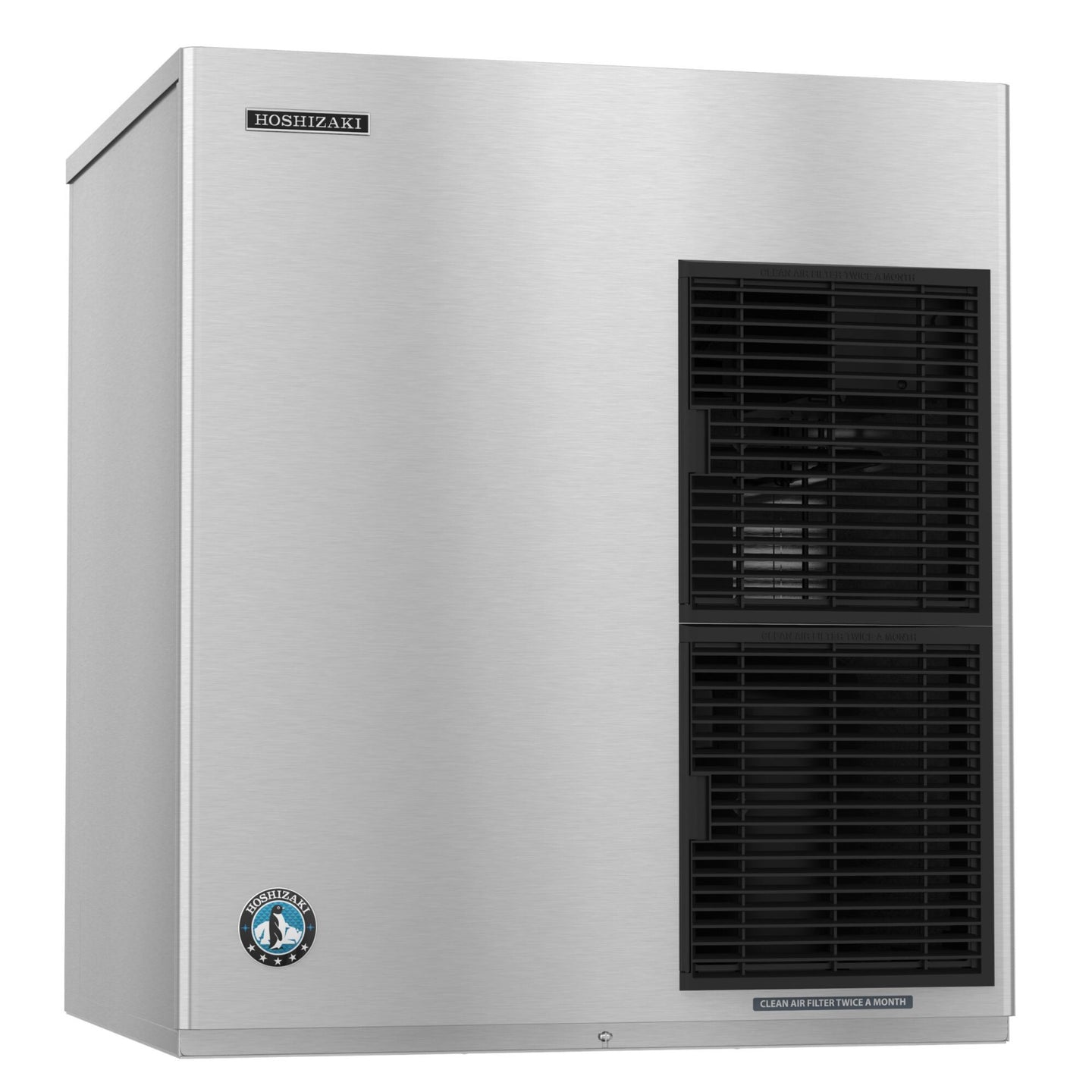

Hoshizaki F-1501MAJ 30 inch air-cooled modular flake ice machine

Product Description

The F-1501MAJ is a 30 inch air-cooled modular flaker rated at 1,543 lbs of flake ice per 24 hours. It is a self-contained machine — no remote condenser to install, no field refrigeration work — which makes it the straightforward specification for a high-volume seafood counter, produce department or processing line.

Volume Without a Split System

At this output most alternatives are remote-cooled. Keeping the condenser on board means the install is a water line, a drain and a 208-230v single-phase circuit, and nothing on the roof. The trade is that the machine rejects its heat into the room, so it wants real airflow and clearance around it.

Flake Ice at Scale

Flake conforms to whatever it is packed around and exchanges heat faster than any cube form, which is why it is the standard on fish counters and in food processing. At 1,543 lbs a day this machine covers a full retail seafood case plus back-of-house chilling from a single head.

Electrical and Installation

208-230v single phase, 15.9 amps, four-wire, hardwired at site with no cord or plug supplied. The head sits on B-series bins from the B-250 up to the B-1650, ordered separately and sized to the draw curve rather than to the machine's rating.

Specifications

Model F-1501MAJ
Ice type Flake
Ice production 1543 lbs. per 24 hours
Condenser Air-cooled
Configuration Modular, bin sold separately
Exterior dimensions 30" W x 27-3/8" D x 34-7/16" H
Shipping weight 325 lbs.
Electrical 208-230v / 60 / 1, 4-wire, 15.9 amps, 20A max fuse
Connection Hardwired at site, no cord or plug included
Refrigerant R-404A, 2 lbs. 5 oz. (1050 g)
Energy consumption 4 kWh per 100 lbs. at 90/70
Water consumption 12 gal. potable water per 100 lbs. at 90/70
Certifications AHRI Standard 810, NSF, UL Listed, Georgia Made

Warranty

Three years parts and labor on the entire machine (serial numbers VxxxxxJ and after). Five years parts on the compressor and condenser coil.
