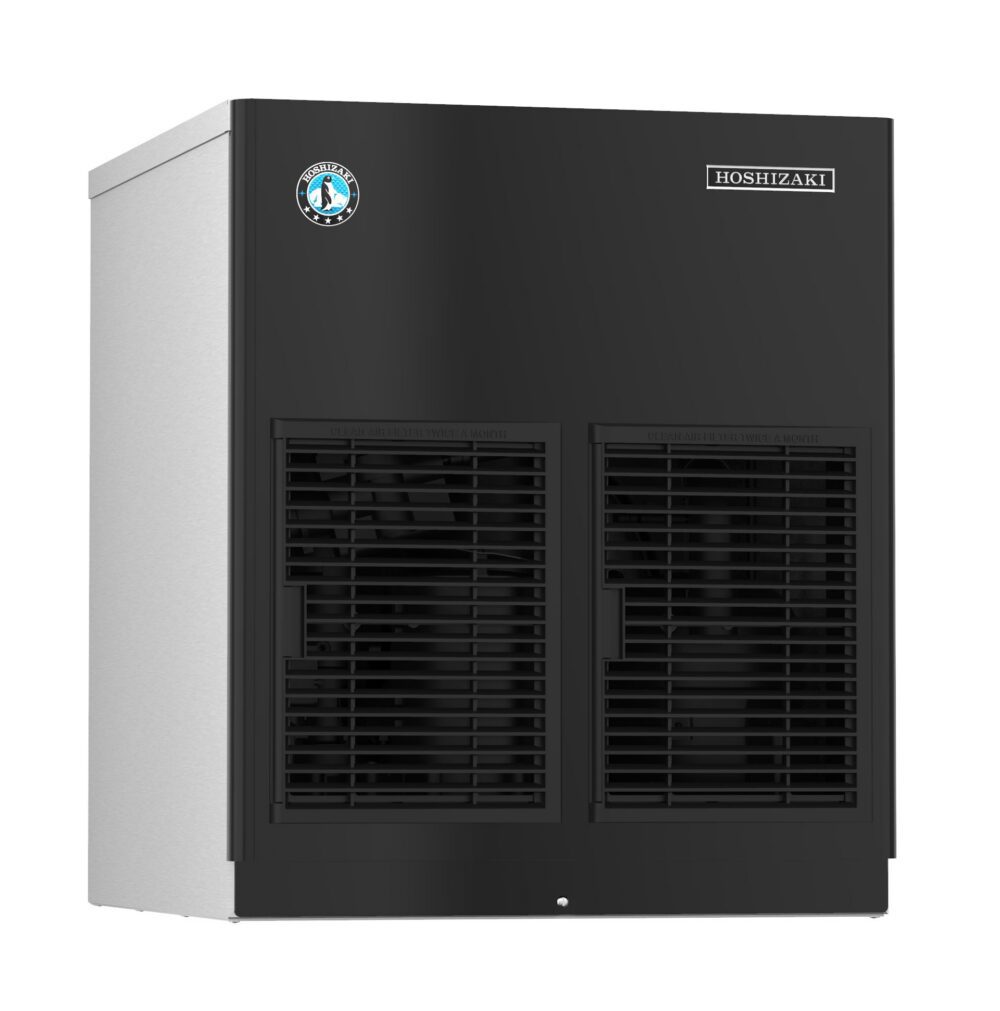

Hoshizaki F-1022MAK-CB cubelet ice machine with gloss black front, right side view

Product Description

The F-1022MAK-CB is the gloss black build of Hoshizaki's 22 inch air-cooled cubelet machine. Mechanically it matches the F-1022MAK-C — 865 lbs of nugget-style ice per day on R290 — and differs in finish: a gloss black vinyl clad front cover with stainless top and sides.

Black Front for Front-of-House Installs

The finish is not cosmetic vanity. Ice machines paired with beverage dispensers in a customer-facing lobby, a convenience store or a self-serve drink station are increasingly specified in black to match the dispenser rather than stand out as kitchen equipment. This is the version to order when the machine will be visible.

Cubelet Ice and R290

Output is chewable nugget-style cubelet, the format that drives fountain and self-serve programs. Refrigerant is R290 natural hydrocarbon at a 2 lbs 4.2 oz charge, keeping the machine ahead of refrigerant phase-down requirements.

Same Platform, Same Service Profile

Ultrasonic bin control, automatic cleaning cycle and greaseless auger bearings carry over from the stainless model, as do the 22 by 24 by 26 inch dimensions and 12.5 amp draw on 115v.

Specifications

Model F-1022MAK-CB
Ice type Cubelet (nugget style)
Ice production Up to 865 lbs. per 24 hours
Condenser Air-cooled
Finish Gloss black vinyl clad front cover, stainless steel top and sides
Configuration Modular, bin sold separately
Exterior dimensions 22" W x 24" D x 26" H
Shipping weight 192 lbs.
Electrical 115v / 60 / 1, 3-wire with ground, 12.5A, 20A max fuse / HACR breaker
Refrigerant R290, 2 lbs. 4.2 oz.
Energy consumption 4.5 kWh per 100 lbs. at 90/70
Water consumption 12 gal. potable water per 100 lbs. at 90/70
Certifications AHRI Standard 810, NSF, UL Safety Health Effects, Georgia Made

Warranty

Three years parts and labor on the entire machine. Five years parts on the compressor and air-cooled condenser coil.
