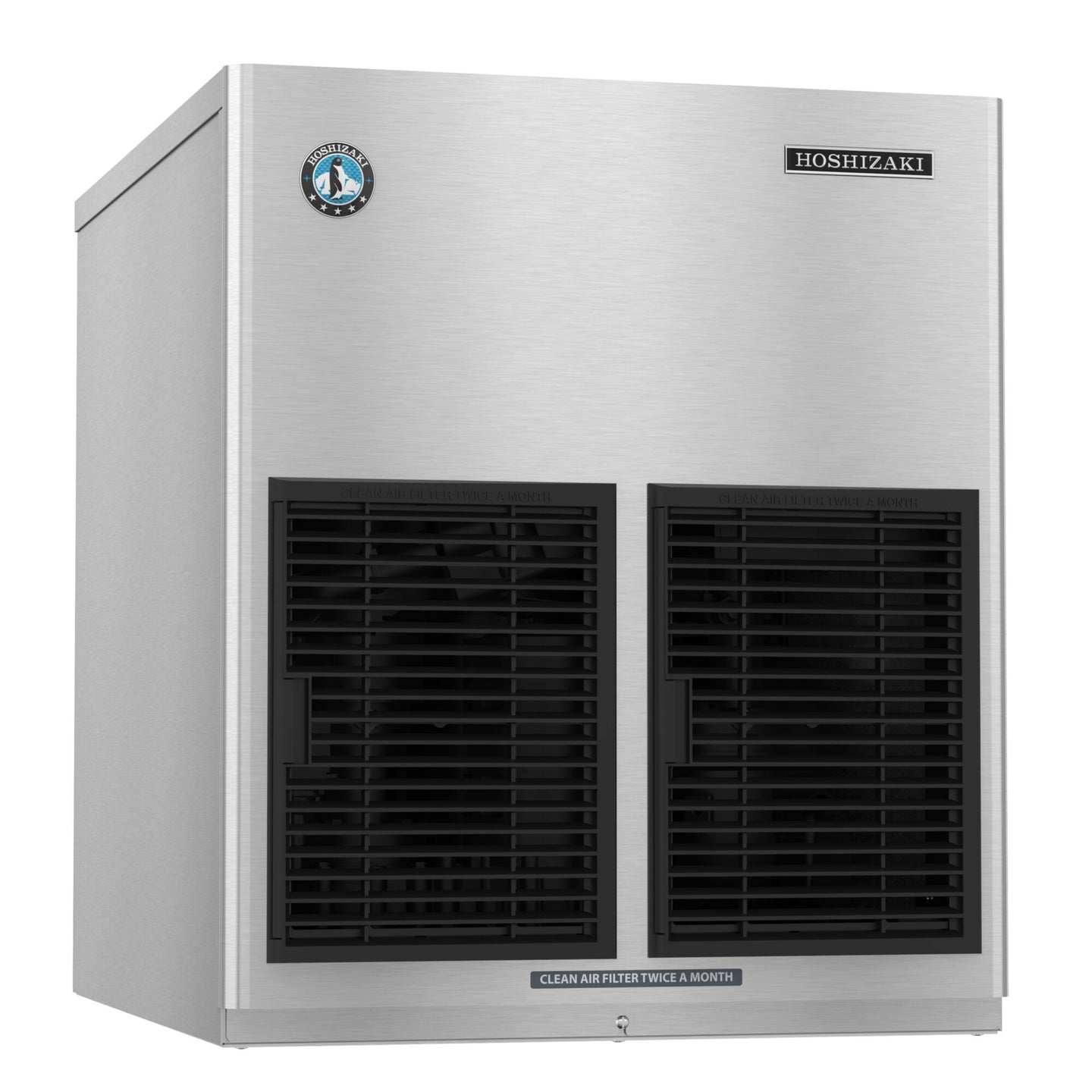

Hoshizaki F-1022MAK-C 22 inch air-cooled modular cubelet ice machine, right side view

Product Description

The F-1022MAK-C produces 865 lbs of cubelet ice per day from Hoshizaki's current 22 inch air-cooled modular platform, running on R290 natural refrigerant. It is the direct replacement for the discontinued F-1002MAJ-C.

Cubelet Output on a Natural Refrigerant Platform

Nugget-style cubelet ice is what beverage-led operations specify: chewable, fast-chilling, and high-displacement in a cup. Getting it from a machine charged with R290 rather than R-404A means the fountain program does not have to be traded against a refrigerant policy. Charge is 2 lbs 4.2 oz.

Ultrasonic Bin Control

An ultrasonic sensor reads the bin without any moving part in the ice path. Compared with a mechanical bin switch it fills more completely and stops more reliably, which on a nugget machine feeding a self-serve dispenser is the difference between running out at 2pm and not.

Maintenance Design

Self-cleaning cycle plus greaseless bearing auger. Auger nugget machines are the most maintenance-sensitive category in commercial ice, and both features exist specifically to lengthen the interval between service visits.

Specifications

Model F-1022MAK-C
Ice type Cubelet (nugget style)
Ice production 865 lbs. per 24 hours
Condenser Air-cooled
Configuration Modular, bin sold separately
Exterior dimensions 22" W x 24" D x 26" H
Shipping weight 192 lbs.
Electrical 115v / 60 / 1, 3-wire with ground, 12.5 amps, 20A max fuse / HACR breaker
Refrigerant R290, 2 lbs. 4.2 oz.
Energy consumption 4.5 kWh per 100 lbs. at 90/70
Water consumption 12 gal. potable water per 100 lbs. at 90/70
Certifications AHRI Standard 810, NSF, UL Safety Health Effects, Georgia Made

Warranty

Three years parts and labor on the entire machine. Five years parts on the compressor and air-cooled condenser coil.
