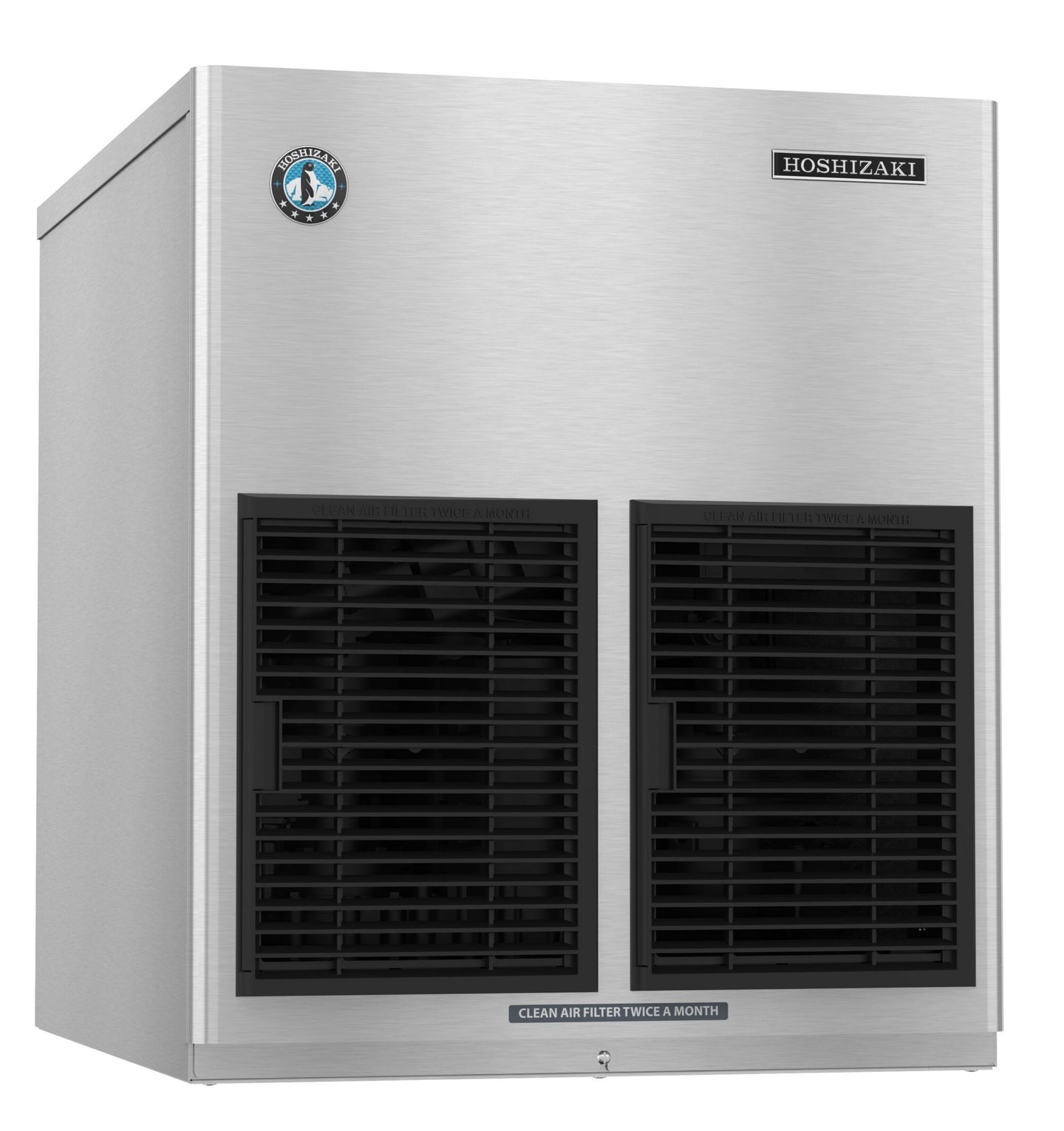

Hoshizaki F-1022MAK 22 inch air-cooled modular flake ice machine, right side view

Product Description

The F-1022MAK is Hoshizaki's current 22 inch air-cooled modular flaker, producing 915 lbs of flake ice a day and replacing the discontinued F-1002MAJ. The headline change over the outgoing model is the refrigerant: R290, a natural hydrocarbon, in place of R-404A.

R290 Natural Refrigerant

R290 has a global warming potential in the single digits against several thousand for the R-404A it displaces. For any operator with sustainability reporting obligations, or specifying against future refrigerant phase-down rules, that is the reason this machine exists. Charge is 2 lbs 4.2 oz.

Ultrasonic Bin Control

Bin level is read ultrasonically rather than with a mechanical or thermostatic probe. There is no paddle to jam and no sensor sitting in the ice stream, so the machine stops and restarts on an accurate reading of actual bin level rather than on whatever happens to be piled against a switch.

Self-Cleaning and Auger Design

An automatic cleaning cycle runs without intervention and the auger uses greaseless bearings. Combined with a shorter, deeper cabinet than the outgoing F-1002 body — 22 by 24 by 26 inches — the machine is both easier to service and slightly tidier on the bin.

Specifications

Model F-1022MAK
Ice type Flake
Ice production 915 lbs. per 24 hours
Condenser Air-cooled
Configuration Modular, bin sold separately
Exterior dimensions 22" W x 24" D x 26" H
Shipping weight 192 lbs.
Electrical 115v / 60 / 1, 12.5A, 20A max fuse / HACR breaker
Connection Hardwired, no cord or plug included
Refrigerant R290, 2 lbs. 4.2 oz.
Energy consumption 4.19 kWh per 100 lbs. at 90/70
Water consumption 12 gal. potable water per 100 lbs. at 90/70
Certifications AHRI Standard 810, NSF, UL Safety Health Effects, Georgia Made

Warranty

Three years parts and labor on the entire machine. Five years parts on the compressor and air-cooled condenser coil.
