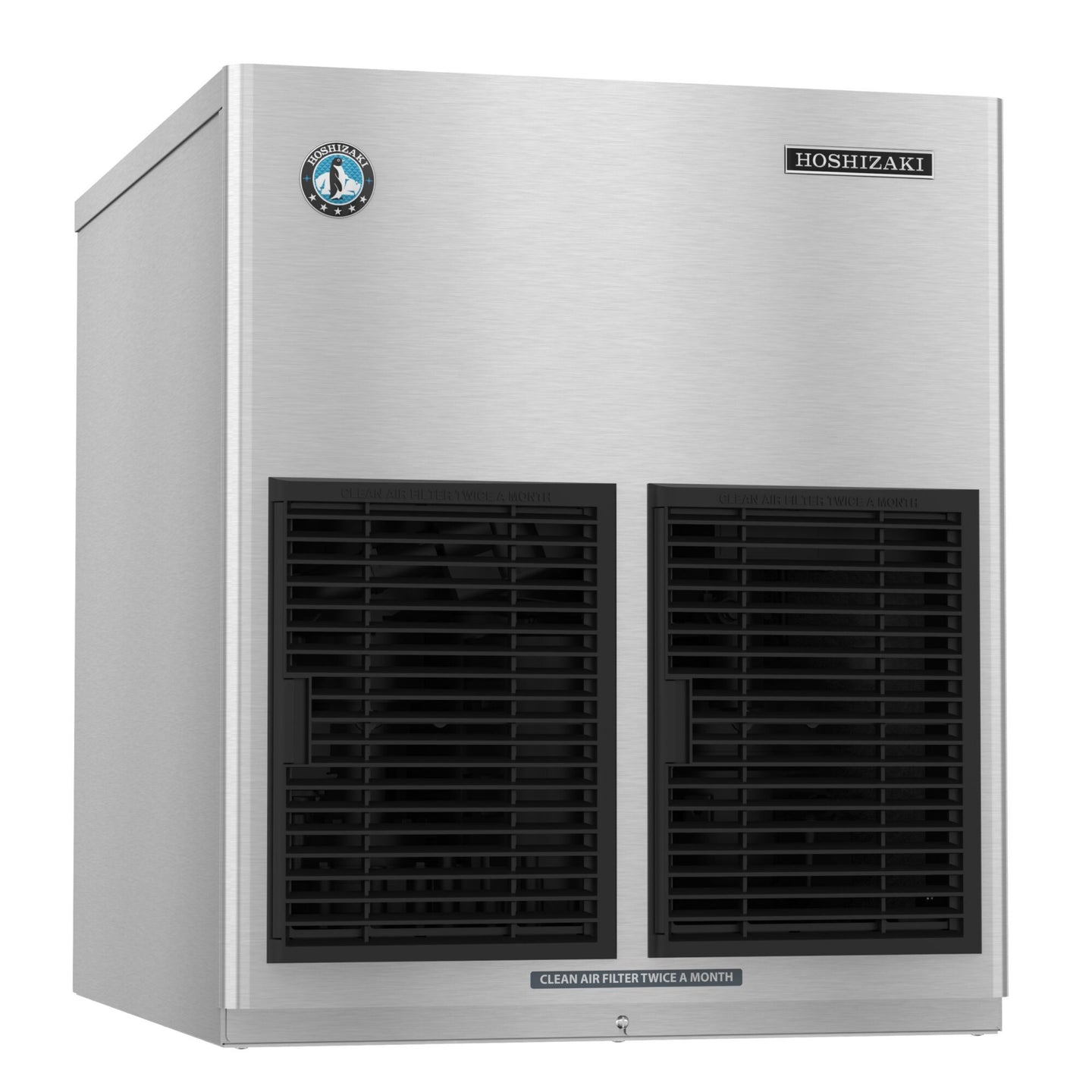

Hoshizaki F-1002MWJ-C 22 inch water-cooled modular cubelet ice machine

Product Description

The F-1002MWJ-C makes up to 878 lbs of cubelet ice per 24 hours from a water-cooled 22 inch slim-line modular head. It is the choice when a beverage program needs chewable nugget ice and the machine has to live somewhere an air-cooled unit would struggle.

Water Cooling for Difficult Rooms

Water-cooled condensing keeps rated output steady regardless of how hot the room gets, and it rejects no heat into the space. That matters in a closed bar back or an equipment closet where an air-cooled machine would recirculate its own discharge and derate itself. Draw is 13.73 amps with a modest 12.3 oz refrigerant charge, and energy use is 3.95 kWh per 100 lbs at 90/70.

Cubelet Ice

Nugget-style cubelet is soft, chewable and displaces well in a cup. It is the ice format that carries fountain drink programs, healthcare service and quick-serve chains, and the one guests notice. Against the flake-producing F-1002MWJ this model trades about 77 lbs of daily output for that form.

Advanced CleanCycle24 and Greaseless Auger

Automatic 24 hour cleaning cycle and greaseless bearing auger construction, which together shorten the routine maintenance list on a machine type that punishes neglect.

Specifications

Model F-1002MWJ-C
Ice type Cubelet (nugget style)
Ice production Up to 878 lbs. per 24 hours
Condenser Water-cooled
Configuration Modular, bin sold separately (B-250 through B-1650SS)
Exterior dimensions 22" W x 27-3/8" D x 25-15/16" H
Shipping weight 205 lbs.
Electrical 115v / 60 / 1, 3-wire, 13.73 amps, 20A max fuse
Connection Hardwired at site, no cord or plug included
Refrigerant R-404A, 12.3 oz. (350 g)
Energy consumption 3.95 kWh per 100 lbs. at 90/70
Water consumption 12 gal. potable water per 100 lbs. at 90/70
Certifications AHRI Standard 810, NSF, UL Listed, Georgia Made

Warranty

Three years parts and labor on the entire machine. Five years parts on the compressor and air-cooled condenser coil.
