Product Description

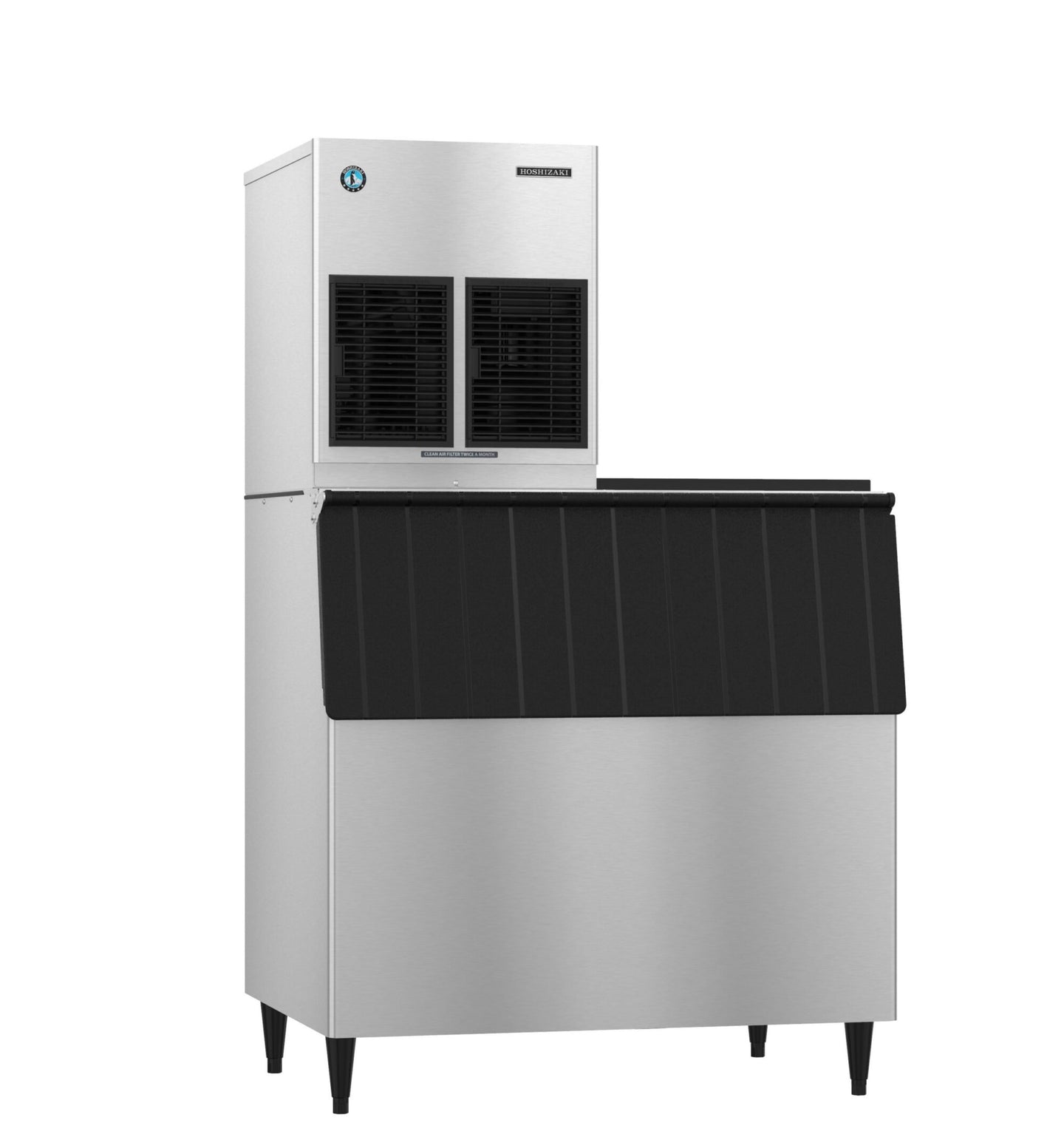

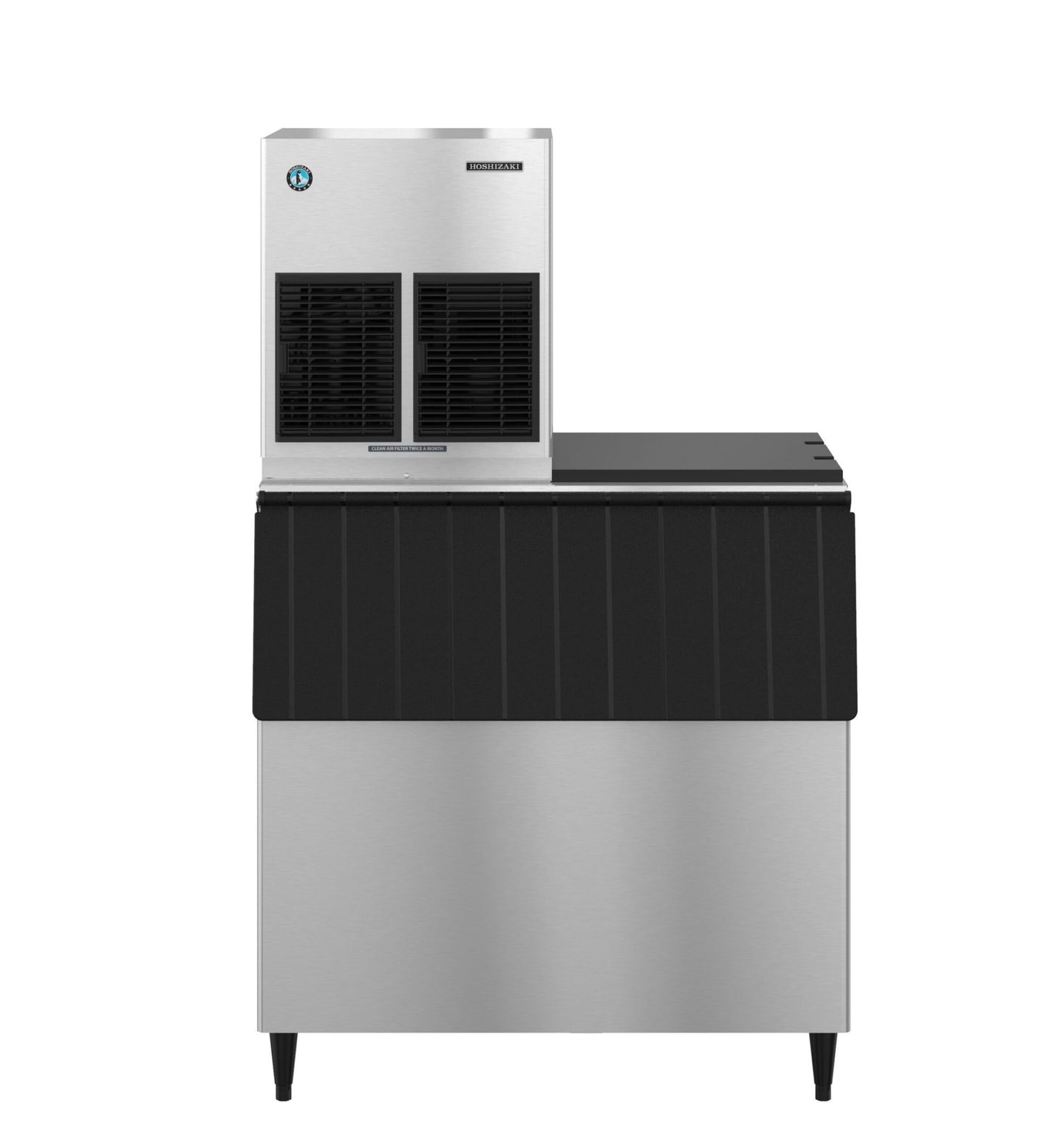

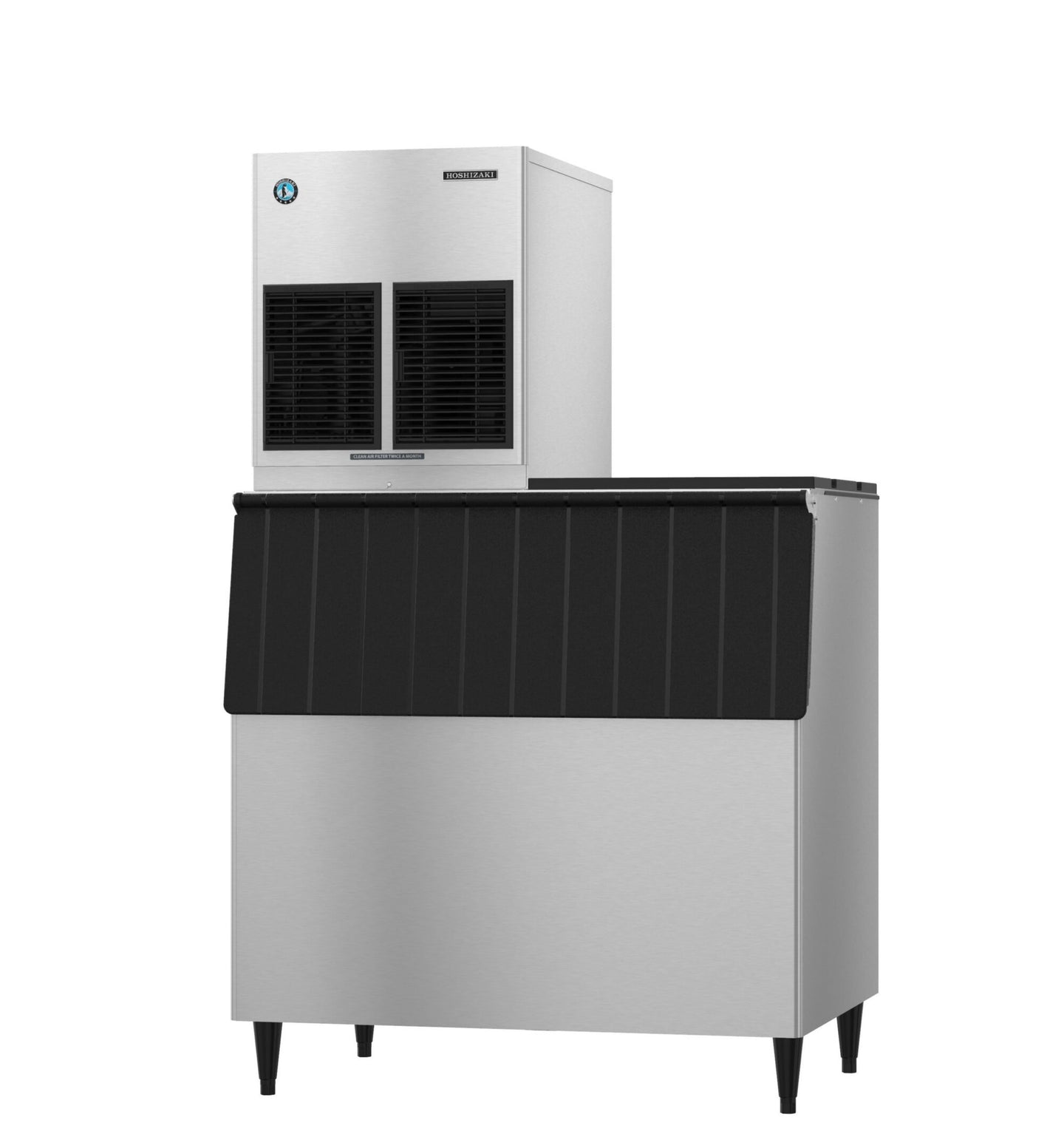

The F-1002MRJZ is a remote air-cooled modular flaker producing up to 907 lbs of flake ice per 24 hours from a 22 inch wide head. It replaces the earlier F-1002MRJ in Hoshizaki's line and pairs with a URC-series remote condensing unit mounted outside.

Remote Cooling and Noise

Moving the condenser outdoors takes the compressor noise and the rejected heat out of the room entirely. In a bar back, a kitchen already fighting its ventilation, or any space where the machine sits near guests, that is usually the deciding factor rather than efficiency. Rated consumption is 4.51 kWh per 100 lbs at 90/70.

Flake Ice for Display and Chilling

Flake ice packs tight around irregular shapes and exchanges heat quickly, which is why it dominates fresh fish counters, buffet and salad bar wells and produce misting displays. It also handles therapeutic and processing uses where a hard cube would damage product.

Advanced CleanCycle24 and Greaseless Auger

The machine runs an automatic cleaning cycle and uses a greaseless bearing auger. On auger flakers the bearing is the wear item that dictates the service interval, and a greaseless design removes a lubrication step from routine maintenance.

Specifications

Model F-1002MRJZ
Ice type Flake
Ice production Up to 907 lbs. per 24 hours
Condenser Remote air-cooled
Configuration Modular, bin sold separately (B-250 through B-1650SS)
Exterior dimensions 22" W x 27-3/8" D x 25-15/16" H
Shipping weight 210 lbs.
Electrical 115v / 60 / 1, 3-wire including ground, 15.23 amps, 20A max fuse
Connection Hardwired at site, no cord or plug included
Refrigerant R-404A, 2 lbs. 3.3 oz. (1001 g)
Energy consumption 4.51 kWh per 100 lbs. at 90/70
Water consumption 12 gal. potable water per 100 lbs. at 90/70
Certifications AHRI Standard 810, NSF, UL Listed, Georgia Made

Warranty

Three years parts and labor on the entire machine. Five years parts on the compressor and air-cooled condenser coil.
