Product Description

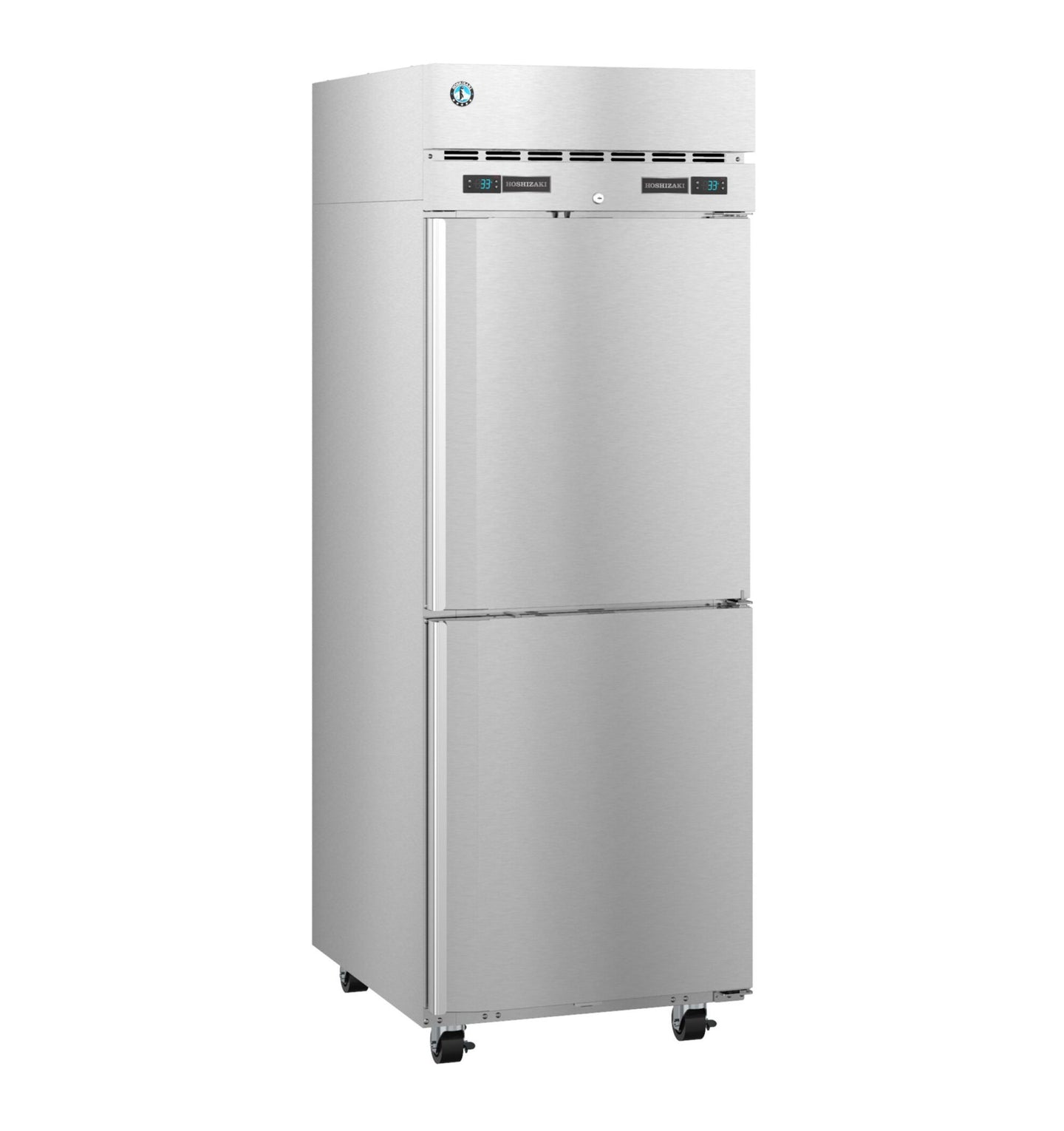

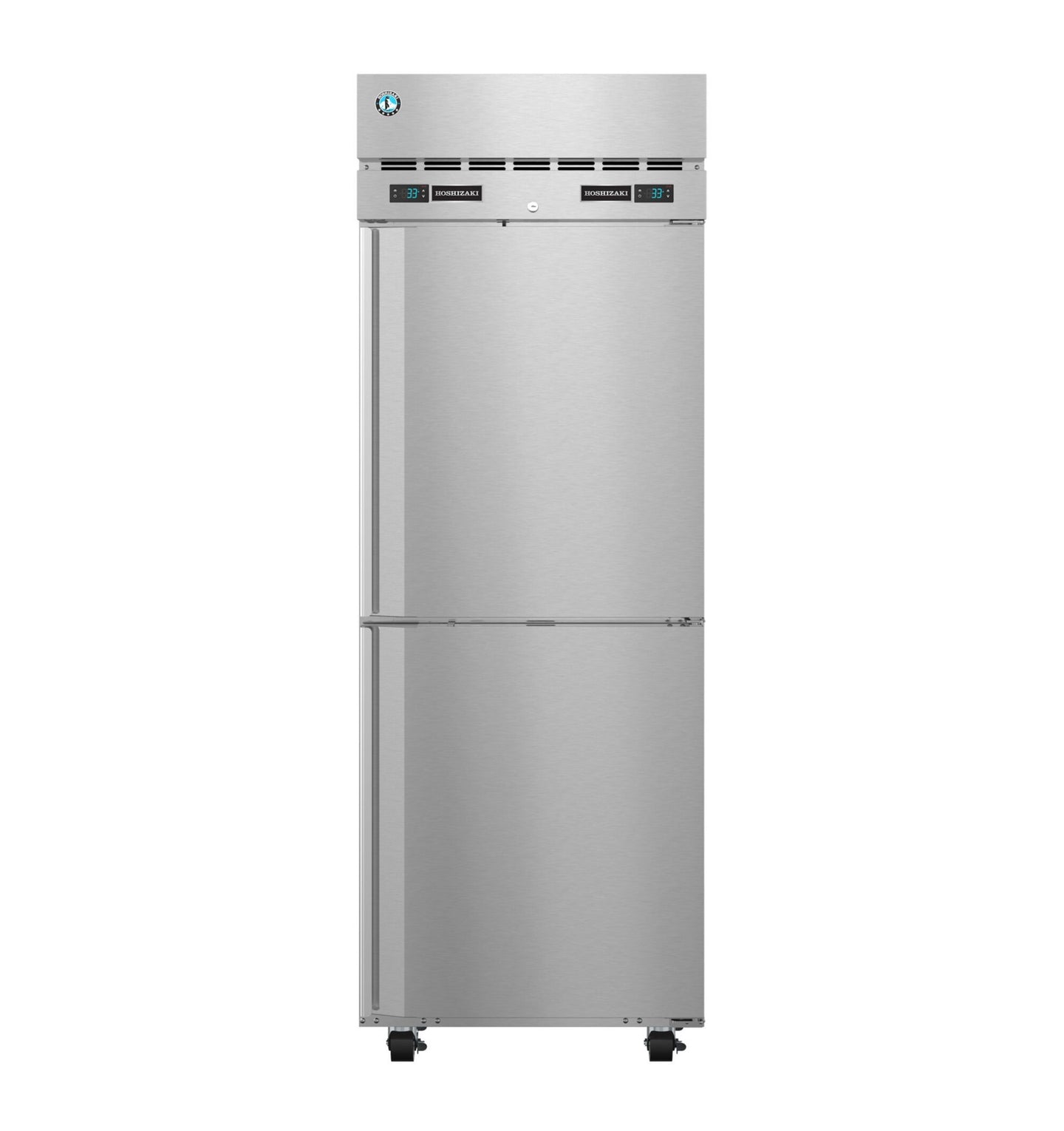

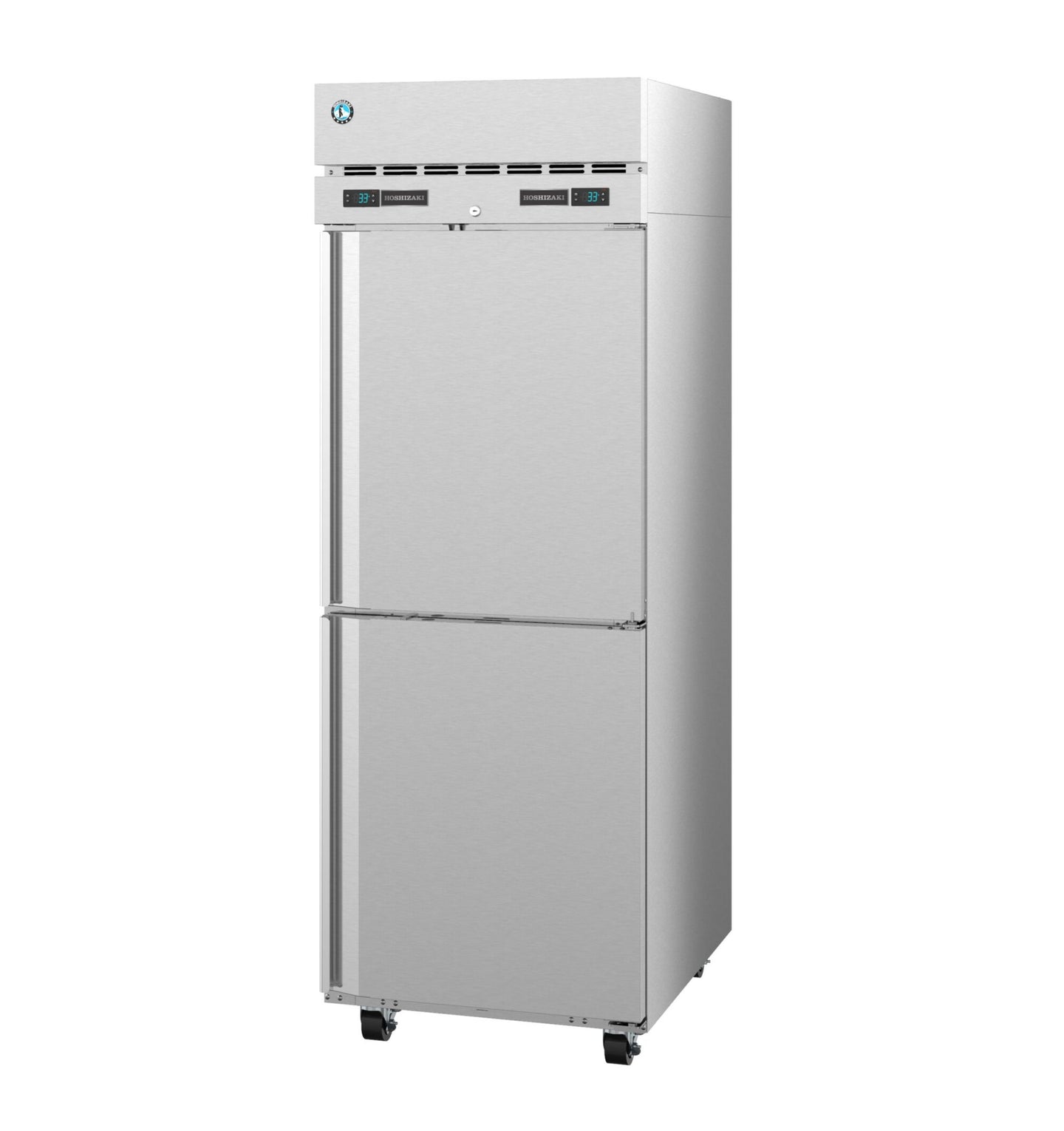

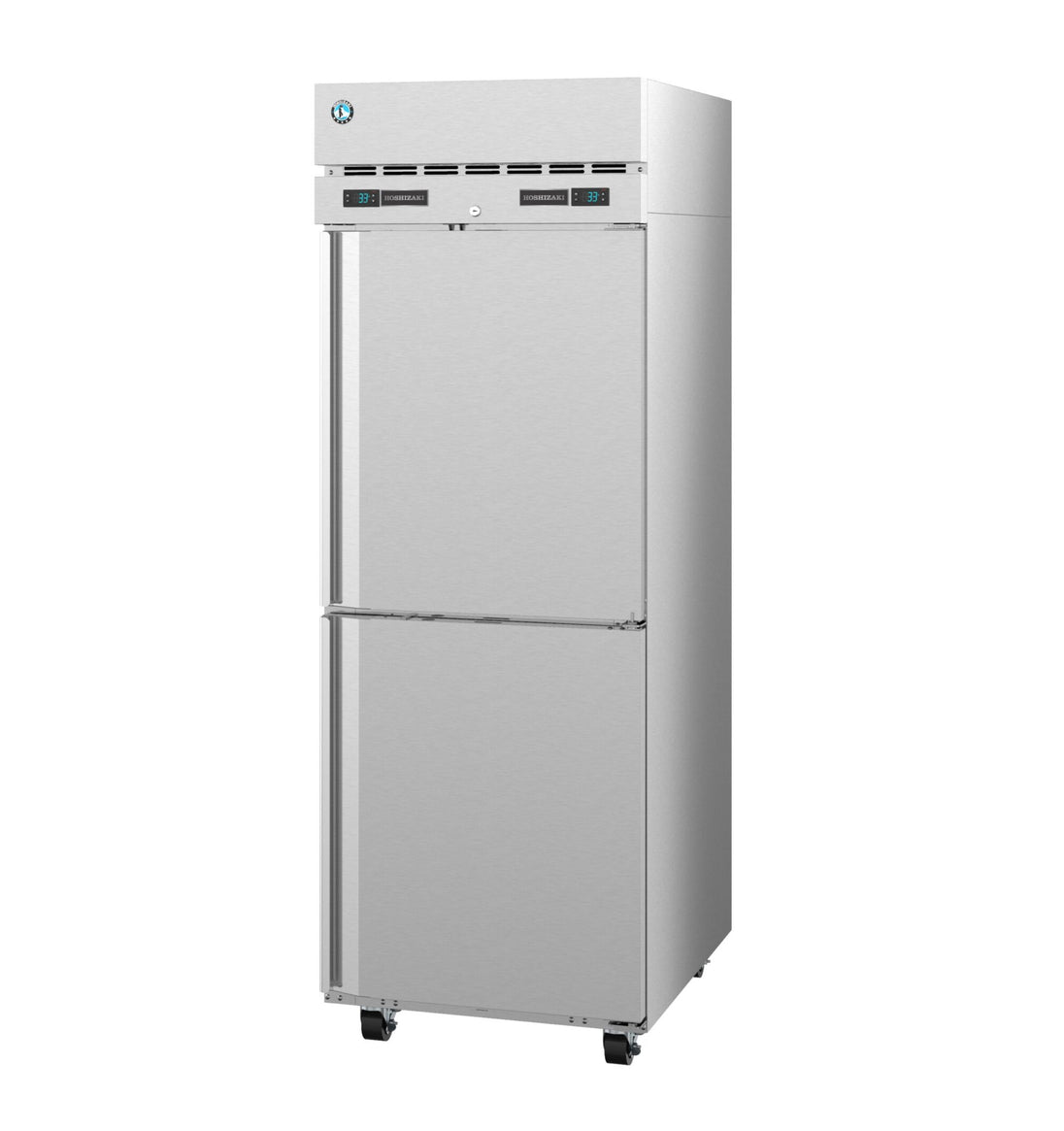

The Hoshizaki DT1A-HS puts a refrigerator and a freezer into one 27.5-inch Steelheart Series cabinet, each behind its own half-height stainless steel door with a lock. The refrigerated section holds 10.19 cubic feet and the freezer section 10.9 cubic feet, which makes this the unit to specify when the kitchen needs both and has floor space for only one.

One footprint, two temperatures

Two independently controlled compartments share a single 27.5-inch wide cabinet. Rather than pushing a small undercounter freezer next to an upright cooler, the DT1A-HS stacks both in the same 79.5-inch tall frame — a real difference in tight prep areas, bar backs and satellite kitchens where every inch of wall is spoken for.

Locking half doors

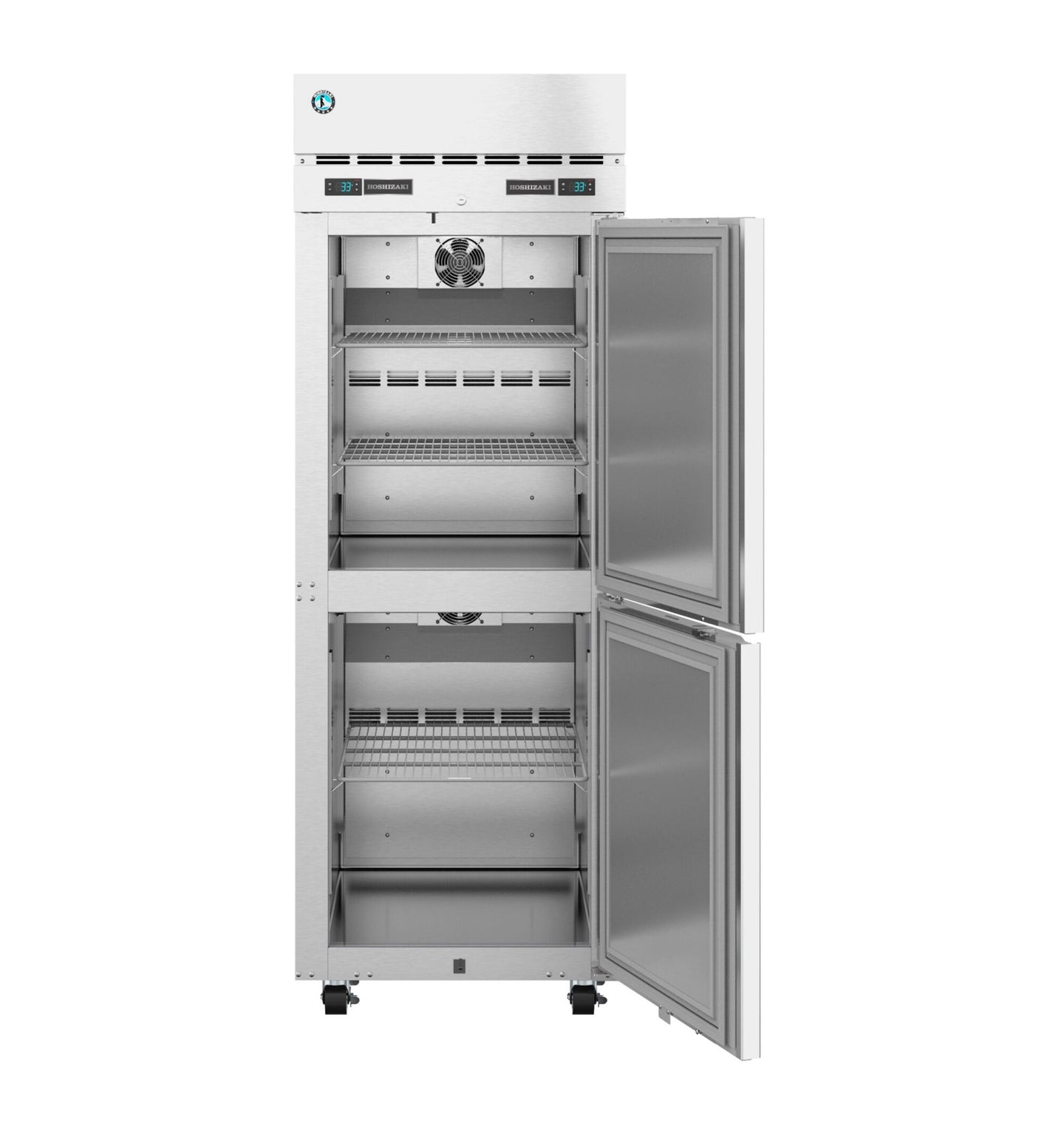

Each compartment gets its own half door, so opening the cooler never warms the freezer. Both doors lock, which matters in shared kitchens, commissaries and any operation where high-value product needs to be secured overnight.

Natural refrigerant, standard outlet

The R-290 hydrocarbon system runs on a standard 115V circuit drawing 5.5 amps through a NEMA 5-15P plug on a 10-foot cord, with rated consumption of 4.49 kWh per day for both compartments combined.

Specifications

Model DT1A-HS
Series Steelheart
Configuration Single section, dual temp, half stainless doors with lock
Refrigerator Capacity 10.19 cu. ft.
Freezer Capacity 10.9 cu. ft.
Exterior Dimensions 27.5" W x 35" D x 79.5" H
Shipping Weight 415 lbs
Crate Dimensions 36" L x 31.5" D x 81" H
Electrical 115V/60/1, 5.5 amps
Cord and Plug 10 ft. cord, NEMA 5-15P
Refrigerant R-290
Energy Consumption 4.49 kWh/day
Certifications ETL Safety Listed (US & C), ETL Sanitation Listed, Georgia Made Certified

Warranty

Hoshizaki covers the DT1A-HS with 7 years parts, 7 years labor, and 7 years on the compressor.
