Product Description

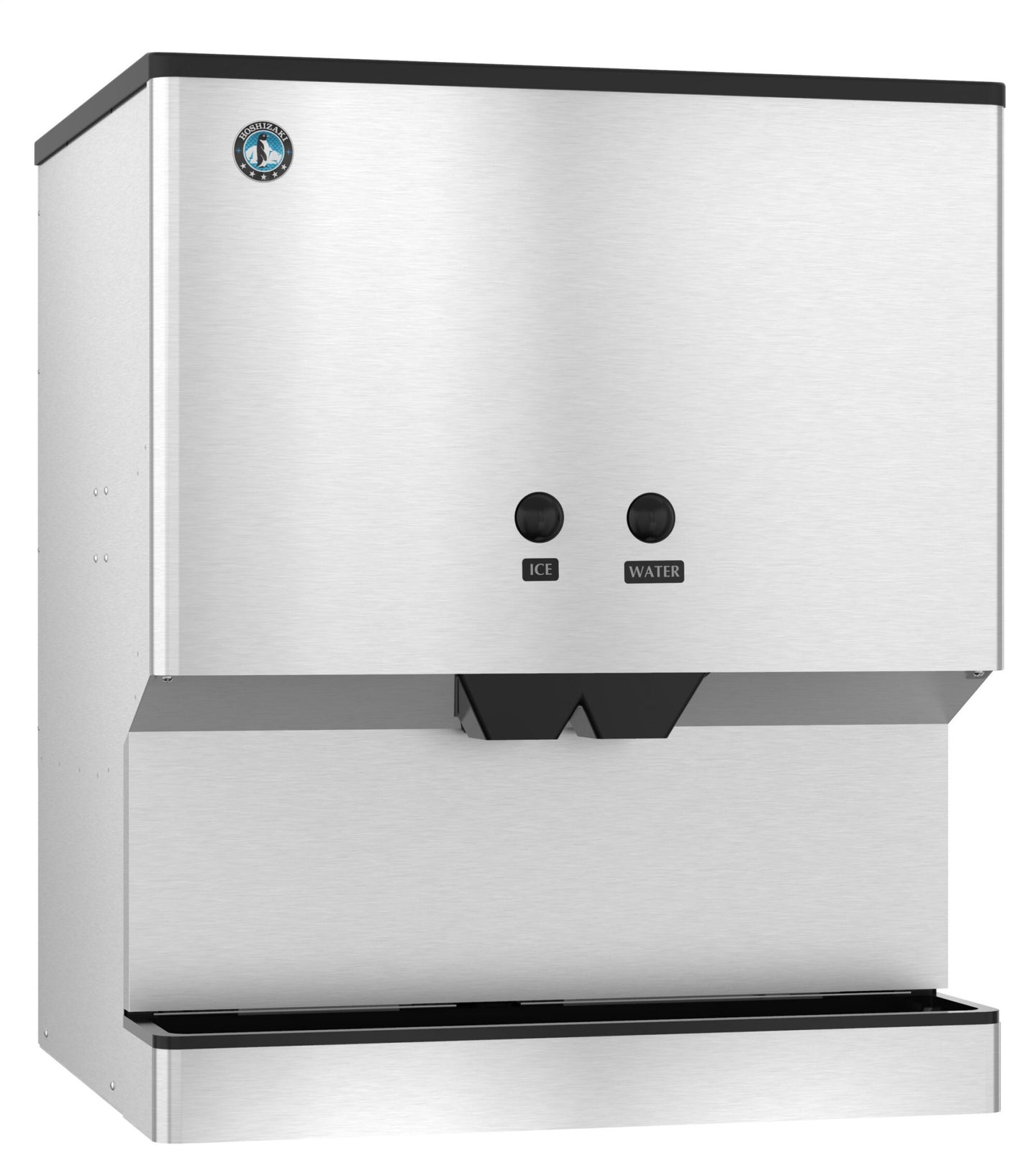

The Hoshizaki DM-200B is a 30 inch ice and water dispenser holding 200 lb of ice in a cabinet only 36-3/8 inches tall, low enough to sit on a counter or a stand rather than standing on the floor. It suits high-volume institutions, hotel service areas and hospitality outlets where the dispensing point has to be at working height.

Crescent cube only

This dispenser is built for crescent cube ice and pairs with Hoshizaki's crescent cube machines. That matters when specifying: a cubelet or nugget machine will not feed it correctly, and the dispensing mechanism is designed around the crescent's shape. Confirm your ice source is a crescent cuber before ordering.

Dispensed rather than scooped

The 200 lb reservoir sits behind a seamless liner with foamed-in-place polyurethane insulation, and ice is delivered at 7.5 lb per minute into whatever container is presented. Nobody reaches into the ice, which is the difference between a dispensing point that passes a health inspection and an open bin in a public area.

Counter-height installation

At 36-3/8 inches tall the DM-200B is roughly counter height, so it can sit on a stand or a base cabinet with the ice machine above it and still put the dispense point where a person is standing. It is cord-connected on a NEMA 5-15P plug with an 8 ft cord, drawing 1.4 amps on a 15A circuit.

Specifications

Model DM-200B
Ice type Crescent cube
Ice storage capacity 200 lb (5.72 cu ft)
Dispensing rate 7.5 lb per minute
Exterior dimensions 30" W x 28" D x 36-3/8" H
Electrical 115V/60/1, 1.4 amps, 15A max fuse/HACR breaker, NEMA 5-15P plug, 8 ft cord
Exterior Stainless steel
Unit weight 240 lb
Shipping weight 210 lb
Certifications UL Listed, ETL Sanitation Listed, Georgia Made Certified

Warranty

Three years parts and labor on the entire machine.
